28.1.15. Raster analysis

28.1.15.1. Cell stack percent rank from value

Calculates the cell-wise percentrank value of a stack of rasters based on a single input value and writes them to an output raster.

At each cell location, the specified value is ranked among the respective values in the stack of all overlaid and sorted cell values from the input rasters. For values outside of the stack value distribution, the algorithm returns NoData because the value cannot be ranked among the cell values.

There are two methods for percentile calculation:

  • Inclusive linear interpolation (PERCENTRANK.INC)

  • Exclusive linear interpolation (PERCENTRANK.EXC)

The linear interpolation methods return the unique percent rank for different values. Both interpolation methods follow their counterpart methods implemented by LibreOffice or Microsoft Excel.

The output raster’s extent and resolution is defined by a reference raster. Input raster layers that do not match the cell size of the reference raster layer will be resampled using nearest neighbor resampling. NoData values in any of the input layers will result in a NoData cell output if the “Ignore NoData values” parameter is not set. The output raster data type will always be Float32.

../../../../_images/percentrankfromvalue.png

Fig. 28.19 Percent ranking Value = 1. NoData cells (grey) are ignored.

Parameters

Basic parameters

Label

Name

Type

Description

Input layers

INPUT

[raster] [list]

Raster layers to evaluate. If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters

Method

METHOD

[enumeration]

Default: 0

Method for percentile calculation:

  • 0 — Inclusive linear interpolation (PERCENTRANK.INC)

  • 1 — Exclusive linear interpolation (PERCENTRANK.EXC)

Value

VALUE

[number]

Default: 10.0

Value to rank among the respective values in the stack of all overlaid and sorted cell values from the input rasters

Ignore NoData values

IGNORE_NODATA

[boolean]

Default: True

If unchecked, any NoData cells in the input layers will result in a NoData cell in the output raster

Reference layer

REFERENCE_LAYER

[raster]

The reference layer for the output layer creation (extent, CRS, pixel dimensions)

Output layer

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

OUTPUT_NODATA_VALUE

[number]

Default: -9999.0

Value to use for NoData in the output layer

Outputs

Label

Name

Type

Description

Output layer

OUTPUT

[raster]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[string]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Python code

Algorithm ID: native:cellstackpercentrankfromvalue

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.2. Cell stack percentile

Calculates the cell-wise percentile value of a stack of rasters and writes the results to an output raster. The percentile to return is determined by the percentile input value (ranges between 0 and 1). At each cell location, the specified percentile is obtained using the respective value from the stack of all overlaid and sorted cell values of the input rasters.

There are three methods for percentile calculation:

  • Nearest rank: returns the value that is nearest to the specified percentile

  • Inclusive linear interpolation (PERCENTRANK.INC)

  • Exclusive linear interpolation (PERCENTRANK.EXC)

The linear interpolation methods return the unique values for different percentiles. Both interpolation methods follow their counterpart methods implemented by LibreOffice or Microsoft Excel.

The output raster’s extent and resolution is defined by a reference raster. Input raster layers that do not match the cell size of the reference raster layer will be resampled using nearest neighbor resampling. NoData values in any of the input layers will result in a NoData cell output if the “Ignore NoData values” parameter is not set. The output raster data type will always be Float32.

../../../../_images/percentile.png

Fig. 28.20 Percentile = 0.25. NoData cells (grey) are ignored.

Parameters

Basic parameters

Label

Name

Type

Description

Input layers

INPUT

[raster] [list]

Raster layers to evaluate. If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters

Method

METHOD

[enumeration]

Default: 0

Method for percentile calculation:

  • 0 — Nearest rank: returns the value that is nearest to the specified percentile

  • 1 — Inclusive linear interpolation (PERCENTILE.INC)

  • 2 — Exclusive linear interpolation (PERCENTILE.EXC)

Percentile

VALUE

[number]

Default: 0.25

Value to rank among the respective values in the stack of all overlaid and sorted cell values from the input rasters. Between 0 and 1.

Ignore NoData values

IGNORE_NODATA

[boolean]

Default: True

If unchecked, any NoData cells in the input layers will result in a NoData cell in the output raster

Reference layer

REFERENCE_LAYER

[raster]

The reference layer for the output layer creation (extent, CRS, pixel dimensions)

Output layer

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

OUTPUT_NODATA_VALUE

[number]

Default: -9999.0

Value to use for NoData in the output layer

Outputs

Label

Name

Type

Description

Output layer

OUTPUT

[raster]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[string]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Python code

Algorithm ID: native:cellstackpercentile

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.3. Cell stack percentrank from raster layer

Calculates the cell-wise percentrank value of a stack of rasters based on an input value raster and writes them to an output raster.

At each cell location, the current value of the value raster is ranked among the respective values in the stack of all overlaid and sorted cell values of the input rasters. For values outside of the the stack value distribution, the algorithm returns NoData because the value cannot be ranked among the cell values.

There are two methods for percentile calculation:

  • Inclusive linear interpolation (PERCENTRANK.INC)

  • Exclusive linear interpolation (PERCENTRANK.EXC)

The linear interpolation methods return the unique values for different percentiles. Both interpolation methods follow their counterpart methods implemented by LibreOffice or Microsoft Excel.

The output raster’s extent and resolution is defined by a reference raster. Input raster layers that do not match the cell size of the reference raster layer will be resampled using nearest neighbor resampling. NoData values in any of the input layers will result in a NoData cell output if the “Ignore NoData values” parameter is not set. The output raster data type will always be Float32.

../../../../_images/percentrankfromrasterlayer.png

Fig. 28.21 Ranking the value raster layer cells. NoData cells (grey) are ignored.

Parameters

Basic parameters

Label

Name

Type

Description

Input layers

INPUT

[raster] [list]

Raster layers to evaluate. If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters

Value raster layer

INPUT_VALUE_RASTER

[raster]

The layer to rank the values among the stack of all overlaid layers

Value raster band

VALUE_RASTER_BAND

[integer]

Default: 1

Band of the “value raster layer” to compare to

Method

METHOD

[enumeration]

Default: 0

Method for percentile calculation:

  • 0 — Inclusive linear interpolation (PERCENTRANK.INC)

  • 1 — Exclusive linear interpolation (PERCENTRANK.EXC)

Ignore NoData values

IGNORE_NODATA

[boolean]

Default: True

If unchecked, any NoData cells in the input layers will result in a NoData cell in the output raster

Reference layer

REFERENCE_LAYER

[raster]

The reference layer for the output layer creation (extent, CRS, pixel dimensions)

Output layer

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

OUTPUT_NODATA_VALUE

[number]

Default: -9999.0

Value to use for NoData in the output layer

Outputs

Label

Name

Type

Description

Output layer

OUTPUT

[raster]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[string]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Python code

Algorithm ID: native:cellstackpercentrankfromrasterlayer

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.4. Cell statistics

Computes per-cell statistics based on input raster layers and for each cell writes the resulting statistics to an output raster. At each cell location, the output value is defined as a function of all overlaid cell values of the input rasters.

By default, a NoData cell in ANY of the input layers will result in a NoData cell in the output raster. If the Ignore NoData values option is checked, then NoData inputs will be ignored in the statistic calculation. This may result in NoData output for locations where all cells are NoData.

The Reference layer parameter specifies an existing raster layer to use as a reference when creating the output raster. The output raster will have the same extent, CRS, and pixel dimensions as this layer.

Calculation details: Input raster layers that do not match the cell size of the reference raster layer will be resampled using nearest neighbor resampling. The output raster data type will be set to the most complex data type present in the input datasets except when using the functions Mean, Standard deviation and Variance (data type is always Float32 or Float64 depending on input float type) or Count and Variety (data type is always Int32).

  • Count: The count statistic will always result in the number of cells without NoData values at the current cell location.

  • Median: If the number of input layers is even, the median will be calculated as the arithmetic mean of the two middle values of the ordered cell input values.

  • Minority/Majority: If no unique minority or majority could be found, the result is NoData, except all input cell values are equal.

../../../../_images/cell_statistics_all_stats.png

Fig. 28.22 Example with all the statistic functions. NoData cells (grey) are taken into account.

Parameters

Basic parameters

Label

Name

Type

Description

Input layers

INPUT

[raster] [list]

Input raster layers

Statistic

STATISTIC

[enumeration]

Default: 0

Available statistics. Options:

  • 0 — Sum

  • 1 — Count

  • 2 — Mean

  • 3 — Median

  • 4 — Standard deviation

  • 5 — Variance

  • 6 — Minimum

  • 7 — Maximum

  • 8 — Minority (least common value)

  • 9 — Majority (most common value)

  • 10 — Range (max - min)

  • 11 — Variety (unique value count)

Ignore NoData values

IGNORE_NODATA

[boolean]

Default: True

Calculate statistics also for all cells stacks, ignoring NoData occurrence.

Reference layer

REF_LAYER

[raster]

The reference layer to create the output layer from (extent, CRS, pixel dimensions)

Output layer

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

Optional

OUTPUT_NO_DATA_VALUE

[number]

Default: -9999.0

Value to use for NoData in the output layer

Outputs

Label

Name

Type

Description

CRS authority identifier

CRS_AUTHID

[crs]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Output raster

OUTPUT

[raster]

Output raster layer containing the result

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Python code

Algorithm ID: native:cellstatistics

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.5. Equal to frequency

Evaluates on a cell-by-cell basis the frequency (number of times) the values of an input stack of rasters are equal to the value of a value layer. The output raster extent and resolution are defined by the input raster layer and is always of Int32 type.

If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters - use GDAL to use other bands in the analysis. The output NoData value can be set manually.

../../../../_images/equaltofrequency.png

Fig. 28.23 For each cell in the output raster, the value represents the number of times that the corresponding cells in the list of rasters are the same as the value raster. NoData cells (grey) are taken into account.

Parameters

Basic parameters

Label

Name

Type

Description

Input value raster

INPUT_VALUE_RASTER

[raster]

The input value layer serves as reference layer for the sample layers

Value raster band

INPUT_VALUE_RASTER_BAND

[raster band]

Default: The first band of the raster layer

Select the band you want to use as sample

Input raster layers

INPUT_RASTERS

[raster] [list]

Raster layers to evaluate. If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters

Ignore NoData values

IGNORE_NODATA

[boolean]

Default: False

If unchecked, any NoData cells in the value raster or the data layer stack will result in a NoData cell in the output raster

Output layer

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

Optional

OUTPUT_NO_DATA_VALUE

[number]

Default: -9999.0

Value to use for NoData in the output layer

Outputs

Label

Name

Type

Description

Output layer

OUTPUT

[raster]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[string]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Count of cells with equal value occurrences

FOUND_LOCATIONS_COUNT

[number]

Height in pixels

HEIGHT_IN_PIXELS

[number]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Mean frequency at valid cell locations

MEAN_FREQUENCY_PER_LOCATION

[number]

Count of value occurrences

OCCURRENCE_COUNT

[number]

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Python code

Algorithm ID: native:equaltofrequency

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.6. Fuzzify raster (gaussian membership)

Transforms an input raster to a fuzzified raster by assigning a membership value to each pixel, using a Gaussian membership function. Membership values range from 0 to 1. In the fuzzified raster, a value of 0 implies no membership of the defined fuzzy set, whereas a value of 1 means full membership. The gaussian membership function is defined as gaussian_formula, where f1 is the spread and f2 the midpoint.

../../../../_images/gaussianimage.png

Fig. 28.24 Fuzzify raster example. Input raster source: Land Tirol - data.tirol.gv.at.

Parameters

Label

Name

Type

Description

Input Raster

INPUT

[raster]

Input raster layer

Band Number

BAND

[raster band]

Default: The first band of the raster layer

If the raster is multiband, choose the band that you want to fuzzify.

Function midpoint

FUZZYMIDPOINT

[number]

Default: 10

Midpoint of the gaussian function

Function spread

FUZZYSPREAD

[number]

Default: 0.01

Spread of the gaussian function

Fuzzified raster

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Outputs

Label

Name

Type

Description

Fuzzified raster

OUTPUT

[same as input]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[crs]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Python code

Algorithm ID: native:fuzzifyrastergaussianmembership

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

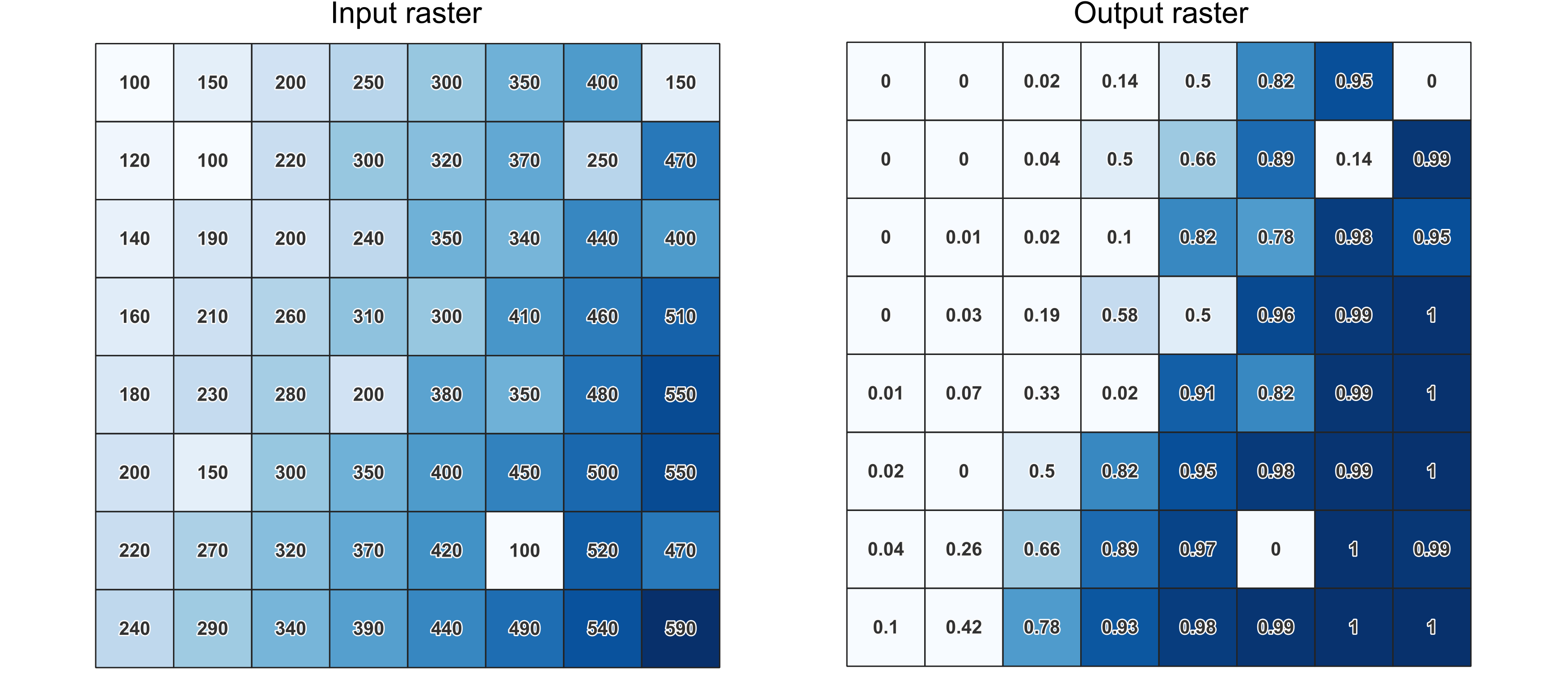

28.1.15.7. Fuzzify raster (large membership)

Transforms an input raster to a fuzzified raster by assigning a membership value to each pixel, using a Large membership function. Membership values range from 0 to 1. In the fuzzified raster, a value of 0 implies no membership of the defined fuzzy set, whereas a value of 1 means full membership. The large membership function is defined as fuzzy_large_formula, where f1 is the spread and f2 the midpoint.

Parameters

Label

Name

Type

Description

Input Raster

INPUT

[raster]

Input raster layer

Band Number

BAND

[raster band]

Default: The first band of the raster layer

If the raster is multiband, choose the band that you want to fuzzify.

Function midpoint

FUZZYMIDPOINT

[number]

Default: 50

Midpoint of the large function

Function spread

FUZZYSPREAD

[number]

Default: 5

Spread of the large function

Fuzzified raster

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Outputs

Label

Name

Type

Description

Fuzzified raster

OUTPUT

[same as input]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[crs]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Python code

Algorithm ID: native:fuzzifyrasterlargemembership

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

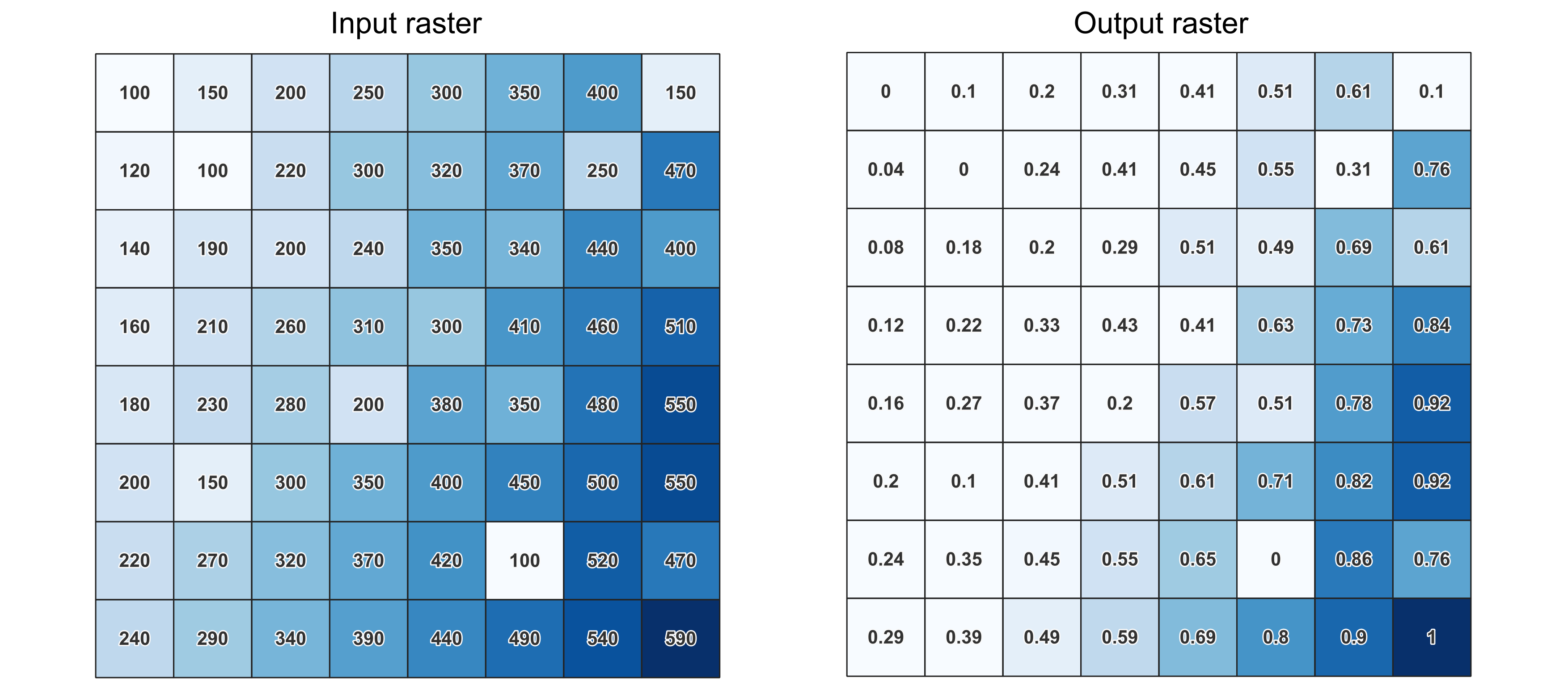

28.1.15.8. Fuzzify raster (linear membership)

Transforms an input raster to a fuzzified raster by assigning a membership value to each pixel, using a Linear membership function. Membership values range from 0 to 1. In the fuzzified raster, a value of 0 implies no membership of the defined fuzzy set, whereas a value of 1 means full membership. The linear function is defined as fuzzy_linear_formula, where a is the low bound and b the high bound. This equation assigns membership values using a linear transformation for pixel values between the low and high bounds. Pixels values smaller than the low bound are given 0 membership whereas pixel values greater than the high bound are given 1 membership.

Parameters

Label

Name

Type

Description

Input Raster

INPUT

[raster]

Input raster layer

Band Number

BAND

[raster band]

Default: The first band of the raster layer

If the raster is multiband, choose the band that you want to fuzzify.

Low fuzzy membership bound

FUZZYLOWBOUND

[number]

Default: 0

Low bound of the linear function

High fuzzy membership bound

FUZZYHIGHBOUND

[number]

Default: 1

High bound of the linear function

Fuzzified raster

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Outputs

Label

Name

Type

Description

Fuzzified raster

OUTPUT

[same as input]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[crs]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Python code

Algorithm ID: native:fuzzifyrasterlinearmembership

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

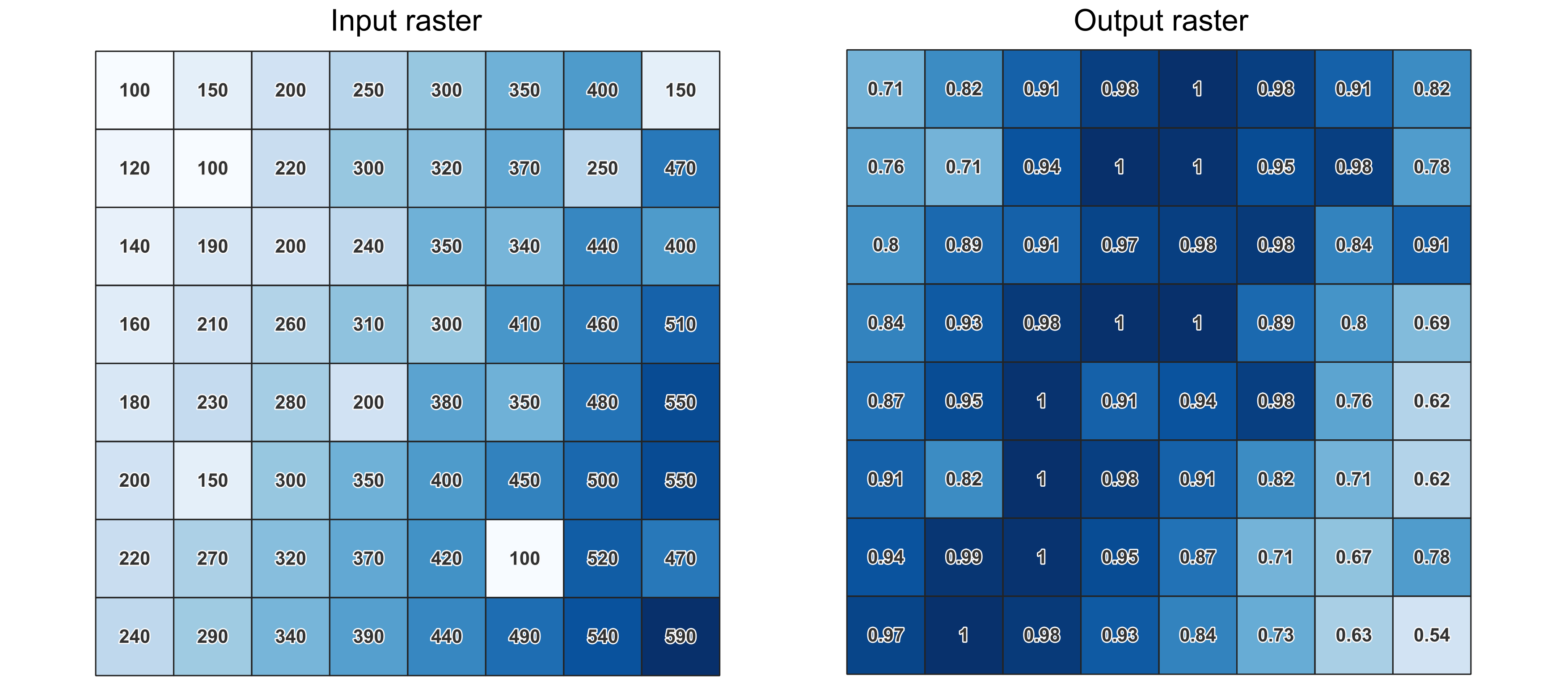

28.1.15.9. Fuzzify raster (near membership)

Transforms an input raster to a fuzzified raster by assigning a membership value to each pixel, using a Near membership function. Membership values range from 0 to 1. In the fuzzified raster, a value of 0 implies no membership of the defined fuzzy set, whereas a value of 1 means full membership. The near membership function is defined as near_formula, where f1 is the spread and f2 the midpoint.

Parameters

Label

Name

Type

Description

Input Raster

INPUT

[raster]

Input raster layer

Band Number

BAND

[raster band]

Default: The first band of the raster layer

If the raster is multiband, choose the band that you want to fuzzify.

Function midpoint

FUZZYMIDPOINT

[number]

Default: 50

Midpoint of the near function

Function spread

FUZZYSPREAD

[number]

Default: 0.01

Spread of the near function

Fuzzified raster

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Outputs

Label

Name

Type

Description

Fuzzified raster

OUTPUT

[same as input]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[crs]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Python code

Algorithm ID: native:fuzzifyrasternearmembership

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

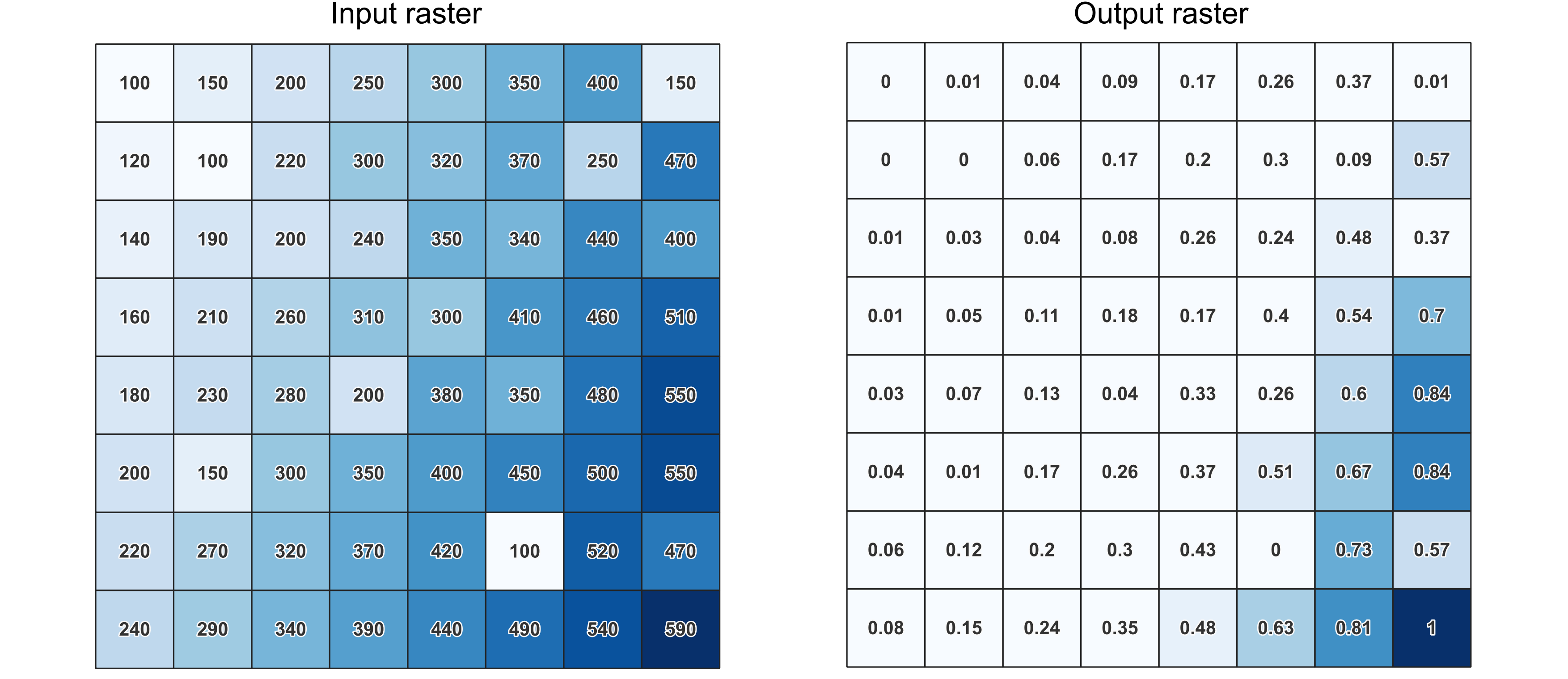

28.1.15.10. Fuzzify raster (power membership)

Transforms an input raster to a fuzzified raster by assigning a membership value to each pixel, using a Power membership function. Membership values range from 0 to 1. In the fuzzified raster, a value of 0 implies no membership of the defined fuzzy set, whereas a value of 1 means full membership. The power function is defined as power_formula, where a is the low bound, b is the high bound, and f1 the exponent. This equation assigns membership values using the power transformation for pixel values between the low and high bounds. Pixels values smaller than the low bound are given 0 membership whereas pixel values greater than the high bound are given 1 membership.

Parameters

Label

Name

Type

Description

Input Raster

INPUT

[raster]

Input raster layer

Band Number

BAND

[raster band]

Default: The first band of the raster layer

If the raster is multiband, choose the band that you want to fuzzify.

Low fuzzy membership bound

FUZZYLOWBOUND

[number]

Default: 0

Low bound of the power function

High fuzzy membership bound

FUZZYHIGHBOUND

[number]

Default: 1

High bound of the power function

High fuzzy membership bound

FUZZYEXPONENT

[number]

Default: 2

Exponent of the power function

Fuzzified raster

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Outputs

Label

Name

Type

Description

Fuzzified raster

OUTPUT

[same as input]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[crs]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Python code

Algorithm ID: native:fuzzifyrasterpowermembership

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

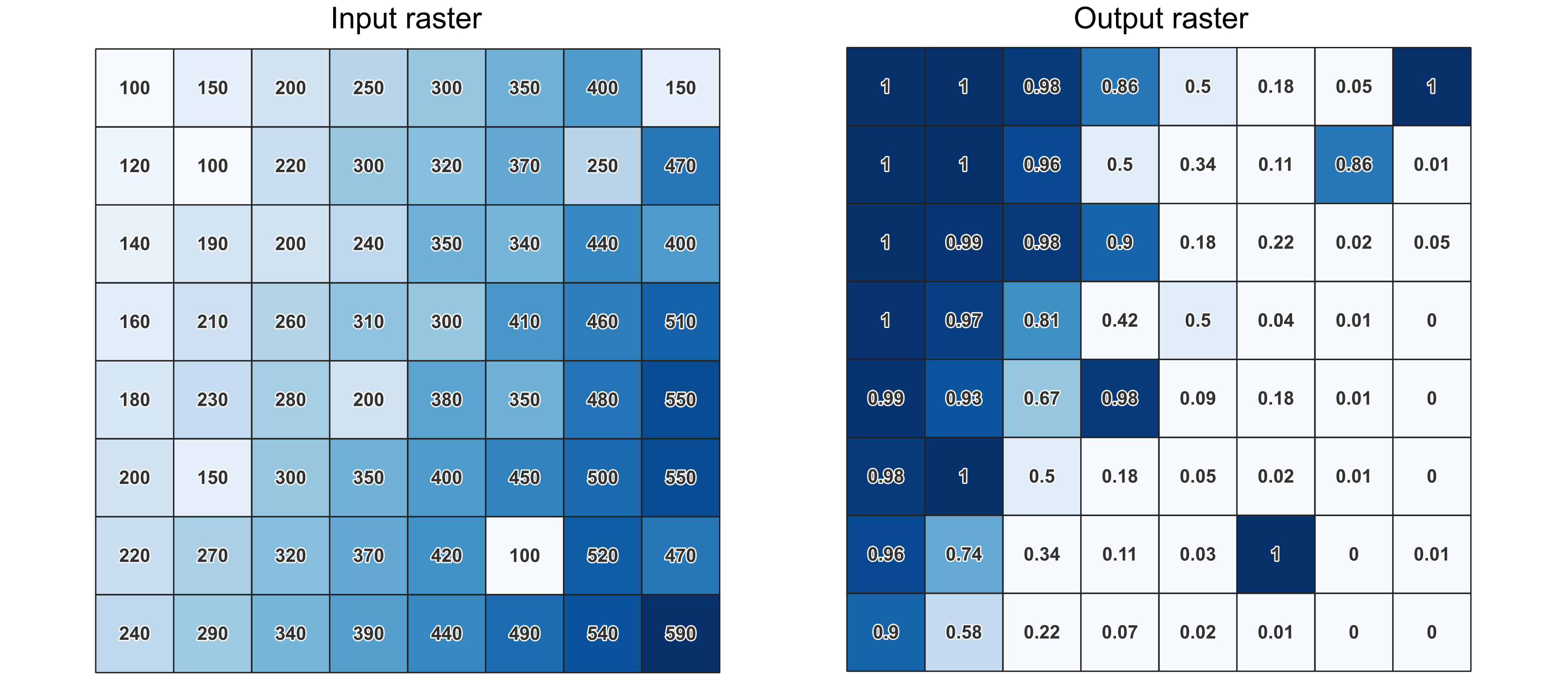

28.1.15.11. Fuzzify raster (small membership)

Transforms an input raster to a fuzzified raster by assigning a membership value to each pixel, using a Small membership function. Membership values range from 0 to 1. In the fuzzified raster, a value of 0 implies no membership of the defined fuzzy set, whereas a value of 1 means full membership. The small membership function is defined as small_formula, where f1 is the spread and f2 the midpoint.

Parameters

Label

Name

Type

Description

Input Raster

INPUT

[raster]

Input raster layer

Band Number

BAND

[raster band]

Default: The first band of the raster layer

If the raster is multiband, choose the band that you want to fuzzify.

Function midpoint

FUZZYMIDPOINT

[number]

Default: 50

Midpoint of the small function

Function spread

FUZZYSPREAD

[number]

Default: 5

Spread of the small function

Fuzzified raster

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Outputs

Label

Name

Type

Description

Fuzzified raster

OUTPUT

[same as input]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[crs]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Python code

Algorithm ID: native:fuzzifyrastersmallmembership

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.12. Greater than frequency

Evaluates on a cell-by-cell basis the frequency (number of times) the values of an input stack of rasters are equal to the value of a value raster. The output raster extent and resolution is defined by the input raster layer and is always of Int32 type.

If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters - use GDAL to use other bands in the analysis. The output NoData value can be set manually.

../../../../_images/greaterthanfrequency.png

Fig. 28.25 For each cell in the output raster, the value represents the number of times that the corresponding cells in the list of rasters are greater than the value raster. NoData cells (grey) are taken into account.

Parameters

Basic parameters

Label

Name

Type

Description

Input value raster

INPUT_VALUE_RASTER

[raster]

The input value layer serves as reference layer for the sample layers

Value raster band

INPUT_VALUE_RASTER_BAND

[raster band]

Default: The first band of the raster layer

Select the band you want to use as sample

Input raster layers

INPUT_RASTERS

[raster] [list]

Raster layers to evaluate. If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters

Ignore NoData values

IGNORE_NODATA

[boolean]

Default: False

If unchecked, any NoData cells in the value raster or the data layer stack will result in a NoData cell in the output raster

Output layer

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

Optional

OUTPUT_NO_DATA_VALUE

[number]

Default: -9999.0

Value to use for NoData in the output layer

Outputs

Label

Name

Type

Description

Output layer

OUTPUT

[raster]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[string]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Count of cells with equal value occurrences

FOUND_LOCATIONS_COUNT

[number]

Height in pixels

HEIGHT_IN_PIXELS

[number]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Mean frequency at valid cell locations

MEAN_FREQUENCY_PER_LOCATION

[number]

Count of value occurrences

OCCURRENCE_COUNT

[number]

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Python code

Algorithm ID: native:greaterthanfrequency

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.13. Highest position in raster stack

Evaluates on a cell-by-cell basis the position of the raster with the highest value in a stack of rasters. Position counts start with 1 and range to the total number of input rasters. The order of the input rasters is relevant for the algorithm. If multiple rasters feature the highest value, the first raster will be used for the position value.

If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters - use GDAL to use other bands in the analysis. Any NoData cells in the raster layer stack will result in a NoData cell in the output raster unless the “ignore NoData” parameter is checked. The output NoData value can be set manually. The output rasters extent and resolution is defined by a reference raster layer and is always of Int32 type.

../../../../_images/highestposition.png

Parameters

Basic parameters

Label

Name

Type

Description

Input raster layers

INPUT_RASTERS

[raster] [list]

List of raster layers to compare with

Reference layer

REFERENCE_LAYER

[raster]

The reference layer for the output layer creation (extent, CRS, pixel dimensions)

Ignore NoData values

IGNORE_NODATA

[boolean]

Default: False

If unchecked, any NoData cells in the data layer stack will result in a NoData cell in the output raster

Output layer

OUTPUT

[raster]

Default: [Save to temporary file]

Specification of the output raster containing the result. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

OUTPUT_NODATA_VALUE

[number]

Default: -9999.0

Value to use for NoData in the output layer

Outputs

Label

Name

Type

Description

Output layer

OUTPUT

[raster]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[string]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Python code

Algorithm ID: native:highestpositioninrasterstack

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.14. Less than frequency

Evaluates on a cell-by-cell basis the frequency (number of times) the values of an input stack of rasters are less than the value of a value raster. The output raster extent and resolution is defined by the input raster layer and is always of Int32 type.

If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters - use GDAL to use other bands in the analysis. The output NoData value can be set manually.

../../../../_images/lessthanfrequency.png

Fig. 28.26 For each cell in the output raster, the value represents the number of times that the corresponding cells in the list of rasters are less than the value raster. NoData cells (grey) are taken into account.

Parameters

Basic parameters

Label

Name

Type

Description

Input value raster

INPUT_VALUE_RASTER

[raster]

The input value layer serves as reference layer for the sample layers

Value raster band

INPUT_VALUE_RASTER_BAND

[raster band]

Default: The first band of the raster layer

Select the band you want to use as sample

Input raster layers

INPUT_RASTERS

[raster] [list]

Raster layers to evaluate. If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters

Ignore NoData values

IGNORE_NODATA

[boolean]

Default: False

If unchecked, any NoData cells in the value raster or the data layer stack will result in a NoData cell in the output raster

Output layer

OUTPUT

[same as input]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

Optional

OUTPUT_NO_DATA_VALUE

[number]

Default: -9999.0

Value to use for NoData in the output layer

Outputs

Label

Name

Type

Description

Output layer

OUTPUT

[raster]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[string]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Count of cells with equal value occurrences

FOUND_LOCATIONS_COUNT

[number]

Height in pixels

HEIGHT_IN_PIXELS

[number]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Mean frequency at valid cell locations

MEAN_FREQUENCY_PER_LOCATION

[number]

Count of value occurrences

OCCURRENCE_COUNT

[number]

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Python code

Algorithm ID: native:lessthanfrequency

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.15. Lowest position in raster stack

Evaluates on a cell-by-cell basis the position of the raster with the lowest value in a stack of rasters. Position counts start with 1 and range to the total number of input rasters. The order of the input rasters is relevant for the algorithm. If multiple rasters feature the lowest value, the first raster will be used for the position value.

If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters - use GDAL to use other bands in the analysis. Any NoData cells in the raster layer stack will result in a NoData cell in the output raster unless the “ignore NoData” parameter is checked. The output NoData value can be set manually. The output rasters extent and resolution is defined by a reference raster layer and is always of Int32 type.

../../../../_images/lowestposition.png

Parameters

Basic parameters

Label

Name

Type

Description

Input raster layers

INPUT_RASTERS

[raster] [list]

List of raster layers to compare with

Reference layer

REFERENCE_LAYER

[raster]

The reference layer for the output layer creation (extent, CRS, pixel dimensions)

Ignore NoData values

IGNORE_NODATA

[boolean]

Default: False

If unchecked, any NoData cells in the data layer stack will result in a NoData cell in the output raster

Output layer

OUTPUT

[raster]

Default: [Save to temporary file]

Specification of the output raster containing the result. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

OUTPUT_NODATA_VALUE

[number]

Default: -9999.0

Value to use for NoData in the output layer

Outputs

Label

Name

Type

Description

Output layer

OUTPUT

[raster]

Output raster layer containing the result

CRS authority identifier

CRS_AUTHID

[string]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Python code

Algorithm ID: native:lowestpositioninrasterstack

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.16. Raster boolean AND

Calculates the boolean AND for a set of input rasters. If all of the input rasters have a non-zero value for a pixel, that pixel will be set to 1 in the output raster. If any of the input rasters have 0 values for the pixel it will be set to 0 in the output raster.

The reference layer parameter specifies an existing raster layer to use as a reference when creating the output raster. The output raster will have the same extent, CRS, and pixel dimensions as this layer.

By default, a NoData pixel in ANY of the input layers will result in a NoData pixel in the output raster. If the Treat NoData values as false option is checked, then NoData inputs will be treated the same as a 0 input value.

Parameters

Basic parameters

Label

Name

Type

Description

Input layers

INPUT

[raster] [list]

List of input raster layers

Reference layer

REF_LAYER

[raster]

The reference layer to create the output layer from (extent, CRS, pixel dimensions)

Treat NoData values as false

NODATA_AS_FALSE

[boolean]

Default: False

Treat NoData values in the input files as 0 when performing the operation

Output layer

OUTPUT

[raster]

Default: [Save to temporary file]

Specification of the output raster containing the result. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

NO_DATA

[number]

Default: -9999.0

Value to use for NoData in the output layer

Output data type

DATA_TYPE

[enumeration]

Default: 5

Output raster data type. Options:

  • 0 — Byte (Eight bit unsigned integer (quint8))

  • 1 — Int16 (Sixteen bit signed integer (qint16))

  • 2 — UInt16 (Sixteen bit unsigned integer (quint16))

  • 3 — Int32 (Thirty two bit signed integer (qint32))

  • 4 — UInt32 (Thirty two bit unsigned integer (quint32))

  • 5 — Float32 (Thirty two bit floating point (float))

  • 6 — Float64 (Sixty four bit floating point (double))

  • 7 — CInt16 (Complex Int16)

  • 8 — CInt32 (Complex Int32)

  • 9 — CFloat32 (Complex Float32)

  • 10 — CFloat64 (Complex Float64)

  • 11 — Int8 (Eight bit signed integer (qint8))

Available options depend on the GDAL version built with QGIS (see Help ► About menu)

Outputs

Label

Name

Type

Description

Extent

EXTENT

[string]

The spatial extent of the output raster layer

CRS authority identifier

CRS_AUTHID

[crs]

The coordinate reference system of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

NoData pixel count

NODATA_PIXEL_COUNT

[integer]

The count of NoData pixels in the output raster layer

True pixel count

TRUE_PIXEL_COUNT

[integer]

The count of True pixels (value = 1) in the output raster layer

False pixel count

FALSE_PIXEL_COUNT

[integer]

The count of False pixels (value = 0) in the output raster layer

Output layer

OUTPUT

[raster]

Output raster layer containing the result

Python code

Algorithm ID: native:rasterbooleanand

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

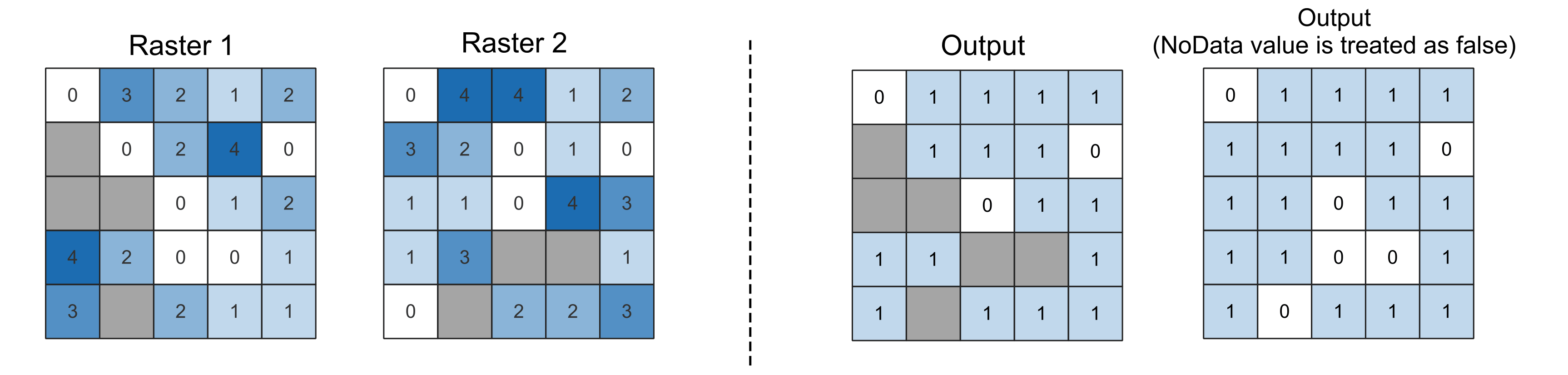

28.1.15.17. Raster boolean OR

Calculates the boolean OR for a set of input rasters. If all of the input rasters have a zero value for a pixel, that pixel will be set to 0 in the output raster. If any of the input rasters have 1 values for the pixel it will be set to 1 in the output raster.

The reference layer parameter specifies an existing raster layer to use as a reference when creating the output raster. The output raster will have the same extent, CRS, and pixel dimensions as this layer.

By default, a NoData pixel in ANY of the input layers will result in a NoData pixel in the output raster. If the Treat NoData values as false option is checked, then NoData inputs will be treated the same as a 0 input value.

Parameters

Basic parameters

Label

Name

Type

Description

Input layers

INPUT

[raster] [list]

List of input raster layers

Reference layer

REF_LAYER

[raster]

The reference layer to create the output layer from (extent, CRS, pixel dimensions)

Treat NoData values as false

NODATA_AS_FALSE

[boolean]

Default: False

Treat NoData values in the input files as 0 when performing the operation

Output layer

OUTPUT

[raster]

Default: [Save to temporary file]

Specification of the output raster containing the result. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

NO_DATA

[number]

Default: -9999.0

Value to use for NoData in the output layer

Output data type

DATA_TYPE

[enumeration]

Default: 5

Output raster data type. Options:

  • 0 — Byte (Eight bit unsigned integer (quint8))

  • 1 — Int16 (Sixteen bit signed integer (qint16))

  • 2 — UInt16 (Sixteen bit unsigned integer (quint16))

  • 3 — Int32 (Thirty two bit signed integer (qint32))

  • 4 — UInt32 (Thirty two bit unsigned integer (quint32))

  • 5 — Float32 (Thirty two bit floating point (float))

  • 6 — Float64 (Sixty four bit floating point (double))

  • 7 — CInt16 (Complex Int16)

  • 8 — CInt32 (Complex Int32)

  • 9 — CFloat32 (Complex Float32)

  • 10 — CFloat64 (Complex Float64)

  • 11 — Int8 (Eight bit signed integer (qint8))

Available options depend on the GDAL version built with QGIS (see Help ► About menu)

Outputs

Label

Name

Type

Description

Extent

EXTENT

[string]

The spatial extent of the output raster layer

CRS authority identifier

CRS_AUTHID

[crs]

The coordinate reference system of the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

NoData pixel count

NODATA_PIXEL_COUNT

[integer]

The count of NoData pixels in the output raster layer

True pixel count

TRUE_PIXEL_COUNT

[integer]

The count of True pixels (value = 1) in the output raster layer

False pixel count

FALSE_PIXEL_COUNT

[integer]

The count of False pixels (value = 0) in the output raster layer

Output layer

OUTPUT

[raster]

Output raster layer containing the result

Python code

Algorithm ID: native:rasterbooleanor

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.18. Raster calculator

Performs algebraic operations using raster layers.

The resulting layer will have its values computed according to an expression. The expression can contain numerical values, operators and references to any of the layers in the current project.

Parameters

Label

Name

Type

Description

Input layers

INPUT

[raster] [list]

List of input raster layers

Expression

EXPRESSION

[expression]

Raster-based expression that will be used to calculate the output raster layer.

Output extent

Optional

EXTENT

[extent]

Specify the spatial extent of the output raster layer. If the extent is not specified, the minimum extent that covers all the selected reference layers will be used.

Available methods are:

  • Calculate from layer…: uses extent of a layer loaded in the current project

  • Calculate from layout map…: uses extent of a layout map item in the active project

  • Calculate from bookmark…: uses extent of a saved bookmark

  • Use map canvas extent

  • Draw on canvas: click and drag a rectangle delimiting the area to take into account

  • Enter the coordinates as xmin, xmax, ymin, ymax

Output cell size (leave empty to set automatically)

Optional

CELLSIZE

[number]

Cell size of the output raster layer. If the cell size is not specified, the minimum cell size of the selected reference layer(s) will be used. The cell size will be the same for the X and Y axes.

Output CRS

Optional

CRS

[crs]

CRS of the output raster layer. If the output CRS is not specified, the CRS of the first reference layer will be used.

Calculated

OUTPUT

[raster]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Outputs

Label

Name

Type

Description

Calculated

OUTPUT

[raster]

Output raster file with the calculated values.

Python code

Algorithm ID: native:rastercalc

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.19. Raster calculator (virtual)

Performs algebraic operations using raster layers and generates in-memory result.

The resulting layer will have its values computed according to an expression. The expression can contain numerical values, operators and references to any of the layers in the current project.

A virtual raster layer is a raster layer defined by its URI and whose pixels are calculated on-the-fly. It’s not a new file on disk; the virtual layer is still connected to the rasters used in the calculation meaning that deleting or moving these rasters would break it. A Layer name can be provided, otherwise the calculation expression is used as such. Removing the virtual layer from the project deletes it, and it can be made persistent in file using the layer Export ► Save as… contextual menu.

Parameters

Label

Name

Type

Description

Input layers

INPUT

[raster] [list]

List of input raster layers

Expression

EXPRESSION

[expression]

Raster-based expression that will be used to calculate the output raster layer.

Output extent

Optional

EXTENT

[extent]

Specify the spatial extent of the output raster layer. If the extent is not specified, the minimum extent that covers all the selected reference layers will be used.

Available methods are:

  • Calculate from layer…: uses extent of a layer loaded in the current project

  • Calculate from layout map…: uses extent of a layout map item in the active project

  • Calculate from bookmark…: uses extent of a saved bookmark

  • Use map canvas extent

  • Draw on canvas: click and drag a rectangle delimiting the area to take into account

  • Enter the coordinates as xmin, xmax, ymin, ymax

Output cell size (leave empty to set automatically)

Optional

CELLSIZE

[number]

Cell size of the output raster layer. If the cell size is not specified, the minimum cell size of the selected reference layer(s) will be used. The cell size will be the same for the X and Y axes.

Output CRS

Optional

CRS

[crs]

CRS of the output raster layer. If the output CRS is not specified, the CRS of the first reference layer will be used.

Output layer name

Optional

LAYER_NAME

[string]

The name to assign to the generated layer. If not set, the text of the calculation expression is used.

Outputs

Label

Name

Type

Description

Calculated

OUTPUT

[raster]

Output virtual raster layer with the calculated values.

Python code

Algorithm ID: native:virtualrastercalc

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.20. Raster layer properties

Returns basic properties of the given raster layer, including the extent, size in pixels and dimensions of pixels (in map units), number of bands, and NoData value.

This algorithm is intended for use as a means of extracting these useful properties to use as the input values to other algorithms in a model - e.g. to allow to pass an existing raster’s pixel sizes over to a GDAL raster algorithm.

Parameters

Label

Name

Type

Description

Input layer

INPUT

[raster]

Input raster layer

Band number

Optional

BAND

[raster band]

Default: Not set

Whether to also return properties of a specific band. If a band is specified, the noData value for the selected band is also returned.

Outputs

Label

Name

Type

Description

Number of bands in raster

BAND_COUNT

[number]

The number of bands in the raster

CRS authority identifier

CRS_AUTHID

[string]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The raster layer extent in the CRS

Band has a NoData value set

HAS_NODATA_VALUE

[Boolean]

Indicates whether the raster layer has a value set for NoData pixels in the selected band

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of columns in the raster layer

Band NoData value

NODATA_VALUE

[number]

The value (if set) of the NoData pixels in the selected band

Pixel size (height) in map units

PIXEL_HEIGHT

[integer]

Vertical size in map units of the pixel

Pixel size (width) in map units

PIXEL_WIDTH

[integer]

Horizontal size in map units of the pixel

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of rows in the raster layer

Maximum x-coordinate

X_MAX

[number]

Minimum x-coordinate

X_MIN

[number]

Maximum y-coordinate

Y_MAX

[number]

Minimum y-coordinate

Y_MIN

[number]

Python code

Algorithm ID: native:rasterlayerproperties

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.21. Raster layer statistics

Calculates basic statistics from the values in a given band of the raster layer. The output is loaded in the Processing ► Results viewer menu.

Parameters

Label

Name

Type

Description

Input layer

INPUT

[raster]

Input raster layer

Band number

BAND

[raster band]

Default: The first band of the input layer

If the raster is multiband, choose the band you want to get statistics for.

Statistics

OUTPUT_HTML_FILE

[html]

Default: [Save to temporary file]

Specification of the output file:

  • Skip Output

  • Save to a Temporary File

  • Save to File…

Outputs

Label

Name

Type

Description

Maximum value

MAX

[number]

Mean value

MEAN

[number]

Minimum value

MIN

[number]

Statistics

OUTPUT_HTML_FILE

[html]

The output file contains the following information:

  • Analyzed file: path of the raster layer

  • Minimum value: minimum value of the raster

  • Maximum value: maximum value of the raster

  • Range: difference between the maximum and minimum values

  • Sum: total sum of the values

  • Mean value: mean of the values

  • Standard deviation: standard deviation of the values

  • Sum of the squares: sum of the squared differences of each observation from the overall mean

Range

RANGE

[number]

Standard deviation

STD_DEV

[number]

Sum

SUM

[number]

Sum of the squares

SUM_OF_SQUARES

[number]

Python code

Algorithm ID: native:rasterlayerstatistics

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.22. Raster layer unique values report

Returns the count and area of each unique value in a given raster layer. The calculation of the area is done in the area unit of the layer’s CRS.

Parameters

Label

Name

Type

Description

Input layer

INPUT

[raster]

Input raster layer

Band number

BAND

[raster band]

Default: The first band of the input layer

If the raster is multiband, choose the band you want to get statistics for.

Unique values report

OUTPUT_HTML_FILE

[file]

Default: [Save to temporary file]

Specification of the output file:

  • Skip Output

  • Save to a Temporary File

  • Save to File…

Unique values table

OUTPUT_TABLE

[table]

Default: [Skip output]

Specification of the table for unique values:

  • Skip Output

  • Create Temporary Layer (TEMPORARY_OUTPUT)

  • Save to File…

  • Save to Geopackage…

  • Save to Database Table…

The file encoding can also be changed here.

Outputs

Label

Name

Type

Description

CRS authority identifier

CRS_AUTHID

[string]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

NoData pixel count

NODATA_PIXEL_COUNT

[number]

The number of NoData pixels in the output raster layer

Total pixel count

TOTAL_PIXEL_COUNT

[integer]

The count of pixels in the output raster layer

Unique values report

OUTPUT_HTML_FILE

[html]

The output HTML file contains the following information:

  • Analyzed file: the path of the raster layer

  • Extent: xmin, ymin, xmax, ymax coordinates of the extent

  • Projection: projection of the layer

  • Width in pixels: number of columns and pixel width size

  • Height in pixels: number of rows and pixel width size

  • Total pixel count: count of all the pixels

  • NoData pixel count: count of pixels with NoData value

Unique values table

OUTPUT_TABLE

[table]

A table with three columns:

  • value: pixel value

  • count: count of pixels with this value

  • m2 or deg2 or ft2 or … : total area of pixels with this value. The column name depends on the area unit of the layer’s CRS and the calculation is done in that unit.

Width in pixels

WIDTH_IN_PIXELS

[integer]

The number of columns in the output raster layer

Python code

Algorithm ID: native:rasterlayeruniquevaluesreport

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.23. Raster layer zonal statistics

Calculates statistics for a raster layer’s values, categorized by zones defined in another raster layer.

See also

Zonal statistics

Parameters

Basic parameters

Label

Name

Type

Description

Input Layer

INPUT

[raster]

Input raster layer

Band number

BAND

[raster band]

Default: The first band of the raster layer

If the raster is multiband choose the band for which you want to calculate the statistics.

Zones layer

ZONES

[raster]

Raster layer defining zones. Zones are given by contiguous pixels having the same pixel value.

Zones band number

ZONES_BAND

[raster band]

Default: The first band of the raster layer

If the raster is multiband, choose the band that defines the zones

Statistics

OUTPUT_TABLE

[table]

Default: [Create temporary layer]

Specification of the output report. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)

  • Save to File…

  • Save to Geopackage…

  • Save to Database Table…

The file encoding can also be changed here.

Advanced parameters

Label

Name

Type

Description

Reference layer

Optional

REF_LAYER

[enumeration]

Default: 0

Raster layer used to calculate the centroids that will be used as reference when determining the zones in the output layer. One of:

  • 0 — Input layer: zones are determined by sampling the zone raster layer value at the centroid of each pixel from the source raster layer

  • 1 — Zones layer: the input raster layer will be sampled at the centroid of each pixel from the zones raster layer

Outputs

Label

Name

Type

Description

CRS authority identifier

CRS_AUTHID

[string]

The coordinate reference system of the output raster layer

Extent

EXTENT

[string]

The spatial extent of the output raster layer

Height in pixels

HEIGHT_IN_PIXELS

[integer]

The number of rows in the output raster layer

NoData pixel count

NODATA_PIXEL_COUNT

[number]

The number of NoData pixels in the output raster layer

Statistics

OUTPUT_TABLE

[table]

The output layer contains the following information for each zone:

  • Area: the area in square raster units in the zone;

  • Sum: the total sum of the pixel values in the zone;

  • Count: the number of pixels in the zone;

  • Min: the minimum pixel value in the zone;

  • Max: the maximum pixel value in the zone;

  • Mean: the mean of the pixel values in the zone;

Total pixel count

TOTAL_PIXEL_COUNT

[number]

The count of pixels in the output raster layer

Width in pixels

WIDTH_IN_PIXELS

[number]

The number of columns in the output raster layer

Python code

Algorithm ID: native:rasterlayerzonalstats

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.24. Raster surface volume

Calculates the volume under a raster surface relative to a given base level. This is mainly useful for Digital Elevation Models (DEM).

Parameters

Label

Name

Type

Description

INPUT layer

INPUT

[raster]

Input raster, representing a surface

Band number

BAND

[raster band]

Default: The first band of the raster layer

If the raster is multiband, choose the band that shall define the surface.

Base level

LEVEL

[number]

Default: 0.0

Define a base or reference value. This base is used in the volume calculation according to the Method parameter (see below).

Method

METHOD

[enumeration]

Default: 0

Define the method for the volume calculation given by the difference between the raster pixel value and the Base level. Options:

  • 0 — Count Only Above Base Level: only pixels above the base level will add to the volume.

  • 1 — Count Only Below Base Level: only pixels below the base level will add to the volume.

  • 2 — Subtract Volumes Below Base level: pixels above the base level will add to the volume, pixels below the base level will subtract from the volume.

  • 3 — Add Volumes Below Base level: Add the volume regardless whether the pixel is above or below the base level. This is equivalent to sum the absolute values of the difference between the pixel value and the base level.

Surface volume report

OUTPUT_HTML_FILE

[html]

Default: [Save to temporary file]

Specification of the output HTML report. One of:

  • Skip Output

  • Create Temporary Layer (TEMPORARY_OUTPUT)

  • Save to File…

  • Save to Geopackage…

  • Save to Database Table…

The file encoding can also be changed here.

Surface volume table

OUTPUT_TABLE

[table]

Default: [Skip output]

Specification of the output table. One of:

  • Skip Output

  • Create Temporary Layer (TEMPORARY_OUTPUT)

  • Save to File…

  • Save to Geopackage…

  • Save to Database Table…

The file encoding can also be changed here.

Outputs

Label

Name

Type

Description

Volume

VOLUME

[number]

The calculated volume

Area

AREA

[number]

The area in square map units

Pixel_count

PIXEL_COUNT

[number]

The total number of pixels that have been analyzed

Surface volume report

OUTPUT_HTML_FILE

[html]

The output report (containing volume, area and pixel count) in HTML format

Surface volume table

OUTPUT_TABLE

[table]

The output table (containing volume, area and pixel count)

Python code

Algorithm ID: native:rastersurfacevolume

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.25. Reclassify by layer

Reclassifies a raster band by assigning new class values based on the ranges specified in a vector table.

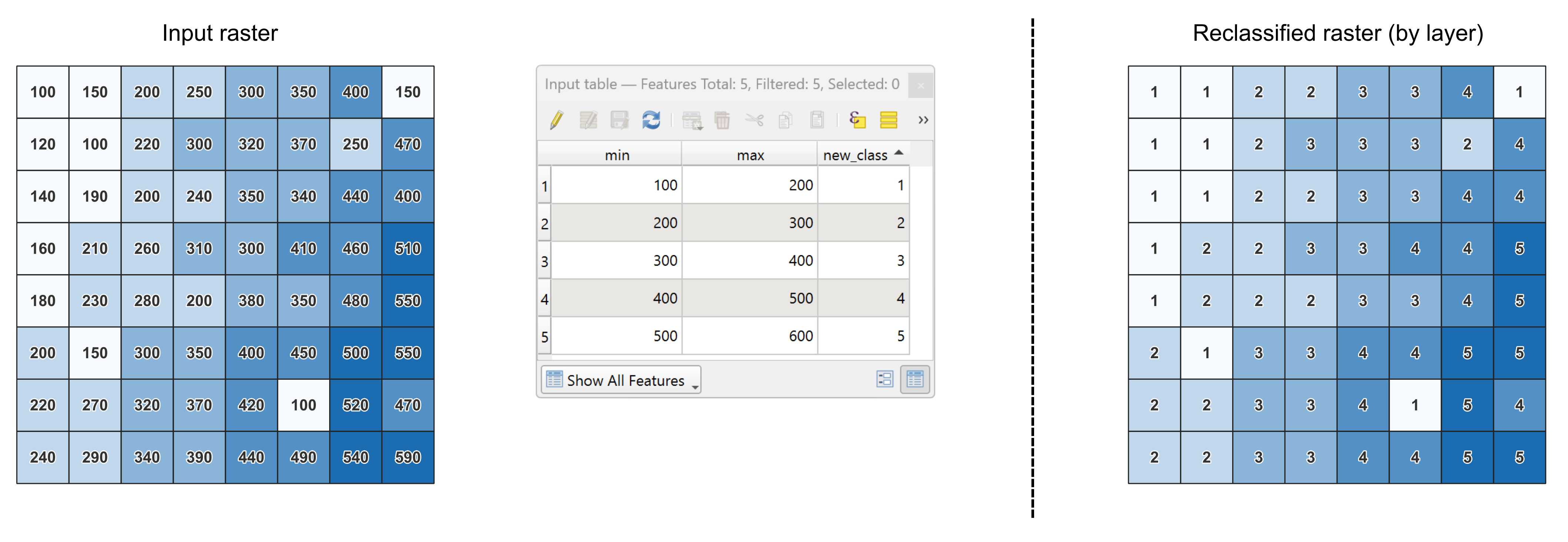

Parameters

Basic parameters

Label

Name

Type

Description

Raster layer

INPUT_RASTER

[raster]

Raster layer to reclassify

Band number

RASTER_BAND

[raster band]

Default: The first band of the raster layer

If the raster is multiband, choose the band you want to reclassify.

Layer containing class breaks

INPUT_TABLE

[vector: any]

Vector layer containing the values to use for classification.

Minimum class value field

MIN_FIELD

[tablefield: numeric]

Field with the minimum value of the range for the class. Use -inf to capture the lowest possible value.

Maximum class value field

MAX_FIELD

[tablefield: numeric]

Field with the maximum value of the range for the class. Use inf to capture the highest possible value.

Output value field

VALUE_FIELD

[tablefield: numeric]

Field with the value that will be assigned to the pixels that fall in the class (between the corresponding min and max values). Use nan to set the value of the range to NoData.

Reclassified raster

OUTPUT

[raster]

Default: [Save to temporary file]

Specification of the output raster. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

NO_DATA

[number]

Default: -9999.0

Value to apply to NoData values.

Range boundaries

RANGE_BOUNDARIES

[enumeration]

Default: 0

Defines comparison rules for the classification. Options:

  • 0 — min < value <= max

  • 1 — min <= value < max

  • 2 — min <= value <= max

  • 3 — min < value < max

Use NoData when no range matches value

NODATA_FOR_MISSING

[boolean]

Default: False

Applies the NoData value to band values that do not fall in any class. If False, the original value is kept.

Output data type

DATA_TYPE

[enumeration]

Default: 5

Defines the format of the output raster file. Options:

  • 0 — Byte (Eight bit unsigned integer (quint8))

  • 1 — Int16 (Sixteen bit signed integer (qint16))

  • 2 — UInt16 (Sixteen bit unsigned integer (quint16))

  • 3 — Int32 (Thirty two bit signed integer (qint32))

  • 4 — UInt32 (Thirty two bit unsigned integer (quint32))

  • 5 — Float32 (Thirty two bit floating point (float))

  • 6 — Float64 (Sixty four bit floating point (double))

  • 7 — CInt16 (Complex Int16)

  • 8 — CInt32 (Complex Int32)

  • 9 — CFloat32 (Complex Float32)

  • 10 — CFloat64 (Complex Float64)

  • 11 — Int8 (Eight bit signed integer (qint8))

Available options depend on the GDAL version built with QGIS (see Help ► About menu)

Outputs

Label

Name

Type

Description

Reclassified raster

OUTPUT

[raster]

Output raster layer with reclassified band values

Python code

Algorithm ID: native:reclassifybylayer

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.26. Reclassify by table

Reclassifies a raster band by assigning new class values based on the ranges specified in a fixed table.

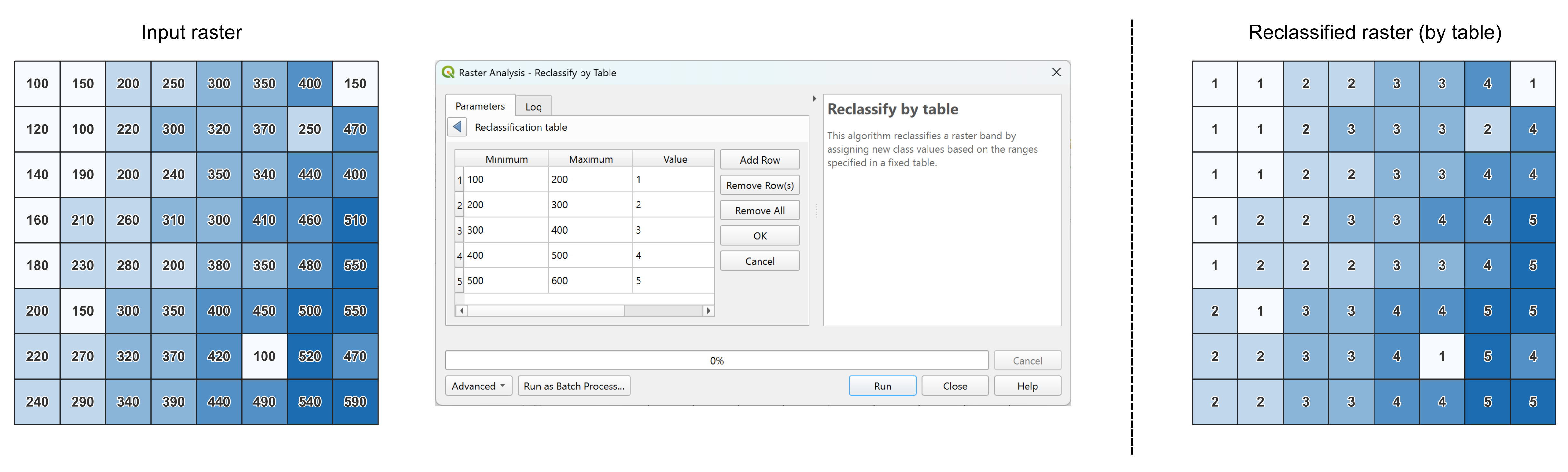

Parameters

Basic parameters

Label

Name

Type

Description

Raster layer

INPUT_RASTER

[raster]

Raster layer to reclassify

Band number

RASTER_BAND

[raster band]

Default: 1

Raster band for which you want to recalculate values.

Reclassification table

TABLE

[table]

A 3-columns table to fill with the values to set the boundaries of each class (Minimum and Maximum) and the new Value to assign to the band values that fall in the class. The value -inf can be used as minimum, inf as maximum, and nan can be used to set the output value to NoData.

Reclassified raster

OUTPUT

[raster]

Default: [Save to temporary file]

Specification of the output raster layer. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Output NoData value

NO_DATA

[number]

Default: -9999.0

Value to apply to NoData values.

Range boundaries

RANGE_BOUNDARIES

[enumeration]

Default: 0

Defines comparison rules for the classification. Options:

  • 0 — min < value <= max

  • 1 — min <= value < max

  • 2 — min <= value <= max

  • 3 — min < value < max

Use NoData when no range matches value

NODATA_FOR_MISSING

[boolean]

Default: False

Applies the NoData value to band values that do not fall in any class. If False, the original value is kept.

Output data type

DATA_TYPE

[enumeration]

Default: 5

Defines the format of the output raster file. Options:

  • 0 — Byte (Eight bit unsigned integer (quint8))

  • 1 — Int16 (Sixteen bit signed integer (qint16))

  • 2 — UInt16 (Sixteen bit unsigned integer (quint16))

  • 3 — Int32 (Thirty two bit signed integer (qint32))

  • 4 — UInt32 (Thirty two bit unsigned integer (quint32))

  • 5 — Float32 (Thirty two bit floating point (float))

  • 6 — Float64 (Sixty four bit floating point (double))

  • 7 — CInt16 (Complex Int16)

  • 8 — CInt32 (Complex Int32)

  • 9 — CFloat32 (Complex Float32)

  • 10 — CFloat64 (Complex Float64)

  • 11 — Int8 (Eight bit signed integer (qint8))

Available options depend on the GDAL version built with QGIS (see Help ► About menu)

Outputs

Label

Name

Type

Description

Reclassified raster

OUTPUT

[raster]

Output raster layer with reclassified band values

Python code

Algorithm ID: native:reclassifybytable

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.27. Rescale raster

Rescales raster layer to a new value range, while preserving the shape (distribution) of the raster’s histogram (pixel values). Input values are mapped using a linear interpolation from the source raster’s minimum and maximum pixel values to the destination minimum and miximum pixel range.

By default the algorithm preserves the original NoData value, but there is an option to override it.

../../../../_images/rescale_raster.png

Fig. 28.27 Rescaling values of a raster layer from [0 - 50] to [100 - 1000]

Parameters

Label

Name

Type

Description

Input Raster

INPUT

[raster]

Raster layer to use for rescaling

Band number

BAND

[raster band]

Default: The first band of the input layer

If the raster is multiband, choose a band.

New minimum value

MINIMUM

[number]

Default value: 0.0

Minimum pixel value to use in the rescaled layer

New maximum value

MAXIMUM

[number]

Default value: 255.0

Maximum pixel value to use in the rescaled layer

New NoData value

Optional

NODATA

[number]

Default value: Not set

Value to assign to the NoData pixels. If unset, original NoData values are preserved.

Rescaled

OUTPUT

[raster]

Default: [Save to temporary file]

Specification of the output raster layer. One of:

  • Save to a Temporary File

  • Save to File…

Outputs

Label

Name

Type

Description

Rescaled

OUTPUT

[raster]

Output raster layer with rescaled band values

Python code

Algorithm ID: native:rescaleraster

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.28. Round raster

Rounds the cell values of a raster dataset according to the specified number of decimals.

Alternatively, a negative number of decimal places may be used to round values to powers of a base n. For example, with a Base value n of 10 and Decimal places of -1, the algorithm rounds cell values to multiples of 10, -2 rounds to multiples of 100, and so on. Arbitrary base values may be chosen, the algorithm applies the same multiplicative principle. Rounding cell values to multiples of a base n may be used to generalize raster layers.

The algorithm preserves the data type of the input raster. Therefore byte/integer rasters can only be rounded to multiples of a base n, otherwise a warning is raised and the raster gets copied as byte/integer raster.

../../../../_images/round_raster.png

Fig. 28.28 Rounding values of a raster

Parameters

Basic parameters

Label

Name

Type

Description

Input raster

INPUT

[raster]

The raster to process.

Band number

BAND

[number]

Default: 1

The band of the raster

Rounding direction

ROUNDING_DIRECTION

[list]

Default: 1

How to choose the target rounded value. Options are:

  • 0 — Round up

  • 1 — Round to nearest

  • 2 — Round down

Number of decimals places

DECIMAL_PLACES

[number]

Default: 2

Number of decimals places to round to. Use negative values to round cell values to a multiple of a base n

Output raster

OUTPUT

[raster]

Default: [Save to temporary file]

Specification of the output file. One of:

  • Save to a Temporary File

  • Save to File…

Advanced parameters

Label

Name

Type

Description

Base n for rounding to multiples of n

BASE_N

[number]

Default: 10

When the DECIMAL_PLACES parameter is negative, raster values are rounded to multiples of the base n value

Outputs

Label

Name

Type

Description

Output raster

OUTPUT

[raster]

The output raster layer with values rounded for the selected band.

Python code

Algorithm ID: native:roundrastervalues

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.29. Sample raster values

Extracts raster values at the point locations. If the raster layer is multiband, each band is sampled.

The attribute table of the resulting layer will have as many new columns as the raster layer band count.

Parameters

Label

Name

Type

Description

Input Layer

INPUT

[vector: point]

Point vector layer to use for sampling

Raster Layer

RASTERCOPY

[raster]

Raster layer to sample at the given point locations.

Output column prefix

COLUMN_PREFIX

[string]

Default: ‘SAMPLE_’

Prefix for the names of the added columns.

Sampled

Optional

OUTPUT

[vector: point]

Default: [Create temporary layer]

Specify the output layer containing the sampled values. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)

  • Save to File…

  • Save to Geopackage…

  • Save to Database Table…

The file encoding can also be changed here.

Outputs

Label

Name

Type

Description

Sampled

OUTPUT

[vector: point]

The output layer containing the sampled values.

Python code

Algorithm ID: native:rastersampling

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.30. Zonal histogram

Appends fields representing counts of each unique value from a raster layer contained within polygon features.

The output layer attribute table will have as many fields as the unique values of the raster layer that intersects the polygon(s).

../../../../_images/raster_histogram.png

Fig. 28.29 Raster layer histogram example

Parameters

Label

Name

Type

Description

Raster layer

INPUT_RASTER

[raster]

Input raster layer.

Band number

RASTER_BAND

[raster band]

Default: The first band of the input layer

If the raster is multiband, choose a band.

Vector layer containing zones

INPUT_VECTOR

[vector: polygon]

Vector polygon layer that defines the zones.

Output column prefix

COLUMN_PREFIX

Optional

[string]

Default: ‘HISTO_’

Prefix for the output columns names.

Output zones

OUTPUT

[vector: polygon]

Default: [Create temporary layer]

Specify the output vector polygon layer. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)

  • Save to File…

  • Save to Geopackage…

  • Save to Database Table…

The file encoding can also be changed here.

Outputs

Label

Name

Type

Description

Output zones

OUTPUT

[vector: polygon]

The output vector polygon layer.

Python code

Algorithm ID: native:zonalhistogram

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

28.1.15.31. Zonal statistics

Calculates statistics of a raster layer for each feature of an overlapping polygon vector layer.

Parameters

Label

Name

Type

Description

Input layer

INPUT

[vector: polygon]

Vector polygon layer that contains the zones.

Raster layer

INPUT_RASTER

[raster]

Input raster layer.

Raster band

RASTER_BAND

[raster band]

Default: The first band of the input layer

If the raster is multiband, choose a band for the statistics.

Output column prefix

COLUMN_PREFIX

[string]

Default: ‘_’

Prefix for the output columns names.

Statistics to calculate

STATISTICS

[enumeration] [list]

Default: [0,1,2]

List of statistical operator for the output. Options:

  • 0 — Count

  • 1 — Sum

  • 2 — Mean

  • 3 — Median

  • 4 — St. dev.

  • 5 — Minimum

  • 6 — Maximum

  • 7 — Range

  • 8 — Minority

  • 9 — Majority

  • 10 — Variety

  • 11 — Variance

Zonal Statistics

OUTPUT

[vector: polygon]

Default: [Create temporary layer]

Specify the output vector polygon layer. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)

  • Save to File…

  • Save to Geopackage…

  • Save to Database Table…

  • Append to Layer…

The file encoding can also be changed here.

Outputs

Label

Name

Type

Description

Zonal Statistics

OUTPUT

[vector: polygon]

The zone vector layer with added statistics.

Python code

Algorithm ID: native:zonalstatisticsfb

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.
