9. QGIS Configuration

QGIS is highly configurable. Through the Settings menu, it provides different tools to:

9.1. Options

options Some basic options for QGIS can be selected using the Options dialog. Select the menu option Settings ► options Options. You can modify the options according to your needs. Some of the changes may require a restart of QGIS before they will be effective.

The tabs where you can customize your options are described below.

Note

Plugins can embed their settings within the Options dialog

While only Core settings are presented below, note that this list can be extended by installed plugins implementing their own options into the standard Options dialog. This avoids each plugin having their own config dialog with extra menu items just for them…

9.1.1. General Settings

../../../_images/options_general.png

Fig. 9.1 General Settings

Override System Locale

By default, QGIS relies on your Operating System configuration to set language and manipulate numerical values. Enabling this group allows you to customize the behavior.

  • Select from User interface translation the language to apply to the GUI

  • Select in Locale (number, date and currency formats) the system on which date and numeric values should be input and rendered

  • checkbox Show group (thousand) separator

A summary of the selected settings and how they would be interpreted is displayed at the bottom of the frame.

Application

  • Select the Style (QGIS restart required) ie, the widgets look and placement in dialogs. Possible values depend on your Operating System.

  • Define the UI theme (QGIS restart required) selectString. It can be ‘default’, ‘Night Mapping’, or ‘Blend of Gray’

  • Define the Icon size selectString

  • Define the Font and its Size. The font can be radioButtonOn Qt default or a user-defined one

  • Change the Timeout for timed messages or dialogs

  • unchecked Hide splash screen at startup

  • checkbox Show QGIS news feed on welcome page: displays a curated QGIS news feed on the welcome page, giving you a direct way to be aware of project news (user/developer meetings date and summary, community surveys, releases announcements, various tips…)

  • checkbox Check QGIS version at startup to keep you informed if a newer version is released

  • unchecked Use native color chooser dialogs (see Color Selector)

Project files

  • Open project on launch

    • ‘Welcome Page’ (default): can display the “News” feed, the project template(s) and the most recent projects (with thumbnails) of the user profile. No project is opened by default.

    • ‘New’: opens a new project, based on the default template

    • ‘Most recent’: reopens the last saved project

    • and ‘Specific’: opens a particular project. Use the button to define the project to use by default.

  • checkbox Create new project from default project. You have the possibility to press on Set current project as default or on Reset default. You can browse through your files and define a directory where you find your user-defined project templates. This will be added to Project ► New From Template. If you first activate checkbox Create new project from default project and then save a project in the project templates folder.

  • checkbox Prompt to save project and data source changes when required to avoid losing changes you made.

  • checkbox Prompt for confirmation when a layer is to be removed

  • checkbox Warn when opening a project file saved with an older version of QGIS. You can always open projects created with older version of QGIS but once the project is saved, trying to open with older release may fail because of features not available in that version.

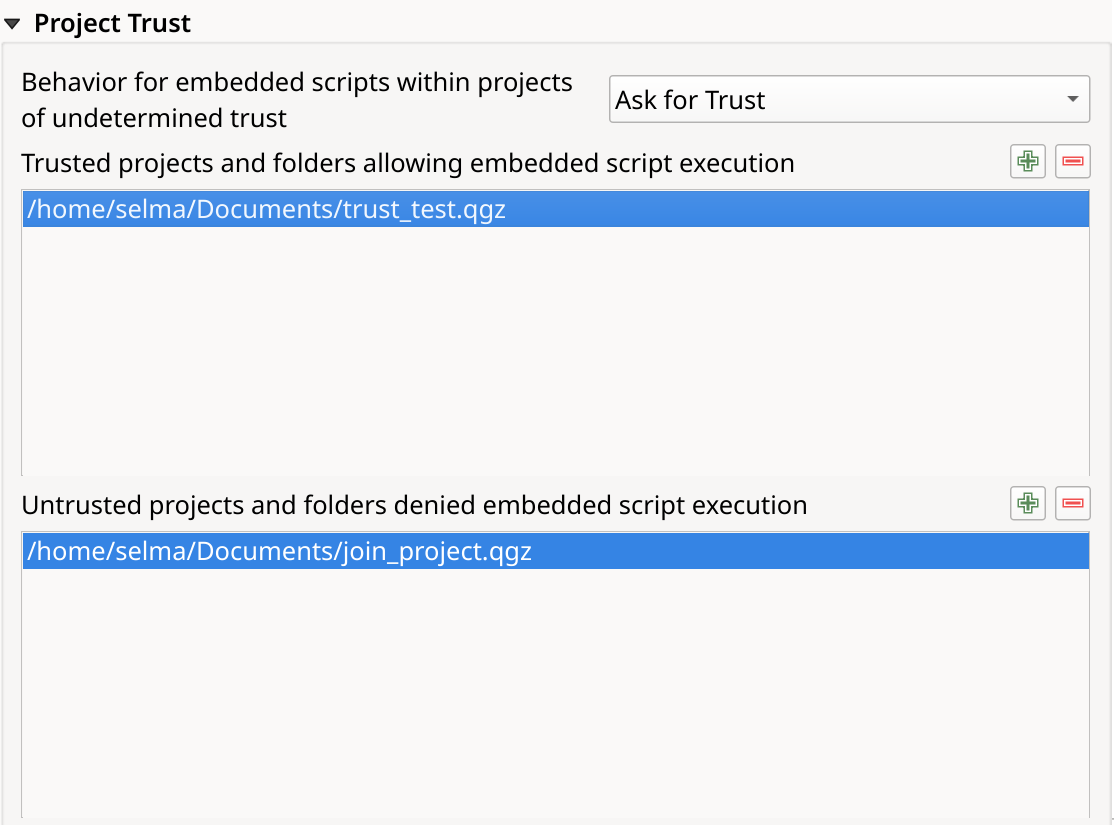

  • Enable macros selectString. This option was created to handle macros that are written to perform an action on project events. You can choose between ‘Never’, ‘Ask’, ‘For this session only’ and ‘Always (not recommended)’.

  • Default paths: defines whether paths to files and layers used in new projects are stored as ‘Absolute’ or ‘Relative’ to the project file. This setting can be overwritten at the project level.

  • Default project file format

    • radioButtonOn QGZ Archive file format, embeds auxiliary data (see auxiliary data)

    • radioButtonOff QGS Project saved in a clear text, does not embed auxiliary data: the auxiliary data is stored in a separate .qgd file along with the project file.

9.1.2. System Settings

SVG paths

Add or Remove Path(s) to search for Scalable Vector Graphic (SVG) symbols. These SVG files are then available to symbolize or label the features or decorate your map composition.

Also read Remote or embedded file selector for different ways to refer to svg files in a QGIS path.

Plugin paths

Add or Remove Path(s) to search for additional C++ plugin libraries.

Documentation paths

Add or Remove Documentation Path(s) to use for QGIS help. By default, a link to the official online User Manual corresponding to the version being used is added (i.e. https://docs.qgis.org/§qgis_short_version/$qgis_locale/docs/user_manual/). You can however add other links and prioritize them from top to bottom: each time you click on a Help button in a dialog, the topmost link is checked and if no corresponding page is found, the next one is tried, and so on.

Note

Documentation is versioned and translated only for QGIS Long Term Releases (LTR), meaning that if you are running a regular release (eg, QGIS 3.0), the help button will by default open the next LTR manual page (ie. 3.4 LTR), which may contain description of features in newer releases (3.2 and 3.4). If no LTR documentation is available then the testing doc, with features from newer and development versions, is used.

Settings

It helps you Reset user interface to default settings (restart required) if you made any customization.

Environment

../../../_images/options_system.png

Fig. 9.2 System environment variables

System environment variables can be viewed, and many configured, in the Environment group. This is useful for platforms, such as Mac, where a GUI application does not necessarily inherit the user’s shell environment. It’s also useful for setting and viewing environment variables for the external tool sets controlled by the Processing toolbox (e.g., SAGA, GRASS), and for turning on debugging output for specific sections of the source code.

Check checkbox Use custom variables (restart required - include separators) and you can symbologyAdd Add and symbologyRemove Remove environment variables. For each new item, you can configure a Variable name, its Value and the Apply method to use, among which:

  • Overwrite: replace any preexisting value of the variable

  • If undefined: use this value for the variable if not already defined at a higher level (e.g. OS or application levels)

  • Unset: remove the variable from the environment (the Value parameter is not used)

  • Prepend: prepend the value to the preexisting value of the variable

  • Append: append the value to the preexisting value of the variable

  • Skip: the item is kept in the list for future reference but unused

Already defined environment variables are displayed in Current environment variables, and it’s possible to filter them by activating checkbox Show only QGIS-specific variables.

9.1.3. User Profiles Settings

Note

For more information on how to manage user profiles, please read the dedicated section at Working with User Profiles.

9.1.4. CRS and Transforms Settings

Note

For more information on how QGIS handles layer projection, please read the dedicated section at Working with Projections.

9.1.4.1. CRS Handling

In the crs CRS Handling tab you can configure which CRS will be used for a new project or layer.

../../../_images/options_crs.png

Fig. 9.3 CRS Settings

CRS for Projects

There is an option to automatically set new project’s CRS:

  • radioButtonOnUse CRS from first layer added: the CRS of the project will be set to the CRS of the first layer loaded into it

  • radioButtonOffUse a default CRS: a preselected CRS is applied by default to any new project and is left unchanged when adding layers to the project.

The choice will be saved for use in subsequent QGIS sessions. The Coordinate Reference System of the project can still be overridden from the Project ► Properties… ► CRS tab.

CRS for Layers

Default CRS for layers: select a default CRS to use when you create a layer

You can also define the action to take when a new layer is created, or when a layer without a CRS is loaded.

  • radioButtonOn Leave as unknown CRS (take no action)

  • radioButtonOff Prompt for CRS

  • radioButtonOff Use project CRS

  • radioButtonOff Use default layer CRS

Accuracy Warnings

Only show CRS accuracy warnings for inaccuracies which exceed a given distance: occurs when you are explicitly creating or modifying a dataset and select a CRS based on a datum ensemble with lower accuracy. The default is to Always show the warning if any inaccuracy. Requires a QGIS version using at least PROJ 8.0.

unchecked Show CRS accuracy warning for layers in project legend: If checked, any layer with a CRS with accuracy issues (i.e. a dynamic crs with no coordinate epoch available, or a CRS based on a datum ensemble with inherent inaccuracy exceeding the user-set limit) will have the indicatorLowAccuracy warning icon in the Layers panel reflecting that it is a low-accuracy layer.

This is designed for use in engineering, BIM, asset management, and other fields where inaccuracies of meter/submeter level are potentially very dangerous or expensive!

unchecked Planimetric measurements: sets the default for the planimetric measurements property for newly created projects.

9.1.4.2. Coordinate Transforms

The transformation Coordinate Transforms tab helps you set coordinate transformations and operations to apply when loading a layer to a project or reprojecting a layer.

../../../_images/options_transformations.png

Fig. 9.4 Transformations settings

Default Datum Transformations

Here you can control whether reprojecting layers to another CRS should be:

  • automatically processed using QGIS default transformations settings;

  • and/or more controlled by you with custom preferences such as:

    • checkbox Ask for datum transformation if several are available

    • a predefined list of datum transformations to apply by default. See Datum Transformations for more details.

You can symbologyAdd Add, symbologyRemove Remove or toggleEditing Edit transformations, which will be used in any newly created project.

9.1.4.3. User Defined CRS

The customProjection User Defined CRS tab helps you to define a custom CRS which must conform to a WKT or Proj string format.

../../../_images/options_defined_crs.png

Fig. 9.5 User Defined CRS

Set a Name and use symbologyAdd Add new CRS. If you want to delete an existing one you can use symbologyRemove Remove CRS.

Definition

  • Format
    • WKT (Recommended)

    • Proj String (Legacy - Not Recommended)

  • Parameters
    • editCopy Copy parameters from an existing CRS.

    • Validate tests if your expression is correct.

Test

Here you can test your created CRS definition by Latitude and Longitude. Use a known coordinate to control if your definition is accurate.

9.1.5. Data Sources settings

../../../_images/options_data_sources.png

Fig. 9.6 Data Sources settings

Feature attributes and table

  • checkbox Open attribute table as docked window

  • Copy features as: defines the format to use for data when pasting features in other applications.

    • Plain text, no geometry: attributes are copied as text but the geometry is skipped

    • Plain text, WKT geometry: attributes are copied as text and the geometry is returned in WKT

    • Plain text, WKB geometry: attributes are copied as text and the geometry is returned in WKB (hex format)

    • GeoJSON: attributes and geometry are formatted as GeoJSON data

  • Attribute table behavior selectString: set filter on the attribute table at the opening. There are three possibilities: ‘Show all features’, ‘Show selected features’ and ‘Show features visible on map’.

  • Default view: define the view mode of the attribute table at every opening. It can be ‘Remember last view’, ‘Table view’ or ‘Form view’.

  • Attribute table row cache selectNumber. This row cache makes it possible to save the last loaded N attribute rows so that working with the attribute table will be quicker. The cache will be deleted when closing the attribute table.

  • Representation for NULL values. Here, you can define a value for data fields containing a NULL value.

Tip

Improve opening of big data attribute table

When working with layers with big amount of records, opening the attribute table may be slow as the dialog request all the rows in the layer. Setting the Attribute table behavior to Show features visible on map will make QGIS request only the features in the current map canvas when opening the table, allowing a quick data loading.

Note that data in this attribute table instance will be always tied to the canvas extent it was opened with, meaning that selecting Show All Features within such a table will not display new features. You can however update the set of displayed features by changing the canvas extent and selecting Show Features Visible On Map option in the attribute table.

Data source handling

  • Scan for valid items in the browser dock selectString. You can choose between ‘Check extension’ and ‘Check file contents’.

  • Scan for contents of compressed files (.zip) in browser dock selectString defines how detailed is the widget information at the bottom of the Browser panel when querying such files. ‘No’, ‘Basic scan’ and ‘Full scan’ are possible options.

  • Prompt for sublayers when opening. Some rasters support sublayers — they are called subdatasets in GDAL. An example is netCDF files — if there are many netCDF variables, GDAL sees every variable as a subdataset. The option allows you to control how to deal with sublayers when a file with sublayers is opened. You have the following choices:

    • ‘Always’: Always ask (if there are existing sublayers)

    • ‘If needed’: Ask if layer has no bands, but has sublayers

    • ‘Never’: Never prompt, will not load anything

    • ‘Load all’: Never prompt, but load all sublayers

  • checkbox Automatically refresh directories in browser dock when their contents change: Allows you to manually opt-out of monitoring directories in the Browser panel by default (eg, to avoid potential slow down due to network latency).

Localized data paths

It is possible to use localized paths for any kind of file based data source. They are a list of paths which are used to abstract the data source location. For instance, if C:\my_maps is listed in the localized paths, a layer having C:\my_maps\my_country\ortho.tif as data source will be saved in the project using localized:my_country\ortho.tif.

The paths are listed by order of preference, in other words QGIS will first look for the file in the first path, then in the second one, etc.

Hidden browser paths

This widget lists all the folders you chose to hide from the Browser panel. Removing a folder from the list will make it available in the Browser panel.

9.1.5.1. GDAL Settings

GDAL is a data exchange library for geospatial data that supports a large number of vector and raster formats. It provides drivers to read and (often) write data in these formats. The GDAL tab exposes the drivers for raster and vector formats with their capabilities.

GDAL raster and vector drivers

The Raster Drivers and Vector Drivers tabs allow you to define which GDAL driver is enabled to read and/or write files, as in some cases more than one GDAL driver is available.

../../../_images/options_gdal.png

Fig. 9.7 GDAL Settings - Raster drivers

Tip

Double-click a raster driver that allows read and write access (rw+(v)) opens the Edit Create options dialog for customization.

Raster driver options

This frame provides ways to customize the behavior of raster drivers that support read and write access:

  • Edit create options: allows you to edit or add different profiles of file transformation, i.e. a set of predefined combinations of parameters (type and level of compression, blocks size, overview, colorimetry, alpha…) to use when outputting raster files. The parameters depend on the driver.

    ../../../_images/gdalCreateOptions.png

    Fig. 9.8 Sample of create options profile (for GeoTiff)

    The upper part of the dialog lists the current profile(s) and allows you to add new ones or remove any of them. You can also reset the profile to its default parameters if you have changed them. Some drivers (eg, GeoTiff) have some sample of profiles you can work with.

    At the bottom of the dialog:

    • The symbologyAdd button lets you add rows to fill with the parameter name and value

    • The symbologyRemove button deletes the selected parameter

    • Click the Validate button to check that the creation options entered for the given format are valid

    • Use the Help button to find the parameters to use, or refer to the GDAL raster drivers documentation.

  • Edit Pyramids Options

    ../../../_images/gdalPyramidsOptions.png

    Fig. 9.9 Sample of pyramids profile

9.1.6. Rendering Settings

The rendering Rendering tab provides settings for controlling layers rendering in the map canvas.

../../../_images/options_rendering.png

Fig. 9.10 Rendering settings

Rendering Behavior

  • checkbox By default new layers added to the map should be displayed: unchecking this option can be handy when loading multiple layers to avoid each new layer being rendered in the canvas and slow down the process

  • Set the Maximum cores to use for map rendering

  • The map canvas renders in the background onto a separate image and at each Map update interval (defaults to 250 ms), the content from this (off-screen) image will be taken to update the visible screen representation. However, if rendering finishes faster than this duration, it will be shown instantaneously.

  • Magnification level (see the magnifier)

Rendering Quality

  • checkbox Make lines appear less jagged at the expense of some drawing performance

9.1.6.1. Vector rendering settings

The polygonLayer Vector tab contains specific settings for rendering vector layers.

../../../_images/options_rendering_vector.png

Fig. 9.11 Vector rendering settings

  • checkbox Enable Feature Simplification by Default for Newly Added Layers: you simplify features’ geometry (fewer nodes) and as a result, they display more quickly. Be aware that this can cause rendering inconsistencies. Available settings are:

    • Simplification threshold (higher values result in more simplification)

    • Simplification algorithm: This option performs a local “on-the-fly” simplification on feature’s and speeds up geometry rendering. It doesn’t change the geometry fetched from the data providers. This is important when you have expressions that use the feature geometry (e.g. calculation of area) - it ensures that these calculations are done on the original geometry, not on the simplified one. For this purpose, QGIS provides three algorithms: ‘Distance’ (default), ‘SnapToGrid’ and ‘Visvalingam’.

    • unchecked Simplify on provider side if possible: the geometries are simplified by the provider (PostGIS, Oracle…) and unlike the local-side simplification, geometry-based calculations may be affected

    • Maximum scale at which the layer should be simplified (1:1 always simplifies)

    Note

    Besides the global setting, feature simplification can be set for any specific layer from its Layer properties ► Rendering menu.

  • Curve Segmentation

    • Segmentation tolerance: this setting controls the way circular arcs are rendered. The smaller maximum angle (between the two consecutive vertices and the curve center, in degrees) or maximum difference (distance between the segment of the two vertices and the curve line, in map units), the more straight line segments will be used during rendering.

    • Tolerance type: it can be Maximum angle or Maximum difference between approximation and curve.

9.1.6.2. Raster rendering settings

The raster Raster tab contains specific settings for rendering raster layers.

../../../_images/options_rendering_raster.png

Fig. 9.12 Raster rendering settings

Under Bands and Resampling:

  • With RGB band selection, you can define the number for the Red, Green and Blue band.

  • The Zoomed in resampling and the Zoomed out resampling methods can be defined. For Zoomed in resampling you can choose between three resampling methods: ‘Nearest neighbour’, ‘Bilinear (2x2 kernel)’ and ‘Cubic (4x4 kernel)’. For Zoomed out resampling you can choose between ‘Nearest Neighbour’ and ‘Average’. You can also set the Oversampling value (between 0.0 and 99.99 - a large value means more work for QGIS - the default value is 2.0).

  • checkbox Early resampling: allows to calculate the raster rendering at the provider level where the resolution of the source is known, and ensures a better zoom in rendering with QGIS custom styling. Really convenient for tile rasters loaded using an interpretation method. The option can also be set at the layer level (Symbology properties)

Contrast Enhancement options can be applied to Single band gray, Multi band color (byte/band) or Multi band color (>byte/band). For each, you can set:

  • the Algorithm to use, whose values can be ‘No stretch’, ‘Stretch to MinMax’, ‘Stretch and Clip to MinMax’ or ‘Clip to MinMax’

  • the Limits (minimum/maximum) to apply, with values such as ‘Cumulative pixel count cut’, ‘Minimum/Maximum’, ‘Mean +/- standard deviation’.

The Contrast Enhancement options also include:

  • Cumulative pixel count cut limits

  • Standard deviation multiplier

9.1.7. Canvas and Legend Settings

../../../_images/options_canvas_legend.png

Fig. 9.13 Canvas & Legend settings

These properties let you set:

  • the Default map appearance (overridden by project properties): the Selection color and Background color.

  • Layer legend interaction:

    • Double click action in legend: whether a double-click on a layer should either Open layer properties (default), Open attribute table or Open layer styling dock.

    • Behavior used when adding new layers: determines where layers are placed in the Layers panel when loaded into QGIS. It can be:

      • Above currently selected layer

      • Always on top of the layer tree

      • Optimal index within current layer tree group: Unlike the other options that sort the new layers among them and place them as a stack at the desired location, this option extents the sorting logic to the whole layer tree (or the active group) and inserts new layers in an “optimal” fashion by insuring that point layers sit on top of point layers, followed by line layers on top of lines, followed by polygon layers, etc.

    • unchecked Show feature count for newly added layers: displays in the Layers panel the number of features next to the layer name. Feature count of classes, if any, is as well displayed. You can right-click on a layer to turn on/off its feature count.

    • unchecked Display classification attribute names in the Layers panel, e.g. when applying a categorized or rule-based renderer (see Symbology Properties for more information).

    • the WMS getLegendGraphic Resolution

    • Minimum and Maximum legend symbol size to control symbol size display in the Layers panel

  • the Delay in milliseconds of layers map tips display

  • Whether QGIS should checkbox Respect screen DPI: If enabled, QGIS will attempt to display the canvas with physically accurate scale on screen, depending on the monitor’s physical DPI. Symbology with specified display size will also be rendered accurately, e.g. a 10mm symbol will show as 10mm on screen. However, label font sizes on canvas may differ from those in QGIS’ UI or other applications. If this setting is turned off, QGIS will use the operating system’s logical DPI, which will be consistent with other applications on the system. However, canvas scale and symbology size may be physically inaccurate on screen. In particular, on high-dpi screens, symbology is likely to appear too small.

    For best experience, it is recommended to enable checkbox Respect screen DPI, especially when using multiple or different monitors and preparing visually high-quality maps. Disabling checkbox Respect screen DPI will generate output that may be more suitable for mapping intended for on-screen use only, especially where font sizes should match other applications.

Note

Rendering in layouts is not affected by the Respect screen DPI setting; it always respects the specified DPI for the target output device. Also note that this setting uses the physical screen DPI as reported by the operating system, which may not be accurate for all displays.

9.1.8. Map tools Settings

../../../_images/options_map_tools.png

Fig. 9.14 Map tools settings

This tab offers some options regarding the behavior of the Identify tool.

  • Search radius for identifying features and displaying map tips is a tolerance distance within which the identify tool will depict results as long as you click within this tolerance.

  • Highlight color allows you to choose with which color features being identified should be highlighted.

  • Buffer determines a buffer distance to be rendered from the outline of the identify highlight.

  • Minimum width determines how thick should the outline of a highlighted object be.

Measure tool

  • Define Rubberband color for measure tools

  • Define Decimal places

  • checkbox Keep base unit to not automatically convert large numbers (e.g., meters to kilometers)

  • Preferred distance units: options are ‘Meters’, ‘Kilometers’, ‘Feet’, ‘Yards’, ‘Miles’, ‘Nautical Miles’, ‘Centimeters’, ‘Millimeters’, ‘Inches’, ‘Degrees’ or ‘Map Units’

  • Preferred area units: options are ‘Square meters’, ‘Square kilometers’, ‘Square feet’, ‘Square yards’, ‘Square miles’, ‘Hectares’, ‘Acres’, ‘Square nautical miles’, ‘Square centimeters’, ‘Square millimeters’, ‘Square inches’, ‘Square degrees’ or ‘Map Units’

  • Preferred angle units: options are ‘Degrees’, ‘Radians’, ‘Gon/gradians’, ‘Minutes of arc’, ‘Seconds of arc’, ‘Turns/revolutions’, milliradians (SI definition) or mil (NATO/military definition)

Some of these options can be overridden at the project level.

Measure Tool Copy Settings

These settings allow you to control the behavior of the Copy button in the measure Measure Line window. You can choose to checkbox Include header to keep columns names, and you can also select Separator of your choice. You can also choose checkbox Always use decimal point to keep your coordinates copied to the clipboard with a dot as a decimal separator, even if your language settings in QGIS options are set up to use a comma. In this case, if you don’t have the Always use decimal point option checked, you will be unable to select comma as a field separator.

Coordinate and Bearing Display

This section provides ways to Configure:

  • Default coordinate format for new projects, as displayed in the Coordinates box on QGIS status bar and in the Derived section of the identify Identify features tool’s results

  • Default bearing format for new projects, as displayed in the status bar for the map canvas panning direction and by the measureBearing Measure bearing tool.

These options can be overridden at the project level.

Panning and zooming

  • Define a Zoom factor for zoom tools or wheel mouse

  • checkbox Reverse wheel zoom allows you to adjust mouse wheel scrolling direction.

Predefined scales

Here, you find a list of predefined scales to display by default in the scale-related drop-down widgets, such as the status bar Scale, the visibility scales selector or secondary 2D map view settings,… With the symbologyAdd and symbologyRemove buttons you can add or remove your personal scales. You can also import or export scales from/to a .XML file. Note that you still have the possibility to remove your changes and reset to the predefined list.

From the project properties dialog, you can also set your own list of scales, overriding this global one in the widgets.

9.1.8.1. Digitizing settings

../../../_images/options_digitizing.png

Fig. 9.15 Digitizing settings

This tab helps you configure general settings when editing vector layer (attributes and geometry).

Feature creation

  • checkbox Suppress attribute form pop-up after feature creation: this choice can be overridden in each layer properties dialog.

  • checkbox Reuse last entered attribute values: remember the last used value of every attribute and use it as default for the next feature being digitized. Works per layer. This behavior can also be controled on a per-field basis (see Configure the field behavior).

  • Validate geometries. Editing complex lines and polygons with many nodes can result in very slow rendering. This is because the default validation procedures in QGIS can take a lot of time. To speed up rendering, it is possible to select GEOS geometry validation (starting from GEOS 3.3) or to switch it off. GEOS geometry validation is much faster, but the disadvantage is that only the first geometry problem will be reported.

    Note that depending on the selection, reports of geometry errors may differ (see Types of error messages and their meanings)

  • Default Z value to use when creating new 3D features.

Rubberband

  • Define Rubberband Line width, Line color and Fill color.

  • Don’t update rubberband during vertex editing.

Snapping

  • checkbox Enable snapping by default activates snapping when a project is opened

  • Define Default snap mode selectString (‘Vertex’, ‘Segment’, ‘Centroid’, ‘Middle of segments’, ‘Line endpoints’, ‘Area’)

  • Define Default snapping tolerance in map units or pixels

  • Define the Search radius for vertex edits in map units or pixels

  • Display main dialog as (restart required): set whether the Advanced Snapping dialog should be shown as ‘Dialog’ or ‘Dock’.

  • Snapping marker color

  • checkbox Show snapping tooltips such as name of the layer whose feature you are about to snap. Helpful when multiple features overlap.

  • checkbox Enable snapping on invisible features (not shown on the map canvas)

Vertex markers

  • checkbox Show markers only for selected features

  • Define vertex Marker style selectString (‘Cross’ (default), ‘Semi transparent circle’ or ‘None’)

  • Define vertex Marker size (in millimeter)

Curve offset tool

The next 3 options refer to the offsetCurve Offset Curve tool in Advanced digitizing. Through the various settings, it is possible to influence the shape of the line offset. These options are possible starting from GEOS 3.3.

  • Join style: ‘Round’, ‘Mitre’ or ‘Bevel’

  • Quadrant segments

  • Miter limit

Tracing

By activating the checkbox Convert tracing to curve you can create curve segments while digitizing. Keep in mind that your data provider must support this feature.

9.1.9. Elevation settings

../../../_images/options_elevation.png

Fig. 9.16 Elevation settings

In elevationProfile Elevation menu, you can set a specific color to use as the Background color for elevation profiles. This can make the chart more readable for certain datasets, e.g. point clouds with RGB coloring, where the default background color is too similar to point colors to be easily discernable. If unchanged, the elevation profiles will continue to display using the standard system background color.

9.1.10. 3D settings

../../../_images/options_3d.png

Fig. 9.17 3D settings

The 3d 3D menu helps you configure some default settings to use for any 3D Map view. These can refer to:

  • Default Camera Settings:

    • Projection type: allowing to view the 3D scene in a:

      • Perspective projection (default): Parallel lines appear to meet in the distance. Objects appear to shrink the farther they are from the camera.

      • or an Orthogonal projection: Parallel lines appear parallel. Objects appear the same size regardless of distance.

    • Camera’s Field of view: only relevant in perspective projection, specifies the current vertical field of view in degrees and determines how much of the scene is visible to the camera. Default value is 45°.

    • Navigation mode: provides different means to interact with the 3D scene. Available modes are:

      • Terrain based: the camera follows around a fixed position on the surface of the terrain as the scene is navigated.

      • Walk mode (first person)

      Depending on the selected mode, navigation commands differ.

    • Movement speed

    • Invert vertical axis: Controls whether vertical axis movements should be inverted from their normal behaviour. Only affects movement in the Walk mode. It can be set to:

      • Never

      • Only when dragging: causes the vertical motion to inverted only when performing a click-and-drag camera rotation

      • and Always: causes the motions to be inverted when both click-and-dragging and when the camera movement is locked to the cursor (via a ~ key press)

  • Under Graphics memory, the Allowed memory per layer option lets you set the GPU memory limit configuration on each layer. This is useful for users utilizing large 3D scenes which exhaust the available GPU memory resources. When a limit is hit, a warning is also displayed, which should assist in troubleshooting large scenes.

9.1.11. Colors settings

../../../_images/options_colors.png

Fig. 9.18 Colors settings

This menu allows you to create or update palettes of colors used throughout the application in the color selector widget. You can choose from:

  • Recent colors showing recently used colors

  • Standard colors, the default palette of colors

  • Project colors, a set of colors specific to the current project (see Styles Properties for more details)

  • New layer colors, a set of colors to use by default when new layers are added to QGIS

  • or custom palette(s) you can create or import using the button next to the palette combobox.

By default, Recent colors, Standard colors and Project colors palettes can not be removed and are set to appear in the color button drop-down. Custom palettes can also be added to this widget thanks to the Show in Color Buttons option.

For any of the palettes, you can manage the list of colors using the set of tools next to the frame, ie:

  • symbologyAdd Add or symbologyRemove Remove color

  • editCopy Copy or editPaste Paste color

  • fileOpen Import or fileSave Export the set of colors from/to .gpl file.

Double-click a color in the list to tweak or replace it in the Color Selector dialog. You can also rename it by double-clicking in the Label column.

9.1.12. Fonts Settings

../../../_images/options_fonts.png

Fig. 9.19 Fonts settings

The Fonts tab provides support to manage fonts used across the projects:

  • Font Replacements: gives ability to populate a list of automatic font replacements to apply when loading projects or styles, allowing better support for projects and styles to be used across different operating systems (e.g. replace “Arial” with “Helvetica”).

  • User Fonts: Allows you to place TTF or OTF fonts in the fonts sub-folder of the user profile. These fonts can be automatically loaded at QGIS startup time. This provides a way to use fonts without requiring them to be installed on an operating system level, which is often blocked in enterprise environments. The panel lists all installed user fonts and allows you to manage (i.e. remove) previously installed user fonts.

    It is also possible to checkbox Automatically download missing, freely-licensed fonts: E.g. if you open a project or style, or try to load a vector tile layer that references fonts that aren’t currently available, then a hard-coded list of freely licensed fonts to download via URL is consulted to determine whether it’s possible to automatically download the font to the user profile font directory (with notification of the font license).

9.1.13. Layouts settings

../../../_images/options_layouts.png

Fig. 9.20 Layouts settings

Composition defaults

You can define the Default font used within the print layout.

Grid appearance

  • Define the Grid style (‘Solid’, ‘Dots’, ‘Crosses’)

  • Define the Grid color

Grid and guide defaults

  • Define the Grid spacing

  • Define the Grid offset for X and Y

  • Define the Snap tolerance

Layout Paths

  • Define Path(s) to search for extra print templates: a list of folders with custom layout templates to use while creating new one.

9.1.14. Variables settings

The Variables tab lists all the variables available at the global-level.

It also allows the user to manage global-level variables. Click the symbologyAdd button to add a new custom global-level variable. Likewise, select a custom global-level variable from the list and click the symbologyRemove button to remove it.

More information about variables in the Storing values in Variables section.

../../../_images/options_variables_global.png

Fig. 9.21 Variables settings

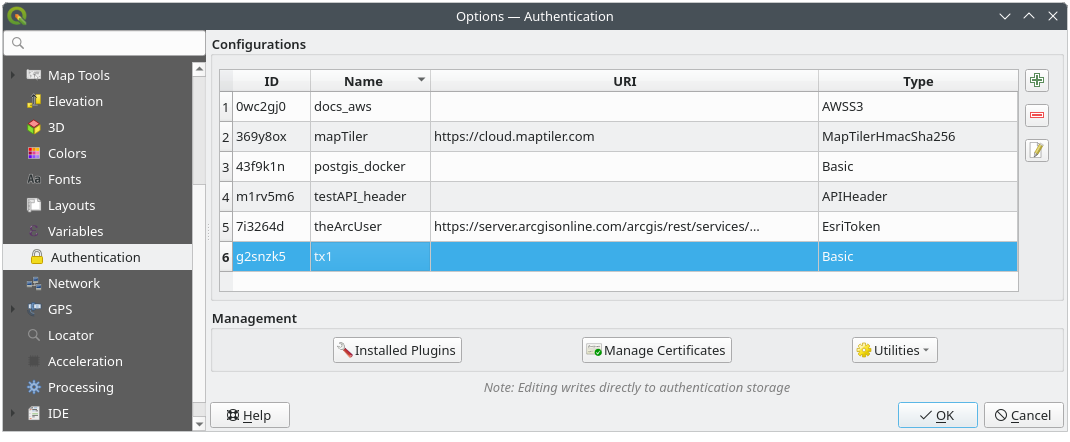

9.1.15. Authentication settings

In the Authentication tab you can set authentication configurations and manage PKI certificates. See Authentication System for more details.

To manage authentications, you can use the list of tools next to the frame, ie:

  • symbologyAdd Add new authentication configuration

  • symbologyRemove Remove selected authentication configuration

  • symbologyEdit Edit selected authentication configuration

../../../_images/auth-editor-configs2.png

Fig. 9.22 Authentication settings

9.1.16. Network settings

General

  • Define Timeout for network requests (ms) - default is 60000

  • Define Default expiration period for WMS Capabilities (hours) - default is 24

  • Define Default expiration period for WMS-C/WMTS tiles (hours) - default is 24

  • Define Max retry in case of tile or feature request errors

  • Define User-Agent prefix which defaults to Mozilla/5.0. This value will be prepended to both QGIS and OS version e.g. Mozilla/5.0 QGIS/33801/Ubuntu 22.04.4 LTS to shape the user-agent.

../../../_images/options_network.png

Fig. 9.23 Network and proxy settings

Cache settings

Defines the Directory and a Size for the cache. Also offers tools to automatically clear the connection authentication cache on SSL errors (recommended).

Proxy for web access

  • checkbox Use proxy for web access

  • Set the Proxy type selectString according to your needs and define ‘Host’ and ‘Port’. Available proxy types are:

    • Default Proxy: Proxy is determined based on system’s proxy

    • Socks5Proxy: Generic proxy for any kind of connection. Supports TCP, UDP, binding to a port (incoming connections) and authentication.

    • HttpProxy: Implemented using the “CONNECT” command, supports only outgoing TCP connections; supports authentication.

    • HttpCachingProxy: Implemented using normal HTTP commands, it is useful only in the context of HTTP requests.

    • FtpCachingProxy: Implemented using an FTP proxy, it is useful only in the context of FTP requests.

Credentials of proxy are set using the authentication widget.

Excluding some URLs can be added to the text box below the proxy settings (see Fig. 9.23). No proxy will be used if the target url starts with one of the string listed in this text box.

If you need more detailed information about the different proxy settings, please refer to the manual of the underlying QT library documentation at https://doc.qt.io/archives/qt-5.9/qnetworkproxy.html#ProxyType-enum

Tip

Using Proxies

Using proxies can sometimes be tricky. It is useful to proceed by ‘trial and error’ with the above proxy types, to check if they succeed in your case.

9.1.17. GPS settings

The gps GPS dialog helps you configure GPS devices connections and properties in QGIS. It also provides settings for GPS tracking and data digitizing.

../../../_images/options_gps.png

Fig. 9.24 GPS settings

You can specify:

  • GPS Connection: provides different means to connect the device to QGIS

    • radioButtonOn Autodetect

    • radioButtonOff Serial device (reload required if a new GPS Device is connected)

    • radioButtonOff gpsd (selecting the Host and Port your GPS is connected to, and providing a Device name)

    In case of connection problems, you can try to switch from one to another.

  • Filtering: You can set an Acquisition interval (seconds) and/or a Distance threshold (meters) parameters to keep the cursor still active when the receiver is in static conditions.

  • Under Geometry Options, the Store in M values option allows to create geometries with M values from the inbuilt GPS logging tools. This applies to both features digitized from GPS logs and from the Log to Geopackage/SpatiaLite functionality… Options include storing timestamps (as ms since epoch), ground speed, altitudes, bearings, and accuracy components as m values.

  • GPS Location Marker

    • Configure a symbol for the GPS location marker, indicating the current GPS position

    • checkbox Rotate location marker to match GPS bearing: whether the marker symbol should be rotated to match the GPS direction

  • GPS Bearing:

    • configure a Bearing line style using QGIS line symbol properties

    • set whether to unchecked Calculate Bearings from travel direction: If checked, the bearing reported by the GPS device will be ignored and the bearing will instead be calculated by the angle between the previous two GPS locations.

  • GPS Track: set symbol to use for the Track line style

  • Map Centering and Rotation: defines when the map canvas is updated according to the user displacement on the field:

    • Threshold for automatic map centering: defines the minimal offset of the GPS position from the map canvas center to trigger an automatic map recentering if enabled.

    • Automatic map rotation frequency: defines how often the map rotation to match the GPS bearing could happen; it can be on a custom duration or On GPS signal.

  • Timestamp Properties to configure how time values are displayed and stored in the data. Parameters include the Format which can be:

    • Local time

    • UTC

    • UTC with offset, to account for daylight savings offsets or other complex time zone issues

    • a specific Time zone

    Moreover, Leap seconds correction can be applied, by adding the seconds to GPS timestamp.

9.1.17.1. GPSBabel

GPSBabel converts waypoints, tracks, and routes between popular GPS receivers such as Garmin or Magellan and mapping programs like Google Earth or Basecamp. Literally hundreds of GPS receivers and programs are supported. QGIS relies on GPSBabel to interact with these devices and manipulate their data.

For details on how-to, please refer to Loading to or from a device.

9.1.18. Locator settings

search The Locator tab lets you configure the Locator bar, a quick search widget available on the status bar to help you perform searches in the application. It provides some default filters (with prefix) to use:

../../../_images/options_locator.png

Fig. 9.25 Locator settings

  • Project Layers (l): finds and selects a layer in the Layers panel.

  • Project Layouts (pl): finds and opens a print layout.

  • Actions (.): finds and executes a QGIS action; actions can be any tool or menu in QGIS, opening a panel…

  • Active Layer Features (f): searches for matching attributes in any field from the current active layer and zooms to the selected feature. Press settings to configure the maximum number of results.

  • Features in All Layers (af): searches for matching attributes in the display name of each searchable layers and zooms to the selected feature. Press settings to configure the maximum number of results and the maximum number of results per layer.

  • Calculator (=): allows evaluation of any QGIS expression and, if valid, gives an option to copy the result to the clipboard.

  • Spatial Bookmarks (b): finds and zooms to the bookmark extent.

  • Settings (set): browses and opens project and application-wide properties dialogs.

  • Go to Coordinate (go): pans the map canvas to a location defined by a comma or space separated pair of x and y coordinates or a formatted URL (e.g., OpenStreetMap, Leaflet, OpenLayer, Google Maps, …). The coordinate is expected in WGS 84 (epsg:4326) and/or map canvas CRS.

  • Nominatim Geocoder (>): geocodes using the Nominatim geocoding service of the OpenStreetMap Foundation.

  • Processing Algorithms (a): searches and opens a Processing algorithm dialog.

  • Edit Selected Features (ef): gives quick access and runs a compatible modify-in-place Processing algorithm on the active layer.

In the dialog, you can:

  • customize the filter Prefix, i.e. the keyword to use to trigger the filter

  • set whether the filter is Enabled: the filter can be used in the searches and a shortcut is available in the locator bar menu

  • set whether the filter is Default: a search not using a filter returns results from only the default filters categories.

  • Some filters provide a way to configure the number of results in a search.

The set of default locator filters can be extended by plugins, eg for OSM nominatim searches, direct database searching, layer catalog searches, …

9.1.19. Acceleration settings

OpenCL acceleration settings.

../../../_images/options_acceleration.png

Fig. 9.26 Acceleration settings

Depending on your hardware and software, you may have to install additional libraries to enable OpenCL acceleration.

9.1.20. IDE settings

9.1.20.1. Code Editor settings

In the codeEditor Code Editor tab, you can control the appearance and behaviour of code editor widgets (Python interactive console and editor, expression widget and function editor, …).

../../../_images/options_codeeditor.png

Fig. 9.27 Code Editor settings

At the top of the dialog, a widget provides a live preview of the current settings, in various coding languages (Python, QGIS expression, HTML, SQL, JavaScript). A convenient way to adjust settings.

  • Check unchecked Override Code Editor Font to modify the default Font family and Size.

  • Under the Colors group, you can:

    • select a Color scheme: predefined settings are Default, Solarized Dark and Solarized Light. A Custom scheme is triggered as soon as you modify a color and can be reset with selecting a predefined scheme.

    • change the color of each element in code writing, such as the colors to use for comments, quotes, functions, background, …

9.1.20.2. Python Console settings

The runConsole Python Console settings help you manage and control the behavior of the Python editors (interactive console, code editor, project macros, custom expressions, …). It can also be accessed using the options Options… button from:

  • the Python console toolbar

  • the contextual menu of the Python console widget

  • and the contextual menu of the code editor.

../../../_images/options_pythonconsole.png

Fig. 9.28 Python Console settings

You can specify:

  • unchecked Autocompletion: Enables code completion. You can get autocompletion from the current document, the installed API files or both.

    • Autocompletion threshold: Sets the threshold for displaying the autocompletion list (in characters)

  • under Typing

    • checkbox Automatic parentheses insertion: When no text is selected, if an opening character (parentheses, quotes, brackets, …) is entered, inserts the matching closing character just after the cursor. Note that this behavior is disabled if the current cursor is inside a string or comment.

    • checkbox Automatically surround selection when typing quotes or brackets: When an opening character is entered, the selected text is enclosed in the opening/closing pair. Selection remains the same, so it is possible to quote a selected word and enclose it in parentheses just by typing " then (.

      Special case for multiline selection with quotes and double quotes: selection is enclosed in triple single/double quotes.

    • unchecked Automatic insertion of the ‘import’ string on ‘from xxx’: Enables insertion of ‘import’ when specifying imports

  • under Formatting, you can add automated tools to reformat the code you are writing:

    • unchecked Reformat on save: formatting is applied just before saving the script

    • checkbox Sort imports: sorts ‘import’ statements using the isort library

    • Maximum line length: controls how the formatter will wrap the lines, and controls the editor ruler

    • Formatter - supported tools are autopep8 and black, with dedicated option:

      • Autopep8 level - more details at autopep8 advanced usage

      • unchecked Normalize quotes: replaces all single quotes with double quotes if possible

  • under Run and Debug

    • unchecked Enable Object Inspector (switching between tabs may be slow)

    • unchecked Auto-save script before running: Saves the script automatically when executed. This action will store a temporary file (in the temporary system directory) that will be deleted automatically after running.

For APIs you can specify:

  • checkbox Using preloaded APIs file: You can choose if you would like to use the preloaded API files. If this is not checked you can add API files and you can also choose if you would like to use prepared API files (see next option).

  • unchecked Using prepared APIs file: If checked, the chosen *.pap file will be used for code completion. To generate a prepared API file you have to load at least one *.api file and then compile it by clicking the Compile APIs… button.

Under GitHub access token, you can generate a personal token allowing you to share code snippets from within the Python code editor. More details on GitHub authentication

9.1.21. Processing settings

The processingAlgorithm Processing tab provides you with general settings of tools and data providers that are used in the QGIS Processing framework. More information at QGIS processing framework.

../../../_images/options_processing.png

Fig. 9.29 Processing settings

9.1.22. Advanced settings

../../../_images/options_advanced.png

Fig. 9.30 Advanced settings

All the settings related to QGIS (UI, tools, data providers, Processing configurations, default values and paths, plugins options, expressions, geometry checks…) are saved in a QGIS/QGIS3.ini file under the active user profile directory. Configurations can be shared by copying this file to other installations.

From within QGIS, the Advanced tab offers a way to manage these settings through the Advanced Settings Editor. After you promise to be careful, the widget is populated with a tree of all the existing settings, and you can edit their value. Right-click over a setting or a group and you can delete it (to add a setting or group, you have to edit the QGIS3.ini file). Changes are automatically saved in the QGIS3.ini file.

Warning

Avoid using the Advanced tab settings blindly

Be careful while modifying items in this dialog given that changes are automatically applied. Doing changes without knowledge can break your QGIS installation in various ways.

9.2. Working with User Profiles

9.2.1. The concept

The Settings ► User Profiles menu provides functions to set and access user profiles. A user profile is a unified application configuration that allows to store in a single folder:

  • all the global settings, including locale, projections, authentication settings, color palettes, shortcuts…

  • GUI configurations and customization

  • grid files and other proj helper files installed for datum transformation

  • installed plugins and their configurations

  • project templates and history of saved project with their image preview

  • processing settings, logs, scripts, models.

By default, a QGIS installation contains a single user profile named default. But you can create as many user profiles as you want:

  1. Click the Settings ► User Profiles ► New profile… entry.

  2. You’ll be prompted to provide a profile name, creating a folder of the same name under ~/<UserProfiles>/ where:

    • ~ represents the HOME directory, which on win Windows is usually something like C:\Users\<username>.

    • and <UserProfiles> represents the main profiles folder, i.e.:

      • nix .local/share/QGIS/QGIS3/profiles/

      • win %AppData%\Roaming\QGIS\QGIS3\profiles\

      • osx Library/Application Support/QGIS/QGIS3/profiles/

    The user profile folder can be opened from within QGIS using the Open Active Profile Folder.

  3. A new instance of QGIS is started, using a clean configuration. You can then set your custom configurations.

If you have more than one profile in your QGIS installation, the name of the active profile is shown in the application title bar between square brackets.

As each user profile contains isolated settings, plugins and history they can be great for different workflows, demos, users of the same machine, or testing settings, etc. And you can switch from one to the other by selecting them in the Settings ► User Profiles menu. You can also run QGIS with a specific user profile from the command line.

Tip

Run QGIS under a new user profile to check for bug persistence

When you encounter weird behavior with some functions in QGIS, create a new user profile and run the commands again. Sometimes, bugs are related to some leftovers in the current user profile and creating a new one may fix them as it restarts QGIS with the new (clean) profile.

9.2.2. Setting user profile

By default, QGIS opens a new session with the profile of the last closed session. This, among other settings, can be customized in Settings ► options Options ► user User Profiles tab:

../../../_images/options_userprofiles.png

Fig. 9.31 User profiles settings

  • Startup profile: indicates the user profile to use when starting a QGIS session. It can be:

    • Use last closed profile

    • a specific user profile to select from Always use profile drop-down menu

    • Choose profile at start up: Opens the User Profile Selector dialog listing available user profiles. Double-click an entry or select a profile and press OK to use that user profile for the starting session. It is also possible to symbologyAdd Add new profile to the list: a profile is created from scratch and automatically run with the opening session.

  • Under Profile display, you can set:

    • The size of icons to use when selecting a profile from the User Profile Selector dialog.

    • A specific icon to display next to the current profile in the Settings ► User profiles menu or the User Profile Selector dialog. Press refresh Reset profile icon to remove custom modifications.

9.3. Project Properties

In the properties window for the project under Project ► Project Properties, you can set project-specific options. The project-specific options overwrite their equivalent in the Options dialog described above.

9.3.1. General Properties

In the general General tab, the General settings let you:

  • see the location of the project file

  • set the folder for the project home (available in the Project home item of the Browser panel). The path can be relative to the folder of the project file (type it in) or absolute. The project home can be used for storing data and other content that is useful for the project. Convenient when dataset and project files are not stored at the same place. If not filled, the Project home defaults to the project file folder.

  • give a title to the project beside the project file path

  • choose the color to use for features when they are selected

  • choose the background color: the color to use for the map canvas

  • set whether the path to layers in the project should be saved as absolute (full) or as relative to the project file location. You may prefer relative path when both layers and project files can be moved or shared or if the project is accessed from computers on different platforms.

  • choose to avoid artifacts when project is rendered as map tiles. Note that checking this option can lead to performance degradation.

  • Remember attribute tables windows and docks between sessions: If checked for a project, then any opened attribute tables will be saved into the project and immediately restored when loading that project. This can improve workflows when you constructed a project with a particular set of attribute table configurations for your requirements, and re-setting up these attribute tables is a hassle.

Calculating areas and distances is a common need in GIS. However, these values are really tied to the underlying projection settings. The Measurements frame lets you control these parameters. You can indeed choose:

  • the Ellipsoid, on which distance and area calculations are entirely based; it can be:

    • None/Planimetric: returned values are in this case cartesian measurements. This option can be set as default for new projects from the Settings ► options Options ► crs CRS Handling menu

    • a Custom one: you’ll need to set values of the semi-major and semi-minor axes.

    • or an existing one from a predefined list (Clarke 1866, Clarke 1880 IGN, New International 1967, WGS 84…).

  • the Units for distance measurements for length and perimeter, and the Units for area measurements. These settings which default to their corresponding global options override them in the current project. They are used in:

The Coordinate and Bearing display allows you to customize the display of:

  • the coordinates shown in the Coordinates box on QGIS status bar and in the Derived section of the identify Identify features tool’s results

  • the bearing value displayed in the status bar for the map canvas panning direction and by the measureBearing Measure bearing tool.

Available parameters are:

  • Display coordinates using either:

    • Map Units, based on the project CRS

    • Map Geographic (degrees): based on the project CRS if it is of geographic type, otherwise uses its associated geographic CRS. This is helpful e.g. for non-earth celestial bodies.

    • or Custom Projection Units: allows to rely on any CRS you desire for coordinates display

  • In the Coordinate CRS option, you can view or define the CRS to use depending on your display mode.

  • Coordinate format: you can configure it as Decimal Degrees, Degrees, Minutes or Degrees, Minutes, Seconds, and whether it should display:

    • unchecked Show directional suffix

    • unchecked Show leading zeros for minutes and seconds

    • unchecked Show leading zeros for degrees

    • unchecked Show trailing zeros

  • Coordinate precision: the number of decimal places can be automatic (derived from the type of CRS) or set manually

  • Coordinate order: you can opt to display the coordinates in the native order of the CRS (Default) or switch it to either Easting, Northing (Longitude, Latitude) or Northing, Easting (Latitude, Longitude) order

  • Bearing format possible values are 0 to 180°, with E/W suffix, -180 to +180° or 0 to 360°. The number of Decimal places as well as whether to Show trailing zeros can be set.

../../../_images/project_general.png

Fig. 9.32 General tab of the Project Properties dialog

9.3.2. Metadata Properties

The editMetadata Metadata tab allows detailed metadata to be defined, including (among the others): author, creation date, language, abstracts, categories, keywords, contact details, links, history. There is also a validation functionality that checks if specific fields were filled, anyway this is not enforced. See vector layer metadata properties for some details.

9.3.3. View Settings

../../../_images/project_viewsettings.png

Fig. 9.33 View Settings tab of the Project Properties dialog

The overlay View Settings tab provides means to control the project map canvas. You can:

  • set Project predefined scales: the list of scales to display in scale-related drop-down widgets, such as the status bar Scale, the visibility scales selector or secondary 2D map view settings,… in replacement of the global predefined scales.

  • Set Project full Extent: this extent will be used instead of the extent of all layers when zooming to full map extent (zoomFullExtent). It’s useful when a project contains web layers/national layers/global layers yet the actual area of interest for the project is a smaller geographic area. The project full extent coordinates can be set with the extent selector widget.

9.3.4. CRS Properties

Note

For more information on how QGIS handles project projection, please read the dedicated section at Working with Projections.

The crs CRS tab helps you set the coordinate reference system to use in this project. It can be:

  • checkbox No CRS (or unknown/non-Earth projection): layers are drawn based on their raw coordinates

  • or an existing coordinate reference system that can be geographic, projected or user-defined. Layers added to the project are translated on-the-fly to this CRS in order to overlay them regardless their original CRS.

9.3.5. Transformations Properties

The transformation Transformations tab helps you control the layers reprojection settings by configuring the datum transformation preferences to apply in the current project. As usual, these override any corresponding global settings. See Datum Transformations for more details.

9.3.6. Styles Properties

Under symbology Styles tab, you can configure symbols and colors inherent to the project, allowing to safely share the project among different machines.

../../../_images/project_styles.png

Fig. 9.34 Styles tab

9.3.6.1. Default symbols

The Default Symbols group lets you control how new layers will be drawn in the project when they do not have an existing .qml style defined. You can set Marker, Line, Fill to apply depending on the layer geometry type as well as default Color Ramp and Text Format (e.g. when enabling labeling). Any of these items can be reset using the Clear entry from the corresponding drop-down widget.

9.3.6.2. Symbol options

In the Symbol options group, you can:

  • Apply a default Opacity to new layers

  • checkbox Assign random colors to symbols, modifying the symbols fill colors, hence avoiding same rendering for all layers.

9.3.6.3. Style Database

A style database in QGIS is a structured repository designed to store symbols, text formats, and other styling elements. It serves as a centralized location where you can organize and manage your symbology resources efficiently. You can create a dedicated style database for a specific client, housing symbols tailored to that client’s need. This ensures a clean and organized approach, without cluttering the default style database. In multi-user environments, it’s possible to store project-specific styles in a shared location. By linking a project to these styles, all users within the project gain access to common symbology, eliminating the need for manual import or updates to individual local style database. Storing symbols in a project file offers a practical solution, preventing users from overcrowding their global style database with project-specific symbology. This approach guarantees that other users working on the same project immediately have access to all the necessary symbology upon loading the project.

In the Style Database section you can choose to symbologyAdd Add or symbologyRemove Remove style database or you can newPage Create new style database. When you add or remove a style database in this section, the changes will be automatically reflected in the symbology Symbology Properties.

9.3.7. Colors properties

../../../_images/project_colors.png

Fig. 9.35 Colors tab

In the colorSwatches Colors tab, you can select the Color model, i.e. whether selecting a color should by default be defined as RGB or CMYK. Any color defined in a different color model than the one specified here will be converted to this color model when exporting a layout.

There is also an additional section where you can define specific colors for the running project. Like the global colors, you can:

  • symbologyAdd Add or symbologyRemove Remove color

  • editCopy Copy or editPaste Paste color

  • fileOpen Import or fileSave Export the set of colors from/to .gpl file.

Double-click a color in the list to tweak or replace it in the Color Selector dialog. You can also rename it by double-clicking in the Label column.

These colors are identified as Project colors and listed as part of color widgets.

Tip

Use project colors to quickly assign and update color widgets

Project colors can be refered to using their label and the color widgets they are used in are bound to them. This means that instead of repeatedly setting the same color for many properties and, to avoid a cumbersome update you can:

  1. Define the color as a project color

  2. Click the data defined override widget next to the color property you want to set

  3. Hover over the Color menu and select the project color. The property is then assigned the expression project_color('color_label') and the color widget reflects that color.

  4. Repeat steps 2 and 3 as much as needed

  5. Update the project color once and the change is reflected EVERYWHERE it’s in use.

9.3.8. Data Sources Properties

In the openTable Data Sources tab, you can:

  • Transaction mode, defines how edits are sent to the data provider:

    • Local Edit Buffer: edits are buffered locally and sent to the provider when toggling layer editing mode or clicking Save edits.

    • Automatic Transaction Groups: on supported datasources (postgres and geopackage databases) the edit state of all tables that originate from the same database are synchronized and executed in a server side transaction. Also, instead of buffering edit changes locally, they are directly sent to a transaction in the database which gets committed when toggling layer editing mode or clicking Save edits.

    • Buffered Transaction Groups: all editable layers, disregarding from which provider, are toggled synchronously and all edits are saved in a local edit buffer. Saving changes is executed within a single transaction on all layers (per provider).

    Note that you can change this option only if no layer is being edited in the project.

  • unchecked Evaluate default values on provider side: When adding new features in a PostgreSQL table, fields with default value constraint are evaluated and populated at the form opening, and not at the commit moment. This means that instead of an expression like nextval('serial'), the field in the Add Feature form will display expected value (e.g., 25).

  • unchecked Remember editable layer status between sessions: makes sure that all layers that are editable in a project will be remembered as such when saving the project, as well as making sure that those layers are immediately made editable whenever the project is restored.

  • Configure the Layers Capabilities, i.e.:

    • Set (or disable) which layers are identifiable, i.e. will respond to the identify tool. By default, layers are set queryable.

    • Set whether a layer should appear as read-only, meaning that it can not be edited by the user, regardless of the data provider’s capabilities. Although this is a weak protection, it remains a quick and handy configuration to avoid end-users modifying data when working with file-based layers.

    • Define which layers are searchable, i.e. could be queried using the locator widget. By default, layers are set searchable.

    • Define which layers are defined as required. Checked layers in this list are protected from inadvertent removal from the project.

    • Define which layers are private, i.e. hidden from the Layers panel. This is meant for accessory layers (basemap, join, lookups for value-relations, most probably aspatial layers, …) that you still need in a project but you don’t want them to pollute the legend tree and other layer selection tools. If set visible, they are still displayed in the map canvas and rendered in the print layout legend. Use the filterMap Filter legend ► Show private layers option in the Layers panel top toolbar to temporarily turned them on for any interaction.

    The Layers Capabilities table provides some convenient tools to:

    • Select multiple cells and press Toggle Selection to have them change their checkbox state;

    • unchecked Show spatial layers only, filtering out non-spatial layers from the layers list;

    • search Filter layers… and quickly find a particular layer to configure.

  • Under the Advanced Settings group, you can select unchecked Trust project when data source has no metadata: To speed up project loading by skipping data checks. Useful in QGIS Server context or in projects with huge database views/materialized views. The extent of layers will be read from the QGIS project file (instead of data sources) and when using the PostgreSQL provider the primary key unicity will not be checked for views and materialized views.

../../../_images/project_datasources.png

Fig. 9.36 Data Sources tab

9.3.9. Relations Properties

The relations Relations tab is used to define relations between layers. The relations can be of one to one, many to many or polymorphic type. They are defined in the project properties dialog. Once relations exist for a layer, a new user interface element in the form view (e.g. when identifying a feature and opening its form) will list the related entities. This provides a powerful way to express e.g. the inspection history on a length of pipeline or road segment. You can find out more about relations support in section Setting relations between multiple layers.

../../../_images/project_relations.png

Fig. 9.37 Relations tab

9.3.10. Variables Properties

The expression Variables tab lists all the variables available at the project’s level (which includes all global variables). Besides, it also allows the user to manage project-level variables. Click the symbologyAdd button to add a new custom project-level variable. Likewise, select a custom project-level variable from the list and click the symbologyRemove button to remove it. More information on variables usage in the General Tools Storing values in Variables section.

9.3.11. Macros Properties

The action Macros tab is used to edit Python macros for projects. Currently, only three macros are available: openProject(), saveProject() and closeProject().

../../../_images/macro.png

Fig. 9.38 Macro settings

9.3.12. QGIS Server Properties

The overlay QGIS Server tab allows you to configure your project in order to publish it online. Here you can define information about the QGIS Server WMS and WFS capabilities, extent and CRS restrictions. More information available in section Configure your project and subsequent.

../../../_images/project_qgis_server.png

Fig. 9.39 QGIS Server settings

9.3.13. Temporal Properties

The temporal Temporal tab is used to set the temporal range of your project, either by using manual Start date and End date inputs or by calculating it from the current project temporal layers. The project time range can then be used in the Temporal controller panel to manage the map canvas temporal navigation.

../../../_images/project_temporal.png

Fig. 9.40 Project Temporal tab

9.3.14. Elevation Properties

The elevationscale Elevation tab helps you configure default settings for the terrain and elevation. When any new 3d map is created in the project, the map will default to using the same terrain settings as are defined for the project. The project elevation settings will also be respected by the elevation profile tool.

../../../_images/project_elevation.png

Fig. 9.41 Project Elevation tab

  • Vertical Reference System: If the CRS of your project is compound one (including a Z dimension), then the vertical CRS used for the project will be the vertical component of the project CRS. If your project CRS is horizontal, then you can select a specific vertical CRS by clicking on the setProjection Select CRS.

  • Elevation Range: helps you define the Lower and Upper limits for the elevation controller in the project.

  • Terrain and elevation options are available for:

    • Flat terrain with Terrain height setting

    • DEM (Raster Layer): with setting for defining the Raster layer, a Vertical scale factor to apply to band values and a vertical Offset

    • Mesh: with setting for defining the Mesh layer, a Vertical scale factor to apply to vertices Z value and a vertical Offset

    These settings can be overwritten from the 3D map configuration dialog.

  • With unchecked Global map shading settings, you apply a global shading effect to the map, based on the elevation of all the active layers that have elevation properties enabled, including:

    Method to combine: the elevation value at any particular position for all the relevant layers are combined, and the considered elevation is chosen depending on one of these methods:

    • Highest elevation value

    • Based on layer’s order: the elevation on the topmost layer in the layer tree is considered.

    Supported shading options are:

    • checkbox Eye-dome lighting: applies shading effects to the map canvas for a better depth rendering. Following parameters can be controlled:

      • Strength: increases the contrast, allowing for better depth perception

      • Distance: represents the distance of the used pixels off the center pixel and has the effect of making edges thicker.

    • unchecked Hillshading, shaping some reliefs on the map using shading (levels of gray):

      • Z Factor: Scaling factor for the elevation value

      • unchecked Multidirectional: Specify if multidirectional hillshading is to be used

      • Azimuth: The azimuth of the light source

      • Altitude: The elevation angle of the light source

    Note

    A shortcut to Global map shading properties is available through the Layer Styling panel.

9.3.15. Sensors Properties

The sensor Sensors tab is used to configure sensors and toggle their connection status. When active, sensors will passively collect data in the background and make available their latest data to expressions and python scripts.

../../../_images/project_sensors.png

Fig. 9.42 Project Sensors tab

To add a new sensor, click on the symbologyAdd button. A settings sub-panel will open and allow you to configure:

  • the Sensor name: used to retrieve sensor values in expressions and python scripts;

  • the Sensor type: TCP, UDP, serial port, etc.; and

  • additional type-specific details (e.g. host name and port). For serial port sensors, comboboxes with the system’s available serial ports and connection baud rate are available for their selection.

../../../_images/project_sensors_configuration.png

Fig. 9.43 Sensor Settings sub-panel

Once a sensor is configured, you can use the start Start button to connect the sensor. Once active, the last collected data will be displayed in the sensors table’s Last value column.

9.4. Customization

The Customization dialog lets you (de)activate almost every element in the QGIS user interface. This can be very useful if you want to provide your end-users with a ‘light’ version of QGIS, containing only the icons, menus or panels they need.

Note

Before your changes are applied, you need to restart QGIS.

../../../_images/customization.png

Fig. 9.44 The Customization dialog

Ticking the checkbox Enable customization checkbox is the first step on the way to QGIS customization. This enables the toolbar and the widget panel from which you can uncheck and thus disable some GUI items.

The configurable item can be:

  • a Menu or some of its sub-menus from the Menu Bar

  • a whole Panel (see Panels and Toolbars)

  • the Status bar described in Status Bar or some of its items

  • a Toolbar: the whole bar or some of its icons

  • or any widget from any dialog in QGIS: label, button, combobox…

With select Switch to catching widgets in main application, you can click on an item in QGIS interface that you want to be hidden and QGIS automatically unchecks the corresponding entry in the Customization dialog. You can also use the Search box to find items by their name or label.

Once you setup your configuration, click Apply or OK to validate your changes. This configuration becomes the one used by default by QGIS at the next startup.

The modifications can also be saved in a .ini file using fileSave Save To File button. This is a handy way to share a common QGIS interface among multiple users. Just click on fileOpen Load from File from the destination computer in order to import the .ini file. You can also run command line tools and save various setups for different use cases as well.

Tip

Easily restore predefined QGIS

The initial QGIS GUI configuration can be restored by one of the methods below:

  • unchecking checkbox Enable customization option in the Customization dialog or click the selectAllTree Check All button

  • pressing the Reset button in the Settings frame under Settings ► Options menu, System tab

  • launching QGIS at a command prompt with the following command line qgis --nocustomization

  • setting to false the value of UI ► Customization ► Enabled variable under Settings ► Options menu, Advanced tab (see the warning).

In most cases, you need to restart QGIS in order to have the change applied.

9.5. Keyboard shortcuts

QGIS provides default keyboard shortcuts for many features. You can find them in section Menu Bar. Additionally, the menu option Settings ► keyboardShortcuts Keyboard Shortcuts… allows you to change the default keyboard shortcuts and add new ones to QGIS features.

../../../_images/shortcuts.png

Fig. 9.45 Define shortcut options

Configuration is very simple. Use the search box at the top of the dialog to find a particular action, select it from the list and click on :

  • Change and press the new combination you want to assign as new shortcut

  • Set None to clear any assigned shortcut

  • or Set Default to backup the shortcut to its original and default value.

Proceed as above for any other tools you wish to customize. Once you have finished your configuration, simply Close the dialog to have your changes applied. You can also Save the changes either as an .XML file with only the User Shortcuts or with all Shortcuts or as an .PDF file with all Shortcuts and Load them into another QGIS installation.

9.6. Running QGIS with advanced settings

9.6.1. Command line and environment variables

We’ve seen that launching QGIS is done as for any application on your OS. QGIS provides command line options for more advanced use cases (in some cases you can use an environment variable instead of the command line option). To get a list of the options, enter qgis --help on the command line, which returns:

QGIS is a user friendly Open Source Geographic Information System.
Usage: /usr/bin/qgis.bin [OPTION] [FILE]
  OPTION:
        [-v, --version]     display version information and exit
        [-s, --snapshot filename]   emit snapshot of loaded datasets to given file
        [-w, --width width] width of snapshot to emit
        [-h, --height height]       height of snapshot to emit
        [-l, --lang language]       use language for interface text (changes existing override)
        [-p, --project projectfile] load the given QGIS project
        [-e, --extent xmin,ymin,xmax,ymax]  set initial map extent
        [-n, --nologo]      hide splash screen
        [-V, --noversioncheck]      don't check for new version of QGIS at startup
        [-P, --noplugins]   don't restore plugins on startup
        [-B, --skipbadlayers]     don't prompt for missing layers
        [-C, --nocustomization]     don't apply GUI customization
        [-z, --customizationfile path]      use the given ini file as GUI customization
        [-g, --globalsettingsfile path]     use the given ini file as Global Settings (defaults)
        [-a, --authdbdirectory path] use the given directory for authentication database
        [-f, --code path]   run the given python file on load
        [-d, --defaultui]   start by resetting user ui settings to default
        [--hide-browser]        hide the browser widget
        [--dxf-export filename.dxf]     emit dxf output of loaded datasets to given file
        [--dxf-extent xmin,ymin,xmax,ymax]      set extent to export to dxf
        [--dxf-symbology-mode none|symbollayer|feature] symbology mode for dxf output
        [--dxf-scale-denom scale]       scale for dxf output
        [--dxf-encoding encoding]       encoding to use for dxf output
        [--dxf-map-theme maptheme]      map theme to use for dxf output
        [--take-screenshots output_path]        take screen shots for the user documentation
        [--screenshots-categories categories]   specify the categories of screenshot to be used (see QgsAppScreenShots::Categories).
        [--profile name]        load a named profile from the user's profiles folder.
        [-S, --profiles-path path]  path to store user profile folders. Will create profiles inside a {path}\profiles folder
        [--version-migration]   force the settings migration from older version if found
        [--openclprogramfolder]         path to the folder containing the sources for OpenCL programs.
        [--help]                this text
        [--]            treat all following arguments as FILEs

  FILE:
    Files specified on the command line can include rasters,
    vectors, and QGIS project files (.qgs and .qgz):
     1. Rasters - supported formats include GeoTiff, DEM
        and others supported by GDAL
     2. Vectors - supported formats include ESRI Shapefiles
        and others supported by OGR and PostgreSQL layers using
        the PostGIS extension

Tip

Example Using command line arguments

You can start QGIS by specifying one or more data files on the command line. For example, assuming you are in the qgis_sample_data directory, you could start QGIS with a vector layer and a raster file set to load on startup using the following command: qgis ./raster/landcover.img ./gml/lakes.gml

9.6.1.1. --version

This option returns QGIS version information.

9.6.1.2. --snapshot

This option allows you to create a snapshot in PNG format from the current view. This comes in handy when you have many projects and want to generate snapshots from your data, or when you need to create snapshots of the same project with updated data.

Currently, it generates a PNG file with 800x600 pixels. The size can be adjusted using the --width and --height arguments. The filename can be added after --snapshot. For example:

qgis --snapshot my_image.png --width 1000 --height 600 --project my_project.qgs

9.6.1.3. --width

This option returns the width of the snapshot to be emitted (used with --snapshot).

9.6.1.4. --height

This option returns the height of the snapshot to be emitted (used with --snapshot).

9.6.1.5. --lang

Based on your locale, QGIS selects the correct localization. If you would like to change your language, you can specify a language code. For example, qgis --lang it starts QGIS in Italian localization.

9.6.1.6. --project

Starting QGIS with an existing project file is also possible. Just add the command line option --project followed by your project name and QGIS will open with all layers in the given file loaded.

9.6.1.7. --extent

To start with a specific map extent use this option. You need to add the bounding box of your extent in the following order separated by a comma:

--extent xmin,ymin,xmax,ymax

This option probably makes more sense when paired with the --project option to open a specific project at the desired extent.

9.6.1.9. --noversioncheck

Skip searching for a new version of QGIS at startup.

9.6.1.10. --noplugins

If you have trouble at start-up with plugins, you can avoid loading them at start-up with this option. They will still be available from the Plugins Manager afterwards.

9.6.1.11. --nocustomization

Using this option, any existing GUI customization will not be applied at startup. This means that any hidden buttons, menu items, toolbars, and so on, will show up on QGIS start up. This is not a permanent change. The customization will be applied again if QGIS is launched without this option.

This option is useful for temporarily allowing access to tools that have been removed by customization.

9.6.1.12. --skipbadlayers

Using this option, you can avoid QGIS prompting the Handle Unavailable Layers dialog at startup. The project file is loaded, with missing layers kept as unavailable. More details on the topic at Handling broken file paths.

9.6.1.13. --customizationfile

Using this option, you can define a UI customization file, that will be used at startup.

9.6.1.14. --globalsettingsfile

The equivalent environment variable is QGIS_GLOBAL_SETTINGS_FILE.

Using this option, you can specify the path for a Global Settings file (.ini), also known as the Default Settings. The settings in the specified file replace the original inline default ones, but the user profiles’ settings will be set on top of those.

QGIS looks for the default global settings file in the following order and only the first found file will be used:

  • path specified by the commandline parameter

  • path defined by the environment variable

  • the AppDataLocation folder, where persistent application data can be stored; it is managed by the user or system administrator and is not touched by installer and does not require any additional setup like passing commandline parameters or settings environment variable. Depending on the OS, it is:

    • nix $HOME/.local/share/QGIS/QGIS3/

    • win C:\Users\<username>\%AppData%\Roaming\QGIS\QGIS3\

    • osx $HOME/Library/Application Support/QGIS/QGIS3/

  • the installation directory, i.e. your_QGIS_package_path/resources/qgis_global_settings.ini.

Presently, there’s no way to specify a file to write settings to; therefore, you can create a copy of an original settings file, rename, and adapt it.

Setting the qgis_global_setting.ini file path to a network shared folder, allows a system administrator to change global settings and defaults in several machines by only editing one file.

9.6.1.15. --authdbdirectory

This option is similar to --globalsettingsfile, but defines the path to the directory where the authentication database will be stored and loaded.

9.6.1.16. --code

This option can be used to run a given python file directly after QGIS has started.

For example, when you have a python file named load_alaska.py with following content:

from qgis.utils import iface
raster_file = "/home/gisadmin/Documents/qgis_sample_data/raster/landcover.img"
layer_name = "Alaska"
iface.addRasterLayer(raster_file, layer_name)

Assuming you are in the directory where the file load_alaska.py is located, you can start QGIS, load the raster file landcover.img and give the layer the name ‘Alaska’ using the following command:

qgis --code load_alaska.py

9.6.1.17. --defaultui

On load, permanently resets the user interface (UI) to the default settings. This option will restore the panels and toolbars visibility, position, and size. Unless it’s changed again, the default UI settings will be used in the following sessions.

Notice that this option doesn’t have any effect on GUI customization. Items hidden by GUI customization (e.g. the status bar) will remain hidden even using the --defaultui option. See also the --nocustomization option.

9.6.1.18. --hide-browser

On load, hides the Browser panel from the user interface. The panel can be enabled by right-clicking a space in the toolbars or using the View ► Panels (Settings ► Panels in kde Linux KDE).

Unless it’s enabled again, the Browser panel will remain hidden in the following sessions.

9.6.1.19. --dxf-*

These options can be used to export a QGIS project into a DXF file. Several options are available:

  • –dxf-export: the DXF filename into which to export the layers;

  • –dxf-extent: the extent of the final DXF file;

  • –dxf-symbology-mode: several values can be used here: none (no symbology), symbollayer (Symbol layer symbology), feature (feature symbology);

  • –dxf-scale-denom: the scale denominator of the symbology;

  • –dxf-encoding: the file encoding;

  • –dxf-map-theme: choose a map theme from the layer tree configuration.

9.6.1.20. --take-screenshots

Takes screenshots for the user documentation. Can be used together with --screenshots-categories to filter which categories/sections of the documentation screenshots should be created (see QgsAppScreenShots::Categories).

9.6.1.21. --profile

Loads QGIS using a specific profile from the user’s profile folder. This option takes precedence over user profile startup setting.

9.6.1.22. --profiles-path

With this option, you can choose a path to load and save the profiles (user settings). It creates profiles inside a {path}\profiles folder, which includes settings, installed plugins, processing models and scripts, and so on.

This option allows you to, for instance, carry all your plugins and settings in a flash drive, or, for example, share the settings between different computers using a file sharing service.

The equivalent environment variable is QGIS_CUSTOM_CONFIG_PATH.

9.6.1.23. --version-migration

If settings from an older version are found (e.g., the .qgis2 folder from QGIS 2.18), this option will import them into the default QGIS profile.

9.6.1.24. --openclprogramfolder

Using this option, you can specify an alternative path for your OpenCL programs. This is useful for developers while testing new versions of the programs without needing to replace the existing ones.

The equivalent environment variable is QGIS_OPENCL_PROGRAM_FOLDER.

9.6.2. Deploying QGIS within an organization

If you need to deploy QGIS within an organization with a custom configuration file, first you need to copy/paste the content of the default settings file located in your_QGIS_package_path/resources/qgis_global_settings.ini. This file already contains some default sections identified by a block starting with []. We recommend that you keep these defaults values and add your own sections at the bottom of the file. If a section is duplicated in the file, QGIS will take the last one from top to bottom.

You can change allowVersionCheck=false to disable the QGIS version check.

If you do not want to display the migration window after a fresh install, you need the following section:

[migration]
fileVersion=2
settings=true

If you want to add a custom variable in the global scope:

[variables]
organisation="Your organization"

A lot of settings can be set using the .INI file such as WMS/WMTS, PostGIS connections, proxy settings, maptips, default values for algorithms parameters… For example, if you want to configure organization wide default values for some algorithms it would be handy if you could configure it in the prepared ini-file for all users. If the users then open the toolbox to execute an algorithm, the default values will be there. To set the default value e.g. for GRID_SIZE parameter for the native:intersection algorithm, you could write the following into the .INI file:

[Processing]
DefaultGuiParam\native%3Aintersection\GRID_SIZE=0.01

Not all settings can be prepared from QGIS GUI, but to discover the possibilities of the settings .INI file, we suggest that you set the config you would like in QGIS Desktop and then search for it in your .INI file located in your profile using a text editor.

Finally, you need to set the environment variable QGIS_GLOBAL_SETTINGS_FILE to the path of your customized file.

In addition, you can also deploy files such as Python macros, color palettes, layout templates, project templates… either in the QGIS system directory or in the QGIS user profile.

  • Layout templates must be deployed in the composer_templates directory.

  • Project templates must be deployed in the project_templates directory.

  • Custom Python macros must be deployed in the python directory.
