24.1.6. Fix Geometry

24.1.6.1. Add missing vertices along borders

Added in 3.42

Adds the missing vertices along polygons borders, based on an error layer from the Missing vertices along borders algorithm.

Fig. 24.16 Fixing missing vertices along polygon borders.

参数

Basic parameters

标注	名称	类型	描述
输入图层	INPUT	[vector: polygon]	Layer with the geometries to fix, same as input in the check algorithm.
Error layer	ERRORS	[vector: point]	Point layer with the errors location, generated by the check algorithm.
Field of original feature unique identifier	UNIQUE_ID	[tablefield: any]	Field storing unique values for feature identification in input layer, as set in the check algorithm.
Field of part index	PART_IDX	[tablefield: integer] Default: gc_partidx	Field storing the erroneous feature's geometry part number.
Field of ring index	RING_IDX	[tablefield: integer] Default: gc_ringidx	Field storing the erroneous feature's geometry ring number.
Field of vertex index	VERTEX_IDX	[tablefield: integer] Default: gc_vertidx	Field storing the erroneous feature's geometry vertex number.
Border vertices fixed layer	OUTPUT	[vector: polygon] Default: [Create temporary layer]	Specification of the output layer containing fixed features. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。
Report layer from fixing border vertices	REPORT	[vector: point] Default: [Create temporary layer]	Specification of the output layer containing the fixes location. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。

Advanced parameters

标注	名称	类型	描述
Tolerance	TOLERANCE	[numeric: integer] Default: 8	Numerical precision of geometric operations, given as an integer n, meaning that two vertices less than 10-n apart (in map units) are considered to be merged.

输出

标注	名称	类型	描述
Report layer from fixing border vertices	REPORT	[vector: point]	Output point layer representing the error locations and fix applied. The output layer contains the following fields: gc_layerid: the ID of the input layer. gc_layername: the name of the input layer. gc_partidx gc_ringidx gc_vertidx gc_errorx: the x coordinate of the missing vertex. gc_errory: the y coordinate of the missing vertex. gc_error report: a text field describing the fix applied. error_fixed: a boolean field indicating whether the error was fixed. UNIQUE_ID field: the unique ID of the input feature that has a missing vertex.
Border vertices fixed layer	OUTPUT	[vector: polygon]	Output layer with the geometry fix applied to the input features. The layer contains the same fields as in the input layer.

Python代码

Algorithm ID: native:fixgeometrymissingvertex

import processing
processing.run("algorithm_id", {parameter_dictionary})

当你在数据处理工具箱某个算法前悬停时，算法 id 将会展现。*参数字*将会提供参数的名称与数值。参考详见`数据处理_控制台`以获取如何从Python控制台中运行数据处理算法。

24.1.6.2. Convert to strictly multipart

Added in 3.42

Converts multipart geometries that consists of only one geometry into singlepart geometries, based on an error layer from the Strictly multipart algorithm. Layer geometry type will not be changed and will remain multipart.

See also

Promote to multipart

参数

Basic parameters

标注	名称	类型	描述
输入图层	INPUT	[vector: line, polygon]	Layer with the geometries to fix, same as input in the check algorithm.
Error layer	ERRORS	[vector: point]	Point layer with the errors location, generated by the check algorithm.
Field of original feature unique identifier	UNIQUE_ID	[tablefield: any]	Field storing unique values for feature identification in input layer, as set in the check algorithm.
Strictly-multipart layer	OUTPUT	[vector: same as input] Default: [Create temporary layer]	Specification of the output layer containing fixed features. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。
Report layer from fixing multipart	REPORT	[vector: point] Default: [Create temporary layer]	Specification of the output layer containing the centroids of the fixed geometries. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。

Advanced parameters

标注	名称	类型	描述
Tolerance	TOLERANCE	[numeric: integer] Default: 8	Numerical precision of geometric operations, given as an integer n, meaning that two vertices less than 10-n apart (in map units) are considered to be merged.

输出

标注	名称	类型	描述
Report layer from fixing multipart	REPORT	[vector: point]	Output point layer representing the error locations and fix applied. The output layer contains the following fields: gc_layerid: the ID of the input layer. gc_layername: the name of the input layer. gc_partidx gc_ringidx gc_vertidx gc_errorx: the x coordinate of the centroid of the multipart geometry that has only one part. gc_errory: the y coordinate of the centroid of the multipart geometry that has only one part. gc_error report: a text field describing the fix applied. error_fixed: a boolean field indicating whether the error was fixed. UNIQUE_ID field: the unique ID of the input feature that is multipart but has only one part.
Strictly-multipart layer	OUTPUT	[vector: same as input]	Output layer with the geometry fix applied to the input features. The layer contains the same fields as in the input layer.

Python代码

Algorithm ID: native:fixgeometrymultipart

import processing
processing.run("algorithm_id", {parameter_dictionary})

当你在数据处理工具箱某个算法前悬停时，算法 id 将会展现。*参数字*将会提供参数的名称与数值。参考详见`数据处理_控制台`以获取如何从Python控制台中运行数据处理算法。

24.1.6.3. Delete duplicated vertices

Added in 3.42

Deletes duplicated vertices from the input geometries, based on errors reported by the Duplicated vertices algorithm.

See also

Remove duplicate vertices

参数

Basic parameters

标注	名称	类型	描述
输入图层	INPUT	[vector: line, polygon]	Layer with the geometries to fix, same as input in the check algorithm.
Error layer	ERRORS	[vector: point]	Point layer with the errors location, generated by the check algorithm.
Field of original feature unique identifier	UNIQUE_ID	[tablefield: any]	Field storing unique values for feature identification in input layer, as set in the check algorithm.
Field of part index	PART_IDX	[tablefield: integer] Default: gc_partidx	Field storing the erroneous feature's geometry part number.
Field of ring index	RING_IDX	[tablefield: integer] Default: gc_ringidx	Field storing the erroneous feature's geometry ring number.
Field of vertex index	VERTEX_IDX	[tablefield: integer] Default: gc_vertidx	Field storing the erroneous feature's geometry vertex number.
Fixed duplicate vertices layer	OUTPUT	[vector: same as input] Default: [Create temporary layer]	Specification of the output layer containing fixed features. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。
Report layer from fixing duplicate vertices	REPORT	[vector: point] Default: [Create temporary layer]	Specification of the output layer containing the fixes location. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。

Advanced parameters

标注	名称	类型	描述
Tolerance	TOLERANCE	[numeric: integer] Default: 8	Numerical precision of geometric operations, given as an integer n, meaning that two vertices less than 10-n apart (in map units) are considered to be merged.

输出

标注	名称	类型	描述
Report layer from fixing duplicate vertices	REPORT	[vector: point]	Output point layer representing the error locations and fix applied. The output layer contains the following fields: gc_layerid: the ID of the input layer. gc_layername: the name of the input layer. gc_partidx: the index of the feature's geometry part containing the duplicate vertex. gc_ringidx: the index of the feature's geometry ring containing the duplicate vertex. gc_vertidx: the index of the duplicate vertex in the feature's geometry ring. gc_errorx: the x coordinate of the duplicate vertex. gc_errory: the y coordinate of the duplicate vertex. gc_error report: a text field describing the fix applied. error_fixed: a boolean field indicating whether the error was fixed. UNIQUE_ID field: the unique ID of the input feature that has duplicate vertices.
Fixed duplicate vertices layer	OUTPUT	[vector: same as input]	Output layer with the geometry fix applied to the input features. The layer contains the same fields as in the input layer.

Python代码

Algorithm ID: native:fixgeometryduplicatenodes

import processing
processing.run("algorithm_id", {parameter_dictionary})

当你在数据处理工具箱某个算法前悬停时，算法 id 将会展现。*参数字*将会提供参数的名称与数值。参考详见`数据处理_控制台`以获取如何从Python控制台中运行数据处理算法。

24.1.6.4. Delete features

Added in 3.42

Deletes error features based on an error layer from some check geometry algorithms, such as:

• Features inside polygon

• Degenerate polygons

• Small segments

• Duplicated geometries

Fig. 24.17 Fixing errors from the "Features inside polygon" algorithm check.

See also

Delete duplicate geometries, Drop geometries

参数

Basic parameters

标注	名称	类型	描述
输入图层	INPUT	[vector: geometry]	Layer with the geometries to fix, same as input in the check algorithm.
Error layer	ERRORS	[vector: point]	Point layer with the errors location, generated by the check algorithm.
Field of original feature unique identifier	UNIQUE_ID	[tablefield: any]	Field storing unique values for feature identification in input layer, as set in the check algorithm.
Cleaned layer	OUTPUT	[vector: same as input] Default: [Create temporary layer]	Specification of the output layer containing fixed features. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。
Report layer from deleting features	REPORT	[vector: point] Default: [Create temporary layer]	Specification of the output layer containing the fixes location. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。

输出

标注	名称	类型	描述
Report layer from deleting features	REPORT	[vector: point]	Output point layer representing the error locations and fix applied. The output layer contains the following fields: gc_layerid: the ID of the input layer. gc_layername: the name of the input layer. gc_partidx gc_ringidx gc_vertidx gc_errorx: the x coordinate of the centroid of the erroneous geometry. gc_errory: the y coordinate of the centroid of the erroneous geometry. gc_error: the index of the feature where the error belongs. report: a text field describing the fix applied. error_fixed: a boolean field indicating whether the error was fixed. UNIQUE_ID field: the unique ID of the input feature with the error.
Cleaned layer	OUTPUT	[vector: same as input]	Output layer with features removed based on detected errors. The layer contains the same fields as in the input layer.

Python代码

Algorithm ID: native:fixgeometrydeletefeatures

import processing
processing.run("algorithm_id", {parameter_dictionary})

当你在数据处理工具箱某个算法前悬停时，算法 id 将会展现。*参数字*将会提供参数的名称与数值。参考详见`数据处理_控制台`以获取如何从Python控制台中运行数据处理算法。

24.1.6.5. Delete overlaps

Added in 3.42

Deletes overlapping areas based on an error layer from the Overlaps algorithm.

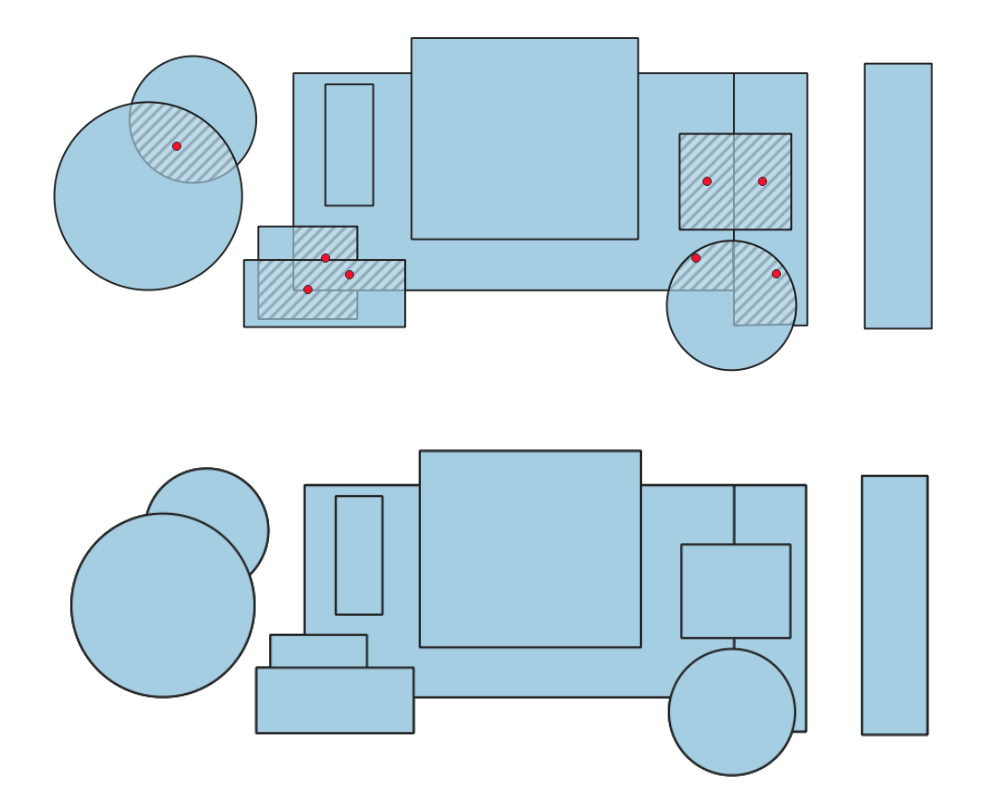

Fig. 24.18 Deleting overlapping areas.

参数

Basic parameters

标注	名称	类型	描述
输入图层	INPUT	[vector: polygon]	Layer with the geometries to fix, same as input in the check algorithm.
Error layer	ERRORS	[vector: point]	Point layer with the errors location, generated by the check algorithm.
Field of original feature unique identifier	UNIQUE_ID	[tablefield: any]	Field storing unique values for feature identification in input layer, as set in the check algorithm.
Field of overlap feature unique identifier	OVERLAP_FEATURE_UNIQUE_IDX	[tablefield: any]	Field storing unique values for the overlapping feature identification in input layer, as set in the check algorithm.
Field of error value	ERROR_VALUE_ID	[tablefield: any]	Field storing the error value for each feature, as set in the check algorithm.
No-overlap layer	OUTPUT	[vector: polygon] Default: [Create temporary layer]	Specification of the output layer containing fixed features. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。
Report layer from fixing overlaps	REPORT	[vector: point] Default: [Create temporary layer]	Specification of the output layer containing the fixes location. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。

Advanced parameters

标注	名称	类型	描述
Tolerance	TOLERANCE	[numeric: integer] Default: 8	Numerical precision of geometric operations, given as an integer n, meaning that two vertices less than 10-n apart (in map units) are considered to be merged.

输出

标注	名称	类型	描述
Report layer from fixing overlaps	REPORT	[vector: point]	Output point layer representing the error locations and fix applied. The output layer contains the following fields: gc_layerid: the ID of the input layer. gc_layername: the name of the input layer. gc_errorx: the x coordinate of the centroid of the overlapping area. gc_errory: the y coordinate of the centroid of the overlapping area. gc_error: the area of the overlapping geometry. UNIQUE_ID field: the unique ID of the unique ID of an overlapped input feature. gc_overlap_feature_{unique_id}: the UNIQUE_ID field value for the other overlapping feature. report: a text field describing the fix applied or justifying the failure. Possible values are: Remove overlapping area from neighboring polygon with shortest shared edge Error is obsolete error_fixed: a boolean field indicating whether the error was fixed.
No-overlap layer	OUTPUT	[vector: polygon]	Output layer with input features edited. Overlapping areas reported as errors are removed. The layer contains the same fields as in the input layer.

Python代码

Algorithm ID: native:fixgeometryoverlap

import processing
processing.run("algorithm_id", {parameter_dictionary})

当你在数据处理工具箱某个算法前悬停时，算法 id 将会展现。*参数字*将会提供参数的名称与数值。参考详见`数据处理_控制台`以获取如何从Python控制台中运行数据处理算法。

24.1.6.6. Delete small angles

Added in 3.42

Deletes vertices based on an error layer from the Small angles algorithm. When deletion of a vertex results in a duplicate vertex (when a spike vertex is deleted), the duplicate vertex is deleted to keep a single vertex and preserve topology.

Attention

This algorithm removes the vertex at the reported small angles, generating new segments that may form a new small angle.

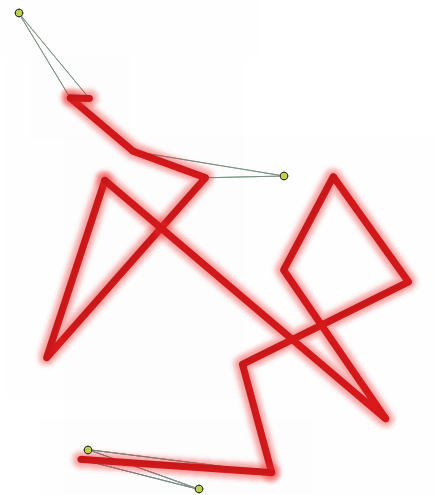

Fig. 24.19 Fixing reported errors on a line feature for angles lower than 15°.

参数

Basic parameters

标注	名称	类型	描述
输入图层	INPUT	[vector: line, polygon]	Layer with the geometries to fix, same as input in the check algorithm
Error layer	ERRORS	[vector: point]	Point layer with the errors location, generated by the check algorithm
Field of original feature unique identifier	UNIQUE_ID	[tablefield: any]	Field storing unique values for feature identification in input layer, as set in the check algorithm
Field of part index	PART_IDX	[tablefield: integer] Default: gc_partidx	Field storing the erroneous feature's geometry part number.
Field of ring index	RING_IDX	[tablefield: integer] Default: gc_ringidx	Field storing the erroneous feature's geometry ring number.
Field of vertex index	VERTEX_IDX	[tablefield: integer] Default: gc_vertidx	Field storing the erroneous feature's geometry vertex number.
Small angle fixed layer	OUTPUT	[vector: same as input] Default: [Create temporary layer]	Specification of the output layer containing fixed features. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。
Report layer from fixing small angles	REPORT	[vector: point] Default: [Create temporary layer]	Specification of the output layer containing the fixes location. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。

Advanced parameters

标注	名称	类型	描述
Tolerance	TOLERANCE	[numeric: integer] Default: 8	Numerical precision of geometric operations, given as an integer n, meaning that two vertices less than 10-n apart (in map units) are considered to be merged.

输出

标注	名称	类型	描述
Report layer from fixing small angles	REPORT	[vector: point]	Output point layer representing the error locations and fix applied. The output layer contains the following fields: gc_layerid: the ID of the input layer. gc_layername: the name of the input layer. gc_partidx: the index of the feature's geometry part containing the small angle. gc_ringidx: the index of the feature's geometry ring containing the small angle. gc_vertidx: the index of the vertex with the small angle in the feature's geometry ring. gc_errorx: the x coordinate of the vertex with the small angle. gc_errory: the y coordinate of the vertex with the small angle. gc_error: the error angle value. UNIQUE_ID field: the unique ID of the input feature with the small angle. report: a text field describing the fix applied or justifying the failure. error_fixed: a boolean field indicating whether the error was fixed.
Small angle fixed layer	OUTPUT	[same as input]	Output layer with the geometry fix applied to the input features. The layer contains the same fields as in the input layer.

Python代码

Algorithm ID: native:fixgeometryangle

import processing
processing.run("algorithm_id", {parameter_dictionary})

当你在数据处理工具箱某个算法前悬停时，算法 id 将会展现。*参数字*将会提供参数的名称与数值。参考详见`数据处理_控制台`以获取如何从Python控制台中运行数据处理算法。

24.1.6.7. Fill gaps

Added in 3.42

Fills the gaps based on a gap and neighbors layer from the Small gaps algorithm. Three different fixing methods are available.

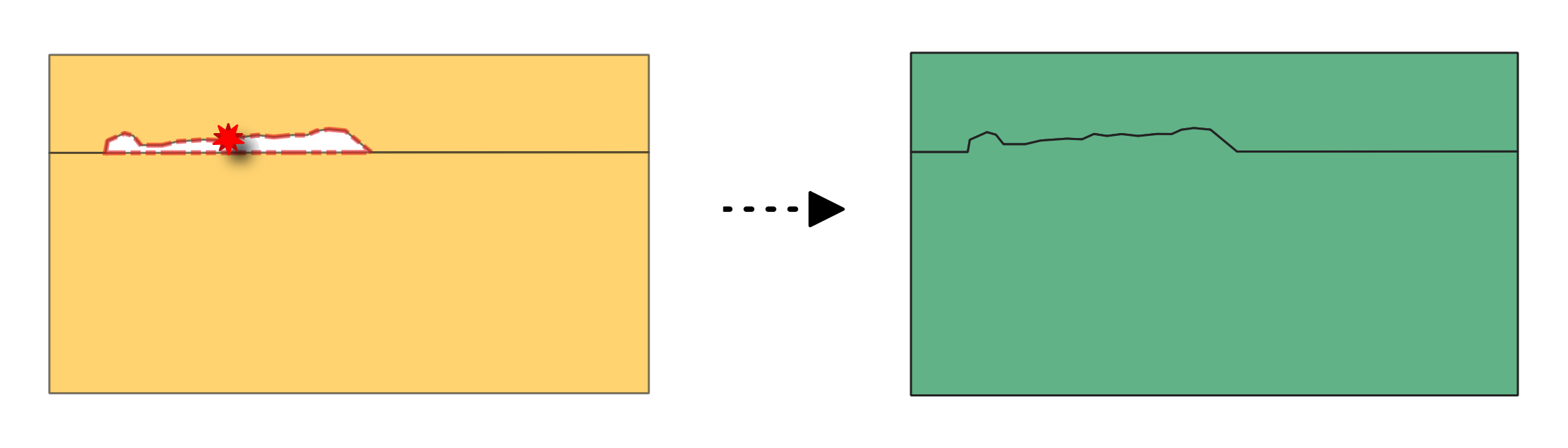

Fig. 24.20 Fixing gap between polygon features using the Add to largest neighbouring area method.

参数

Basic parameters

标注	名称	类型	描述
输入图层	INPUT	[vector: polygon]	Layer with the geometries to fix, same as input in the check algorithm.
Neighbors layer	NEIGHBORS	[vector: table]	Relational table with the unique ID of the gap and its neighbors in input layer, generated by the check algorithm.
Gaps layer	GAPS	[vector: polygon]	Polygon layer with the gaps geometries, generated by the check algorithm.
Method	METHOD	[enumeration] Default: 0	Method to apply to the gap fixing. Possible values are: 0 --- Add to longest shared edge: adds the gap to the neighboring feature with the longest shared edge. 1 --- Create new feature: creates a new feature for each gap. 2 --- Add to largest neighbouring area: adds the gap to the neighboring feature with the largest area.
Field of original feature unique identifier	UNIQUE_ID	[tablefield: any] Default: gc_errorid	Field storing unique values for feature identification in input layer, as set in the check algorithm.
Field of error id	ERROR_ID_IDX	[tablefield: any]	Field storing the error ID for each gap, as output by the check algorithm.
Gaps-filled layer	OUTPUT	[vector: polygon] Default: [Create temporary layer]	Specification of the output layer containing fixed features. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。
Report layer from fixing gaps	REPORT	[vector: point] Default: [Create temporary layer]	Specification of the output layer containing the fixes location. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。

Advanced parameters

标注	名称	类型	描述
Tolerance	TOLERANCE	[numeric: integer] Default: 8	Numerical precision of geometric operations, given as an integer n, meaning that two vertices less than 10-n apart (in map units) are considered to be merged.

输出

标注	名称	类型	描述
Report layer from fixing gaps	REPORT	[vector: point]	Output point layer representing the error locations and fix applied. The output layer contains the following fields: gc_layerid: the ID of the input layer. gc_layername: the name of the input layer. gc_partidx gc_ringidx gc_vertidx gc_errorx: the x coordinate of the centroid of the gap. gc_errory: the y coordinate of the centroid of the gap. gc_error: the area of the gap. gc_errorid: the ID of the gap. report: a text field mentioning the method used to fix the gap. error_fixed: a boolean field indicating whether the error was fixed.
Gaps-filled layer	OUTPUT	[vector: polygon]	Output layer of polygons without gaps. The layer contains the same fields as in the input layer.

Python代码

Algorithm ID: native:fixgeometrygap

import processing
processing.run("algorithm_id", {parameter_dictionary})

当你在数据处理工具箱某个算法前悬停时，算法 id 将会展现。*参数字*将会提供参数的名称与数值。参考详见`数据处理_控制台`以获取如何从Python控制台中运行数据处理算法。

24.1.6.8. Fill holes

Added in 3.42

Deletes holes in polygon geometries based on an error layer from the Holes algorithm.

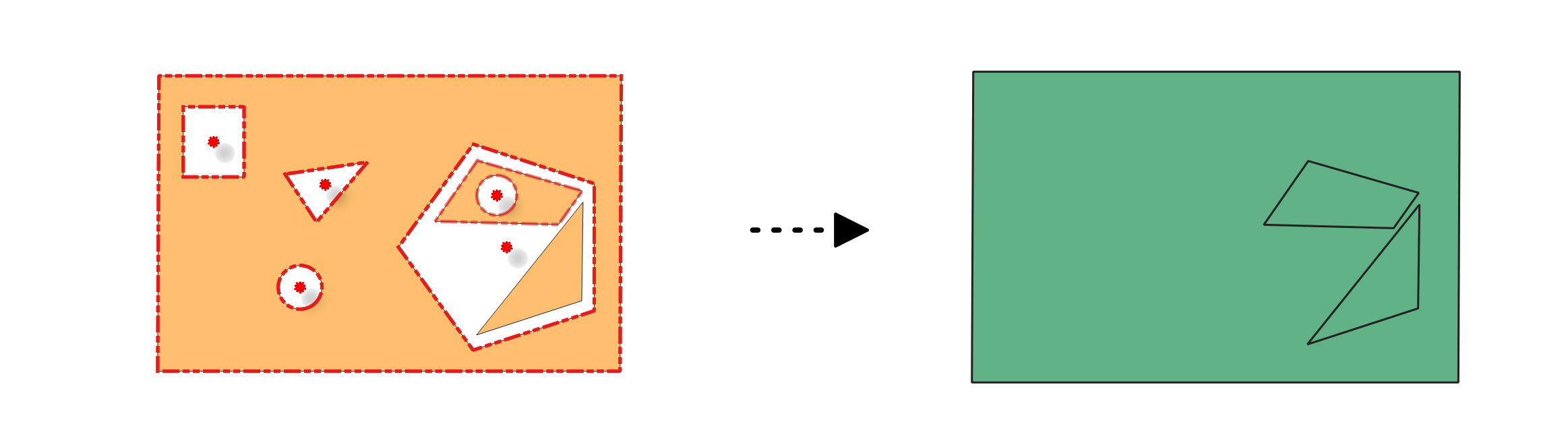

Fig. 24.21 Deleting holes in a polygon feature.

See also

Delete holes

参数

Basic parameters

标注	名称	类型	描述
输入图层	INPUT	[vector: line, polygon]	Layer with the geometries to fix, same as input in the check algorithm
Error layer	ERRORS	[vector: point]	Point layer with the errors location, generated by the check algorithm
Field of original feature unique identifier	UNIQUE_ID	[tablefield: any]	Field storing unique values for feature identification in input layer, as set in the check algorithm
Field of part index	PART_IDX	[tablefield: integer] Default: gc_partidx	Field storing the erroneous feature's geometry part number.
Field of ring index	RING_IDX	[tablefield: integer] Default: gc_ringidx	Field storing the erroneous feature's geometry ring number.
Field of vertex index	VERTEX_IDX	[tablefield: integer] Default: gc_vertidx	Field storing the erroneous feature's geometry vertex number.
Holes-filled layer	OUTPUT	[vector: polygon] Default: [Create temporary layer]	Specification of the output layer containing fixed features. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。
Report layer from fixing holes	REPORT	[vector: point] Default: [Create temporary layer]	Specification of the output layer containing the fixes location. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。

Advanced parameters

标注	名称	类型	描述
Tolerance	TOLERANCE	[numeric: integer] Default: 8	Numerical precision of geometric operations, given as an integer n, meaning that two vertices less than 10-n apart (in map units) are considered to be merged.

输出

标注	名称	类型	描述
Report layer from fixing holes	REPORT	[vector: point]	Output point layer representing the error locations and fix applied. The output layer contains the following fields: gc_layerid: the ID of the input layer. gc_layername: the name of the input layer. gc_partidx: the index of the feature's geometry part containing the hole. gc_ringidx: the index of the feature's geometry ring containing the hole. gc_vertidx gc_errorx: the x coordinate of the centroid of the hole. gc_errory: the y coordinate of the centroid of the hole. gc_error UNIQUE_ID field: the unique ID of the input feature that has a hole. report: a text field describing the fix applied or justifying the failure. error_fixed: a boolean field indicating whether the error was fixed.
Holes-filled layer	OUTPUT	[vector: polygon]	Output layer of polygons without holes. The layer contains the same fields as in the input layer.

Python代码

Algorithm ID: native:fixgeometryhole

import processing
processing.run("algorithm_id", {parameter_dictionary})

当你在数据处理工具箱某个算法前悬停时，算法 id 将会展现。*参数字*将会提供参数的名称与数值。参考详见`数据处理_控制台`以获取如何从Python控制台中运行数据处理算法。

24.1.6.9. Fix small polygons

Added in 3.42

Merges neighboring polygons according to the chosen method, based on an error layer from the Small polygons or Sliver polygons algorithm.

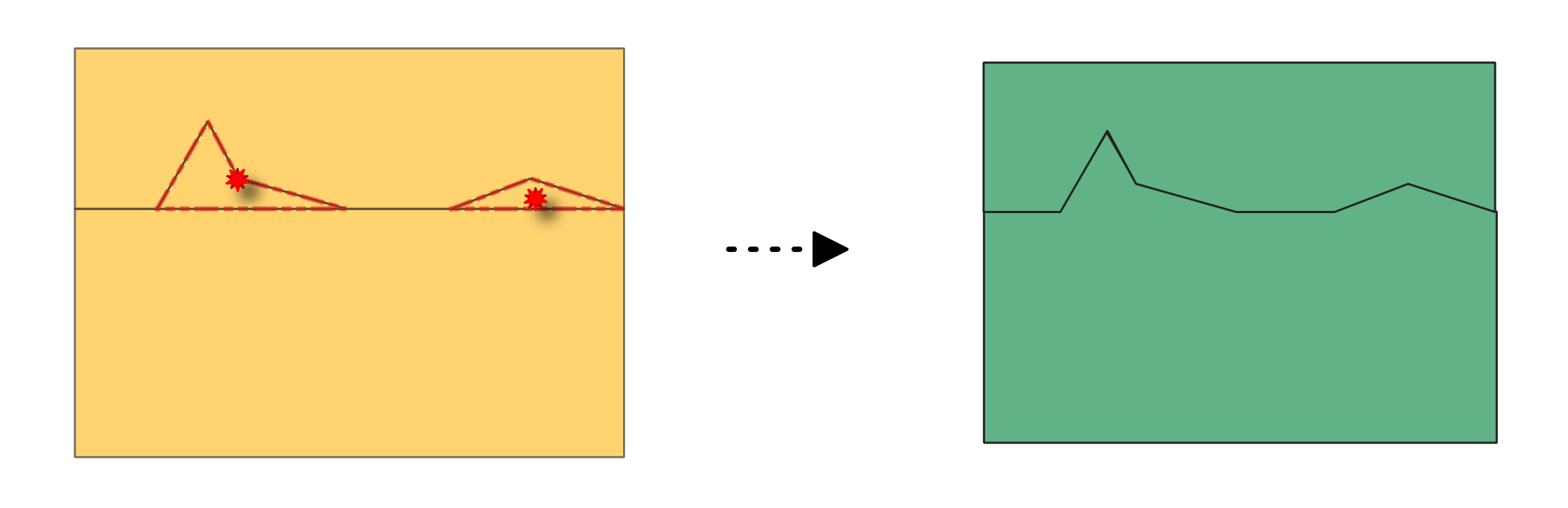

Fig. 24.22 Before and after fixing small polygons (method: merge with neighboring polygon with largest area).

参数

Basic parameters

标注	名称	类型	描述
输入图层	INPUT	[vector: polygon]	Layer with the geometries to fix, same as input in the check algorithm.
Error layer	ERRORS	[vector: point]	Point layer with the errors location, generated by the check algorithm.
Method	METHOD	[enumeration] Default: 0	Method to apply to the small polygon geometries: 0 --- Merge with neighboring polygon with longest shared edge: merges the small polygon geometry with the neighboring polygon that has the longest shared edge. 1 --- Merge with neighboring polygon with largest area: merges the small polygon geometry with the neighboring polygon that has the largest area. 2 --- Merge with neighboring polygon with identical attribute value, if any, or leave as is: merges the small polygon geometry with a neighboring polygon that has the same attribute value, if such a polygon exists.
Field to consider when merging polygons with the identical attribute method 可选	MERGE_ATTRIBUTE	[tablefield: any]	Field in the input layer to consider when merging polygons with the identical attribute method.
Field of original feature unique identifier	UNIQUE_ID	[tablefield: any]	Field storing unique values for feature identification in input layer, as set in the check algorithm.
Field of part index	PART_IDX	[tablefield: integer] Default: gc_partidx	Field storing the erroneous feature's geometry part number.
Field of ring index	RING_IDX	[tablefield: integer] Default: gc_ringidx	Field storing the erroneous feature's geometry ring number.
Field of vertex index	VERTEX_IDX	[tablefield: integer] Default: gc_vertidx	Field storing the erroneous feature's geometry vertex number.
Small polygons merged layer	OUTPUT	[vector: polygon] Default: [Create temporary layer]	Specification of the output layer containing fixed features. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。
Report layer from merging small polygons	REPORT	[vector: point] Default: [Create temporary layer]	Specification of the output layer containing the fixes location. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。

Advanced parameters

标注	名称	类型	描述
Tolerance	TOLERANCE	[numeric: integer] Default: 8	Numerical precision of geometric operations, given as an integer n, meaning that two vertices less than 10-n apart (in map units) are considered to be merged.

输出

标注	名称	类型	描述
Report layer from merging small polygons	REPORT	[vector: point]	Output point layer representing the error locations and fix applied. The output layer contains the following fields: gc_layerid: the ID of the input layer. gc_layername: the name of the input layer. gc_partidx gc_ringidx gc_vertidx gc_errorx: the x coordinate of the centroid of the small polygon. gc_errory: the y coordinate of the centroid of the small polygon. gc_error: the area of the small polygon. UNIQUE_ID field: the unique ID of the input feature that is a small polygon. report: a text field describing the fix applied or justifying the failure. error_fixed: a boolean field indicating whether the error was fixed.
Small polygons merged layer	OUTPUT	[vector: polygon]	Output layer of polygons with small polygons merged according to the chosen method. The layer contains the same fields as in the input layer.

Python代码

Algorithm ID: native:fixgeometryarea

import processing
processing.run("algorithm_id", {parameter_dictionary})

当你在数据处理工具箱某个算法前悬停时，算法 id 将会展现。*参数字*将会提供参数的名称与数值。参考详见`数据处理_控制台`以获取如何从Python控制台中运行数据处理算法。

24.1.6.10. Split self-intersecting geometries

Added in 3.42

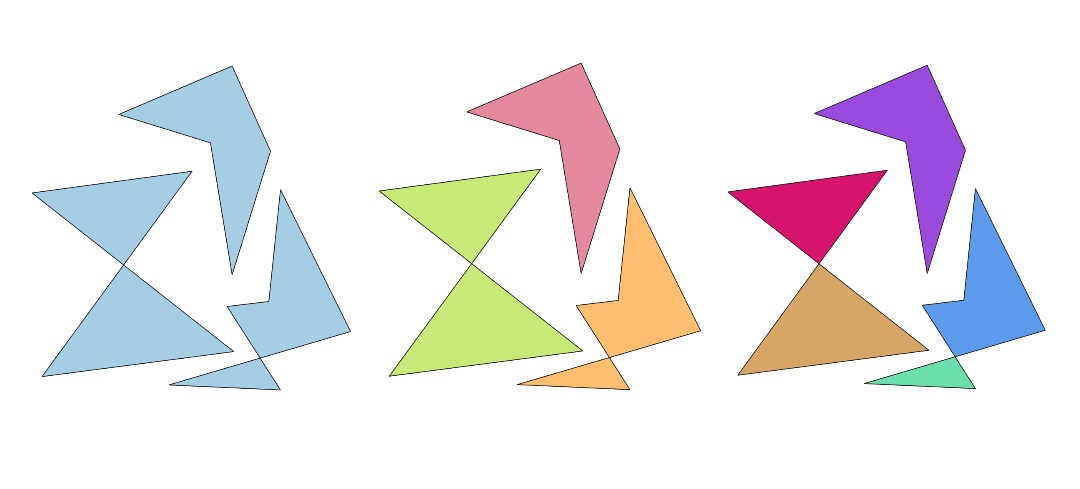

Splits self-intersecting geometries based on an error layer from the Self-intersections algorithm.

Note

This algorithm detects invalid polygon geometries (self-intersections). To ensure these invalid features are not filtered out before processing, open ^{Advanced options} next to the Input layer and set Invalid feature filtering to Do not Filter (Better Performance).

Fig. 24.23 Fixing self-intersection using various methods: as multi-part (middle), and multiple single-part geometries (right).

参数

Basic parameters

标注	名称	类型	描述
输入图层	INPUT	[vector: line, polygon]	Layer with the geometries to fix, same as input in the check algorithm
Error layer	ERRORS	[vector: point]	Point layer with the errors location, generated by the check algorithm
Method	METHOD	[enumeration]	Method to apply to the self-intersecting geometries: 0 -- Split feature into a multi-part feature: splits the self-intersecting geometry into multiple parts stored in a single multipart feature. 1 -- Split feature into multiple single-part features: splits the self-intersecting geometry into multiple parts, each part stored in a separate feature.
Field of original feature unique identifier	UNIQUE_ID	[tablefield: any]	Field storing unique values for feature identification in input layer, as set in the check algorithm
Field of part index	PART_IDX	[tablefield: integer] Default: gc_partidx	Field storing the erroneous feature's geometry part number.
Field of ring index	RING_IDX	[tablefield: integer] Default: gc_ringidx	Field storing the erroneous feature's geometry ring number.
Field of vertex index	VERTEX_IDX	[tablefield: integer] Default: gc_vertidx	Field storing the erroneous feature's geometry vertex number.
Field of segment 1	SEGMENT_1	[tablefield: integer] Default: gc_segment_1	Field storing the number of the first segment involved in the erroneous intersection.
Field of segment 2	SEGMENT_2	[tablefield: integer] Default: gc_segment_2	Field storing the number of the second segment involved in the erroneous intersection.
Self-intersections fixed layer	OUTPUT	[vector: same as input] Default: [Create temporary layer]	Specification of the output layer containing fixed features. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。
Report layer from fixing self-intersections	REPORT	[vector: point] Default: [Create temporary layer]	Specification of the output layer containing the fixes location. One of: Create Temporary Layer (TEMPORARY_OUTPUT) 保存到文件… Save to Geopackage… Save to Database Table… 文件编码也可以在此更改。

Advanced parameters

标注	名称	类型	描述
Tolerance	TOLERANCE	[numeric: integer] Default: 8	Numerical precision of geometric operations, given as an integer n, meaning that two vertices less than 10-n apart (in map units) are considered to be merged.

输出

标注	名称	类型	描述
Report layer from fixing self-intersections	REPORT	[vector: point]	Output point layer representing the error locations and fix applied. The output layer contains the following fields: gc_layerid: the ID of the input layer. gc_layername: the name of the input layer. gc_partidx: the index of the feature's geometry part where the self-intersection occurs. gc_ringidx: the index of the feature's geometry ring where the self-intersection occurs. gc_vertidx gc_errorx: the x coordinate of the self-intersection. gc_errory: the y coordinate of the self-intersection. gc_error gc_segment_1: the index of the first segment involved in the intersection. gc_segment_2: the index of the second segment involved in the intersection. UNIQUE_ID field: the unique ID of the self-intersecting input feature. report: a text field describing the fix applied. error_fixed: a boolean field indicating whether the error was fixed.
Self-intersections fixed layer	OUTPUT	[vector: same as input]	Output layer with the geometry fix applied to the input features. The layer contains the same fields as in the input layer.

Python代码

Algorithm ID: native:fixgeometryselfintersection

import processing
processing.run("algorithm_id", {parameter_dictionary})

当你在数据处理工具箱某个算法前悬停时，算法 id 将会展现。*参数字*将会提供参数的名称与数值。参考详见`数据处理_控制台`以获取如何从Python控制台中运行数据处理算法。
