Vector general

Assign projection

Assigns a new projection to a vector layer.

It creates a new layer with the exact same features and geometries as the input one, but assigned to a new CRS. The geometries are not reprojected, they are just assigned to a different CRS.

This algorithm can be used to repair layers which have been assigned an incorrect projection.

Attributes are not modified by this algorithm.

Parameters

Label Name Type Description
Input layer INPUT [vector: any] Vector layer with wrong or missing CRS
Assigned CRS CRS

[crs]

Default: EPSG:4326 - WGS84

Select the new CRS to assign to the vector layer

Assigned CRS

(Optional)

OUTPUT

[same as input]

Default: [Create temporary layer]

Specify the output layer containing only the duplicates. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Outputs

Label Name Type Description
Assigned CRS OUTPUT [same as input] Vector layer with assigned projection

Build virtual vector

Creates a virtual vector layer that contains a set of vector layer. The output virtual vector layer will not be open in the current project.

This algorithm is especially useful in case another algorithm needs multiple layers but accept only one vrt in which the layers are specified.

Parameters

Label Name Type Description
Input datasources INPUT [vector: any] [list] Select the vector layers you want to use to build the virtual vector
Create « unioned » VRT UNIONED

[boolean]

Default: False

Check if you want to unite all the vectors in a single vrt file
Virtual vector OUTPUT

[same as input]

Default: [Save to temporary file]

Specify the output layer containing only the duplicates. One of:

  • Save to a Temporary File
  • Save to File…

The file encoding can also be changed here.

Outputs

Label Name Type Description
Virtual vector OUTPUT [vector: any] The output virtual vector made from the chosen sources

Create attribute index

Creates an index against a field of the attribute table to speed up queries. The support for index creation depends on both the layer’s data provider and the field type.

No outputs are created: the index is stored on the layer itself.

Parameters

Label Name Type Description
Input Layer INPUT [vector: any] Select the vector layer you want to create an attribute index for
Attribute to index FIELD [tablefield: any] Field of the vector layer

Outputs

Label Name Type Description
Indexed layer OUTPUT [same as input] A copy of the input vector layer with an index for the specified field

Create spatial index

Creates an index to speed up access to the features in a layer based on their spatial location. Support for spatial index creation is dependent on the layer’s data provider.

No new output layers are created.

Default menu: Vector ‣ Data Management Tools

Parameters

Label Name Type Description
Input Layer INPUT [vector: any] Input vector layer

Outputs

Label Name Type Description
Indexed layer OUTPUT [same as input] A copy of the input vector layer with a spatial index

Define layer projection

Sets an existing layer’s projection to the provided CRS. It is very useful when a layer is missing the proj file and you know the correct projection.

Contrary to the Assign projection algorithm, it modifies the current layer and will not output a new layer.

Note

For Shapefile datasets, the .prj and .qpj files will be overwritten - or created if missing - to match the provided CRS.

Default menu: Vector ‣ Data Management Tools

Parameters

Label Name Type Description
Input layer INPUT [vector: any] Vector layer with missing projection information
CRS CRS [crs] Select the CRS to assign to the vector layer

Outputs

Label Name Type Description
  INPUT [same as input] The input vector layer with the defined projection

Delete duplicate geometries

Finds and removes duplicated geometries.

Attributes are not checked, so in case two features have identical geometries but different attributes, only one of them will be added to the result layer.

Parameters

Label Name Type Description
Input layer INPUT [vector: any] The layer with duplicate geometries you want to clean
Cleaned OUTPUT

[same as input]

Default: [Create temporary layer]

Specify the output layer. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Outputs

Label Name Type Description
Count of discarded duplicate records DUPLICATE_COUNT [number] Count of discarded duplicate records
Cleaned OUTPUT [same as input] The output layer without any duplicated geometries
Count of retained records RETAINED_COUNT [number] Count of unique records

Drop geometries

Creates a simple geometryless copy of the input layer attribute table. It keeps the attribute table of the source layer.

If the file is saved in a local folder, you can choose between many file formats.

checkbox Allows features in-place modification

Parameters

Label Name Type Description
Input layer INPUT [vector: any] The input vector layer
Dropped geometries OUTPUT [table]

Specify the output geometryless layer. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Outputs

Label Name Type Description
Dropped geometries OUTPUT [table] The output geometryless layer. A copy of the original attribute table.

Execute SQL

Runs a simple or complex query with SQL syntax on the source layer.

The result of the query will be added as a new layer.

Parameters

Label Name Type Description
Additional input datasources (called input1, .., inputN in the query) INPUT_DATASOURCES [vector: any] [list] List of layers to query. In the SQL editor you can refer these layers with their real name or also with input1, input2, inputN depending on how many layers have been chosen.
SQL query INPUT_QUERY [string] Type the string of your SQL query, e.g. SELECT * FROM input1.

Unique identifier field

Optional

INPUT_UID_FIELD [string] Specify the column with unique ID

Geometry field

Optional

INPUT_GEOMETRY_FIELD [string] Specify the geometry field

Geometry type

Optional

INPUT_GEOMETRY_TYPE

[enumeration]

Default: 0

Choose the geometry of the result. By default the algorithm will autodetect it. One of:

  • 0 — Autodetect
  • 1 — No geometry
  • 2 — Point
  • 3 — LineString
  • 4 — Polygon
  • 5 — MultiPoint
  • 6 — MultiLineString
  • 7 — MultiPolygon

CRS

Optional

INPUT_GEOMETRY_CRS [crs] The CRS to assign to the output layer
SQL Output OUTPUT

[vector: any]

Default: [Create temporary layer]

Specify the output layer created by the query. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Outputs

Label Name Type Description
SQL Output OUTPUT [vector: any] Vector layer created by the query

Extract selected features

Saves the selected features as a new layer.

Note

If the selected layer has no selected features, the newly created layer will be empty.

Parameters

Label Name Type Description
Input Layer INPUT [vector: any] Layer to save the selection from
Selected features OUTPUT

[same as input]

Default: [Create temporary layer]

Specify the vector layer for the selected features. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Outputs

Label Name Type Description
Selected features OUTPUT [same as input] Vector layer with only the selected features, or no feature if none was selected.

Find projection

Creates a shortlist of candidate coordinate reference systems, for instance for a layer with an unknown projection.

The area that the layer is expected to cover must be specified via the target area parameter. The coordinate reference system for this target area must be known to QGIS.

The algorithm operates by testing the layer’s extent in every known reference system and then listing any for which the bounds would be near the target area if the layer was in this projection.

Parameters

Label Name Type Description
Input Layer INPUT [vector: any] Layer with unknown projection
Target area for layer (xmin, xmax, ymin, ymax) TARGET_AREA [extent]

The area that the layer covers. The options for specifying the extent are:

  • Use Canvas Extent
  • Select Extent on Canvas
  • Use Layer Extent

It is also possible to provide the extent coordinates directly (xmin, xmax, ymin, ymax).

CRS candidates OUTPUT

[table]

Default: [Create temporary layer]

Specify the table (geometryless layer) for the CRS suggestions (EPSG codes). One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Outputs

Label Name Type Description
CRS candidates OUTPUT [table] A table with all the CRS (EPSG codes) of the matching criteria.

Join attributes by field value

Takes an input vector layer and creates a new vector layer that is an extended version of the input one, with additional attributes in its attribute table.

The additional attributes and their values are taken from a second vector layer. An attribute is selected in each of them to define the join criteria.

Parameters

Label Name Type Description
Input Layer INPUT [vector: any] Input vector layer. The output layer will consist of the features of this layer with attributes from matching features in the second layer.
Table field FIELD [tablefield: any] Field of the source layer to use for the join
Input layer 2 INPUT_2 [vector: any] Layer with the attribute table to join
Table field 2 FIELD_2 [tablefield: any] Field of the second (join) layer to use for the join The type of the field must be equal to (or compatible with) the input table field type.

Layer 2 fields to copy

Optional

FIELDS_TO_COPY [tablefield: any] [list] Select the specific fields you want to add. By default all the fields are added.
Join type METHOD

[enumeration]

Default: 1

The type of the final joined layer. One of:

  • 0 — Create separate feature for each matching feature (one-to-many)
  • 1 — Take attributes of the first matching feature only (one-to-one)
Discard records which could not be joined DISCARD_NONMATCHING

[boolean]

Default: True

Check if you don’t want to keep the features that could not be joined

Joined field prefix

Optional

PREFIX [string] Add a prefix to joined fields in order to easily identify them and avoid field name collision
Joined layer OUTPUT

[same as input]

Default: [Create temporary layer]

Specify the output vector layer for the join. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Unjoinable features from first layer NON_MATCHING

[same as input]

Default: [Skip output]

Specify the output vector layer for unjoinable features from first layer. One of:

  • Skip output
  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Outputs

Label Name Type Description
Number of unjoinable features from input table JOINED_COUNT [number]

Unjoinable features from first layer

Optional

NON_MATCHING [same as input] Vector layer with the non-matched features
Joined layer OUTPUT [same as input] Output vector layer with added attributes from the join

Number of joined features from input table

Optional

UNJOINABLE_COUNT [number]

Join attributes by location

Takes an input vector layer and creates a new vector layer that is an extended version of the input one, with additional attributes in its attribute table.

The additional attributes and their values are taken from a second vector layer. A spatial criteria is applied to select the values from the second layer that are added to each feature from the first layer.

Default menu: Vector ‣ Data Management Tools

Parameters

Label Name Type Description
Input Layer INPUT [vector: any] Input vector layer. The output layer will consist of the features of this layer with attributes from matching features in the second layer.
Join layer JOIN [vector: any] The attributes of this vector layer will be added to the source layer attribute table.
Geometric predicate PREDICATE

[enumeration] [list]

Default: [0]

Select the geometric criteria. One or more of:

  • 0 — intersects
  • 1 — contains
  • 2 — equals
  • 3 — touches
  • 4 — overlaps
  • 5 — within
  • 6 — crosses

Fields to add (leave empty to use all fields)

Optional

JOIN_FIELDS [tablefield: any] [list] Select the specific fields you want to add. By default all the fields are added.
Join type METHOD [enumeration]

The type of the final joined layer. One of:

  • 0 — Create separate feature for each matching feature (one-to-many)
  • 1 — Take attributes of the first matching feature only (one-to-one)
Discard records which could not be joined DISCARD_NONMATCHING

[boolean]

Default: False

Remove from the output the input layer records which could not be joined

Joined field prefix

Optional

PREFIX [string] Add a prefix to joined fields in order to easily identify them and avoid field name collision
Joined layer OUTPUT

[same as input]

Default: [Create temporary layer]

Specify the output vector layer for the join. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Unjoinable features from first layer NON_MATCHING

[same as input]

Default: [Skip output]

Specify the output vector layer for unjoinable features from first layer. One of:

  • Skip output
  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Outputs

Label Name Type Description
Number of joined features from input table JOINED_COUNT [number]

Unjoinable features from first layer

Optional

NON_MATCHING [same as input] Vector layer of the non-matched features
Joined layer OUTPUT [same as input] Output vector layer with added attributes from the join

Join attributes by location (summary)

Takes an input vector layer and creates a new vector layer that is an extended version of the input one, with additional attributes in its attribute table.

The additional attributes and their values are taken from a second vector layer. A spatial criteria is applied to select the values from the second layer that are added to each feature from the first layer.

The algorithm calculates a statistical summary for the values from matching features in the second layer (e.g. maximum value, mean value, etc).

Parameters

Label Name Type Description
Input Layer INPUT [vector: any] Input vector layer. The output layer will consist of the features of this layer with attributes from matching features in the second layer.
Join layer JOIN [vector: any] The attributes of this vector layer will be added to the source layer attribute table.
Geometric predicate PREDICATE

[enumeration] [list]

Default: [0]

Select the geometric criteria. One or more of:

  • 0 — intersects
  • 1 — contains
  • 2 — equals
  • 3 — touches
  • 4 — overlaps
  • 5 — within
  • 6 — crosses

Fields to summarize (leave empty to use all fields)

Optional

JOIN_FIELDS [tablefield: any] [list] Select the specific fields you want to add and summarize. By default all the fields are added.

Summaries to calculate (leave empty to use all fields)

Optional

SUMMARIES

[enumeration] [list]

Default: []

Choose which type of summary you want to add to each field and for each feature. One or mor of:

  • 0 — count
  • 1 — unique
  • 2 — min
  • 3 — max
  • 4 — range
  • 5 — sum
  • 6 — mean
  • 7 — median
  • 8 — stddev
  • 9 — minority
  • 10 — majority
  • 11 — q1
  • 12 — q3
  • 13 — iqr
  • 14 — empty
  • 15 — filled
  • 16 — min_length
  • 17 — max_length
  • 18 — mean_length
Discard records which could not be joined DISCARD_NONMATCHING

[boolean]

Default: False

Remove from the output the input layer records which could not be joined
Joined layer OUTPUT

[same as input]

Default: [Create temporary layer]

Specify the output vector layer for the join. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Outputs

Label Name Type Description
Joined layer OUTPUT [same as input] Output vector layer with summarized attributes from the join

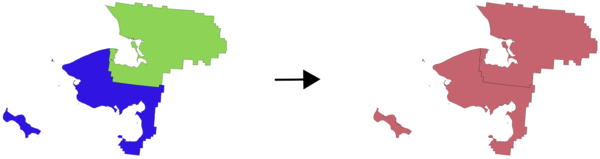

Merge vector layers

Combines multiple vector layers of the same geometry type into a single one.

If attributes tables are different, the attribute table of the resulting layer will contain the attributes from all input layers. Non-matching fields will be appended at the end of the attribute table.

If any input layers contain Z or M values, then the output layer will also contain these values. Similarly, if any of the input layers are multi-part, the output layer will also be a multi-part layer.

Optionally, the destination coordinate reference system (CRS) for the merged layer can be set. If it is not set, the CRS will be taken from the first input layer. All layers will be reprojected to match this CRS.

../../../../_images/merge_vector_layers.png

Default menu: Vector ‣ Data Management Tools

Voir aussi

Split vector layer

Parameters

Label Name Type Description
Input Layers LAYERS [vector: any] [list] The layers that are to be merged into a single layer. Layers should be of the same geometry type.

Destination CRS

Optional

CRS [crs] Choose the CRS for the output layer. If not specified, the CRS of the first input layer is used.
Merged OUTPUT

[same as input]

Default: [Create temporary layer]

Specify the output vector layer. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Outputs

Label Name Type Description
Merged OUTPUT [same as input] Output vector layer containing all the features and attributes from the input layers.

Order by expression

Sorts a vector layer according to an expression: changes the feature index according to an expression.

Be careful, it might not work as expected with some providers, the order might not be kept every time.

Parameters

Label Name Type Description
Input Layer INPUT [vector: any] Input vector layer to sort
Expression EXPRESSION [expression] Expression to use for the sorting
Sort ascending ASCENDING

[boolean]

Default: True

If checked the vector layer will be sorted from small to large values.
Sort nulls first NULLS_FIRST

[boolean]

Default: False

If checked, Null values are placed first
Ordered OUTPUT

[same as input]

Default: [Create temporary layer]

Specify the output vector layer. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Outputs

Label Name Type Description
Ordered OUTPUT [same as input] Output (sorted) vector layer

Reproject layer

Reprojects a vector layer in a different CRS. The reprojected layer will have the same features and attributes of the input layer.

checkbox Allows features in-place modification

Parameters

Label Name Type Description
Input Layer INPUT [vector: any] Input vector layer to reproject
Target CRS TARGET_CRS

[crs]

Default: EPSG:4326 - WGS 84

Destination coordinate reference system
Reprojected OUTPUT

[same as input]

Default: [Create temporary layer]

Specify the output vector layer. One of:

  • Create Temporary Layer (TEMPORARY_OUTPUT)
  • Save to File…
  • Save to Geopackage…
  • Save to PostGIS Table

The file encoding can also be changed here.

Outputs

Label Name Type Description
Reprojected OUTPUT [same as input] Output (reprojected) vector layer

Set style for vector layer

Sets the style of a vector layer. The style must be defined in a QML file.

No new output are created: the style is immediately assigned to the vector layer.

Parameters

Label Name Type Description
Input Layer INPUT [vector: any] Input vector layer you want to set the style for
Style file STYLE [file] qml file of the style

Outputs

Label Name Type Description
Input Layer INPUT [same as input] The input vector layer with the new style

Split vector layer

Creates a set of vectors in an output folder based on an input layer and an attribute. The output folder will contain as many layers as the unique values found in the desired field.

The number of files generated is equal to the number of different values found for the specified attribute.

It is the opposite operation of merging.

Default menu: Vector ‣ Data Management Tools

Voir aussi

Merge vector layers

Parameters

Label Name Type Description
Input Layer INPUT [vector: any] Input vector layer
Unique ID field FIELD [tablefield: any] Field to use for splitting
Output directory OUTPUT

[folder]

Default: [Save to temporary folder]

Specify the directory for the output layers. One of:

  • Save to a Temporary Directory
  • Save to Directory…

The file encoding can also be changed here.

Outputs

Label Name Type Description
Output directory OUTPUT [folder] The directory for the output layers
Output layers OUTPUT_LAYERS [same as input] [list] The output vector layers resulting from the split.

Truncate table

Truncates a layer, by deleting all features from within the layer.

Avertissement

This algorithm modifies the layer in place, and deleted features cannot be restored!

Parameters

Input layer [vector: any]
Vector layer in input.
Label Name Type Description
Input Layer INPUT [vector: any] Input vector layer

Outputs

Label Name Type Description
Truncated layer OUTPUT [folder] The truncated (empty) layer
