QGIS supports various capabilities for editing OGR, SpatiaLite, PostGIS, MSSQL Spatial and Oracle Spatial vector layers and tables.
The procedure for editing GRASS layers is different - see section Digitizing and editing a GRASS vector layer for details.
This version of QGIS does not track if somebody else is editing the same feature at the same time as you are. The last person to save its edits wins.
Setting the Snapping Tolerance and Search Radius¶
For an optimal and accurate edit of the vector layer geometries, we need to set an appropriate value of snapping tolerance and search radius for features vertices.
When you add a new vertex or move an existing one, snapping tolerance is the distance QGIS uses to search for the closest vertex or segment you are trying to connect to. If you aren’t within the snapping tolerance, QGIS will leave the vertex where you release the mouse button, instead of snapping it to an existing vertex or segment.
The snapping tolerance setting affects all tools that work with tolerance.
You can enable or disable snapping by using the Enable snapping button on the Snapping Toolbar or pressing S at any time while you’re on the map view. This toolbar is also very convenient to quickly configure the snapping mode, tolerance value, and units. The snapping configuration can also be set in .
There are three options to select the layer(s) to snap to:
All layers: quick setting for all visible layers in the project so that the pointer snaps to all vertices and/or segments. In most cases, it is sufficient to use this snapping mode, but beware when using it on projects with many vector layers, as it may cause slowness.
Current layer: only the active layer is used, a convenient way to ensure topology within the layer being edited.
Advanced Configuration: allows you to enable and adjust snapping mode and tolerance on a layer basis (see figure_edit_snapping). If you need to edit a layer and snap its vertices to another, ensure the target layer is checked and increase the snapping tolerance to a higher value. Snapping will not occur to a layer that is not checked in the snapping options dialog.
As for snapping mode, you can select between
To segment, and
To vertex and segment.
The tolerance values can be set either in the project’s
map units or in
pixels. The advantage of choosing
pixels is that it keeps the snapping
constant at different map scales. 10 to 12 pixels is normally a good value, but
it depends on the DPI of your screen. Using map units
allows the tolerance to be related to real ground distances. For example, if you
have a minimum distance between elements, this option can be useful to ensure
that you don’t add vertexes too close to each other.
By default, only visible features (the features whose style is displayed, except for layers where the symbology is „No symbols“) can be snapped. You can enable the snapping on invisible features by checking Enable snapping on invisible features under the tab.
Enable snapping by default
You can set snapping to be enabled by default on all new projects in the Snapping Options dialog.tab. You can also set the default snapping mode, tolerance value, and units, which will populate the
Enable snapping on intersections¶
Another available option is to use snapping on intersection, which allows you to snap to geometry intersections of snapping enabled layers, even if there are no vertices at the intersections.
Search radius is the distance QGIS uses to
search for the closest vertex you
are trying to select when you click on the map. If you aren’t within the search
radius, QGIS won’t find and select any vertex for editing. The search radius for
vertex edits can be defined under the
tab. This is the same place where you
define the snapping default values.
Snap tolerance and search radius are set in
map units or
pixels, so you
may find you need to experiment to get them set right. If you specify too big of
a tolerance, QGIS may snap to the wrong vertex, especially if you are dealing
with a large number of vertices in close proximity. Set the search radius too
small, and it won’t find anything to move.
Apart from snapping options, the Snapping options…` dialog ( ) and the Snapping toolbar allow you to enable and disable some topological functionalities.
Включване на топологична редакция¶
The Topological editing button helps when editing and maintaining features with common boundaries. With this option enabled, QGIS ‚detects‘ boundaries that are shared by the features; When you move common vertices/segments, QGIS will also move them in the geometries of the neighboring features.
Topological editing works with features from different layers, as long as the layers are visible and in editing mode.
Предотвратяване на пресичане на нови полигони¶
When the snapping mode is set to
Advanced configuration, for polygon layers,
there’s an option called Avoid intersections. This option
prevents you from drawing new features that overlap existing ones in the
selected layer, speeding up digitizing of adjacent polygons.
With avoid intersections enabled, if you already have one polygon, you can digitize a second one such that both intersect. QGIS will cut the second polygon to the boundary of the existing one. The advantage is that you don’t have to digitize all vertices of the common boundary.
If the new geometry is totally covered by existing ones, it gets cleared, and QGIS will show an error message.
Use cautiously the Avoid overlap option
Since this option will cut new overlapping geometries of any polygon layer, you can get unexpected geometries if you forget to uncheck it when no longer needed.
A core plugin can help the user to find the geometry invalidity. You can find more information on this plugin at Geometry Checker Plugin.
Usually, when using capturing map tools (add feature, add part, add ring, reshape and split), you need to click each vertex of the feature. With the automatic tracing mode, you can speed up the digitization process as you no longer need to manually place all the vertices during digitization:
Enable the Tracing tool by pushing the icon or pressing T key.
Snap to a vertex or segment of a feature you want to trace along.
Move the mouse over another vertex or segment you’d like to snap and, instead of the usual straight line, the digitizing rubber band represents a path from the last point you snapped to the current position.
QGIS actually uses the underlying features topology to build the shortest path between the two points. Tracing requires snapping to be activated in traceable layers to build the path. You should also snap to an existing vertex or segment while digitizing and ensure that the two nodes are topologically connectable through existing features edges, otherwise QGIS is unable to connect them and thus traces a single straight line.
Click and QGIS places the intermediate vertices following the displayed path.
Unfold the Enable Tracing icon and set the Offset option to digitize a path parallel to the features instead of tracing along them; a positive value shifts the new drawing to the left side of the tracing direction and a negative value does the opposite.
Adjust map scale or snapping settings for an optimal tracing
If there are too many features in map display, tracing is disabled to avoid potentially long tracing structure preparation and large memory overhead. After zooming in or disabling some layers the tracing is enabled again.
Does not add topological points
This tool does not add points to existing polygon geometries even if Topological editing is enabled. If geometry precision is activated on the edited layer, the resulting geometry might not exactly follow an existing geometry.
Quickly enable or disable automatic tracing by pressing the T key
By pressing the T key, tracing can be enabled/disabled anytime even while digitizing one feature, so it is possible to digitize some parts of the feature with tracing enabled and other parts with tracing disabled. Tools behave as usual when tracing is disabled.
Digitizing an existing layer¶
By default, QGIS loads layers read-only. This is a safeguard to avoid accidentally editing a layer if there is a slip of the mouse. However, you can choose to edit any layer as long as the data provider supports it (see Exploring Data Formats and Fields), and the underlying data source is writable (i.e., its files are not read-only).
Restrict edit permission on layers within a project
From thetable, You can choose to set any layer read-only regardless the provider permission. This can be a handy way, in a multi-users environment to avoid unauthorized users to mistakenly edit layers (e.g., Shapefile), hence potentially corrupt data. Note that this setting only applies inside the current project.
In general, tools for editing vector layers are divided into a digitizing and an advanced digitizing toolbar, described in section Advanced digitizing. You can select and unselect both under . Using the basic digitizing tools, you can perform the following functions:
Включване на редакционен режим
Запазване на редакциите за слоя
Add new record
Add Feature: Capture Point
Add Feature: Capture Line
Add Feature: Capture Polygon
Vertex Tool (All Layers)
Vertex Tool (Current Layer)
Modify the attributes of all selected features simultaneously
Изтриване на избраните
Изрязване на обекти
Копиране на обекти
Поставяне на обекти
Table Editing: Vector layer basic editing toolbar
Note that while using any of the digitizing tools, you can still zoom or pan in the map canvas without losing the focus on the tool.
All editing sessions start by choosing the Toggle editing option found in the context menu of a given layer, from the attribute table dialog, the digitizing toolbar or the menu.
Once the layer is in edit mode, additional tool buttons on the editing toolbar will become available and markers will appear at the vertices of all features unless Show markers only for selected features option under menu is checked.
Remember to Save Layer Edits regularly. This will also check that your data source can accept all the changes.
Depending on the layer type, you can use the Add Record, Add Point Feature, Add Line Feature or Add Polygon Feature icons on the toolbar to add new features into the current layer.
To add a geometryless feature, click on the Add Record button and you can enter attributes in the feature form that opens. To create features with the spatially enabled tools, you first digitize the geometry then enter its attributes. To digitize the geometry:
Left-click on the map area to create the first point of your new feature. For point features, this should be enough and trigger, if required, the feature form to fill in their attributes. Having set the geometry precision in the layer properties you can use snap to grid here to create features based on a regular distance.
For line or polygon geometries, keep on left-clicking for each additional point you wish to capture or use automatic tracing capability to accelerate the digitization. This will create consecutive straight lines between the vertices you place.
Pressing Delete or Backspace key reverts the last node you add.
When you have finished adding points, right-click anywhere on the map area to confirm you have finished entering the geometry of that feature.
While digitizing line or polygon geometries, you can switch back and forth between the linear Add feature tools and circular string tools to create compound curved geometries.
Customize the digitizing rubber band
While capturing polygon, the by-default red rubber band can hide underlying features or places you’d like to capture a point. This can be fixed by setting a lower opacity (or alpha channel) to the rubber band’s Fill Color in menu. You can also avoid the use of the rubber band by checking Don’t update rubber band during node editing.
The attribute window will appear, allowing you to enter the information for the new feature. Figure_edit_values shows setting attributes for a fictitious new river in Alaska. However, in the Digitizing menu under the menu, you can also activate:
QGIS 3 major changes
In QGIS 3, the node tool has been fully redesigned and renamed to Vertex Tool. It was previously working with „click and drag“ ergonomy, and now uses a „click - click“ workflow. This allows major improvements like taking profit of the advanced digitizing panel with the vertex tool while digitizing or editing objects of multiple layers at the same time.
For any editable vector layer, the Vertex tool (Current Layer) provides manipulation capabilities of feature vertices similar to CAD programs. It is possible to simply select multiple vertices at once and to move, add or delete them altogether. The vertex tool also works with ‚on the fly‘ projection turned on and supports the topological editing feature. This tool is selection persistent, so when some operation is done, selection stays active for this feature and tool.
It is important to set the property Search Radius: to a number greater than zero. Otherwise, QGIS will not be able to tell which vertex is being edited and will display a warning.
The current version of QGIS supports three kinds of vertex markers: ‚Semi-transparent circle‘, ‚Cross‘ and ‚None‘. To change the marker style, choose from the menu, click on the Digitizing tab and select the appropriate entry.
Start by activating the Vertex Tool (Current Layer). Red circles will appear when hovering vertices.
Selecting vertices: You can select vertices by clicking on them one at a time holding Shift key pressed, or by clicking and dragging a rectangle around some vertices. When a vertex is selected, its color changes to blue. To add more vertices to the current selection, hold down the Shift key while clicking. To remove vertices from the selection, hold down Ctrl.
Batch vertex selection mode: The batch selection mode can be activated by pressing Shift+R. Select a first node with one single click, and then hover without clicking another vertex. This will dynamically select all the nodes in between using the shortest path (for polygons).
Press Ctrl will invert the selection, selecting the longest path along the feature boundary. Ending your node selection with a second click, or pressing Esc will escape the batch mode.
Adding vertices: To add a vertex, a virtual new node appears on the segment center. Simply grab it to add a new vertex. Double click on any location of the boundary also creates a new node. For lines, a virtual node is also proposed at both extremities of a line to extend it.
Deleting vertices: Select the vertices and click the Delete key. Deleting all the vertices of a feature generates, if compatible with the datasource, a geometryless feature. Note that this doesn’t delete the complete feature, just the geometry part; To delete a complete feature use the Delete Selected tool.
Moving vertices: Select all the vertices you want to move, click on a selected vertex or edge, and click again on the desired new location. All the selected vertices will move together. If snapping is enabled, the whole selection can jump to the nearest vertex or line. You can use Advanced Digitizing Panel constraints for distance, angles, exact X Y location before the second click.
Here you can use the snap-to-grid feature. Having set a value for the geometry precision in the layer properties, a grid appears on a zoom level according to the Geometry precision.
Each change made with the vertex is stored as a separate entry in the Undo dialog. Remember that all operations support topological editing when this is turned on. On-the-fly projection is also supported, and the node tool provides tooltips to identify a vertex by hovering the pointer over it.
The Vertex Editor Panel¶
When using the Vertex tool on a feature, it is possible to right click to open the Vertex Editor panel listing all the vertices of the feature with their x, y (z, m if applicable) coordinates and r (for the radius, in case of circular geometry). Simply select a row in the table does select the corresponding vertex in the map canvas, and vice versa. Simply change a coordinate in the table and your vertex position is updated. You can also select multiple rows and delete them altogether.
Changed behavior in QGIS 3.4
Right click on a feature will immediately show the vertex editor and lock this feature, thus disabling the editing of any other features. While being locked, a feature is exclusive for editing: Selecting and moving of vertices and segments by clicking or dragging is only possible for this feature. New vertices can only be added to the locked feature. Also, the vertex editor panel now opens itself automatically upon activating the vertex tool, and its position/docked state remembered across uses.
Cutting, Copying and Pasting Features¶
Selected features can be cut, copied and pasted between layers in the same QGIS project, as long as destination layers are set to Toggle editing beforehand.
Transform polygon into line and vice-versa using copy/paste
Copy a line feature and paste it in a polygon layer: QGIS pastes in the target layer a polygon whose boundary corresponds to the closed geometry of the line feature. This is a quick way to generate different geometries of the same data.
Features can also be pasted to external applications as text. That is, the features are represented in CSV format, with the geometry data appearing in the OGC Well-Known Text (WKT) format. WKT and GeoJSON features from outside QGIS can also be pasted to a layer within QGIS.
When would the copy and paste function come in handy? Well, it turns out that
you can edit more than one layer at a time
and copy/paste features between layers. Why would we want to do this? Say
we need to do some work on a new layer but only need one or two lakes, not
the 5,000 on our
big_lakes layer. We can create a new layer and use
copy/paste to plop the needed lakes into it.
As an example, we will copy some lakes to a new layer:
Load the layer you want to copy from (source layer)
Load or create the layer you want to copy to (target layer)
Start editing for target layer
Make the source layer active by clicking on it in the legend
Use the Select Features by area or single click tool to select the feature(s) on the source layer
Make the destination layer active by clicking on it in the legend
Stop editing and save the changes
What happens if the source and target layers have different schemas (field names and types are not the same)? QGIS populates what matches and ignores the rest. If you don’t care about the attributes being copied to the target layer, it doesn’t matter how you design the fields and data types. If you want to make sure everything - the feature and its attributes - gets copied, make sure the schemas match.
Congruency of Pasted Features
If your source and destination layers use the same projection, then the pasted features will have geometry identical to the source layer. However, if the destination layer is a different projection, then QGIS cannot guarantee the geometry is identical. This is simply because there are small rounding-off errors involved when converting between projections.
Copy string attribute into another
If you have created a new column in your attribute table with type ‚string‘ and want to paste values from another attribute column that has a greater length the length of the column size will be extended to the same amount. This is because the GDAL Shapefile driver starting with GDAL/OGR 1.10 knows to auto-extend string and integer fields to dynamically accommodate for the length of the data to be inserted.
Deleting Selected Features¶
If we want to delete an entire feature (attribute and geometry), we can do that by first selecting the geometry using the regular Select Features by area or single click tool. Selection can also be done from the attribute table. Once you have the selection set, press Delete or Backspace key or use the Delete Selected tool to delete the features. Multiple selected features can be deleted at once.
The Cut Features tool on the digitizing toolbar can also be used to delete features. This effectively deletes the feature but also places it on a „spatial clipboard“. So, we cut the feature to delete. We could then use the Paste Features tool to put it back, giving us a one-level undo capability. Cut, copy, and paste work on the currently selected features, meaning we can operate on more than one at a time.
Undo and Redo¶
The Undo and Redo tools allows you to undo or redo vector editing operations. There is also a dockable widget, which shows all operations in the undo/redo history (see Figure_edit_undo). This widget is not displayed by default; it can be displayed by right-clicking on the toolbar and activating the Undo/Redo Panel checkbox. The Undo/Redo capability is however active, even if the widget is not displayed.
When Undo is hit or Ctrl+Z (or Cmd+Z) pressed, the state of all features and attributes are reverted to the state before the reverted operation happened. Changes other than normal vector editing operations (for example, changes done by a plugin) may or may not be reverted, depending on how the changes were performed.
To use the undo/redo history widget, simply click to select an operation in the history list. All features will be reverted to the state they were in after the selected operation.
Saving Edited Layers¶
When a layer is in editing mode, any changes remain in the memory of QGIS. Therefore, they are not committed/saved immediately to the data source or disk. If you want to save edits to the current layer but want to continue editing without leaving the editing mode, you can click the Save Layer Edits button. When you turn editing mode off with Toggle editing (or quit QGIS for that matter), you are also asked if you want to save your changes or discard them.
If the changes cannot be saved (e.g., disk full, or the attributes have values that are out of range), the QGIS in-memory state is preserved. This allows you to adjust your edits and try again.
It is always a good idea to back up your data source before you start editing. While the authors of QGIS have made every effort to preserve the integrity of your data, we offer no warranty in this regard.
Saving multiple layers at once¶
This feature allows the digitization of multiple layers. Choose Save for Selected Layers to save all changes you made in multiple layers. You also have the opportunity to Rollback for Selected Layers, so that the digitization may be withdrawn for all selected layers. If you want to stop editing the selected layers, Cancel for Selected Layer(s) is an easy way.
The same functions are available for editing all layers of the project.
Use transaction group to edit, save or rollback multiple layers changes at once
When working with layers from the same PostGreSQL database, activate the Automatically create transaction groups where possible option in to sync their behavior (enter or exit the edit mode, save or rollback changes at the same time).
Enable Advanced Digitizing Tools
Copy and Move Feature(s)
Завъртане на обект/и
Опростяване на обект
Добавяне на кръг
Добавяне на част
Запълване на кръг
Изтриване на кръг
Изтриване на част
Преоформяне на обекти
Разрязване на частите
Разрязване на обекти
Сливане на атрибутите на избраните обекти
Сливане на избраните обекти
Завъртане на точковите символи
Offset Point Symbols
Table Advanced Editing: Vector layer advanced editing toolbar
The Move Feature(s) tool allows you to move existing features:
Select the feature(s) to move.
Click on the map canvas to indicate the origin point of the displacement; you can rely on snapping capabilities to select an accurate point.

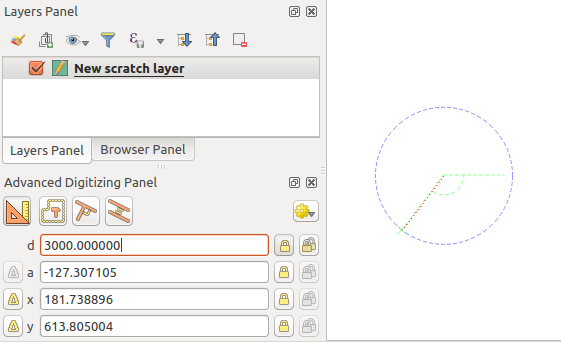

You can also take advantages of the advanced digitizing constraints to accurately set the origin point coordinates. In that case:
xand enter the corresponding value for the origin point you’d like to use. Then press the button next to the option to lock the value.
Do the same for the
Click on the map canvas and your origin point is placed at the indicated coordinates.
Move over the map canvas to indicate the destination point of the displacement, still using snapping mode or, as above, use the advanced digitizing panel which would provide complementary
angleplacement constraints to place the end point of the translation.
Click on the map canvas: the whole features are moved to new location.
Likewise, you can create a translated copy of the feature(s) using the Copy and Move Feature(s) tool.
If no feature is selected when you first click on the map canvas with any of the Move Feature(s) or Copy and Move Feature(s) tools, then only the feature under the mouse is affected by the action. So, if you want to move several features, they should be selected first.
Завъртане на обект/и¶
Use the Rotate Feature(s) tool to rotate one or multiple features in the map canvas:
Then click on the feature to rotate. The feature’s centroid is referenced as rotation center, a preview of the rotated feature is displayed and a widget opens showing the current Rotation angle.
Click on the map canvas when you are satisfied with the new placement or manually enter the rotation angle in the text box. You can also use the Snap to ° box to constrain the rotation values.
If you want to rotate several features at once, they shall be selected first, and the rotation is by default around the centroid of their combined geometries.
You can also use an anchor point different from the default feature centroid: press the Ctrl button, click on the map canvas and that point will be used as the new rotation center.
If you hold Shift before clicking on the map, the rotation will be done in 45 degree steps, which can be modified afterwards in the user input widget.
To abort feature rotation, press the ESC button or click on the Rotate Feature(s) icon.
Опростяване на обект¶
The Simplify Feature tool allows you to interactively reshape a line or polygon geometry by reducing or densifying the number of vertices, as long as the geometry remains valid:
Click on the feature or drag a rectangle over the features.
A dialog pops up allowing you to define the Method to apply, ie whether you would like to:
simplify the geometry, meaning less vertices than the original. Available methods are
Simplify by distance,
Simplify by snapping to gridor
simplify by area (Visvalingam). You’d then need to indicate the value of Tolerance in
map unitsto use for simplification. The higher the tolerance is the more vertices can be deleted.
or densify the geometries with new vertices thanks to the
Smoothoption: for each existing vertex, two vertices are placed on each of the segments originated from it, at an Offset distance representing the percentage of the segment length. You can also set the number of Iterations the placement would be processed: the more iterations, the more vertices and smoother is the feature.
Settings that you used will be saved when leaving a project or an edit session. So you can go back to the same parameters the next time you simplify a feature.
A summary of the modifications that would apply is shown at the bottom of the dialog, listing number of features and number of vertices (before and after the operation and the ratio the change represents). Also, in the map canvas, the expected geometry is displayed over the existing one, using the rubberband color.
When the expected geometry fits your needs, click OK to apply the modification. Otherwise, to abort the operation, you can either press Cancel or right-click in the map canvas.
Добавяне на част¶
You can Add Part to a selected feature generating a multipoint, multiline or multipolygon feature. The new part must be digitized outside the existing one which should be selected beforehand.
The Add Part can also be used to add a geometry to a geometryless feature. First, select the feature in the attribute table and digitize the new geometry with the Add Part tool.
Изтриване на част¶
The Delete Part tool allows you to delete parts from multifeatures (e.g., to delete polygons from a multi-polygon feature). This tool works with all multi-part geometries: point, line and polygon. Furthermore, it can be used to totally remove the geometric component of a feature. To delete a part, simply click within the target part.
Добавяне на кръг¶
You can create ring polygons using the Add Ring icon in the toolbar. This means that inside an existing area, it is possible to digitize further polygons that will occur as a ‚hole‘, so only the area between the boundaries of the outer and inner polygons remains as a ring polygon.
Запълване на кръг¶
The Fill Ring tool helps you create polygon feature that totally falls within another one without any overlapping area; that is the new feature covers a hole within the existing one. To create such a feature:
Draw a new polygon over the existing feature: QGIS adds a ring to its geometry (like if you used the Add Ring tool) and creates a new feature whose geometry matches the ring (like if you traced over the interior boundaries with the Add polygon feature tool).
Or alternatively, if the ring already exists on the feature, place the mouse over the ring and left-click while pressing Shift: a new feature filling the hole is drawn at that place.
The Feature Attributes form of the new feature opens, pre-filled with values of the „parent“ feature and/or fields constraints.
Изтриване на кръг¶
The Delete Ring tool allows you to delete rings within an existing polygon, by clicking inside the hole. This tool only works with polygon and multi-polygon features. It doesn’t change anything when it is used on the outer ring of the polygon.
Преоформяне на обекти¶
You can reshape line and polygon features using the Reshape Features tool on the toolbar. For lines, it replaces the line part from the first to the last intersection with the original line.
Extend linestring geometries with reshape tool
Use the Reshape Features tool to extend existing linestring geometries: snap to the first or last vertex of the line and draw a new one. Validate and the feature’s geometry becomes the combination of the two lines.

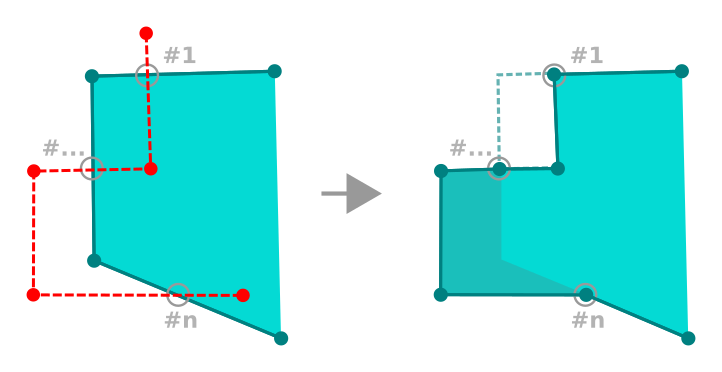

For polygons, it will reshape the polygon’s boundary. For it to work, the reshape tool’s line must cross the polygon’s boundary at least twice. To draw the line, click on the map canvas to add vertexes. To finish it, just right-click. Like with the lines, only the segment between the first and the last intersections is considered. The reshape line’s segments that are inside the polygon will result in cropping it, where the ones outside the polygon will extend it.
With polygons, reshaping can sometimes lead to unintended results. It is mainly useful to replace smaller parts of a polygon, not for major overhauls, and the reshape line is not allowed to cross several polygon rings, as this would generate an invalid polygon.
The reshape tool may alter the starting position of a polygon ring or a closed line. So, the point that is represented ‚twice‘ will not be the same any more. This may not be a problem for most applications, but it is something to consider.
The Offset Curve tool creates parallel shifts of line layers. The tool can be applied to the edited layer (the geometries are modified) or also to background layers (in which case it creates copies of the lines / rings and adds them to the edited layer). It is thus ideally suited for the creation of distance line layers. The User Input dialog pops-up, showing the displacement distance.
To create a shift of a line layer, you must first go into editing mode and activate the Offset Curve tool. Then click on a feature to shift it. Move the mouse and click where wanted or enter the desired distance in the user input widget. Your changes may then be saved with the Save Layer Edits tool.
QGIS options dialog (Digitizing tab then Curve offset tools section) allows you to configure some parameters like Join style, Quadrant segments, Miter limit.
Разрязване на обекти¶
Use the Split Features tool to split a feature into two or more new and independent features, ie. each geometry corresponding to a new row in the attribute table.
To split line or polygon features:
Draw a line across the feature(s) you want to split. If a selection is active, only selected features are split. When set, default values or clauses are applied to corresponding fields and other attributes of the parent feature are by default copied to the new features.
You can then as usually modify any of the attributes of any resulting feature.
Разрязване на частите¶
In QGIS it is possible to split the parts of a multi part feature so that the number of parts is increased. Just draw a line across the part you want to split using the Split Parts icon.
Merge selected features¶
The Merge Selected Features tool allows you to create a new feature by merging existing ones: their geometries are merged to generate a new one. If features don’t have common boundaries, a multipolygon/multipolyline/multipoint feature is created.
First, select the features you’d like to combine.
In the new dialog, the Merge line at the bottom of the table shows the attributes of the resulting feature. You can alter any of these values either by:
manually replacing the value in the corresponding cell;
selecting a row in the table and pressing Take attributes from selected feature to use the values of this initial feature;
pressing Skip all fields to use empty attributes;
or, expanding the drop down menu at the top of the table, select any of the above options to apply to the corresponding field only. There, you can also choose to aggregate the initial features attributes (Minimum, Maximum, Median, Sum, Count, Concatenation… depending on the type of the field. see Statistical Summary Panel for the full list of functions).
If the layer has default values or clauses present on fields, these are used as the initial value for the merged feature.
Press OK to apply the modifications. A single (multi)feature is created in the layer, replacing the previously selected ones.
Merge attributes of selected features¶
The Merge Attributes of Selected Features tool
allows you to apply same attributes to features without merging their boundaries.
The dialog is the same as the
Merge Selected Features tool’s except that
unlike that tool, selected objects are kept with their geometry while some of their
attributes are made identical.
Завъртане на точковите символи¶
The Rotate Point Symbols allows you to change the rotation of point symbols in the map canvas.
First of all, apply to the symbol a data-defined rotation:
In thedialog, browse to the symbol editor dialog.
Click the Data-defined override widget near the Rotation option of the top Marker level (preferably) of the symbol layers.
Choose a field in the Field Type combobox. Values of this field are hence used to rotate each feature’s symbol accordingly.
Make sure that the same field is assigned to all the symbol layers
Setting the data-defined rotation field at the topmost level of the symbol tree automatically propagates it to all the symbol layers, a prerequisite to perform graphical symbol rotation with the Rotate Point Symbols tool. Indeed, if a symbol layer does not have the same field attached to its rotation property, the tool will not work.
Then click on a point feature in the map canvas with the Rotate Point Symbols and move the mouse around, holding the left button pressed. A red arrow with the rotation value will be visualized (see Figure_rotate_point).
Release the left mouse button again, the symbol is defined with this new rotation and the rotation field is updated in the layer’s attribute table.
If you hold the Ctrl key pressed, the rotation will be done in 15 degree steps.
Offset Point Symbols¶
The Offset Point Symbols allows you to interactively change the rendered position of point symbols in the map canvas. This tool behaves like the Rotate Point Symbols tool except that it requires you to connect a field to the data-defined Offset (X,Y) property of the symbol, field which will then be populated with the offset coordinates while moving the symbol in the map canvas.
The Shape Digitizing toolbar offers a set of tools to draw regular shapes and curved geometries.
Add Circular string¶
The Add circular string or Add circular string by radius buttons allow users to add line or polygon features with a circular geometry.
Creating features with these tools follow the same rule as of other digitizing tools: left-click to place vertices and right-click to finish the geometry. While drawing the geometry, you can switch from one tool to the other as well as to the linear geometry tools, creating some coumpound geometries.
Curved geometries are stored as such only in compatible data provider
Although QGIS allows to digitize curved geometries within any editable data format, you need to be using a data provider (e.g. PostGIS, memory layer, GML or WFS) that supports curves to have features stored as curved, otherwise QGIS segmentizes the circular arcs.
There is a set of tools for drawing circles. The tools are described below.
Circles are converted into circular strings, therefore, as explained in ref:add_circular_string, if allowed by the data provider, it will be saved as a curved geometry, if not, QGIS will segmentize the circular arcs.
Add circle from 2 points: The two points define the diameter and the orientation of the circle. (Left-click, right-click)
Add circle from 3 points: Draws a circle from three known points on the circle. (Left-click, left-click, right-click)
Add circle from center and a point: Draws a circle with a given center and a point on the circle. (Left-click, right-click) When used with the The Advanced Digitizing panel this tool can become a „Add circle from center and radius“ tool by setting and locking the distance value after first click.
:sup`Add circle from 3 tangents`: Draws a circle that is tangential to three segments. Note that you must activate snapping to segments (See Setting the Snapping Tolerance and Search Radius). Click on a segment to add a tangent. If two tangents are parallel, an error message appears and the input is cleared. (Left-click, left-click, right-click)
Add circle from 2 tangents and a point: Similar to circle from 3 tangents, except that you have to select two tangents, enter a radius and select the desired center.
The Advanced Digitizing panel¶
When capturing, reshaping, splitting new or existing geometries you also have the possibility to use the Advanced Digitizing panel. You can digitize lines exactly parallel or perpendicular to a particular angle or lock lines to specific angles. Furthermore, you can enter coordinates directly so that you can make a precise definition of your new geometry.
The Advanced Digitizing panel can be open either with a right-click on the toolbar, from menu or pressing Ctrl+4. Once the panel is visible, click the Enable advanced digitizing tools button to activate the set of tools.
The tools are not enabled if the map view is in geographic coordinates.
The aim of the Advanced Digitizing tool is to lock coordinates, lengths, and angles when moving the mouse during the digitalizing in the map canvas.
You can also create constraints with relative or absolute reference. Relative reference means that the next vertex constraints‘ values will be relative to the previous vertex or segment.
Click the button to set the Advanced Digitizing Tool snapping settings. You can make the tool snap to common angles. The options are:
Do not snap to common angles
Snap to 30º angles
Snap to 45º angles
Snap to 90º angles
You can also control the snapping to features. The options are:
Do not snap to vertices or segments
Snap according to project configuration
Snap to all layers
To speed up the use of Advanced Digitizing Panel, there are a couple of keyboard shortcuts available:
Ctrl+ or Alt+
Toggle relative angle to last segment
Set X coordinate
Lock X coordinate
Toggle relative X to last vertex
Set Y coordinate
Lock Y coordinate
Toggle relative Y to last vertex
Toggle construction mode
Toggle perpendicular and parallel modes
Absolute reference digitizing¶
When drawing a new geometry from scratch, it is very useful to have the possibility to start digitizing vertexes at given coordinates.
For example, to add a new feature to a polygonal layer, click the button. You can choose the X and Y coordinates where you want to start editing the feature, then:
Click the x text box (or use the X keyboard shortcut).
Type the X coordinate value you want and press Enter or click the button to their right to lock the mouse to the X axis on the map canvas.
Click the y text box (or use the Y keyboard shortcut).
Type the Y coordinate value you want and press Enter or click the button to their right to lock the mouse to the Y axis on the map canvas.
Two blue dotted lines and a green cross identify the exact coordinates you entered. Start digitizing by clicking on the map canvas; the mouse position is locked at the green cross.
You can continue digitizing by free hand, adding a new pair of coordinates, or you can type the segment’s length (distance) and angle.
If you want to draw a segment of a given length, click the d (distance) text box (keyboard shortcut D), type the distance value (in map units) and press Enter or click the button on the right to lock the mouse in the map canvas to the length of the segment. In the map canvas, the clicked point is surrounded by a circle whose radius is the value entered in the distance text box.
Finally, you can also choose the angle of the segment. As described before , click the a (angle) text box (keyboard shortcut A), type the angle value (in degrees), and press Enter or click the buttons on the right to lock it. In this way the segment will follow the desired angle:
Relative reference digitizing¶
Instead of using absolute values of angles or coordinates, you can also use values relative to the last digitized vertex or segment.
For angles, you can click the button on the left of the a text box (or press Shift+A) to toggle relative angles to the previous segment. With that option on, angles are measured between the last segment and the mouse pointer.
For coordinates, click the buttons to the left of the x or y text boxes (or press Shift+X or Shift+Y) to toggle relative coordinates to the previous vertex. With these options on, coordinates measurement will consider the last vertex to be the X and Y axes origin.
Both in absolute or relative reference digitizing, angle, distance, X and Y constraints can be locked continuously by clicking the Continuous lock buttons. Using continuous lock allows you to digitize several points or vertexes using the same constraints.
Parallel and perpendicular lines¶
All the tools described above can be combined with the Perpendicular and Parallel tools. These two tools allow drawing segments perfectly perpendicular or parallel to another segment.
To draw a perpendicular segment, during the editing click the Perpendicular icon (keyboard shortcut P) to activate it. Before drawing the perpendicular line, click on the segment of an existing feature that you want to be perpendicular to (the line of the existing feature will be colored in light orange); you should see a blue dotted line where your feature will be snapped:
To draw a parallel feature, the steps are the same: click on the Parallel icon (keyboard shortcut P twice), click on the segment you want to use as reference and start drawing your feature:
These two tools just find the right angle of the perpendicular and parallel angle and lock this parameter during your editing.
You can enable and disable construction mode by clicking on the Construction icon or with the C keyboard shortcut. While in construction mode, clicking the map canvas won’t add new vertexes, but will capture the clicks‘ positions so that you can use them as reference points to then lock distance, angle or X and Y relative values.
As an example, the construction mode can be used to draw some point at an exact distance from an existing point.
With an existing point in the map canvas and the snapping mode correctly activated, you can easily draw other points at given distances and angles from it. In addition to the button, you have to activate also the construction mode by clicking the Construction icon or with the C keyboard shortcut.
Click next to the point from which you want to calculate the distance and click on the d box (D shortcut) type the desired distance and press Enter to lock the mouse position in the map canvas:
Before adding the new point, press C to exit the construction mode. Now, you can click on the map canvas, and the point will be placed at the distance entered.
You can also use the angle constraint to, for example, create another point at the same distance of the original one, but at a particular angle from the newly added point. Click the Construction icon or with the C keyboard shortcut to enter construction mode. Click the recently added point, and then the other one to set a direction segment. Then, click on the d text box (D shortcut) type the desired distance and press Enter. Click the a text box (A shortcut) type the angle you want and press Enter. The mouse position will be locked both in distance and angle.
Before adding the new point, press C to exit the construction mode. Now, you can click on the map canvas, and the point will be placed at the distance and angle entered. Repeating the process, several points can be added.
The Processing in-place layer modifier¶
The Processing menu provides access to a large set of tools to analyze and create new features based on the properties of the input features or their relations with other features (within the same layer or not). While the common behavior is to create new layers as outputs, some algorithms also allow modifications to the input layer. This is a handy way to automate multiple features modification using advanced and complex operations.
To edit features in-place:
Select the layer to edit in the Layers panel.
Select the concerned features. You can skip this step, in which case the modification will apply to the whole layer.
Press the Edit Features In-Place button at the top of the Processing toolbox. The list of algorithms is filtered, showing only those compatible with in-place modifications, i.e.:
They work at the feature source and not at the layer level.
They do not change the layer structure, e.g. adding or removing fields.
They do not change the geometry type, e.g. from line to point layer.
Find the algorithm you’d like to run and double-click it.
If the algorithm does not need any additional user-set parameters (excluding the usual input and output layer parameters), then the algorithm is run immediately without any dialog popup.
If parameters other than the usual input or output layers are needed, the algorithm dialog pops up. Fill in the required information.
Click Modify Selected Features or Modify All Features depending on whether there’s an active selection.
Changes are applied to the layer and placed in the edit buffer: the layer is indeed toggled to editing mode with unsaved modification as indicated by the icon next to the layer name.
As usual, press Save layer edits to commit the changes in the layer. You can also press Undo to rollback the whole modification.
