24.1.15. Raster analysis

24.1.15.1. Cell stack percent rank from value

Calculates the cell-wise percentrank value of a stack of rasters based on a single input value and writes them to an output raster.

At each cell location, the specified value is ranked among the respective values in the stack of all overlaid and sorted cell values from the input rasters. For values outside of the stack value distribution, the algorithm returns NoData because the value cannot be ranked among the cell values.

There are two methods for percentile calculation:

• Inclusive linear interpolation (PERCENTRANK.INC)

• Exclusive linear interpolation (PERCENTRANK.EXC)

The linear interpolation methods return the unique percent rank for different values. Both interpolation methods follow their counterpart methods implemented by LibreOffice or Microsoft Excel.

The output raster’s extent and resolution is defined by a reference raster. Input raster layers that do not match the cell size of the reference raster layer will be resampled using nearest neighbor resampling. NoData values in any of the input layers will result in a NoData cell output if the „Ignore NoData values” parameter is not set. The output raster data type will always be Float32.

Rys. 24.19 Percent ranking Value = 1. NoData cells (grey) are ignored.

Zobacz także

Cell stack percentile, Cell stack percentrank from raster layer

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Warstwy wejściowe	INPUT	[raster] [lista]	Raster layers to evaluate. If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters
Metoda	METHOD	[wyliczenie] Domyślnie: 0	Method for percentile calculation: 0 — Inclusive linear interpolation (PERCENTRANK.INC) 1 — Exclusive linear interpolation (PERCENTRANK.EXC)
Wartość	VALUE	[numeric: double] Domyślnie: 10.0	Value to rank among the respective values in the stack of all overlaid and sorted cell values from the input rasters
Ignore NoData values	IGNORE_NODATA	[wartość logiczna] Domyślnie: True	If unchecked, any NoData cells in the input layers will result in a NoData cell in the output raster
Warstwa referencyjna	REFERENCE_LAYER	[raster]	The reference layer for the output layer creation (extent, CRS, pixel dimensions)
Warstwa wynikowa	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value	OUTPUT_NODATA_VALUE	[numeric: double] Domyślnie: -9999.0	Value to use for NoData in the output layer
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Warstwa wynikowa	OUTPUT	[raster]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[ciąg tekstowy]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer

Kod pythona

ID algorytmu: native:cellstackpercentrankfromvalue

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.2. Cell stack percentile

Calculates the cell-wise percentile value of a stack of rasters and writes the results to an output raster. The percentile to return is determined by the percentile input value (ranges between 0 and 1). At each cell location, the specified percentile is obtained using the respective value from the stack of all overlaid and sorted cell values of the input rasters.

There are three methods for percentile calculation:

• Nearest rank: returns the value that is nearest to the specified percentile

• Inclusive linear interpolation (PERCENTRANK.INC)

• Exclusive linear interpolation (PERCENTRANK.EXC)

The linear interpolation methods return the unique values for different percentiles. Both interpolation methods follow their counterpart methods implemented by LibreOffice or Microsoft Excel.

The output raster’s extent and resolution is defined by a reference raster. Input raster layers that do not match the cell size of the reference raster layer will be resampled using nearest neighbor resampling. NoData values in any of the input layers will result in a NoData cell output if the „Ignore NoData values” parameter is not set. The output raster data type will always be Float32.

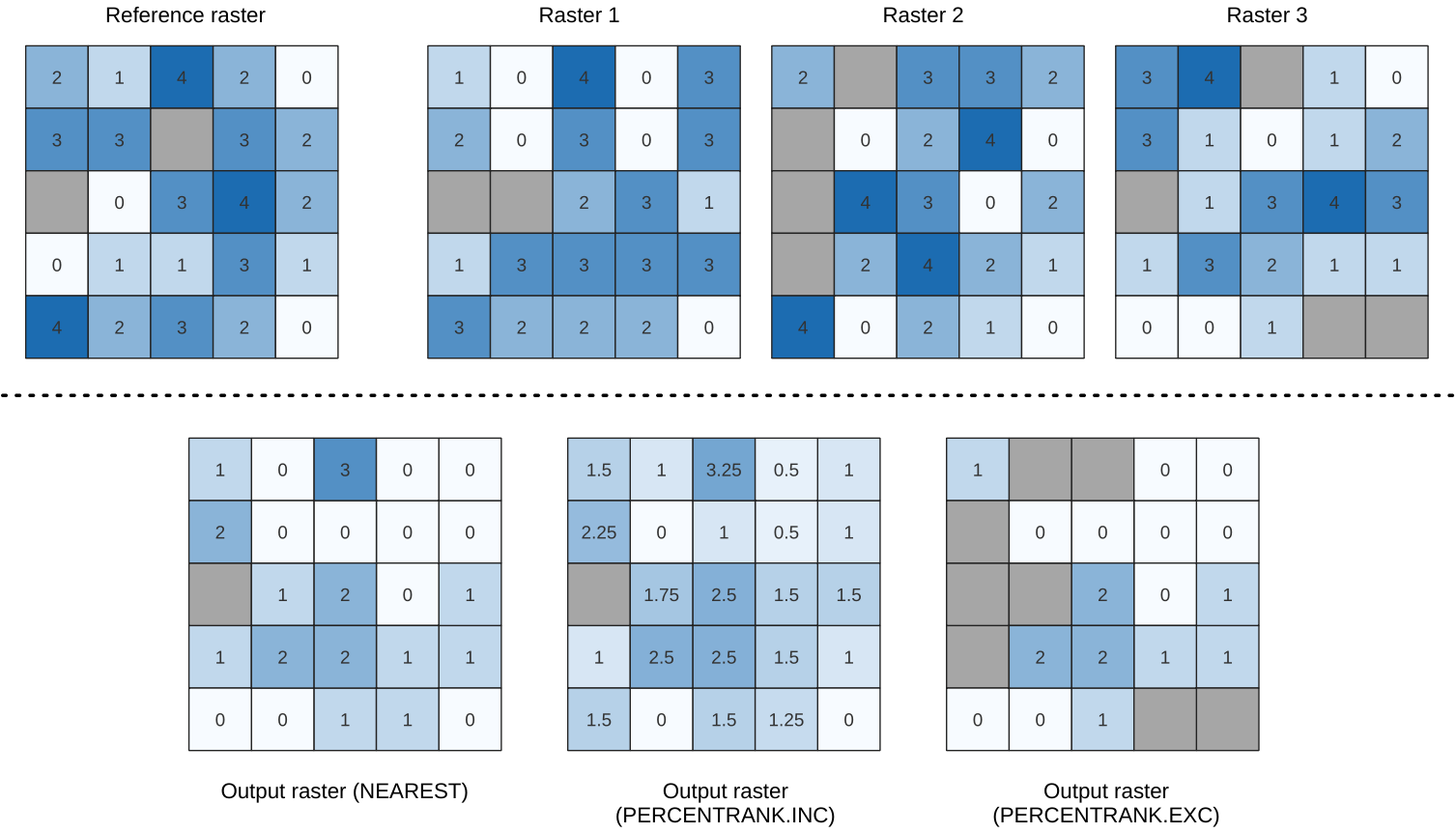

Rys. 24.20 Percentile = 0.25. NoData cells (grey) are ignored.

Zobacz także

Cell stack percentile, Cell stack percentrank from raster layer

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Warstwy wejściowe	INPUT	[raster] [lista]	Raster layers to evaluate. If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters
Metoda	METHOD	[wyliczenie] Domyślnie: 0	Method for percentile calculation: 0 — Nearest rank: returns the value that is nearest to the specified percentile 1 — Inclusive linear interpolation (PERCENTILE.INC) 2 — Exclusive linear interpolation (PERCENTILE.EXC)
Percentile	VALUE	[numeric: double] Domyślnie: 0.25	Value to rank among the respective values in the stack of all overlaid and sorted cell values from the input rasters. Between 0 and 1.
Ignore NoData values	IGNORE_NODATA	[wartość logiczna] Domyślnie: True	If unchecked, any NoData cells in the input layers will result in a NoData cell in the output raster
Warstwa referencyjna	REFERENCE_LAYER	[raster]	The reference layer for the output layer creation (extent, CRS, pixel dimensions)
Warstwa wynikowa	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value	OUTPUT_NODATA_VALUE	[numeric: double] Domyślnie: -9999.0	Value to use for NoData in the output layer
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Warstwa wynikowa	OUTPUT	[raster]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[ciąg tekstowy]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer

Kod pythona

ID algorytmu: native:cellstackpercentile

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.3. Cell stack percentrank from raster layer

Calculates the cell-wise percentrank value of a stack of rasters based on an input value raster and writes them to an output raster.

At each cell location, the current value of the value raster is ranked among the respective values in the stack of all overlaid and sorted cell values of the input rasters. For values outside of the the stack value distribution, the algorithm returns NoData because the value cannot be ranked among the cell values.

There are two methods for percentile calculation:

• Inclusive linear interpolation (PERCENTRANK.INC)

• Exclusive linear interpolation (PERCENTRANK.EXC)

The linear interpolation methods return the unique values for different percentiles. Both interpolation methods follow their counterpart methods implemented by LibreOffice or Microsoft Excel.

The output raster’s extent and resolution is defined by a reference raster. Input raster layers that do not match the cell size of the reference raster layer will be resampled using nearest neighbor resampling. NoData values in any of the input layers will result in a NoData cell output if the „Ignore NoData values” parameter is not set. The output raster data type will always be Float32.

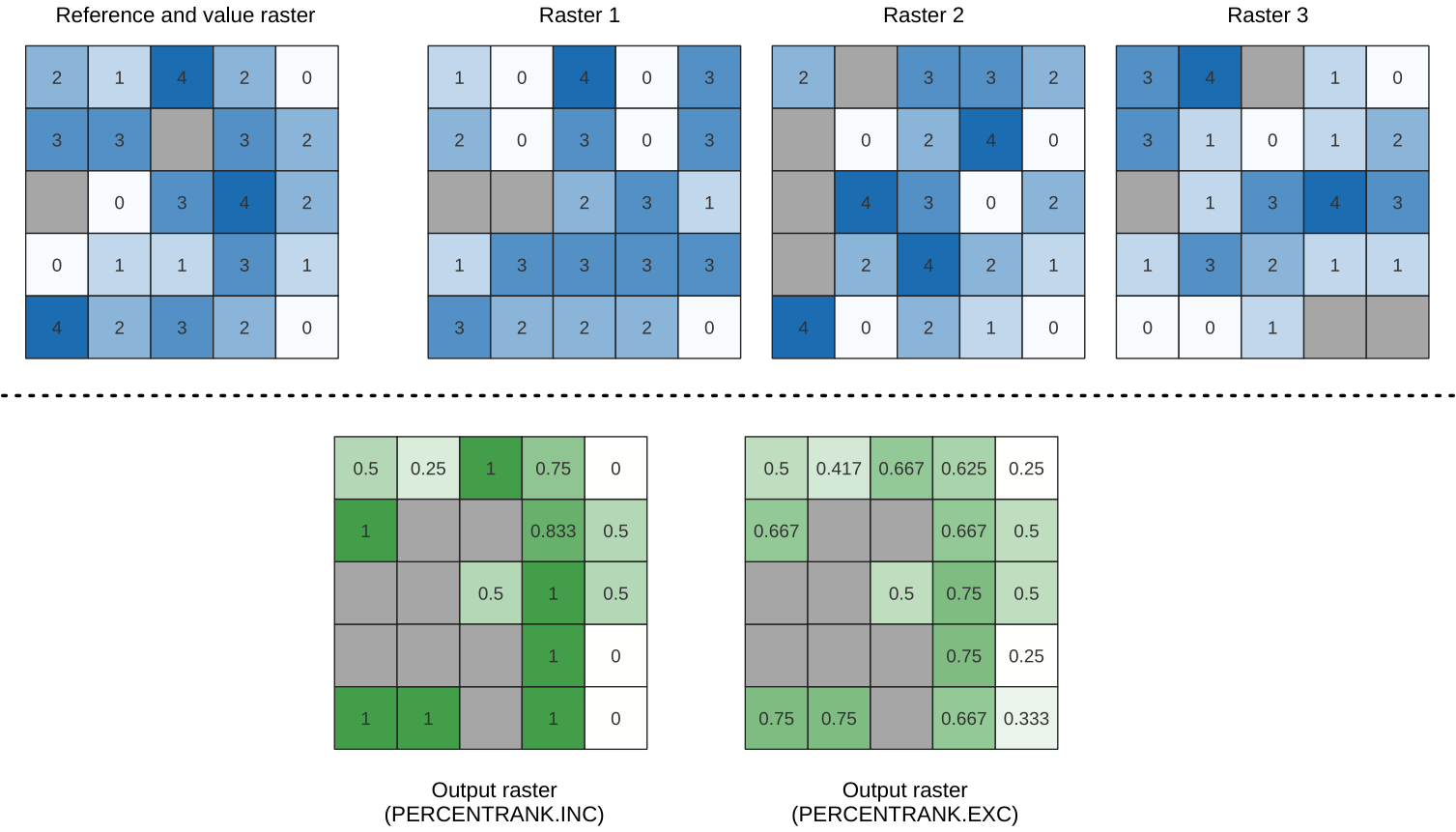

Rys. 24.21 Ranking the value raster layer cells. NoData cells (grey) are ignored.

Zobacz także

Cell stack percentile, Cell stack percent rank from value

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Warstwy wejściowe	INPUT	[raster] [lista]	Raster layers to evaluate. If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters
Value raster layer	INPUT_VALUE_RASTER	[raster]	The layer to rank the values among the stack of all overlaid layers
Value raster band	VALUE_RASTER_BAND	[numeric: integer] Domyślnie: 1	Band of the „value raster layer” to compare to
Metoda	METHOD	[wyliczenie] Domyślnie: 0	Method for percentile calculation: 0 — Inclusive linear interpolation (PERCENTRANK.INC) 1 — Exclusive linear interpolation (PERCENTRANK.EXC)
Ignore NoData values	IGNORE_NODATA	[wartość logiczna] Domyślnie: True	If unchecked, any NoData cells in the input layers will result in a NoData cell in the output raster
Warstwa referencyjna	REFERENCE_LAYER	[raster]	The reference layer for the output layer creation (extent, CRS, pixel dimensions)
Warstwa wynikowa	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value	OUTPUT_NODATA_VALUE	[numeric: double] Domyślnie: -9999.0	Value to use for NoData in the output layer
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Warstwa wynikowa	OUTPUT	[raster]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[ciąg tekstowy]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer

Kod pythona

ID algorytmu: native:cellstackpercentrankfromrasterlayer

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.4. Cell statistics

Computes per-cell statistics based on input raster layers and for each cell writes the resulting statistics to an output raster. At each cell location, the output value is defined as a function of all overlaid cell values of the input rasters.

By default, a NoData cell in ANY of the input layers will result in a NoData cell in the output raster. If the Ignore NoData values option is checked, then NoData inputs will be ignored in the statistic calculation. This may result in NoData output for locations where all cells are NoData.

The Reference layer parameter specifies an existing raster layer to use as a reference when creating the output raster. The output raster will have the same extent, CRS, and pixel dimensions as this layer.

Calculation details: Input raster layers that do not match the cell size of the reference raster layer will be resampled using nearest neighbor resampling. The output raster data type will be set to the most complex data type present in the input datasets except when using the functions Mean, Standard deviation and Variance (data type is always Float32 or Float64 depending on input float type) or Count and Variety (data type is always Int32).

• Count: The count statistic will always result in the number of cells without NoData values at the current cell location.

• Median: If the number of input layers is even, the median will be calculated as the arithmetic mean of the two middle values of the ordered cell input values.

• Minority/Majority: If no unique minority or majority could be found, the result is NoData, except all input cell values are equal.

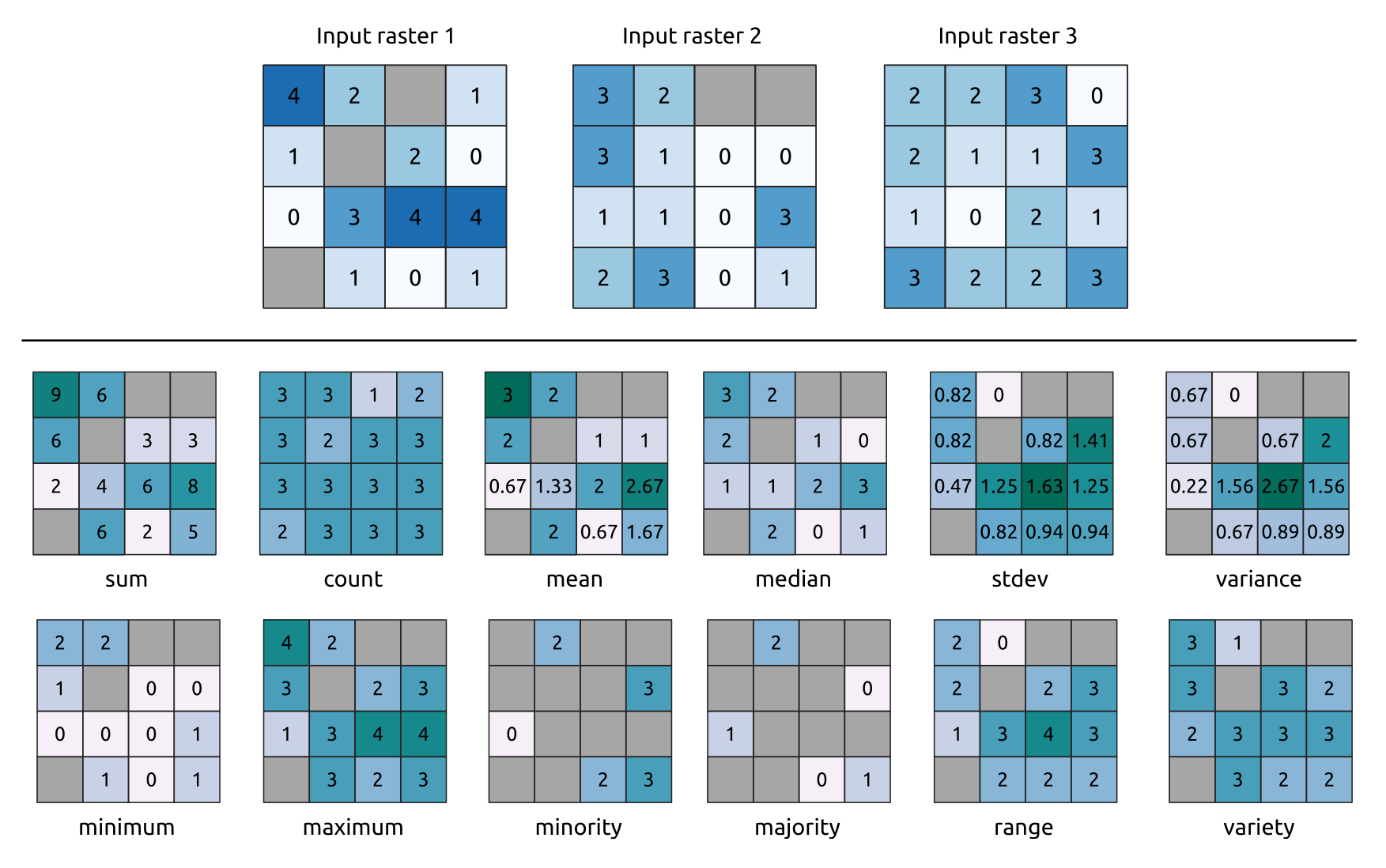

Rys. 24.22 Example with all the statistic functions. NoData cells (grey) are taken into account.

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Warstwy wejściowe	INPUT	[raster] [lista]	Input raster layers
Statistic	STATISTIC	[wyliczenie] Domyślnie: 0	Available statistics. Options: 0 — Sum 1 — Count 2 — Mean 3 — Median 4 — Standard deviation 5 — Variance 6 — Minimum 7 — Maksimum 8 — Minority (least common value) 9 — Majority (most common value) 10 — Range (max - min) 11 — Variety (unique value count)
Ignore NoData values	IGNORE_NODATA	[wartość logiczna] Domyślnie: True	Calculate statistics also for all cells stacks, ignoring NoData occurrence.
Warstwa referencyjna	REF_LAYER	[raster]	The reference layer to create the output layer from (extent, CRS, pixel dimensions)
Warstwa wynikowa	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value Opcjonalne	OUTPUT_NO_DATA_VALUE	[numeric: double] Domyślnie: -9999.0	Value to use for NoData in the output layer
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
CRS authority identifier	CRS_AUTHID	[układ współrzędnych]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Raster wyjściowy	OUTPUT	[raster]	Output raster layer containing the result
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer

Kod pythona

ID algorytmu: native:cellstatistics

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.5. Equal to frequency

Evaluates on a cell-by-cell basis the frequency (number of times) the values of an input stack of rasters are equal to the value of a value layer. The output raster extent and resolution are defined by the input raster layer and is always of Int32 type.

If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters - use GDAL to use other bands in the analysis. The output NoData value can be set manually.

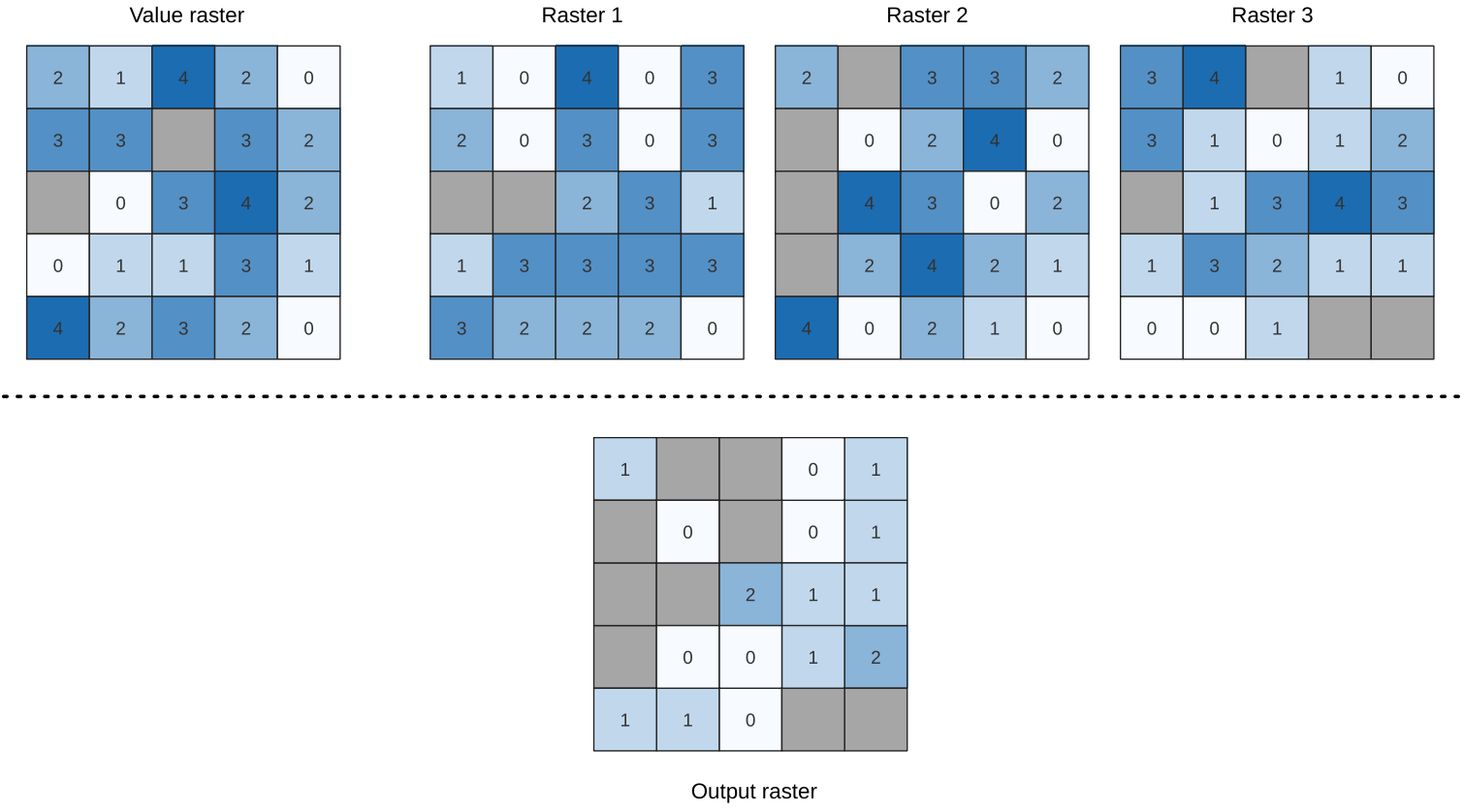

Rys. 24.23 For each cell in the output raster, the value represents the number of times that the corresponding cells in the list of rasters are the same as the value raster. NoData cells (grey) are taken into account.

Zobacz także

Greater than frequency, Less than frequency

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Input value raster	INPUT_VALUE_RASTER	[raster]	The input value layer serves as reference layer for the sample layers
Value raster band	INPUT_VALUE_RASTER_BAND	[raster band] Default: The first band of the raster layer	Select the band you want to use as sample
Input raster layers	INPUT_RASTERS	[raster] [lista]	Raster layers to evaluate. If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters
Ignore NoData values	IGNORE_NODATA	[wartość logiczna] Domyślnie: False	If unchecked, any NoData cells in the value raster or the data layer stack will result in a NoData cell in the output raster
Warstwa wynikowa	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value Opcjonalne	OUTPUT_NO_DATA_VALUE	[numeric: double] Domyślnie: -9999.0	Value to use for NoData in the output layer
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Warstwa wynikowa	OUTPUT	[raster]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[ciąg tekstowy]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Count of cells with equal value occurrences	FOUND_LOCATIONS_COUNT	[numeric: integer]
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer
Mean frequency at valid cell locations	MEAN_FREQUENCY_PER_LOCATION	[numeric: double]
Count of value occurrences	OCCURRENCE_COUNT	[numeric: integer]
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer

Kod pythona

ID algorytmu: native:equaltofrequency

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.6. Fuzzify raster (gaussian membership)

Transforms an input raster to a fuzzified raster by assigning a membership value to each pixel, using a Gaussian membership function. Membership values range from 0 to 1. In the fuzzified raster, a value of 0 implies no membership of the defined fuzzy set, whereas a value of 1 means full membership. The gaussian membership function is defined as , where f1 is the spread and f2 the midpoint.

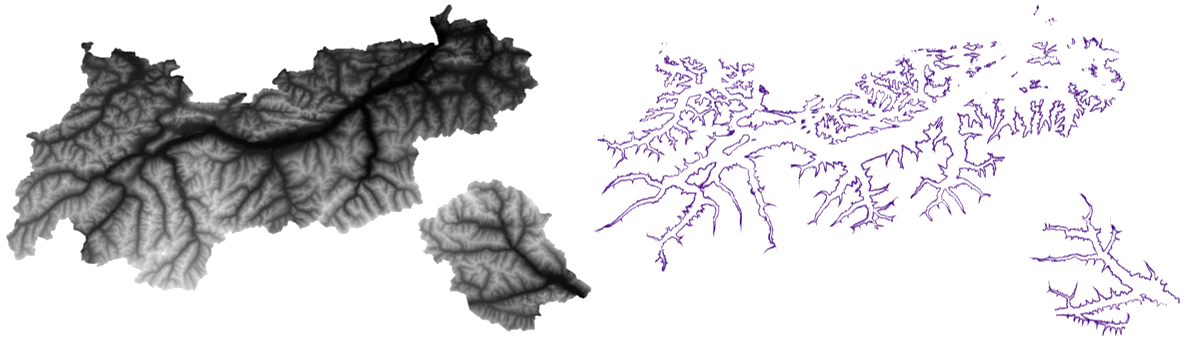

Rys. 24.24 Fuzzify raster example. Input raster source: Land Tirol - data.tirol.gv.at.

Zobacz także

Fuzzify raster (large membership), Fuzzify raster (linear membership), Fuzzify raster (near membership), Fuzzify raster (power membership), Fuzzify raster (small membership)

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Input Raster	INPUT	[raster]	Input raster layer
Band Number	BAND	[raster band] Default: The first band of the raster layer	If the raster is multiband, choose the band that you want to fuzzify.
Function midpoint	FUZZYMIDPOINT	[numeric: double] Domyślnie: 10.0	Midpoint of the gaussian function
Function spread	FUZZYSPREAD	[numeric: double] Domyślnie: 0.01	Spread of the gaussian function
Fuzzified raster	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Fuzzified raster	OUTPUT	[same as input]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[układ współrzędnych]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer

Kod pythona

ID algorytmu: native:fuzzifyrastergaussianmembership

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.7. Fuzzify raster (large membership)

Transforms an input raster to a fuzzified raster by assigning a membership value to each pixel, using a Large membership function. Membership values range from 0 to 1. In the fuzzified raster, a value of 0 implies no membership of the defined fuzzy set, whereas a value of 1 means full membership. The large membership function is defined as , where f1 is the spread and f2 the midpoint.

Zobacz także

Fuzzify raster (gaussian membership), Fuzzify raster (linear membership), Fuzzify raster (near membership), Fuzzify raster (power membership), Fuzzify raster (small membership)

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Input Raster	INPUT	[raster]	Input raster layer
Band Number	BAND	[raster band] Default: The first band of the raster layer	If the raster is multiband, choose the band that you want to fuzzify.
Function midpoint	FUZZYMIDPOINT	[numeric: double] Default: 50.0	Midpoint of the large function
Function spread	FUZZYSPREAD	[numeric: double] Default: 5.0	Spread of the large function
Fuzzified raster	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Fuzzified raster	OUTPUT	[same as input]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[układ współrzędnych]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer

Kod pythona

ID algorytmu: native:fuzzifyrasterlargemembership

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.8. Fuzzify raster (linear membership)

Transforms an input raster to a fuzzified raster by assigning a membership value to each pixel, using a Linear membership function. Membership values range from 0 to 1. In the fuzzified raster, a value of 0 implies no membership of the defined fuzzy set, whereas a value of 1 means full membership. The linear function is defined as , where a is the low bound and b the high bound. This equation assigns membership values using a linear transformation for pixel values between the low and high bounds. Pixels values smaller than the low bound are given 0 membership whereas pixel values greater than the high bound are given 1 membership.

Zobacz także

Fuzzify raster (gaussian membership), Fuzzify raster (large membership), Fuzzify raster (near membership), Fuzzify raster (power membership), Fuzzify raster (small membership)

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Input Raster	INPUT	[raster]	Input raster layer
Band Number	BAND	[raster band] Default: The first band of the raster layer	If the raster is multiband, choose the band that you want to fuzzify.
Low fuzzy membership bound	FUZZYLOWBOUND	[numeric: double] Domyślnie: 0.0	Low bound of the linear function
High fuzzy membership bound	FUZZYHIGHBOUND	[numeric: double] Default: 1.0	High bound of the linear function
Fuzzified raster	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Fuzzified raster	OUTPUT	[same as input]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[układ współrzędnych]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer

Kod pythona

ID algorytmu: native:fuzzifyrasterlinearmembership

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.9. Fuzzify raster (near membership)

Transforms an input raster to a fuzzified raster by assigning a membership value to each pixel, using a Near membership function. Membership values range from 0 to 1. In the fuzzified raster, a value of 0 implies no membership of the defined fuzzy set, whereas a value of 1 means full membership. The near membership function is defined as , where f1 is the spread and f2 the midpoint.

Zobacz także

Fuzzify raster (gaussian membership), Fuzzify raster (large membership), Fuzzify raster (linear membership), Fuzzify raster (power membership), Fuzzify raster (small membership)

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Input Raster	INPUT	[raster]	Input raster layer
Band Number	BAND	[raster band] Default: The first band of the raster layer	If the raster is multiband, choose the band that you want to fuzzify.
Function midpoint	FUZZYMIDPOINT	[numeric: double] Default: 50.0	Midpoint of the near function
Function spread	FUZZYSPREAD	[numeric: double] Domyślnie: 0.01	Spread of the near function
Fuzzified raster	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Fuzzified raster	OUTPUT	[same as input]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[układ współrzędnych]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer

Kod pythona

ID algorytmu: native:fuzzifyrasternearmembership

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.10. Fuzzify raster (power membership)

Transforms an input raster to a fuzzified raster by assigning a membership value to each pixel, using a Power membership function. Membership values range from 0 to 1. In the fuzzified raster, a value of 0 implies no membership of the defined fuzzy set, whereas a value of 1 means full membership. The power function is defined as , where a is the low bound, b is the high bound, and f1 the exponent. This equation assigns membership values using the power transformation for pixel values between the low and high bounds. Pixels values smaller than the low bound are given 0 membership whereas pixel values greater than the high bound are given 1 membership.

Zobacz także

Fuzzify raster (gaussian membership), Fuzzify raster (large membership), Fuzzify raster (linear membership), Fuzzify raster (near membership), Fuzzify raster (small membership)

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Input Raster	INPUT	[raster]	Input raster layer
Band Number	BAND	[raster band] Default: The first band of the raster layer	If the raster is multiband, choose the band that you want to fuzzify.
Low fuzzy membership bound	FUZZYLOWBOUND	[numeric: double] Domyślnie: 0.0	Low bound of the power function
High fuzzy membership bound	FUZZYHIGHBOUND	[numeric: double] Default: 1.0	High bound of the power function
High fuzzy membership bound	FUZZYEXPONENT	[numeric: double] Default: 2.0	Exponent of the power function
Fuzzified raster	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Fuzzified raster	OUTPUT	[same as input]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[układ współrzędnych]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer

Kod pythona

ID algorytmu: native:fuzzifyrasterpowermembership

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.11. Fuzzify raster (small membership)

Transforms an input raster to a fuzzified raster by assigning a membership value to each pixel, using a Small membership function. Membership values range from 0 to 1. In the fuzzified raster, a value of 0 implies no membership of the defined fuzzy set, whereas a value of 1 means full membership. The small membership function is defined as , where f1 is the spread and f2 the midpoint.

Zobacz także

Fuzzify raster (gaussian membership), Fuzzify raster (large membership) Fuzzify raster (linear membership), Fuzzify raster (near membership), Fuzzify raster (power membership)

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Input Raster	INPUT	[raster]	Input raster layer
Band Number	BAND	[raster band] Default: The first band of the raster layer	If the raster is multiband, choose the band that you want to fuzzify.
Function midpoint	FUZZYMIDPOINT	[numeric: double] Default: 50.0	Midpoint of the small function
Function spread	FUZZYSPREAD	[numeric: double] Default: 5.0	Spread of the small function
Fuzzified raster	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Fuzzified raster	OUTPUT	[same as input]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[układ współrzędnych]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer

Kod pythona

ID algorytmu: native:fuzzifyrastersmallmembership

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.12. Greater than frequency

Evaluates on a cell-by-cell basis the frequency (number of times) the values of an input stack of rasters are equal to the value of a value raster. The output raster extent and resolution is defined by the input raster layer and is always of Int32 type.

If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters - use GDAL to use other bands in the analysis. The output NoData value can be set manually.

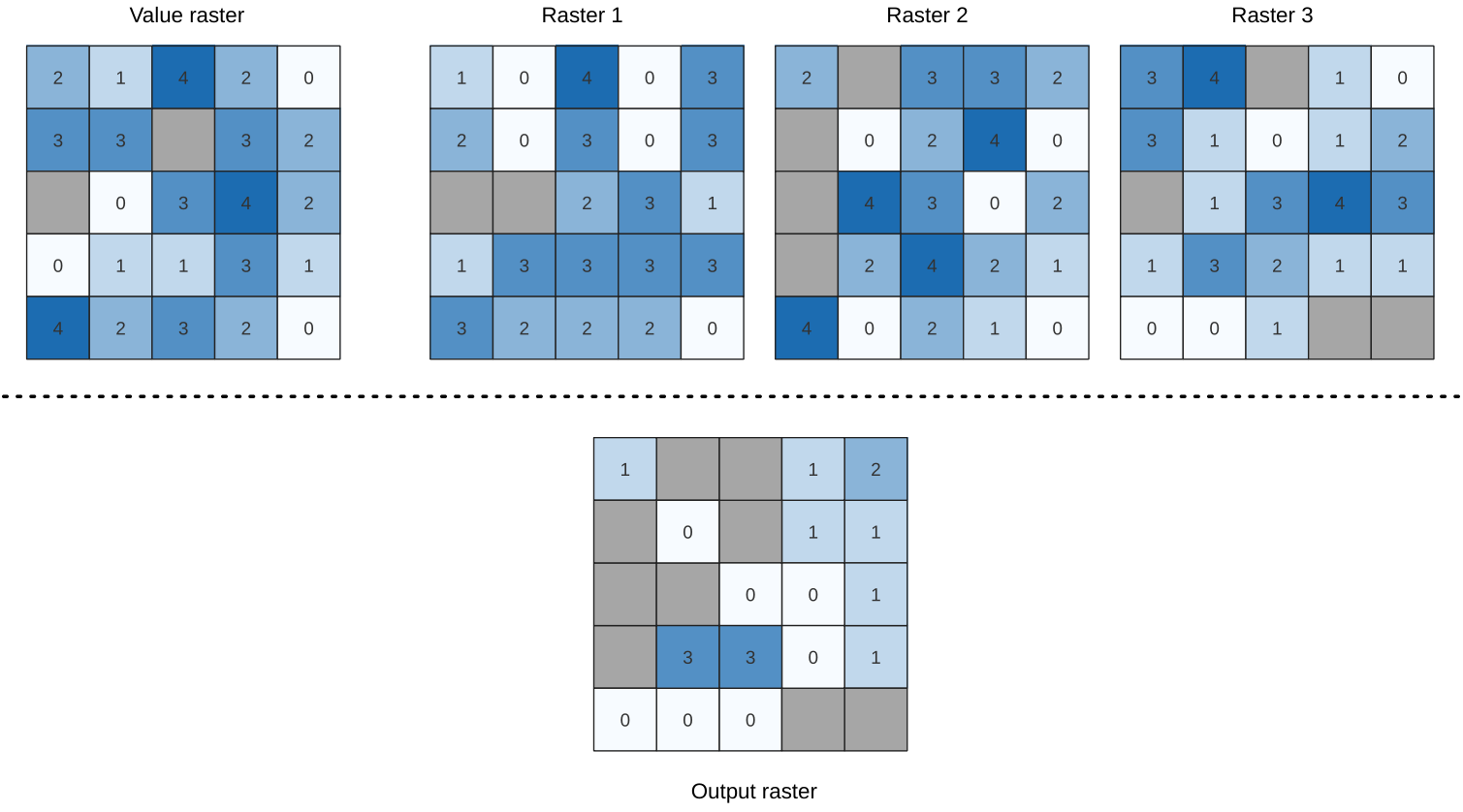

Rys. 24.25 For each cell in the output raster, the value represents the number of times that the corresponding cells in the list of rasters are greater than the value raster. NoData cells (grey) are taken into account.

Zobacz także

Equal to frequency, Less than frequency

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Input value raster	INPUT_VALUE_RASTER	[raster]	The input value layer serves as reference layer for the sample layers
Value raster band	INPUT_VALUE_RASTER_BAND	[raster band] Default: The first band of the raster layer	Select the band you want to use as sample
Input raster layers	INPUT_RASTERS	[raster] [lista]	Raster layers to evaluate. If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters
Ignore NoData values	IGNORE_NODATA	[wartość logiczna] Domyślnie: False	If unchecked, any NoData cells in the value raster or the data layer stack will result in a NoData cell in the output raster
Warstwa wynikowa	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value Opcjonalne	OUTPUT_NO_DATA_VALUE	[numeric: double] Domyślnie: -9999.0	Value to use for NoData in the output layer
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Warstwa wynikowa	OUTPUT	[raster]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[ciąg tekstowy]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Count of cells with equal value occurrences	FOUND_LOCATIONS_COUNT	[numeric: integer]
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer
Mean frequency at valid cell locations	MEAN_FREQUENCY_PER_LOCATION	[numeric: double]
Count of value occurrences	OCCURRENCE_COUNT	[numeric: integer]
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer

Kod pythona

ID algorytmu: native:greaterthanfrequency

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.13. Highest position in raster stack

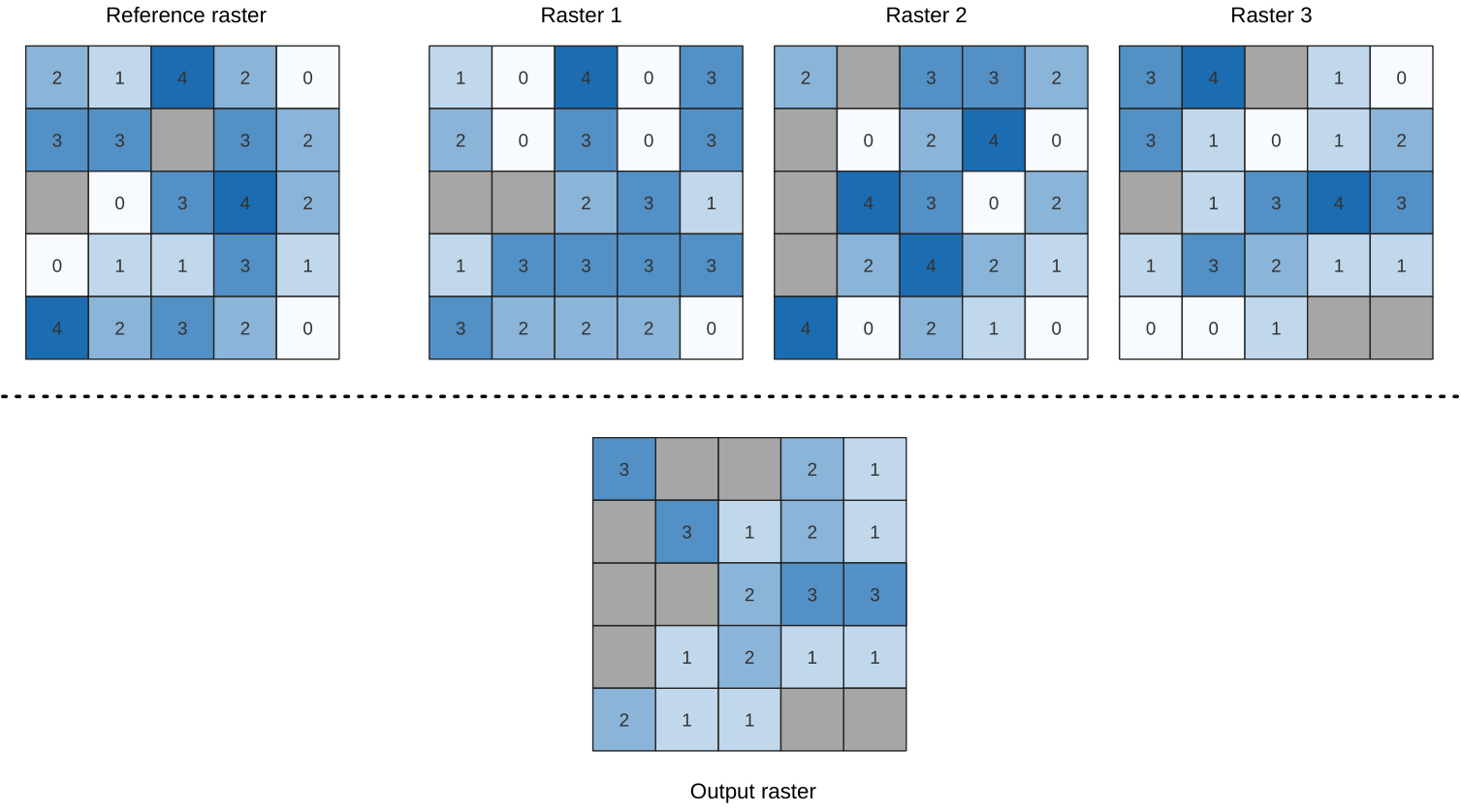

Evaluates on a cell-by-cell basis the position of the raster with the highest value in a stack of rasters. Position counts start with 1 and range to the total number of input rasters. The order of the input rasters is relevant for the algorithm. If multiple rasters feature the highest value, the first raster will be used for the position value.

If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters - use GDAL to use other bands in the analysis. Any NoData cells in the raster layer stack will result in a NoData cell in the output raster unless the „ignore NoData” parameter is checked. The output NoData value can be set manually. The output rasters extent and resolution is defined by a reference raster layer and is always of Int32 type.

Zobacz także

Lowest position in raster stack

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Input raster layers	INPUT_RASTERS	[raster] [lista]	List of raster layers to compare with
Warstwa referencyjna	REFERENCE_LAYER	[raster]	The reference layer for the output layer creation (extent, CRS, pixel dimensions)
Ignore NoData values	IGNORE_NODATA	[wartość logiczna] Domyślnie: False	If unchecked, any NoData cells in the data layer stack will result in a NoData cell in the output raster
Warstwa wynikowa	OUTPUT	[raster] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster containing the result. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value	OUTPUT_NODATA_VALUE	[numeric: double] Domyślnie: -9999.0	Value to use for NoData in the output layer
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Warstwa wynikowa	OUTPUT	[raster]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[ciąg tekstowy]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer

Kod pythona

ID algorytmu: native:highestpositioninrasterstack

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.14. Less than frequency

Evaluates on a cell-by-cell basis the frequency (number of times) the values of an input stack of rasters are less than the value of a value raster. The output raster extent and resolution is defined by the input raster layer and is always of Int32 type.

If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters - use GDAL to use other bands in the analysis. The output NoData value can be set manually.

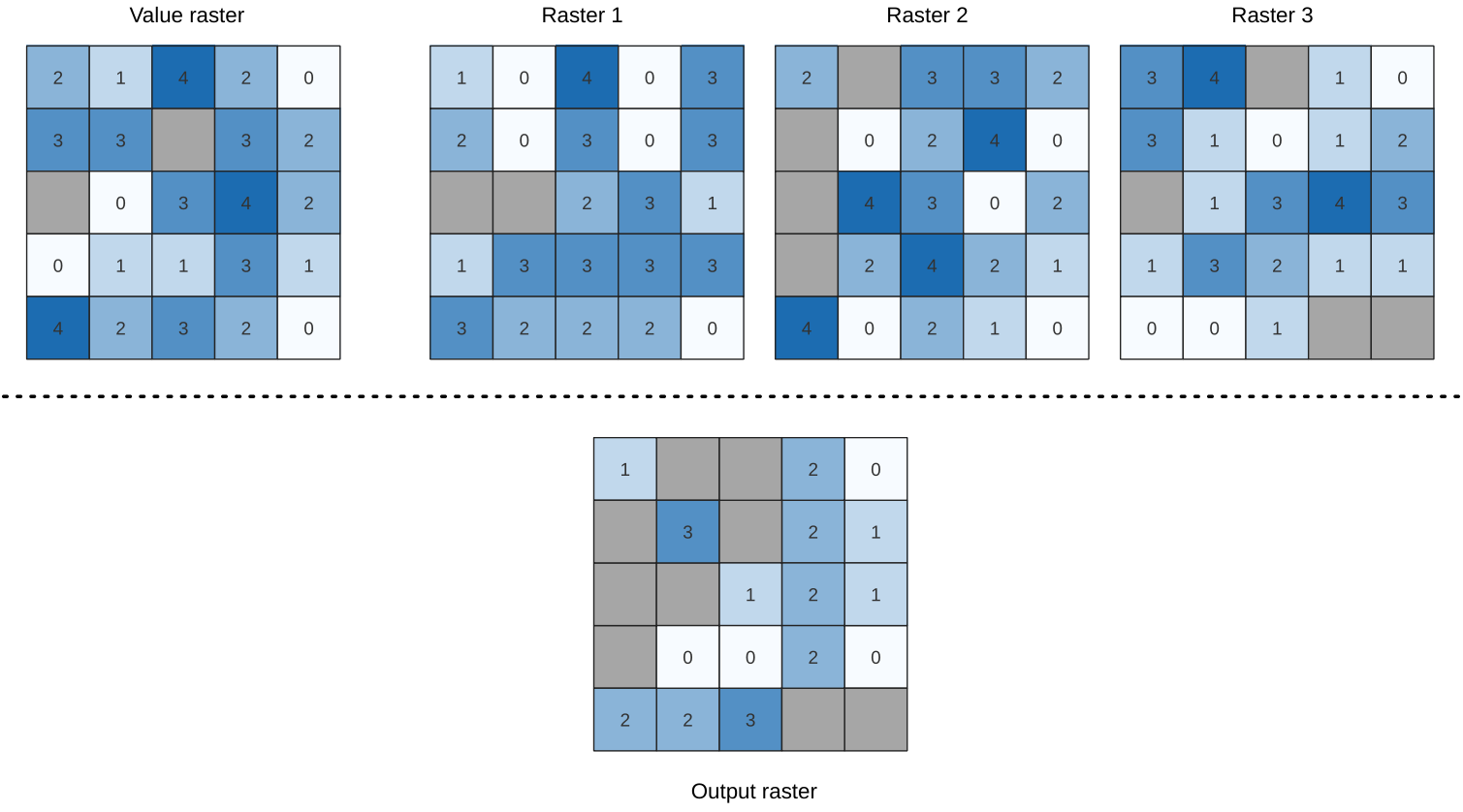

Rys. 24.26 For each cell in the output raster, the value represents the number of times that the corresponding cells in the list of rasters are less than the value raster. NoData cells (grey) are taken into account.

Zobacz także

Equal to frequency, Greater than frequency

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Input value raster	INPUT_VALUE_RASTER	[raster]	The input value layer serves as reference layer for the sample layers
Value raster band	INPUT_VALUE_RASTER_BAND	[raster band] Default: The first band of the raster layer	Select the band you want to use as sample
Input raster layers	INPUT_RASTERS	[raster] [lista]	Raster layers to evaluate. If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters
Ignore NoData values	IGNORE_NODATA	[wartość logiczna] Domyślnie: False	If unchecked, any NoData cells in the value raster or the data layer stack will result in a NoData cell in the output raster
Warstwa wynikowa	OUTPUT	[same as input] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value Opcjonalne	OUTPUT_NO_DATA_VALUE	[numeric: double] Domyślnie: -9999.0	Value to use for NoData in the output layer
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Warstwa wynikowa	OUTPUT	[raster]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[ciąg tekstowy]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Count of cells with equal value occurrences	FOUND_LOCATIONS_COUNT	[numeric: integer]
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer
Mean frequency at valid cell locations	MEAN_FREQUENCY_PER_LOCATION	[numeric: double]
Count of value occurrences	OCCURRENCE_COUNT	[numeric: integer]
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer

Kod pythona

ID algorytmu: native:lessthanfrequency

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

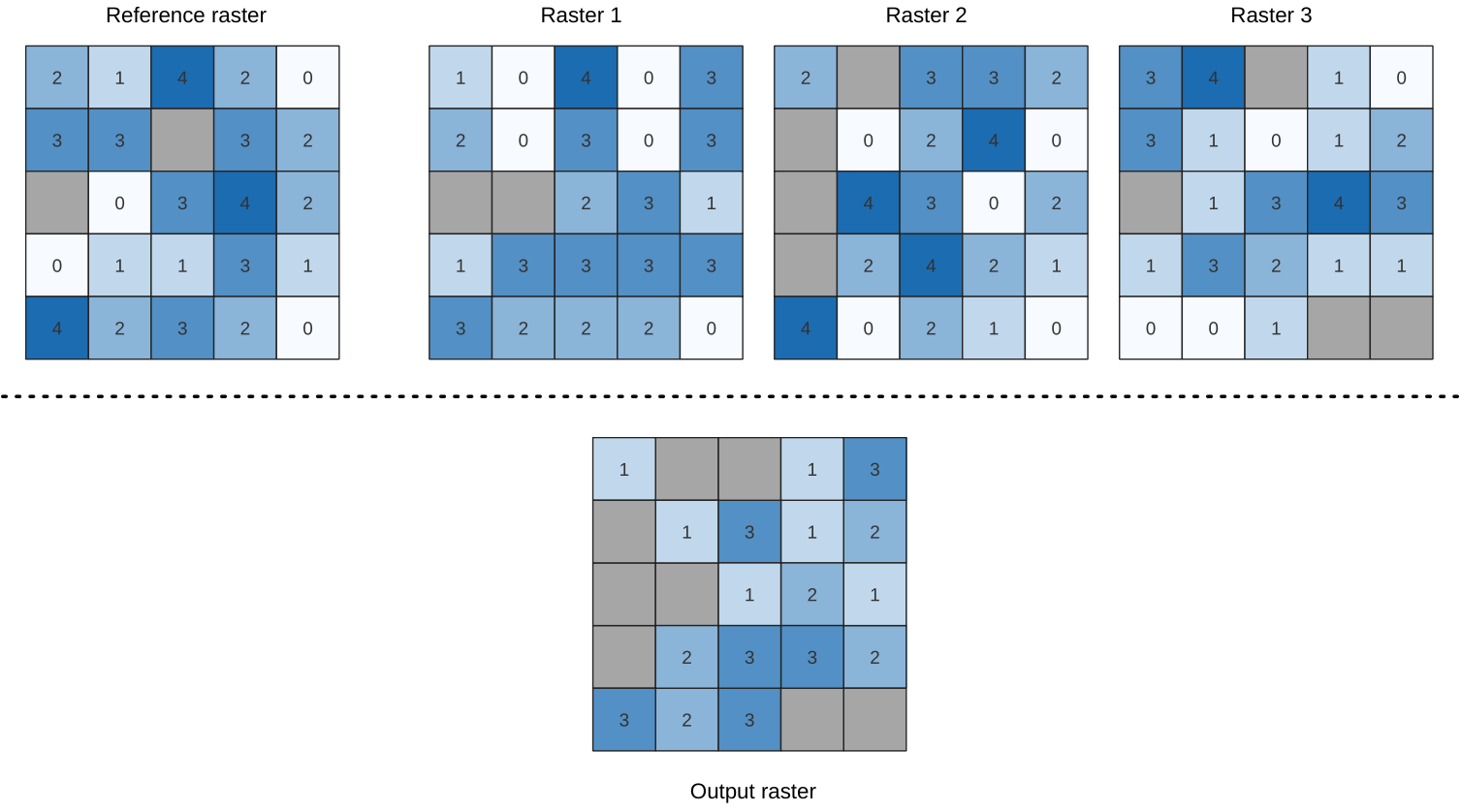

24.1.15.15. Lowest position in raster stack

Evaluates on a cell-by-cell basis the position of the raster with the lowest value in a stack of rasters. Position counts start with 1 and range to the total number of input rasters. The order of the input rasters is relevant for the algorithm. If multiple rasters feature the lowest value, the first raster will be used for the position value.

If multiband rasters are used in the data raster stack, the algorithm will always perform the analysis on the first band of the rasters - use GDAL to use other bands in the analysis. Any NoData cells in the raster layer stack will result in a NoData cell in the output raster unless the „ignore NoData” parameter is checked. The output NoData value can be set manually. The output rasters extent and resolution is defined by a reference raster layer and is always of Int32 type.

Zobacz także

Highest position in raster stack

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Input raster layers	INPUT_RASTERS	[raster] [lista]	List of raster layers to compare with
Warstwa referencyjna	REFERENCE_LAYER	[raster]	The reference layer for the output layer creation (extent, CRS, pixel dimensions)
Ignore NoData values	IGNORE_NODATA	[wartość logiczna] Domyślnie: False	If unchecked, any NoData cells in the data layer stack will result in a NoData cell in the output raster
Warstwa wynikowa	OUTPUT	[raster] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster containing the result. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value	OUTPUT_NODATA_VALUE	[numeric: double] Domyślnie: -9999.0	Value to use for NoData in the output layer
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Warstwa wynikowa	OUTPUT	[raster]	Output raster layer containing the result
CRS authority identifier	CRS_AUTHID	[ciąg tekstowy]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer

Kod pythona

ID algorytmu: native:lowestpositioninrasterstack

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.16. Raster boolean AND

Calculates the boolean AND for a set of input rasters. If all of the input rasters have a non-zero value for a pixel, that pixel will be set to 1 in the output raster. If any of the input rasters have 0 values for the pixel it will be set to 0 in the output raster.

The reference layer parameter specifies an existing raster layer to use as a reference when creating the output raster. The output raster will have the same extent, CRS, and pixel dimensions as this layer.

By default, a NoData pixel in ANY of the input layers will result in a NoData pixel in the output raster. If the Treat NoData values as false option is checked, then NoData inputs will be treated the same as a 0 input value.

Zobacz także

Raster boolean OR

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Warstwy wejściowe	INPUT	[raster] [lista]	List of input raster layers
Warstwa referencyjna	REF_LAYER	[raster]	The reference layer to create the output layer from (extent, CRS, pixel dimensions)
Treat NoData values as false	NODATA_AS_FALSE	[wartość logiczna] Domyślnie: False	Treat NoData values in the input files as 0 when performing the operation
Warstwa wynikowa	OUTPUT	[raster] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster containing the result. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value	NO_DATA	[numeric: double] Domyślnie: -9999.0	Value to use for NoData in the output layer
Output data type	DATA_TYPE	[wyliczenie] Domyślnie: 5	Output raster data type. Options: 0 — Byte (Eight bit unsigned integer (quint8)) 1 — Int16 (Sixteen bit signed integer (qint16)) 2 — UInt16 (Sixteen bit unsigned integer (quint16)) 3 — Int32 (Thirty two bit signed integer (qint32)) 4 — UInt32 (Thirty two bit unsigned integer (quint32)) 5 — Float32 (Thirty two bit floating point (float)) 6 — Float64 (Sixty four bit floating point (double)) 7 — CInt16 (Complex Int16) 8 — CInt32 (Complex Int32) 9 — CFloat32 (Complex Float32) 10 — CFloat64 (Complex Float64) 11 — Int8 (Eight bit signed integer (qint8)) Available options depend on the GDAL version built with QGIS (see Help ► About menu)
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
CRS authority identifier	CRS_AUTHID	[układ współrzędnych]	The coordinate reference system of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer
NoData pixel count	NODATA_PIXEL_COUNT	[numeric: integer]	The count of NoData pixels in the output raster layer
True pixel count	TRUE_PIXEL_COUNT	[numeric: integer]	The count of True pixels (value = 1) in the output raster layer
False pixel count	FALSE_PIXEL_COUNT	[numeric: integer]	The count of False pixels (value = 0) in the output raster layer
Warstwa wynikowa	OUTPUT	[raster]	Output raster layer containing the result

Kod pythona

ID algorytmu: native:rasterbooleanand

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.17. Raster boolean OR

Calculates the boolean OR for a set of input rasters. If all of the input rasters have a zero value for a pixel, that pixel will be set to 0 in the output raster. If any of the input rasters have 1 values for the pixel it will be set to 1 in the output raster.

The reference layer parameter specifies an existing raster layer to use as a reference when creating the output raster. The output raster will have the same extent, CRS, and pixel dimensions as this layer.

By default, a NoData pixel in ANY of the input layers will result in a NoData pixel in the output raster. If the Treat NoData values as false option is checked, then NoData inputs will be treated the same as a 0 input value.

Zobacz także

Raster boolean AND

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Warstwy wejściowe	INPUT	[raster] [lista]	List of input raster layers
Warstwa referencyjna	REF_LAYER	[raster]	The reference layer to create the output layer from (extent, CRS, pixel dimensions)
Treat NoData values as false	NODATA_AS_FALSE	[wartość logiczna] Domyślnie: False	Treat NoData values in the input files as 0 when performing the operation
Warstwa wynikowa	OUTPUT	[raster] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster containing the result. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value	NO_DATA	[numeric: double] Domyślnie: -9999.0	Value to use for NoData in the output layer
Output data type	DATA_TYPE	[wyliczenie] Domyślnie: 5	Output raster data type. Options: 0 — Byte (Eight bit unsigned integer (quint8)) 1 — Int16 (Sixteen bit signed integer (qint16)) 2 — UInt16 (Sixteen bit unsigned integer (quint16)) 3 — Int32 (Thirty two bit signed integer (qint32)) 4 — UInt32 (Thirty two bit unsigned integer (quint32)) 5 — Float32 (Thirty two bit floating point (float)) 6 — Float64 (Sixty four bit floating point (double)) 7 — CInt16 (Complex Int16) 8 — CInt32 (Complex Int32) 9 — CFloat32 (Complex Float32) 10 — CFloat64 (Complex Float64) 11 — Int8 (Eight bit signed integer (qint8)) Available options depend on the GDAL version built with QGIS (see Help ► About menu)
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
CRS authority identifier	CRS_AUTHID	[układ współrzędnych]	The coordinate reference system of the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer
NoData pixel count	NODATA_PIXEL_COUNT	[numeric: integer]	The count of NoData pixels in the output raster layer
True pixel count	TRUE_PIXEL_COUNT	[numeric: integer]	The count of True pixels (value = 1) in the output raster layer
False pixel count	FALSE_PIXEL_COUNT	[numeric: integer]	The count of False pixels (value = 0) in the output raster layer
Warstwa wynikowa	OUTPUT	[raster]	Output raster layer containing the result

Kod pythona

ID algorytmu: native:rasterbooleanor

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.18. Raster calculator

Performs algebraic operations using raster layers.

The resulting layer will have its values computed according to an expression. The expression can contain numerical values, operators and references to any of the layers in the current project.

Zobacz także

Raster calculator (virtual), Raster calculator, Raster Calculator

Parametry

Etykieta	Nazwa	Typ	Opis
Warstwy wejściowe	INPUT	[raster] [lista]	List of input raster layers
Wyrażenie	EXPRESSION	[wyrażenie]	Raster-based expression that will be used to calculate the output raster layer.
Output extent Opcjonalne	EXTENT	[zasięg]	Specify the spatial extent of the output raster layer. If the extent is not specified, the minimum extent that covers all the selected reference layers will be used. Available methods are: Calculate from layer…: uses extent of a layer loaded in the current project Calculate from layout map…: uses extent of a layout map item in the active project Calculate from bookmark…: uses extent of a saved bookmark Use map canvas extent Draw on canvas: click and drag a rectangle delimiting the area to take into account Enter the coordinates as xmin, xmax, ymin, ymax
Output cell size (leave empty to set automatically) Opcjonalne	CELLSIZE	[numeric: double]	Cell size of the output raster layer. If the cell size is not specified, the minimum cell size of the selected reference layer(s) will be used. The cell size will be the same for the X and Y axes.
Output CRS Opcjonalne	CRS	[układ współrzędnych]	CRS of the output raster layer. If the output CRS is not specified, the CRS of the first reference layer will be used.
Obliczone	OUTPUT	[raster] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Wyniki

Etykieta	Nazwa	Typ	Opis
Obliczone	OUTPUT	[raster]	Output raster file with the calculated values.

Kod pythona

ID algorytmu: native:rastercalc

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.19. Raster calculator (virtual)

Performs algebraic operations using raster layers and generates in-memory result.

The resulting layer will have its values computed according to an expression. The expression can contain numerical values, operators and references to any of the layers in the current project.

A virtual raster layer is a raster layer defined by its URI and whose pixels are calculated on-the-fly. It’s not a new file on disk; the virtual layer is still connected to the rasters used in the calculation meaning that deleting or moving these rasters would break it. A Layer name can be provided, otherwise the calculation expression is used as such. Removing the virtual layer from the project deletes it, and it can be made persistent in file using the layer Export ► Save as… contextual menu.

Zobacz także

Raster calculator, Raster calculator, Raster Calculator

Parametry

Etykieta	Nazwa	Typ	Opis
Warstwy wejściowe	INPUT	[raster] [lista]	List of input raster layers
Wyrażenie	EXPRESSION	[wyrażenie]	Raster-based expression that will be used to calculate the output raster layer.
Output extent Opcjonalne	EXTENT	[zasięg]	Specify the spatial extent of the output raster layer. If the extent is not specified, the minimum extent that covers all the selected reference layers will be used. Available methods are: Calculate from layer…: uses extent of a layer loaded in the current project Calculate from layout map…: uses extent of a layout map item in the active project Calculate from bookmark…: uses extent of a saved bookmark Use map canvas extent Draw on canvas: click and drag a rectangle delimiting the area to take into account Enter the coordinates as xmin, xmax, ymin, ymax
Output cell size (leave empty to set automatically) Opcjonalne	CELLSIZE	[numeric: double]	Cell size of the output raster layer. If the cell size is not specified, the minimum cell size of the selected reference layer(s) will be used. The cell size will be the same for the X and Y axes.
Output CRS Opcjonalne	CRS	[układ współrzędnych]	CRS of the output raster layer. If the output CRS is not specified, the CRS of the first reference layer will be used.
Output layer name Opcjonalne	LAYER_NAME	[ciąg tekstowy]	The name to assign to the generated layer. If not set, the text of the calculation expression is used.

Wyniki

Etykieta	Nazwa	Typ	Opis
Obliczone	OUTPUT	[raster]	Output virtual raster layer with the calculated values.

Kod pythona

ID algorytmu: native:virtualrastercalc

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.20. Raster layer properties

Returns basic properties of the given raster layer, including the extent, size in pixels and dimensions of pixels (in map units), number of bands, and NoData value.

This algorithm is intended for use as a means of extracting these useful properties to use as the input values to other algorithms in a model - e.g. to allow to pass an existing raster’s pixel sizes over to a GDAL raster algorithm.

Parametry

Etykieta	Nazwa	Typ	Opis
Warstwa wejściowa	INPUT	[raster]	Input raster layer
Band number Opcjonalne	BAND	[raster band] Domyślnie: Nie ustawiono	Whether to also return properties of a specific band. If a band is specified, the noData value for the selected band is also returned.

Wyniki

Etykieta	Nazwa	Typ	Opis
Number of bands in raster	BAND_COUNT	[numeric: integer]	The number of bands in the raster
CRS authority identifier	CRS_AUTHID	[ciąg tekstowy]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The raster layer extent in the CRS
Band has a NoData value set	HAS_NODATA_VALUE	[wartość logiczna]	Indicates whether the raster layer has a value set for NoData pixels in the selected band
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of columns in the raster layer
Band NoData value	NODATA_VALUE	[numeric: double]	The value (if set) of the NoData pixels in the selected band
Pixel size (height) in map units	PIXEL_HEIGHT	[numeric: integer]	Vertical size in map units of the pixel
Pixel size (width) in map units	PIXEL_WIDTH	[numeric: integer]	Horizontal size in map units of the pixel
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of rows in the raster layer
Maximum x-coordinate	X_MAX	[numeric: double]
Minimum x-coordinate	X_MIN	[numeric: double]
Maximum y-coordinate	Y_MAX	[numeric: double]
Minimum y-coordinate	Y_MIN	[numeric: double]

Kod pythona

ID algorytmu: native:rasterlayerproperties

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.21. Raster layer statistics

Calculates basic statistics from the values in a given band of the raster layer. The output is loaded in the Processing ► Results viewer menu.

Parametry

Etykieta	Nazwa	Typ	Opis
Warstwa wejściowa	INPUT	[raster]	Input raster layer
Band number	BAND	[raster band] Default: The first band of the input layer	If the raster is multiband, choose the band you want to get statistics for.
Statystyki	OUTPUT_HTML_FILE	[html] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output file: Pomiń wyjście Zapisz do pliku tymczasowego Zapisz do pliku…

Wyniki

Etykieta	Nazwa	Typ	Opis
Maximum value	MAX	[numeric: double]
Mean value	MEAN	[numeric: double]
Minimum value	MIN	[numeric: double]
Statystyki	OUTPUT_HTML_FILE	[html]	The output file contains the following information: Analyzed file: path of the raster layer Minimum value: minimum value of the raster Maximum value: maximum value of the raster Range: difference between the maximum and minimum values Sum: total sum of the values Mean value: mean of the values Standard deviation: standard deviation of the values Sum of the squares: sum of the squared differences of each observation from the overall mean
Zakres	RANGE	[numeric: double]
Standard deviation	STD_DEV	[numeric: double]
Suma	SUM	[numeric: double]
Sum of the squares	SUM_OF_SQUARES	[numeric: double]

Kod pythona

ID algorytmu: native:rasterlayerstatistics

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.22. Raster layer unique values report

Returns the count and area of each unique value in a given raster layer. The calculation of the area is done in the area unit of the layer’s CRS.

Parametry

Etykieta	Nazwa	Typ	Opis
Warstwa wejściowa	INPUT	[raster]	Input raster layer
Band number	BAND	[raster band] Default: The first band of the input layer	If the raster is multiband, choose the band you want to get statistics for.
Unique values report	OUTPUT_HTML_FILE	[plik] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output file: Pomiń wyjście Zapisz do pliku tymczasowego Zapisz do pliku…
Unique values table	OUTPUT_TABLE	[vector: table] Default: [Skip output]	Specification of the table for unique values: Pomiń wyjście Create Temporary Layer (TEMPORARY_OUTPUT) Zapisz do pliku… Zapisz do GeoPackage… Zapisz do tabeli bazy danych… The file encoding can also be changed here.

Wyniki

Etykieta	Nazwa	Typ	Opis
CRS authority identifier	CRS_AUTHID	[ciąg tekstowy]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
NoData pixel count	NODATA_PIXEL_COUNT	[numeric: integer]	The number of NoData pixels in the output raster layer
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer
Unique values report	OUTPUT_HTML_FILE	[html]	The output HTML file contains the following information: Analyzed file: the path of the raster layer Extent: xmin, ymin, xmax, ymax coordinates of the extent Projection: projection of the layer Width in pixels: number of columns and pixel width size Height in pixels: number of rows and pixel width size Total pixel count: count of all the pixels NoData pixel count: count of pixels with NoData value
Unique values table	OUTPUT_TABLE	[vector: table]	A table with three columns: value: pixel value count: count of pixels with this value m2 or deg2 or ft2 or … : total area of pixels with this value. The column name depends on the area unit of the layer’s CRS and the calculation is done in that unit.
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer

Kod pythona

ID algorytmu: native:rasterlayeruniquevaluesreport

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.23. Raster layer zonal statistics

Calculates statistics for a raster layer’s values, categorized by zones defined in another raster layer.

Zobacz także

Zonal statistics

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Warstwa wejściowa	INPUT	[raster]	Input raster layer
Band number	BAND	[raster band] Default: The first band of the raster layer	If the raster is multiband choose the band for which you want to calculate the statistics.
Zones layer	ZONES	[raster]	Raster layer defining zones. Zones are given by contiguous pixels having the same pixel value.
Zones band number	ZONES_BAND	[raster band] Default: The first band of the raster layer	If the raster is multiband, choose the band that defines the zones
Statystyki	OUTPUT_TABLE	[vector: table] Default: [Create temporary layer]	Specification of the output report. One of: Create Temporary Layer (TEMPORARY_OUTPUT) Zapisz do pliku… Zapisz do GeoPackage… Zapisz do tabeli bazy danych… The file encoding can also be changed here.

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Warstwa referencyjna Opcjonalne	REF_LAYER	[wyliczenie] Domyślnie: 0	Raster layer used to calculate the centroids that will be used as reference when determining the zones in the output layer. One of: 0 — Input layer: zones are determined by sampling the zone raster layer value at the centroid of each pixel from the source raster layer 1 — Zones layer: the input raster layer will be sampled at the centroid of each pixel from the zones raster layer

Wyniki

Etykieta	Nazwa	Typ	Opis
CRS authority identifier	CRS_AUTHID	[ciąg tekstowy]	The coordinate reference system of the output raster layer
Zasięg	EXTENT	[ciąg tekstowy]	The spatial extent of the output raster layer
Height in pixels	HEIGHT_IN_PIXELS	[numeric: integer]	The number of rows in the output raster layer
NoData pixel count	NODATA_PIXEL_COUNT	[numeric: integer]	The number of NoData pixels in the output raster layer
Statystyki	OUTPUT_TABLE	[vector: table]	The output layer contains the following information for each zone: Area: the area in square raster units in the zone; Sum: the total sum of the pixel values in the zone; Count: the number of pixels in the zone; Min: the minimum pixel value in the zone; Max: the maximum pixel value in the zone; Mean: the mean of the pixel values in the zone;
Total pixel count	TOTAL_PIXEL_COUNT	[numeric: integer]	The count of pixels in the output raster layer
Width in pixels	WIDTH_IN_PIXELS	[numeric: integer]	The number of columns in the output raster layer

Kod pythona

ID algorytmu: native:rasterlayerzonalstats

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.24. Raster surface volume

Calculates the volume under a raster surface relative to a given base level. This is mainly useful for Digital Elevation Models (DEM).

Parametry

Etykieta	Nazwa	Typ	Opis
Warstwa wejściowa	INPUT	[raster]	Input raster, representing a surface
Band number	BAND	[raster band] Default: The first band of the raster layer	If the raster is multiband, choose the band that shall define the surface.
Base level	LEVEL	[numeric: double] Domyślnie: 0.0	Define a base or reference value. This base is used in the volume calculation according to the Method parameter (see below).
Metoda	METHOD	[wyliczenie] Domyślnie: 0	Define the method for the volume calculation given by the difference between the raster pixel value and the Base level. Options: 0 — Count Only Above Base Level: only pixels above the base level will add to the volume. 1 — Count Only Below Base Level: only pixels below the base level will add to the volume. 2 — Subtract Volumes Below Base level: pixels above the base level will add to the volume, pixels below the base level will subtract from the volume. 3 — Add Volumes Below Base level: Add the volume regardless whether the pixel is above or below the base level. This is equivalent to sum the absolute values of the difference between the pixel value and the base level.
Surface volume report	OUTPUT_HTML_FILE	[html] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output HTML report. One of: Pomiń wyjście Create Temporary Layer (TEMPORARY_OUTPUT) Zapisz do pliku… Zapisz do GeoPackage… Zapisz do tabeli bazy danych… The file encoding can also be changed here.
Surface volume table	OUTPUT_TABLE	[vector: table] Default: [Skip output]	Specification of the output table. One of: Pomiń wyjście Create Temporary Layer (TEMPORARY_OUTPUT) Zapisz do pliku… Zapisz do GeoPackage… Zapisz do tabeli bazy danych… The file encoding can also be changed here.

Wyniki

Etykieta	Nazwa	Typ	Opis
Volume	VOLUME	[numeric: double]	The calculated volume
Obszar	AREA	[numeric: double]	The area in square map units
Pixel_count	PIXEL_COUNT	[numeric: integer]	The total number of pixels that have been analyzed
Surface volume report	OUTPUT_HTML_FILE	[html]	The output report (containing volume, area and pixel count) in HTML format
Surface volume table	OUTPUT_TABLE	[vector: table]	The output table (containing volume, area and pixel count)

Kod pythona

ID algorytmu: native:rastersurfacevolume

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.25. Reclassify by layer

Reclassifies a raster band by assigning new class values based on the ranges specified in a vector table.

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Raster layer	INPUT_RASTER	[raster]	Raster layer to reclassify
Band number	RASTER_BAND	[raster band] Default: The first band of the raster layer	If the raster is multiband, choose the band you want to reclassify.
Layer containing class breaks	INPUT_TABLE	[vector: any]	Vector layer containing the values to use for classification.
Minimum class value field	MIN_FIELD	[tablefield: numeric]	Field with the minimum value of the range for the class. Use -inf to capture the lowest possible value.
Maximum class value field	MAX_FIELD	[tablefield: numeric]	Field with the maximum value of the range for the class. Use inf to capture the highest possible value.
Output value field	VALUE_FIELD	[tablefield: numeric]	Field with the value that will be assigned to the pixels that fall in the class (between the corresponding min and max values). Use nan to set the value of the range to NoData.
Reclassified raster	OUTPUT	[raster] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value	NO_DATA	[numeric: double] Domyślnie: -9999.0	Value to apply to NoData values.
Range boundaries	RANGE_BOUNDARIES	[wyliczenie] Domyślnie: 0	Defines comparison rules for the classification. Options: 0 — min < value <= max 1 — min <= value < max 2 — min <= value <= max 3 — min < value < max
Use NoData when no range matches value	NODATA_FOR_MISSING	[wartość logiczna] Domyślnie: False	Applies the NoData value to band values that do not fall in any class. If False, the original value is kept.
Output data type	DATA_TYPE	[wyliczenie] Domyślnie: 5	Defines the format of the output raster file. Options: 0 — Byte (Eight bit unsigned integer (quint8)) 1 — Int16 (Sixteen bit signed integer (qint16)) 2 — UInt16 (Sixteen bit unsigned integer (quint16)) 3 — Int32 (Thirty two bit signed integer (qint32)) 4 — UInt32 (Thirty two bit unsigned integer (quint32)) 5 — Float32 (Thirty two bit floating point (float)) 6 — Float64 (Sixty four bit floating point (double)) 7 — CInt16 (Complex Int16) 8 — CInt32 (Complex Int32) 9 — CFloat32 (Complex Float32) 10 — CFloat64 (Complex Float64) 11 — Int8 (Eight bit signed integer (qint8)) Available options depend on the GDAL version built with QGIS (see Help ► About menu)
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Reclassified raster	OUTPUT	[raster]	Output raster layer with reclassified band values

Kod pythona

ID algorytmu: native:reclassifybylayer

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.26. Reclassify by table

Reclassifies a raster band by assigning new class values based on the ranges specified in a fixed table.

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Raster layer	INPUT_RASTER	[raster]	Raster layer to reclassify
Band number	RASTER_BAND	[raster band] Domyślnie: 1	Raster band for which you want to recalculate values.
Reclassification table	TABLE	[vector: table]	A 3-columns table to fill with the values to set the boundaries of each class (Minimum and Maximum) and the new Value to assign to the band values that fall in the class. The value -inf can be used as minimum, inf as maximum, and nan can be used to set the output value to NoData.
Reclassified raster	OUTPUT	[raster] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster layer. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Output NoData value	NO_DATA	[numeric: double] Domyślnie: -9999.0	Value to apply to NoData values.
Range boundaries	RANGE_BOUNDARIES	[wyliczenie] Domyślnie: 0	Defines comparison rules for the classification. Options: 0 — min < value <= max 1 — min <= value < max 2 — min <= value <= max 3 — min < value < max
Use NoData when no range matches value	NODATA_FOR_MISSING	[wartość logiczna] Domyślnie: False	Applies the NoData value to band values that do not fall in any class. If False, the original value is kept.
Output data type	DATA_TYPE	[wyliczenie] Domyślnie: 5	Defines the format of the output raster file. Options: 0 — Byte (Eight bit unsigned integer (quint8)) 1 — Int16 (Sixteen bit signed integer (qint16)) 2 — UInt16 (Sixteen bit unsigned integer (quint16)) 3 — Int32 (Thirty two bit signed integer (qint32)) 4 — UInt32 (Thirty two bit unsigned integer (quint32)) 5 — Float32 (Thirty two bit floating point (float)) 6 — Float64 (Sixty four bit floating point (double)) 7 — CInt16 (Complex Int16) 8 — CInt32 (Complex Int32) 9 — CFloat32 (Complex Float32) 10 — CFloat64 (Complex Float64) 11 — Int8 (Eight bit signed integer (qint8)) Available options depend on the GDAL version built with QGIS (see Help ► About menu)
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Reclassified raster	OUTPUT	[raster]	Output raster layer with reclassified band values

Kod pythona

ID algorytmu: native:reclassifybytable

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.27. Rescale raster

Rescales raster layer to a new value range, while preserving the shape (distribution) of the raster’s histogram (pixel values). Input values are mapped using a linear interpolation from the source raster’s minimum and maximum pixel values to the destination minimum and miximum pixel range.

By default the algorithm preserves the original NoData value, but there is an option to override it.

Rys. 24.27 Rescaling values of a raster layer from [0 - 50] to [100 - 1000]

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Input Raster	INPUT	[raster]	Raster layer to use for rescaling
Band number	BAND	[raster band] Default: The first band of the input layer	If the raster is multiband, choose a band.
New minimum value	MINIMUM	[numeric: double] Default value: 0.0	Minimum pixel value to use in the rescaled layer
New maximum value	MAXIMUM	[numeric: double] Default value: 255.0	Maximum pixel value to use in the rescaled layer
New NoData value Opcjonalne	NODATA	[numeric: double] Default value: Not set	Value to assign to the NoData pixels. If unset, original NoData values are preserved.
Rescaled	OUTPUT	[raster] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output raster layer. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Rescaled	OUTPUT	[raster]	Output raster layer with rescaled band values

Kod pythona

ID algorytmu: native:rescaleraster

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.28. Round raster

Rounds the cell values of a raster dataset according to the specified number of decimals.

Alternatively, a negative number of decimal places may be used to round values to powers of a base n. For example, with a Base value n of 10 and Decimal places of -1, the algorithm rounds cell values to multiples of 10, -2 rounds to multiples of 100, and so on. Arbitrary base values may be chosen, the algorithm applies the same multiplicative principle. Rounding cell values to multiples of a base n may be used to generalize raster layers.

The algorithm preserves the data type of the input raster. Therefore byte/integer rasters can only be rounded to multiples of a base n, otherwise a warning is raised and the raster gets copied as byte/integer raster.

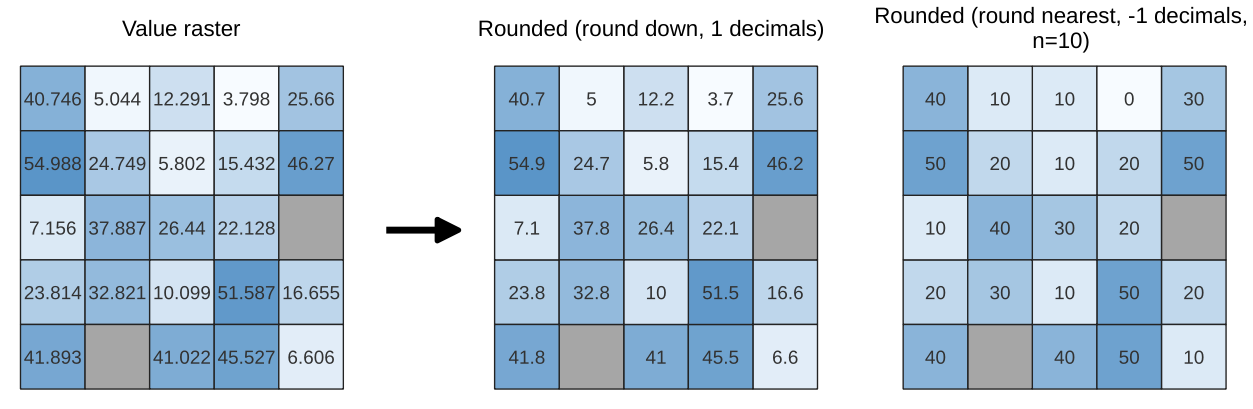

Rys. 24.28 Rounding values of a raster

Parametry

Parametry podstawowe

Etykieta	Nazwa	Typ	Opis
Raster wejściowy	INPUT	[raster]	The raster to process.
Band number	BAND	[raster band] Domyślnie: 1	The band of the raster
Rounding direction	ROUNDING_DIRECTION	[lista] Domyślnie: 1	How to choose the target rounded value. Options are: 0 — Round up 1 — Round to nearest 2 — Round down
Number of decimals places	DECIMAL_PLACES	[numeric: integer] Domyślnie: 2	Number of decimals places to round to. Use negative values to round cell values to a multiple of a base n
Raster wyjściowy	OUTPUT	[raster] Domyślnie: [Zapisz do pliku tymczasowego]	Specification of the output file. One of: Zapisz do pliku tymczasowego Zapisz do pliku…

Parametry zaawansowane

Etykieta	Nazwa	Typ	Opis
Base n for rounding to multiples of n	BASE_N	[numeric: integer] Domyślnie: 10	When the DECIMAL_PLACES parameter is negative, raster values are rounded to multiples of the base n value
Opcje generowania Opcjonalne	CREATE_OPTIONS	[ciąg tekstowy] Domyślnie: «»	For adding one or more creation options that control the raster to be created (colors, block size, file compression…). For convenience, you can rely on predefined profiles (see GDAL driver options section). Batch Process and Model Designer: separate multiple options with a pipe character (|).

Wyniki

Etykieta	Nazwa	Typ	Opis
Raster wyjściowy	OUTPUT	[raster]	The output raster layer with values rounded for the selected band.

Kod pythona

ID algorytmu: native:roundrastervalues

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.29. Sample raster values

Extracts raster values at the point locations. If the raster layer is multiband, each band is sampled.

The attribute table of the resulting layer will have as many new columns as the raster layer band count.

Parametry

Etykieta	Nazwa	Typ	Opis
Warstwa wejściowa	INPUT	[vector: point]	Point vector layer to use for sampling
Raster Layer	RASTERCOPY	[raster]	Raster layer to sample at the given point locations.
Output column prefix	COLUMN_PREFIX	[ciąg tekstowy] Domyślnie: «SAMPLE_»	Prefix for the names of the added columns.
Sampled Opcjonalne	OUTPUT	[vector: point] Default: [Create temporary layer]	Specify the output layer containing the sampled values. One of: Create Temporary Layer (TEMPORARY_OUTPUT) Zapisz do pliku… Zapisz do GeoPackage… Zapisz do tabeli bazy danych… The file encoding can also be changed here.

Wyniki

Etykieta	Nazwa	Typ	Opis
Sampled	OUTPUT	[vector: point]	The output layer containing the sampled values.

Kod pythona

ID algorytmu: native:rastersampling

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.30. Zonal histogram

Appends fields representing counts of each unique value from a raster layer contained within polygon features.

The output layer attribute table will have as many fields as the unique values of the raster layer that intersects the polygon(s).

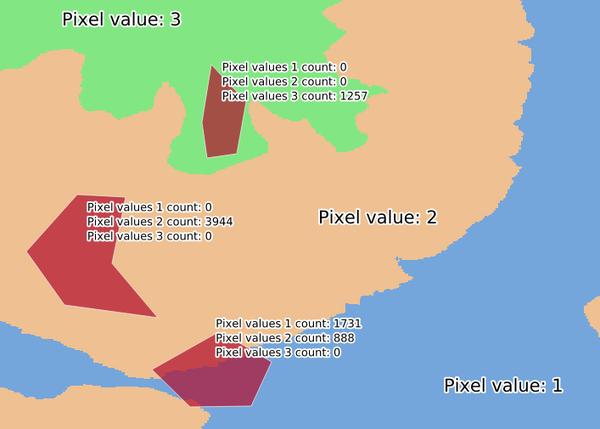

Rys. 24.29 Raster layer histogram example

Parametry

Etykieta	Nazwa	Typ	Opis
Raster layer	INPUT_RASTER	[raster]	Input raster layer.
Band number	RASTER_BAND	[raster band] Default: The first band of the input layer	If the raster is multiband, choose a band.
Vector layer containing zones	INPUT_VECTOR	[vector: polygon]	Vector polygon layer that defines the zones.
Output column prefix	COLUMN_PREFIX Opcjonalne	[ciąg tekstowy] Domyślnie: «HISTO_»	Prefix for the output columns names.
Output zones	OUTPUT	[vector: polygon] Default: [Create temporary layer]	Specify the output vector polygon layer. One of: Create Temporary Layer (TEMPORARY_OUTPUT) Zapisz do pliku… Zapisz do GeoPackage… Zapisz do tabeli bazy danych… The file encoding can also be changed here.

Wyniki

Etykieta	Nazwa	Typ	Opis
Output zones	OUTPUT	[vector: polygon]	The output vector polygon layer.

Kod pythona

ID algorytmu: native:zonalhistogram

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.

24.1.15.31. Zonal statistics

Calculates statistics of a raster layer for each feature of an overlapping polygon vector layer.

Parametry

Etykieta	Nazwa	Typ	Opis
Warstwa wejściowa	INPUT	[vector: polygon]	Vector polygon layer that contains the zones.
Raster layer	INPUT_RASTER	[raster]	Input raster layer.
Raster band	RASTER_BAND	[raster band] Default: The first band of the input layer	If the raster is multiband, choose a band for the statistics.
Output column prefix	COLUMN_PREFIX	[ciąg tekstowy] Domyślnie: «_»	Prefix for the output columns names.
Statistics to calculate	STATISTICS	[enumeration] [list] Domyślnie: [0,1,2]	List of statistical operator for the output. Options: 0 — Count 1 — Sum 2 — Mean 3 — Median 4 — St. dev. 5 — Minimum 6 — Maximum 7 — Range 8 — Minority 9 — Majority 10 — Variety 11 — Variance
Zonal Statistics	OUTPUT	[vector: polygon] Default: [Create temporary layer]	Specify the output vector polygon layer. One of: Create Temporary Layer (TEMPORARY_OUTPUT) Zapisz do pliku… Zapisz do GeoPackage… Zapisz do tabeli bazy danych… Append to Layer… The file encoding can also be changed here.

Wyniki

Etykieta	Nazwa	Typ	Opis
Zonal Statistics	OUTPUT	[vector: polygon]	The zone vector layer with added statistics.

Kod pythona

ID algorytmu: native:zonalstatisticsfb

import processing
processing.run("algorithm_id", {parameter_dictionary})

The algorithm id is displayed when you hover over the algorithm in the Processing Toolbox. The parameter dictionary provides the parameter NAMEs and values. See Using processing algorithms from the console for details on how to run processing algorithms from the Python console.
