9.2. List of functions

The functions, operators and variables available in QGIS are listed below, grouped by categories.

9.2.1. Aggregates Functions

This group contains functions which aggregate values over layers and fields.

Show/hide list of functions

9.2.1.1. aggregate

Returns an aggregate value calculated using features from another layer.

Składnia	aggregate(layer, aggregate, expression, [filter], [concatenator=»»], [order_by]) [] marks optional arguments
Argumenty	layer - a string, representing either a layer name or layer ID aggregate - a string corresponding to the aggregate to calculate. Valid options are: count count_distinct count_missing minimum or min maximum or max sum mean median stdev stdevsample range minority majority q1: first quartile q3: third quartile iqr: inter quartile range min_length: minimum string length max_length: maximum string length concatenate: join strings with a concatenator concatenate_unique: join unique strings with a concatenator collect: create an aggregated multipart geometry array_agg: create an array of aggregated values expression - sub expression or field name to aggregate filter - optional filter expression to limit the features used for calculating the aggregate. Fields and geometry are from the features on the joined layer. The source feature can be accessed with the variable @parent. concatenator - optional string to use to join values for «concatenate» and «concatenate_unique» aggregates order_by - optional filter expression to order the features used for calculating the aggregate. Fields and geometry are from the features on the joined layer. By default, the features will be returned in an unspecified order.
Przykłady	aggregate(layer:='rail_stations',aggregate:='sum',expression:="passengers") → sum of all values from the passengers field in the rail_stations layer aggregate('rail_stations','sum', "passengers"/7) → calculates a daily average of „passengers” by dividing the „passengers” field by 7 before summing the values aggregate(layer:='rail_stations',aggregate:='sum',expression:="passengers",filter:="class">3) → sums up all values from the „passengers” field from features where the „class” attribute is greater than 3 only aggregate(layer:='rail_stations',aggregate:='concatenate', expression:="name", concatenator:=',') → comma separated list of the name field for all features in the rail_stations layer aggregate(layer:='countries', aggregate:='max', expression:="code", filter:=intersects( @geometry, geometry(@parent) ) ) → The country code of an intersecting country on the layer «countries» aggregate(layer:='rail_stations',aggregate:='sum',expression:="passengers",filter:=contains( @atlas_geometry, @geometry ) ) → sum of all values from the passengers field in the rail_stations within the current atlas feature aggregate(layer:='rail_stations', aggregate:='collect', expression:=centroid(@geometry), filter:="region_name" = attribute(@parent,'name') ) → aggregates centroid geometries of the rail_stations of the same region as current feature

9.2.1.2. array_agg

Returns an array of aggregated values from a field or expression.

Składnia	array_agg(expression, [group_by], [filter], [order_by]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate order_by - optional expression to use to order features used to calculate aggregate. By default, the features will be returned in an unspecified order.
Przykłady	array_agg("name",group_by:="state") → list of name values, grouped by state field

9.2.1.3. collect

Returns the multipart geometry of aggregated geometries from an expression

Składnia	collect(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - geometry expression to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	collect( @geometry ) → multipart geometry of aggregated geometries collect( centroid(@geometry), group_by:="region", filter:= "use" = 'civilian' ) → aggregated centroids of the civilian features based on their region value

9.2.1.4. concatenate

Returns all aggregated strings from a field or expression joined by a delimiter.

Składnia	concatenate(expression, [group_by], [filter], [concatenator], [order_by]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate concatenator - optional string to use to join values. Empty by default. order_by - optional expression to use to order features used to calculate aggregate. By default, the features will be returned in an unspecified order.
Przykłady	concatenate("town_name",group_by:="state",concatenator:=',') → comma separated list of town_names, grouped by state field

9.2.1.5. concatenate_unique

Returns all unique strings from a field or expression joined by a delimiter.

Składnia	concatenate_unique(expression, [group_by], [filter], [concatenator], [order_by]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate concatenator - optional string to use to join values. Empty by default. order_by - optional expression to use to order features used to calculate aggregate. By default, the features will be returned in an unspecified order.
Przykłady	concatenate_unique("town_name",group_by:="state",concatenator:=',') → comma separated list of unique town_names, grouped by state field

9.2.1.6. count

Returns the count of matching features.

Składnia	count(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	count("stations",group_by:="state") → count of stations, grouped by state field

9.2.1.7. count_distinct

Returns the count of distinct values.

Składnia	count_distinct(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	count_distinct("stations",group_by:="state") → count of distinct stations values, grouped by state field

9.2.1.8. count_missing

Returns the count of missing (NULL) values.

Składnia	count_missing(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	count_missing("stations",group_by:="state") → count of missing (NULL) station values, grouped by state field

9.2.1.9. iqr

Returns the calculated inter quartile range from a field or expression.

Składnia	iqr(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	iqr("population",group_by:="state") → inter quartile range of population value, grouped by state field

9.2.1.10. majority

Returns the aggregate majority of values (most commonly occurring value) from a field or expression.

Składnia	majority(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	majority("class",group_by:="state") → most commonly occurring class value, grouped by state field

9.2.1.11. max_length

Returns the maximum length of strings from a field or expression.

Składnia	max_length(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	max_length("town_name",group_by:="state") → maximum length of town_name, grouped by state field

9.2.1.12. maximum

Returns the aggregate maximum value from a field or expression.

Składnia	maximum(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	maximum("population",group_by:="state") → maximum population value, grouped by state field

9.2.1.13. mean

Returns the aggregate mean value from a field or expression.

Składnia	mean(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	mean("population",group_by:="state") → mean population value, grouped by state field

9.2.1.14. median

Returns the aggregate median value from a field or expression.

Składnia	median(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	median("population",group_by:="state") → median population value, grouped by state field

9.2.1.15. min_length

Returns the minimum length of strings from a field or expression.

Składnia	min_length(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	min_length("town_name",group_by:="state") → minimum length of town_name, grouped by state field

9.2.1.16. minimum

Returns the aggregate minimum value from a field or expression.

Składnia	minimum(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	minimum("population",group_by:="state") → minimum population value, grouped by state field

9.2.1.17. minority

Returns the aggregate minority of values (least occurring value) from a field or expression.

Składnia	minority(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	minority("class",group_by:="state") → least occurring class value, grouped by state field

9.2.1.18. q1

Returns the calculated first quartile from a field or expression.

Składnia	q1(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	q1("population",group_by:="state") → first quartile of population value, grouped by state field

9.2.1.19. q3

Returns the calculated third quartile from a field or expression.

Składnia	q3(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	q3("population",group_by:="state") → third quartile of population value, grouped by state field

9.2.1.20. range

Returns the aggregate range of values (maximum - minimum) from a field or expression.

Składnia	range(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	range("population",group_by:="state") → range of population values, grouped by state field

9.2.1.21. relation_aggregate

Returns an aggregate value calculated using all matching child features from a layer relation.

Składnia	relation_aggregate(relation, aggregate, expression, [concatenator=»»], [order_by]) [] marks optional arguments
Argumenty	relation - a string, representing a relation ID aggregate - a string corresponding to the aggregate to calculate. Valid options are: count count_distinct count_missing minimum or min maximum or max sum mean median stdev stdevsample range minority majority q1: first quartile q3: third quartile iqr: inter quartile range min_length: minimum string length max_length: maximum string length concatenate: join strings with a concatenator concatenate_unique: join unique strings with a concatenator collect: create an aggregated multipart geometry array_agg: create an array of aggregated values expression - sub expression or field name to aggregate concatenator - optional string to use to join values for «concatenate» aggregate order_by - optional expression to order the features used for calculating the aggregate. Fields and geometry are from the features on the joined layer. By default, the features will be returned in an unspecified order.
Przykłady	relation_aggregate(relation:='my_relation',aggregate:='mean',expression:="passengers") → mean value of all matching child features using the «my_relation» relation relation_aggregate('my_relation','sum', "passengers"/7) → sum of the passengers field divided by 7 for all matching child features using the «my_relation» relation relation_aggregate('my_relation','concatenate', "towns", concatenator:=',') → comma separated list of the towns field for all matching child features using the «my_relation» relation relation_aggregate('my_relation','array_agg', "id") → array of the id field from all matching child features using the «my_relation» relation

Further reading: Setting relations between multiple layers

9.2.1.22. stdev

Returns the aggregate standard deviation value from a field or expression.

Składnia	stdev(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	stdev("population",group_by:="state") → standard deviation of population value, grouped by state field

9.2.1.23. sum

Returns the aggregate summed value from a field or expression.

Składnia	sum(expression, [group_by], [filter]) [] marks optional arguments
Argumenty	expression - sub expression of field to aggregate group_by - optional expression to use to group aggregate calculations filter - optional expression to use to filter features used to calculate aggregate
Przykłady	sum("population",group_by:="state") → summed population value, grouped by state field

9.2.2. Array Functions

This group contains functions to create and manipulate arrays (also known as list data structures). The order of values within the array matters, unlike the «map» data structure, where the order of key-value pairs is irrelevant and values are identified by their keys.

Show/hide list of functions

9.2.2.1. array

Returns an array containing all the values passed as parameter.

Składnia	array(value1, value2, …)
Argumenty	value - a value
Przykłady	array(2,10) → [ 2, 10 ] array(2,10)[0] → 2

9.2.2.2. array_all

Returns TRUE if an array contains all the values of a given array.

Składnia	array_all(array_a, array_b)
Argumenty	array_a - an array array_b - the array of values to search
Przykłady	array_all(array(1,2,3),array(2,3)) → TRUE array_all(array(1,2,3),array(1,2,4)) → FALSE

9.2.2.3. array_append

Returns an array with the given value added at the end.

Składnia	array_append(array, value)
Argumenty	array - an array value - the value to add
Przykłady	array_append(array(1,2,3),4) → [ 1, 2, 3, 4 ]

9.2.2.4. array_cat

Returns an array containing all the given arrays concatenated.

Składnia	array_cat(array1, array2, …)
Argumenty	array - an array
Przykłady	array_cat(array(1,2),array(2,3)) → [ 1, 2, 2, 3 ]

9.2.2.5. array_contains

Returns TRUE if an array contains the given value.

Składnia	array_contains(array, value)
Argumenty	array - an array value - the value to search
Przykłady	array_contains(array(1,2,3),2) → TRUE

9.2.2.6. array_count

Counts the number of occurrences of a given value in an array.

Składnia	array_count(array, value)
Argumenty	array - an array value - the value to count
Przykłady	array_count(array('a', 'b', 'c', 'b'), 'b') → 2

9.2.2.7. array_distinct

Returns an array containing distinct values of the given array.

Składnia	array_distinct(array)
Argumenty	array - an array
Przykłady	array_distinct(array(1,2,3,2,1)) → [ 1, 2, 3 ]

9.2.2.8. array_filter

Returns an array with only the items for which the expression evaluates to true.

Składnia	array_filter(array, expression, [limit=0]) [] marks optional arguments
Argumenty	array - an array expression - an expression to evaluate on each item. The variable @element will be replaced by the current value. limit - maximum number of elements to be returned. Use 0 to return all values.
Przykłady	array_filter(array(1,2,3),@element < 3) → [ 1, 2 ] array_filter(array(1,2,3),@element < 3, 1) → [ 1 ]

9.2.2.9. array_find

Returns the lowest index (0 for the first one) of a value within an array. Returns -1 if the value is not found.

Składnia	array_find(array, value)
Argumenty	array - an array value - the value to search
Przykłady	array_find(array('a', 'b', 'c'), 'b') → 1 array_find(array('a', 'b', 'c', 'b'), 'b') → 1

9.2.2.10. array_first

Returns the first value of an array.

Składnia	array_first(array)
Argumenty	array - an array
Przykłady	array_first(array('a','b','c')) → «a»

9.2.2.11. array_foreach

Returns an array with the given expression evaluated on each item.

Składnia	array_foreach(array, expression)
Argumenty	array - an array expression - an expression to evaluate on each item. The variable @element will be replaced by the current value and the variable @counter by the current index (starting with 0).
Przykłady	array_foreach(array('a','b','c'),upper(@element)) → [ «A», «B», «C» ] array_foreach(array(1,2,3),@element + 10) → [ 11, 12, 13 ] array_foreach(array(1,2,3),@element + @counter) → [ 1, 3, 5 ]

9.2.2.12. array_get

Returns the Nth value (0 for the first one) or the last -Nth value (-1 for the last one) of an array.

Składnia	array_get(array, pos)
Argumenty	array - an array pos - the index to get (0 based)
Przykłady	array_get(array('a','b','c'),1) → «b» array_get(array('a','b','c'),-1) → «c»

Podpowiedź

You can also use the index operator ([]) to get a value from an array.

9.2.2.13. array_insert

Returns an array with the given value added at the given position.

Składnia	array_insert(array, pos, value)
Argumenty	array - an array pos - the position where to add (0 based) value - the value to add
Przykłady	array_insert(array(1,2,3),1,100) → [ 1, 100, 2, 3 ]

9.2.2.14. array_intersect

Returns TRUE if at least one element of array1 exists in array2.

Składnia	array_intersect(array1, array2)
Argumenty	array1 - an array array2 - another array
Przykłady	array_intersect(array(1,2,3,4),array(4,0,2,5)) → TRUE

9.2.2.15. array_last

Returns the last value of an array.

Składnia	array_last(array)
Argumenty	array - an array
Przykłady	array_last(array('a','b','c')) → «c»

9.2.2.16. array_length

Returns the number of elements of an array.

Składnia	array_length(array)
Argumenty	array - an array
Przykłady	array_length(array(1,2,3)) → 3

9.2.2.17. array_majority

Returns the most common values in an array.

Składnia	array_majority(array, [option=»all»]) [] marks optional arguments
Argumenty	array - an array option=»all» - a string specifying the return values handling. Valid options are: all: Default, all most common values are returned in an array. any: Returns one of the most common values. median: Returns the median of the most common values. Non arithmetic values are ignored. real_majority: Returns the value which occurs more than half the size of the array.
Przykłady	array_majority(array(0,1,42,42,43), 'all') → [ 42 ] array_majority(array(0,1,42,42,43,1), 'all') → [ 42, 1 ] array_majority(array(0,1,42,42,43,1), 'any') → 1 or 42 array_majority(array(0,1,1,2,2), 'median') → 1.5 array_majority(array(0,1,42,42,43), 'real_majority') → NULL array_majority(array(0,1,42,42,43,42), 'real_majority') → NULL array_majority(array(0,1,42,42,43,42,42), 'real_majority') → 42

9.2.2.18. array_max

Returns the maximum value of an array.

Składnia	array_max(array)
Argumenty	array - an array
Przykłady	array_max(array(0,42,4,2)) → 42

9.2.2.19. array_mean

Returns the mean of arithmetic values in an array. Non numeric values in the array are ignored.

Składnia	array_mean(array)
Argumenty	array - an array
Przykłady	array_mean(array(0,1,7,66.6,135.4)) → 42 array_mean(array(0,84,'a','b','c')) → 42

9.2.2.20. array_median

Returns the median of arithmetic values in an array. Non arithmetic values in the array are ignored.

Składnia	array_median(array)
Argumenty	array - an array
Przykłady	array_median(array(0,1,42,42,43)) → 42 array_median(array(0,1,2,42,'a','b')) → 1.5

9.2.2.21. array_min

Returns the minimum value of an array.

Składnia	array_min(array)
Argumenty	array - an array
Przykłady	array_min(array(43,42,54)) → 42

9.2.2.22. array_minority

Returns the less common values in an array.

Składnia	array_minority(array, [option=»all»]) [] marks optional arguments
Argumenty	array - an array option=»all» - a string specifying the return values handling. Valid options are: all: Default, all less common values are returned in an array. any: Returns one of the less common values. median: Returns the median of the less common values. Non arithmetic values are ignored. real_minority: Returns values which occur less than half the size of the array.
Przykłady	array_minority(array(0,42,42), 'all') → [ 0 ] array_minority(array(0,1,42,42), 'all') → [ 0, 1 ] array_minority(array(0,1,42,42,43,1), 'any') → 0 or 43 array_minority(array(1,2,3,3), 'median') → 1.5 array_minority(array(0,1,42,42,43), 'real_minority') → [ 42, 43, 0, 1 ] array_minority(array(0,1,42,42,43,42), 'real_minority') → [ 42, 43, 0, 1 ] array_minority(array(0,1,42,42,43,42,42), 'real_minority') → [ 43, 0, 1 ]

9.2.2.23. array_prepend

Returns an array with the given value added at the beginning.

Składnia	array_prepend(array, value)
Argumenty	array - an array value - the value to add
Przykłady	array_prepend(array(1,2,3),0) → [ 0, 1, 2, 3 ]

9.2.2.24. array_prioritize

Returns an array sorted using the ordering specified in another array. Values which are present in the first array but are missing from the second array will be added to the end of the result.

Składnia	array_prioritize(array, array_prioritize)
Argumenty	array - an array array_prioritize - an array with values ordered by priority
Przykłady	array_prioritize(array(1, 8, 2, 5), array(5, 4, 2, 1, 3, 8)) → [ 5, 2, 1, 8 ] array_prioritize(array(5, 4, 2, 1, 3, 8), array(1, 8, 6, 5)) → [ 1, 8, 5, 4, 2, 3 ]

9.2.2.25. array_remove_all

Returns an array with all the entries of the given value removed.

Składnia	array_remove_all(array, value)
Argumenty	array - an array value - the values to remove
Przykłady	array_remove_all(array('a','b','c','b'),'b') → [ «a», «c» ]

9.2.2.26. array_remove_at

Returns an array with the item at the given index removed. Supports positive (0 for the first element) and negative (the last -Nth value, -1 for the last element) index.

Składnia	array_remove_at(array, pos)
Argumenty	array - an array pos - the position to remove (0 based)
Przykłady	array_remove_at(array(1, 2, 3), 1) → [1, 3 ] array_remove_at(array(1, 2, 3), -1) → [1, 2 ]

9.2.2.27. array_replace

Returns an array with the supplied value, array, or map of values replaced.

Value & array variant

Returns an array with the supplied value or array of values replaced by another value or an array of values.

Składnia	array_replace(array, before, after)
Argumenty	array - the input array before - the value or array of values to replace after - the value or array of values to use as a replacement
Przykłady	array_replace(array('QGIS','SHOULD','ROCK'),'SHOULD','DOES') → [ «QGIS», «DOES», «ROCK» ] array_replace(array(3,2,1),array(1,2,3),array(7,8,9)) → [ 9, 8, 7 ] array_replace(array('Q','G','I','S'),array('Q','S'),'-') → [ «-», «G», «I», «-» ]

Map variant

Returns an array with the supplied map keys replaced by their paired values.

Składnia	array_replace(array, map)
Argumenty	array - the input array map - the map containing keys and values
Przykłady	array_replace(array('APP', 'SHOULD', 'ROCK'),map('APP','QGIS','SHOULD','DOES')) → [ «QGIS», «DOES», «ROCK» ]

Further reading: replace, regexp_replace

9.2.2.28. array_reverse

Returns the given array with array values in reversed order.

Składnia	array_reverse(array)
Argumenty	array - an array
Przykłady	array_reverse(array(2,4,0,10)) → [ 10, 0, 4, 2 ]

9.2.2.29. array_slice

Returns a portion of the array. The slice is defined by the start_pos and end_pos arguments.

Składnia	array_slice(array, start_pos, end_pos)
Argumenty	array - an array start_pos - the index of the start position of the slice (0 based). The start_pos index is included in the slice. If you use a negative start_pos, the index is counted from the end of the list (-1 based). end_pos - the index of the end position of the slice (0 based). The end_pos index is included in the slice. If you use a negative end_pos, the index is counted from the end of the list (-1 based).
Przykłady	array_slice(array(1,2,3,4,5),0,3) → [ 1, 2, 3, 4 ] array_slice(array(1,2,3,4,5),0,-1) → [ 1, 2, 3, 4, 5 ] array_slice(array(1,2,3,4,5),-5,-1) → [ 1, 2, 3, 4, 5 ] array_slice(array(1,2,3,4,5),0,0) → [ 1 ] array_slice(array(1,2,3,4,5),-2,-1) → [ 4, 5 ] array_slice(array(1,2,3,4,5),-1,-1) → [ 5 ] array_slice(array('Dufour','Valmiera','Chugiak','Brighton'),1,2) → [ «Valmiera», «Chugiak» ] array_slice(array('Dufour','Valmiera','Chugiak','Brighton'),-2,-1) → [ «Chugiak», «Brighton» ]

9.2.2.30. array_sort

Returns the provided array with its elements sorted.

Składnia	array_sort(array, [ascending=true]) [] marks optional arguments
Argumenty	array - an array ascending - set this parameter to false to sort the array in descending order
Przykłady	array_sort(array(3,2,1)) → [ 1, 2, 3 ]

9.2.2.31. array_sum

Returns the sum of arithmetic values in an array. Non numeric values in the array are ignored.

Składnia	array_sum(array)
Argumenty	array - an array
Przykłady	array_sum(array(0,1,39.4,1.6,'a')) → 42.0

9.2.2.32. array_to_string

Concatenates array elements into a string separated by a delimiter and using optional string for empty values.

Składnia	array_to_string(array, [delimiter=»,»], [empty_value=»»]) [] marks optional arguments
Argumenty	array - the input array delimiter - the string delimiter used to separate concatenated array elements empty_value - the optional string to use as replacement for empty (zero length) matches
Przykłady	array_to_string(array('1','2','3')) → «1,2,3» array_to_string(array(1,2,3),'-') → «1-2-3» array_to_string(array('1','','3'),',','0') → «1,0,3»

Further reading: string_to_array

9.2.2.33. generate_series

Creates an array containing a sequence of numbers.

Składnia	generate_series(start, stop, [step=1]) [] marks optional arguments
Argumenty	start - first value of the sequence stop - value that ends the sequence once reached step - value used as the increment between values
Przykłady	generate_series(1,5) → [ 1, 2, 3, 4, 5 ] generate_series(5,1,-1) → [ 5, 4, 3, 2, 1 ]

9.2.2.34. geometries_to_array

Splits a geometry into simpler geometries in an array.

Składnia	geometries_to_array(geometry)
Argumenty	geometry - the input geometry
Przykłady	geometries_to_array(geom_from_wkt('MultiPoint (1 2, 5 21)')) → An array containing «Point (1 2)» and «Point (5 21)» geometries_to_array(geom_from_wkt('GeometryCollection (Polygon ((5 8, 4 1, 3 2, 5 8)),LineString (3 2, 4 2))')) → an array of a polygon and a line geometries geom_to_wkt(geometries_to_array(geom_from_wkt('GeometryCollection (Polygon ((5 8, 4 1, 3 2, 5 8)),LineString (3 2, 4 2))'))[0]) → «Polygon ((5 8, 4 1, 3 2, 5 8))» geometries_to_array(geom_from_wkt('MULTIPOLYGON(((5 5,0 0,0 10,5 5)),((5 5,10 10,10 0,5 5))')) → an array of two polygon geometries

9.2.2.35. regexp_matches

Returns an array of all strings captured by capturing groups, in the order the groups themselves appear in the supplied regular expression against a string.

Składnia	regexp_matches(string, regex, [empty_value=»»]) [] marks optional arguments
Argumenty	string - the string to capture groups from against the regular expression regex - the regular expression used to capture groups empty_value - the optional string to use as replacement for empty (zero length) matches
Przykłady	regexp_matches('QGIS=>rocks','(.*)=>(.*)') → [ «QGIS», «rocks» ] regexp_matches('key=>','(.*)=>(.*)','empty value') → [ «key», «empty value» ]

Further reading: substr, regexp_substr

9.2.2.36. string_to_array

Splits string into an array using supplied delimiter and optional string for empty values.

Składnia	string_to_array(string, [delimiter=»,»], [empty_value=»»]) [] marks optional arguments
Argumenty	string - the input string delimiter - the string delimiter used to split the input string empty_value - the optional string to use as replacement for empty (zero length) matches
Przykłady	string_to_array('1,2,3',',') → [ «1», «2», «3» ] string_to_array('1,,3',',','0') → [ «1», «0», «3» ]

Further reading: array_to_string

9.2.3. Color Functions

This group contains functions for manipulating colors.

Show/hide list of functions

9.2.3.1. color_cmyk

Returns a string representation of a color based on its cyan, magenta, yellow and black components

Składnia	color_cmyk(cyan, magenta, yellow, black)
Argumenty	cyan - cyan component of the color, as a percentage integer value from 0 to 100 magenta - magenta component of the color, as a percentage integer value from 0 to 100 yellow - yellow component of the color, as a percentage integer value from 0 to 100 black - black component of the color, as a percentage integer value from 0 to 100
Przykłady	color_cmyk(100,50,0,10) → «0,115,230»

9.2.3.2. color_cmyka

Returns a string representation of a color based on its cyan, magenta, yellow, black and alpha (transparency) components

Składnia	color_cmyka(cyan, magenta, yellow, black, alpha)
Argumenty	cyan - cyan component of the color, as a percentage integer value from 0 to 100 magenta - magenta component of the color, as a percentage integer value from 0 to 100 yellow - yellow component of the color, as a percentage integer value from 0 to 100 black - black component of the color, as a percentage integer value from 0 to 100 alpha - alpha component as an integer value from 0 (completely transparent) to 255 (opaque).
Przykłady	color_cmyka(100,50,0,10,200) → «0,115,230,200»

9.2.3.3. color_cmykf

Returns a color object based on its cyan, magenta, yellow, black and alpha components.

Składnia	color_cmykf(cyan, magenta, yellow, black, [alpha=1.0]) [] marks optional arguments
Argumenty	cyan - cyan component as a float value from 0.0 to 1.0 magenta - magenta component as a float value from 0.0 to 1.0 yellow - yellow component as a float value from 0.0 to 1.0 black - black component as a float value from 0.0 to 1.0 alpha - alpha component as a float value from 0.0 to 1.0
Przykłady	color_cmykf(1,0.9,0.81,0.62) → CMYKA: 1.00,0.90,0.81,0.62,1.00

9.2.3.4. color_grayscale_average

Applies a grayscale filter to a color and returns it. Returned type is the same as color argument, i.e. a color string representation or a color object.

Składnia	color_grayscale_average(color)
Argumenty	color - a color string representation or a color object
Przykłady	color_grayscale_average('255,100,50') → «135,135,135,255» color_grayscale_average(color_cmykf(0.6,0.5,0.1,0.8)) → CMYKA: 0.40,0.40,0.40,0.80,1.00

9.2.3.5. color_hsl

Returns a string representation of a color based on its hue, saturation, and lightness attributes.

Składnia	color_hsl(hue, saturation, lightness)
Argumenty	hue - hue of the color, as an integer value from 0 to 360 saturation - saturation percentage of the color as an integer value from 0 to 100 lightness - lightness percentage of the color as an integer value from 0 to 100
Przykłady	color_hsl(100,50,70) → «166,217,140»

9.2.3.6. color_hsla

Returns a string representation of a color based on its hue, saturation, lightness and alpha (transparency) attributes

Składnia	color_hsla(hue, saturation, lightness, alpha)
Argumenty	hue - hue of the color, as an integer value from 0 to 360 saturation - saturation percentage of the color as an integer value from 0 to 100 lightness - lightness percentage of the color as an integer value from 0 to 100 alpha - alpha component as an integer value from 0 (completely transparent) to 255 (opaque).
Przykłady	color_hsla(100,50,70,200) → «166,217,140,200»

9.2.3.7. color_hslf

Returns a color object based on its hue, saturation, and lightness attributes.

Składnia	color_hslf(hue, saturation, lightness, [alpha=1.0]) [] marks optional arguments
Argumenty	hue - hue of the color, as a float value from 0.0 to 1.0 saturation - saturation of the color as a float value from 0.0 to 1.0 lightness - lightness of the color as a float value from 0.0 to 1.0 alpha - alpha component as a float value from 0.0 to 1.0
Przykłady	color_hslf(0.3,0.52,0.7) → HSLA: 0.30,0.52,0.70,1.00

9.2.3.8. color_hsv

Returns a string representation of a color based on its hue, saturation, and value attributes.

Składnia	color_hsv(hue, saturation, value)
Argumenty	hue - hue of the color, as an integer value from 0 to 360 saturation - saturation percentage of the color as an integer value from 0 to 100 value - value percentage of the color as an integer from 0 to 100
Przykłady	color_hsv(40,100,100) → «255,170,0»

9.2.3.9. color_hsva

Returns a string representation of a color based on its hue, saturation, value and alpha (transparency) attributes.

Składnia	color_hsva(hue, saturation, value, alpha)
Argumenty	hue - hue of the color, as an integer value from 0 to 360 saturation - saturation percentage of the color as an integer value from 0 to 100 value - value percentage of the color as an integer from 0 to 100 alpha - alpha component as an integer value from 0 (completely transparent) to 255 (opaque)
Przykłady	color_hsva(40,100,100,200) → «255,170,0,200»

9.2.3.10. color_hsvf

Returns a color object based on its hue, saturation, and value attributes.

Składnia	color_hsvf(hue, saturation, value, [alpha=1.0]) [] marks optional arguments
Argumenty	hue - hue of the color, as a float value from 0.0 to 1.0 saturation - saturation of the color as a float value from 0.0 to 1.0 value - value of the color as as a float value from 0.0 to 1.0 alpha - alpha component as a float value from 0.0 to 1.0
Przykłady	color_hsvf(0.4,1,0.6) → HSVA: 0.40,1.00,0.60,1.00

9.2.3.11. color_mix

Returns a color mixing the red, green, blue, and alpha values of two provided colors based on a given ratio. Returned type is the same as color arguments, i.e. a color string representation or a color object.

Składnia	color_mix(color1, color2, ratio)
Argumenty	color1 - a color string or a color object color2 - a color string or a color object ratio - a ratio
Przykłady	color_mix_rgb('0,0,0','255,255,255',0.5) → «127,127,127,255» color_mix(color_cmykf(0.9,0.9,0.9,0.9),color_cmykf(0.1,0.1,0.1,0.1),0.5) → CMYKA: 0.50,0.50,0.50,0.50,1.00

9.2.3.12. color_mix_rgb

Returns a string representing a color mixing the red, green, blue, and alpha values of two provided colors based on a given ratio.

Składnia	color_mix_rgb(color1, color2, ratio)
Argumenty	color1 - a color string color2 - a color string ratio - a ratio
Przykłady	color_mix_rgb('0,0,0','255,255,255',0.5) → «127,127,127,255»

9.2.3.13. color_part

Returns a specific component from a color string or color object, e.g., the red component or alpha component.

Składnia	color_part(color, component)
Argumenty	color - a color string or a color object component - a string corresponding to the color component to return. Valid options are: red: RGB red component (0-255) green: RGB green component (0-255) blue: RGB blue component (0-255) alpha: alpha (transparency) value (0-255) hue: HSV hue (0-360) saturation: HSV saturation (0-100) value: HSV value (0-100) hsl_hue: HSL hue (0-360) hsl_saturation: HSL saturation (0-100) lightness: HSL lightness (0-100) cyan: CMYK cyan component (0-100) magenta: CMYK magenta component (0-100) yellow: CMYK yellow component (0-100) black: CMYK black component (0-100)
Przykłady	color_part('200,10,30','green') → 10 to_int(color_part(color_cmykf(0.1,0.2,0.3,0.9),'black')) → 90

9.2.3.14. color_rgb

Returns a string representation of a color based on its red, green, and blue components.

Składnia	color_rgb(red, green, blue)
Argumenty	red - red component as an integer value from 0 to 255 green - green component as an integer value from 0 to 255 blue - blue component as an integer value from 0 to 255
Przykłady	color_rgb(255,127,0) → «255,127,0»

9.2.3.15. color_rgba

Returns a string representation of a color based on its red, green, blue, and alpha (transparency) components.

Składnia	color_rgba(red, green, blue, alpha)
Argumenty	red - red component as an integer value from 0 to 255 green - green component as an integer value from 0 to 255 blue - blue component as an integer value from 0 to 255 alpha - alpha component as an integer value from 0 (completely transparent) to 255 (opaque).
Przykłady	color_rgba(255,127,0,200) → «255,127,0,200»

9.2.3.16. color_rgbf

Returns a color object based on its red, green, blue and alpha components.

Składnia	color_rgbf(red, green, blue, [alpha=1.0]) [] marks optional arguments
Argumenty	red - red component as a float value from 0.0 to 1.0 green - green component as a float value from 0.0 to 1.0 blue - blue component as a float value from 0.0 to 1.0 alpha - alpha component as a float value from 0.0 to 1.0
Przykłady	color_rgbf(1.0,0.5,0) → RGBA: 1.00,0.50,0.00,1.00

9.2.3.17. create_ramp

Returns a gradient ramp from a map of color strings and steps.

Składnia	create_ramp(map, [discrete=false]) [] marks optional arguments
Argumenty	map - a map of color strings and steps discrete - set this parameter to true to create a discrete color ramp
Przykłady	ramp_color(create_ramp(map(0,'0,0,0',1,'255,0,0')),1) → «255,0,0,255»

9.2.3.18. darker

Returns a darker (or lighter) color. Returned type is the same as color arguments, i.e. a color string representation or a color object.

Składnia	darker(color, factor)
Argumenty	color - a color string or a color object factor - an integer corresponding to the darkening factor: if the factor is greater than 100, this function returns a darker color (e.g., setting factor to 200 returns a color that is half the brightness); if the factor is less than 100, the return color is lighter, but using the lighter() function for this purpose is recommended; if the factor is 0 or negative, the return value is unspecified.
Przykłady	darker('200,10,30', 200) → «100,5,15,255»

Further reading: lighter

9.2.3.19. lighter

Returns a lighter (or darker) color. Returned type is the same as color arguments, i.e. a color string representation or a color object.

Składnia	lighter(color, factor)
Argumenty	color - a color string or a color object factor - an integer corresponding to the lightening factor: if the factor is greater than 100, this function returns a lighter color (e.g., setting factor to 150 returns a color that is 50% brighter); if the factor is less than 100, the return color is darker, but using the darker() function for this purpose is recommended; if the factor is 0 or negative, the return value is unspecified.
Przykłady	lighter('200,10,30', 200) → «255,158,168,255»

Further reading: darker

9.2.3.20. project_color

Returns a color from the project’s color scheme.

Składnia	project_color(name)
Argumenty	name - a color name
Przykłady	project_color('Logo color') → «20,140,50»

Further reading: setting project colors

9.2.3.21. project_color_object

Returns a color from the project’s color scheme. Contrary to project_color which returns a color string representation, project_color_object returns a color object.

Składnia	project_color_object(name)
Argumenty	name - a color name
Przykłady	project_color_object('Logo color') → RGBA: 0.08,0.55,0.20,1.00

9.2.3.22. ramp_color

Returns a string representing a color from a color ramp.

Saved ramp variant

Returns a string representing a color from a saved ramp

Składnia	ramp_color(ramp_name, value)
Argumenty	ramp_name - the name of the color ramp as a string, for example «Spectral» value - the position on the ramp to select the color from as a real number between 0 and 1
Przykłady	ramp_color('Spectral',0.3) → «253,190,115,255»

Informacja

The color ramps available vary between QGIS installations. This function may not give the expected results if you move your QGIS project between installations.

Expression-created ramp variant

Returns a string representing a color from an expression-created ramp

Składnia	ramp_color(ramp, value)
Argumenty	ramp - the color ramp value - the position on the ramp to select the color from as a real number between 0 and 1
Przykłady	ramp_color(create_ramp(map(0,'0,0,0',1,'255,0,0')),1) → «255,0,0,255»

Further reading: Setting a Color Ramp, The color ramp drop-down shortcut

9.2.3.23. ramp_color_object

Returns a color object from a color ramp. Contrary to ramp_color which returns a color string representation, ramp_color_object returns a color object.

Saved ramp variant

Returns a color object from a saved ramp

Składnia	ramp_color_object(ramp_name, value)
Argumenty	ramp_name - the name of the color ramp as a string, for example «Spectral» value - the position on the ramp to select the color from as a real number between 0 and 1
Przykłady	ramp_color_object('Spectral',0.3) → RGBA: 0.99,0.75,0.45,1.00

Informacja

The color ramps available vary between QGIS installations. This function may not give the expected results if you move your QGIS project between installations.

Expression-created ramp variant

Returns a color object from an expression-created ramp

Składnia	ramp_color_object(ramp, value)
Argumenty	ramp - the color ramp value - the position on the ramp to select the color from as a real number between 0 and 1
Przykłady	ramp_color_object(create_ramp(map(0,color_rgbf(0,0,0),1,color_rgbf(1,0,0))),1) → RGBA: 1.00,0.00,0.00,1.00

9.2.3.24. set_color_part

Sets a specific color component for a color string or a color object, e.g., the red component or alpha component.

Składnia	set_color_part(color, component, value)
Argumenty	color - a color string or a color object component - a string corresponding to the color component to set. Valid options are: red: RGB red component (0-255) green: RGB green component (0-255) blue: RGB blue component (0-255) alpha: alpha (transparency) value (0-255) hue: HSV hue (0-360) saturation: HSV saturation (0-100) value: HSV value (0-100) hsl_hue: HSL hue (0-360) hsl_saturation: HSL saturation (0-100) lightness: HSL lightness (0-100) cyan: CMYK cyan component (0-100) magenta: CMYK magenta component (0-100) yellow: CMYK yellow component (0-100) black: CMYK black component (0-100) value - new value for color component, respecting the ranges listed above
Przykłady	set_color_part('200,10,30','green',50) → «200,50,30,255» set_color_part(color_cmykf(0.21,0,0.92,0.70),'black',100) → CMYKA: 0.21,0.00,0.92,1.00,1.00

9.2.4. Conditional Functions

This group contains functions to handle conditional checks in expressions.

Show/hide list of functions

9.2.4.1. CASE

CASE is used to evaluate a series of conditions and return a result for the first condition met. The conditions are evaluated sequentially, and if a condition is true, the evaluation stops, and the corresponding result is returned. If none of the conditions are true, the value in the ELSE clause is returned. Furthermore, if no ELSE clause is set and none of the conditions are met, NULL is returned.

CASE

WHEN condition THEN result

[ …n ]

[ ELSE result ]

END

[ ] marks optional components

Argumenty	WHEN condition - A condition expression to evaluate THEN result - If condition evaluates to True then result is evaluated and returned. ELSE result - If none of the above conditions evaluated to True then result is evaluated and returned.
Przykłady	CASE WHEN "name" IS NULL THEN 'None' END → Returns the string «None» if the „name” field is NULL CASE WHEN $area > 10000 THEN 'Big property' WHEN $area > 5000 THEN 'Medium property' ELSE 'Small property' END → Returns the string «Big property» if the area is bigger than 10000, «Medium property» if the area is between 5000 and 10000, and «Small property» for others

9.2.4.2. coalesce

Returns the first non-NULL value from the expression list.

This function can take any number of arguments.

Składnia	coalesce(expression1, expression2, …)
Argumenty	expression - any valid expression or value, regardless of type.
Przykłady	coalesce(NULL, 2) → 2 coalesce(NULL, 2, 3) → 2 coalesce(7, NULL, 3*2) → 7 coalesce("fieldA", "fallbackField", 'ERROR') → value of fieldA if it is non-NULL else the value of „fallbackField” or the string «ERROR» if both are NULL

9.2.4.3. if

Tests a condition and returns a different result depending on the conditional check.

Składnia	if(condition, result_when_true, result_when_false)
Argumenty	condition - the condition which should be checked result_when_true - the result which will be returned when the condition is true or another value that does not convert to false. result_when_false - the result which will be returned when the condition is false or another value that converts to false like 0 or «». NULL will also be converted to false.
Przykłady	if( 1+1=2, 'Yes', 'No' ) → «Yes» if( 1+1=3, 'Yes', 'No' ) → «No» if( 5 > 3, 1, 0) → 1 if( '', 'It is true (not empty)', 'It is false (empty)' ) → «It is false (empty)» if( ' ', 'It is true (not empty)', 'It is false (empty)' ) → «It is true (not empty)» if( 0, 'One', 'Zero' ) → «Zero» if( 10, 'One', 'Zero' ) → «One»

9.2.4.4. nullif

Returns a NULL value if value1 equals value2; otherwise it returns value1. This can be used to conditionally substitute values with NULL.

Składnia	nullif(value1, value2)
Argumenty	value1 - The value that should either be used or substituted with NULL. value2 - The control value that will trigger the NULL substitution.
Przykłady	nullif('(none)', '(none)') → NULL nullif('text', '(none)') → «text» nullif("name", '') → NULL, if name is an empty string (or already NULL), the name in any other case.

9.2.4.5. regexp_match

Return the first matching position matching a regular expression within an unicode string, or 0 if the substring is not found.

Składnia	regexp_match(input_string, regex)
Argumenty	input_string - the string to test against the regular expression regex - The regular expression to test against. Backslash characters must be double escaped (e.g., „\\s” to match a white space character or „\\b” to match a word boundary).
Przykłady	regexp_match('QGIS ROCKS','\\sROCKS') → 5 regexp_match('Budač','udač\\b') → 2

9.2.4.6. try

Tries an expression and returns its value if error-free. If the expression returns an error, an alternative value will be returned when provided otherwise the function will return NULL.

Składnia	try(expression, [alternative]) [] marks optional arguments
Argumenty	expression - the expression which should be run alternative - the result which will be returned if the expression returns an error.
Przykłady	try( to_int( '1' ), 0 ) → 1 try( to_int( 'a' ), 0 ) → 0 try( to_date( 'invalid_date' ) ) → NULL

9.2.5. Conversions Functions

This group contains functions to convert one data type to another (e.g., string from/to integer, binary from/to string, string to date, …).

Show/hide list of functions

9.2.5.1. from_base64

Decodes a string in the Base64 encoding into a binary value.

Składnia	from_base64(string)
Argumenty	string - the string to decode
Przykłady	from_base64('UUdJUw==') → «QGIS»

9.2.5.2. hash

Creates a hash from a string with a given method. One byte (8 bits) is represented with two hex «»digits»», so «md4» (16 bytes) produces a 16 * 2 = 32 character long hex string and «keccak_512» (64 bytes) produces a 64 * 2 = 128 character long hex string.

Składnia	hash(string, method)
Argumenty	string - the string to hash method - The hash method among «md4», «md5», «sha1», «sha224», «sha384», «sha512», «sha3_224», «sha3_256», «sha3_384», «sha3_512», «keccak_224», «keccak_256», «keccak_384», «keccak_512»
Przykłady	hash('QGIS', 'md4') → «c0fc71c241cdebb6e888cbac0e2b68eb» hash('QGIS', 'md5') → «57470aaa9e22adaefac7f5f342f1c6da» hash('QGIS', 'sha1') → «f87cfb2b74cdd5867db913237024e7001e62b114» hash('QGIS', 'sha224') → «4093a619ada631c770f44bc643ead18fb393b93d6a6af1861fcfece0» hash('QGIS', 'sha256') → «eb045cba7a797aaa06ac58830846e40c8e8c780bc0676d3393605fae50c05309» hash('QGIS', 'sha384') → «91c1de038cc3d09fdd512e99f9dd9922efadc39ed21d3922e69a4305cc25506033aee388e554b78714c8734f9cd7e610» hash('QGIS', 'sha512') → «c2c092f2ab743bf8edbeb6d028a745f30fc720408465ed369421f0a4e20fa5e27f0c90ad72d3f1d836eaa5d25cd39897d4cf77e19984668ef58da6e3159f18ac» hash('QGIS', 'sha3_224') → «467f49a5039e7280d5d42fd433e80d203439e338eaabd701f0d6c17d» hash('QGIS', 'sha3_256') → «540f7354b6b8a6e735f2845250f15f4f3ba4f666c55574d9e9354575de0e980f» hash('QGIS', 'sha3_384') → «96052da1e77679e9a65f60d7ead961b287977823144786386eb43647b0901fd8516fa6f1b9d243fb3f28775e6dde6107» hash('QGIS', 'sha3_512') → «900d079dc69761da113980253aa8ac0414a8bd6d09879a916228f8743707c4758051c98445d6b8945ec854ff90655005e02aceb0a2ffc6a0ebf818745d665349» hash('QGIS', 'keccak_224') → «5b0ce6acef8b0a121d4ac4f3eaa8503c799ad4e26a3392d1fb201478» hash('QGIS', 'keccak_256') → «991c520aa6815392de24087f61b2ae0fd56abbfeee4a8ca019c1011d327c577e» hash('QGIS', 'keccak_384') → «c57a3aed9d856fa04e5eeee9b62b6e027cca81ba574116d3cc1f0d48a1ef9e5886ff463ea8d0fac772ee473bf92f810d»

9.2.5.3. md5

Creates a md5 hash from a string.

Składnia	md5(string)
Argumenty	string - the string to hash
Przykłady	md5('QGIS') → «57470aaa9e22adaefac7f5f342f1c6da»

9.2.5.4. sha256

Creates a sha256 hash from a string.

Składnia	sha256(string)
Argumenty	string - the string to hash
Przykłady	sha256('QGIS') → «eb045cba7a797aaa06ac58830846e40c8e8c780bc0676d3393605fae50c05309»

9.2.5.5. to_base64

Encodes a binary value into a string, using the Base64 encoding.

Składnia	to_base64(value)
Argumenty	value - the binary value to encode
Przykłady	to_base64('QGIS') → «UUdJUw==»

9.2.5.6. to_date

Converts a string into a date object. An optional format string can be provided to parse the string; see QDate::fromString or the documentation of the format_date function for additional documentation on the format. By default the current QGIS user locale is used.

Składnia	to_date(string, [format], [language]) [] marks optional arguments
Argumenty	string - string representing a date value format - format used to convert the string into a date language - language (lowercase, two- or three-letter, ISO 639 language code) used to convert the string into a date. By default the current QGIS user locale is used.
Przykłady	to_date('2012-05-04') → 2012-05-04 to_date('June 29, 2019','MMMM d, yyyy') → 2019-06-29, if the current locale uses the name «June» for the sixth month, otherwise an error occurs to_date('29 juin, 2019','d MMMM, yyyy','fr') → 2019-06-29

Further reading: format_date

9.2.5.7. to_datetime

Converts a string into a datetime object. An optional format string can be provided to parse the string; see QDate::fromString, QTime::fromString or the documentation of the format_date function for additional documentation on the format. By default the current QGIS user locale is used.

Składnia	to_datetime(string, [format], [language]) [] marks optional arguments
Argumenty	string - string representing a datetime value format - format used to convert the string into a datetime language - language (lowercase, two- or three-letter, ISO 639 language code) used to convert the string into a datetime. By default the current QGIS user locale is used.
Przykłady	to_datetime('2012-05-04 12:50:00') → 2012-05-04T12:50:00 to_datetime('June 29, 2019 @ 12:34','MMMM d, yyyy @ HH:mm') → 2019-06-29T12:34, if the current locale uses the name «June» for the sixth month, otherwise an error occurs to_datetime('29 juin, 2019 @ 12:34','d MMMM, yyyy @ HH:mm','fr') → 2019-06-29T12:34

Further reading: format_date

9.2.5.8. to_decimal

Converts a degree, minute, second coordinate to its decimal equivalent.

Składnia	to_decimal(value)
Argumenty	value - A degree, minute, second string.
Przykłady	to_decimal('6°21\'16.445') → 6.3545680555

9.2.5.9. to_dm

Converts a coordinate to degree, minute.

Składnia	to_dm(coordinate, axis, precision, [formatting=]) [] marks optional arguments
Argumenty	coordinate - A latitude or longitude value. axis - The axis of the coordinate. Either «x» or «y». precision - Number of decimals. formatting - Designates the formatting type. Acceptable values are NULL (default), «aligned» or «suffix».
Przykłady	to_dm(6.1545681, 'x', 3) → 6°9.274′ to_dm(6.1545681, 'y', 4, 'aligned') → 6°09.2741′N to_dm(6.1545681, 'y', 4, 'suffix') → 6°9.2741′N

9.2.5.10. to_dms

Converts a coordinate to degree, minute, second.

Składnia	to_dms(coordinate, axis, precision, [formatting=]) [] marks optional arguments
Argumenty	coordinate - A latitude or longitude value. axis - The axis of the coordinate. Either «x» or «y». precision - Number of decimals. formatting - Designates the formatting type. Acceptable values are NULL (default), «aligned» or «suffix».
Przykłady	to_dms(6.1545681, 'x', 3) → 6°9′16.445″ to_dms(6.1545681, 'y', 4, 'aligned') → 6°09′16.4452″N to_dms(6.1545681, 'y', 4, 'suffix') → 6°9′16.4452″N

9.2.5.11. to_int

Converts a string to integer number. If a value cannot be converted to integer the expression is invalid (e.g «123asd» is invalid).

Składnia	to_int(string)
Argumenty	string - string to convert to integer number
Przykłady	to_int('123') → 123

9.2.5.12. to_interval

Converts a string to an interval type. Can be used to take days, hours, month, etc of a date.

Składnia	to_interval(string)
Argumenty	string - a string representing an interval. Allowable formats include {n} days {n} hours {n} months.
Przykłady	to_interval('1 day 2 hours') → interval: 1.08333 days to_interval( '0.5 hours' ) → interval: 30 minutes to_datetime('2012-05-05 12:00:00') - to_interval('1 day 2 hours') → 2012-05-04T10:00:00

9.2.5.13. to_real

Converts a string to a real number. If a value cannot be converted to real the expression is invalid (e.g «123.56asd» is invalid). Numbers are rounded after saving changes if the precision is smaller than the result of the conversion.

Składnia	to_real(string)
Argumenty	string - string to convert to real number
Przykłady	to_real('123.45') → 123.45

9.2.5.14. to_string

Converts a number to string.

Składnia	to_string(number)
Argumenty	number - Integer or real value. The number to convert to string.
Przykłady	to_string(123) → «123»

Further reading: format_number

9.2.5.15. to_time

Converts a string into a time object. An optional format string can be provided to parse the string; see QTime::fromString for additional documentation on the format.

Składnia	to_time(string, [format], [language]) [] marks optional arguments
Argumenty	string - string representing a time value format - format used to convert the string into a time language - language (lowercase, two- or three-letter, ISO 639 language code) used to convert the string into a time
Przykłady	to_time('12:30:01') → 12:30:01 to_time('12:34','HH:mm') → 12:34:00 to_time('12:34','HH:mm','fr') → 12:34:00

Further reading: format_date

9.2.6. Custom Functions

This group contains functions created by the user. See Function Editor for more details.

9.2.7. Date and Time Functions

This group contains functions for handling date and time data. This group shares several functions with the Conversions Functions (to_date, to_time, to_datetime, to_interval) and String Functions (format_date) groups.

Informacja

Storing date, datetime and intervals on fields

The ability to store date, time and datetime values directly on fields depends on the data source’s provider (e.g., Shapefile accepts date format, but not datetime or time format). The following are some suggestions to overcome this limitation:

• date, datetime and time can be converted and stored in text type fields using the format_date() function.

• Intervals can be stored in integer or decimal type fields after using one of the date extraction functions (e.g., day() to get the interval expressed in days)

Show/hide list of functions

9.2.7.1. age

Returns the difference between two dates or datetimes.

The difference is returned as an Interval and needs to be used with one of the following functions in order to extract useful information:

• year

• month

• week

• day

• hour

• minute

• second

Składnia	age(datetime1, datetime2)
Argumenty	datetime1 - a string, date or datetime representing the later date datetime2 - a string, date or datetime representing the earlier date
Przykłady	day(age('2012-05-12','2012-05-02')) → 10 hour(age('2012-05-12','2012-05-02')) → 240

9.2.7.2. datetime_from_epoch

Returns a datetime whose date and time are the number of milliseconds, msecs, that have passed since 1970-01-01T00:00:00.000, Coordinated Universal Time (Qt.UTC), and converted to Qt.LocalTime.

Składnia	datetime_from_epoch(int)
Argumenty	int - number (milliseconds)
Przykłady	datetime_from_epoch(1483225200000) → 2017-01-01T00:00:00

9.2.7.3. day

Extracts the day from a date, or the number of days from an interval.

Date variant

Extracts the day from a date or datetime.

Składnia	day(date)
Argumenty	date - a date or datetime value
Przykłady	day('2012-05-12') → 12

Interval variant

Calculates the length in days of an interval.

Składnia	day(interval)
Argumenty	interval - interval value to return number of days from
Przykłady	day(to_interval('3 days')) → 3 day(to_interval('3 weeks 2 days')) → 23 day(age('2012-01-01','2010-01-01')) → 730

9.2.7.4. day_of_week

Returns the day of the week for a specified date or datetime. The returned value ranges from 0 to 6, where 0 corresponds to a Sunday and 6 to a Saturday.

Składnia	day_of_week(date)
Argumenty	date - date or datetime value
Przykłady	day_of_week(to_date('2015-09-21')) → 1

9.2.7.5. epoch

Returns the interval in milliseconds between the unix epoch and a given date value.

Składnia	epoch(date)
Argumenty	date - a date or datetime value
Przykłady	epoch(to_date('2017-01-01')) → 1483203600000

9.2.7.6. format_date

Formats a date type or string into a custom string format. Uses Qt date/time format strings. See QDateTime::toString.

Składnia	format_date(datetime, format, [language]) [] marks optional arguments
Argumenty	datetime - date, time or datetime value format - String template used to format the string. Wyrażenie Wyjście d the day as number without a leading zero (1 to 31) dd the day as number with a leading zero (01 to 31) ddd the abbreviated localized day name (e.g. «Mon» to «Sun») dddd the long localized day name (e.g. «Monday» to «Sunday») M the month as number without a leading zero (1-12) MM the month as number with a leading zero (01-12) MMM the abbreviated localized month name (e.g. «Jan» to «Dec») MMMM the long localized month name (e.g. «January» to «December») yy the year as two digit number (00-99) yyyy the year as four digit number These expressions may be used for the time part of the format string: Wyrażenie Wyjście h the hour without a leading zero (0 to 23 or 1 to 12 if AM/PM display) hh the hour with a leading zero (00 to 23 or 01 to 12 if AM/PM display) H the hour without a leading zero (0 to 23, even with AM/PM display) HH the hour with a leading zero (00 to 23, even with AM/PM display) m the minute without a leading zero (0 to 59) mm the minute with a leading zero (00 to 59) s the second without a leading zero (0 to 59) ss the second with a leading zero (00 to 59) z the milliseconds without trailing zeroes (0 to 999) zzz the milliseconds with trailing zeroes (000 to 999) AP or A interpret as an AM/PM time. AP must be either «AM» or «PM». ap or a Interpret as an AM/PM time. ap must be either «am» or «pm». language - language (lowercase, two- or three-letter, ISO 639 language code) used to format the date into a custom string. By default the current QGIS user locale is used.
Przykłady	format_date('2012-05-15','dd.MM.yyyy') → «15.05.2012» format_date('2012-05-15','d MMMM yyyy','fr') → «15 mai 2012» format_date('2012-05-15','dddd') → «Tuesday», if the current locale is an English variant format_date('2012-05-15 13:54:20','dd.MM.yy') → «15.05.12» format_date('13:54:20','hh:mm AP') → «01:54 PM»

9.2.7.7. hour

Extracts the hour part from a datetime or time, or the number of hours from an interval.

Time variant

Extracts the hour part from a time or datetime.

Składnia	hour(datetime)
Argumenty	datetime - a time or datetime value
Przykłady	hour( to_datetime('2012-07-22 13:24:57') ) → 13

Interval variant

Calculates the length in hours of an interval.

Składnia	hour(interval)
Argumenty	interval - interval value to return number of hours from
Przykłady	hour(to_interval('3 hours')) → 3 hour(age('2012-07-22T13:00:00','2012-07-22T10:00:00')) → 3 hour(age('2012-01-01','2010-01-01')) → 17520

9.2.7.8. make_date

Creates a date value from year, month and day numbers.

Składnia	make_date(year, month, day)
Argumenty	year - Year number. Years 1 to 99 are interpreted as is. Year 0 is invalid. month - Month number, where 1=January day - Day number, beginning with 1 for the first day in the month
Przykłady	make_date(2020,5,4) → date value 2020-05-04

9.2.7.9. make_datetime

Creates a datetime value from year, month, day, hour, minute and second numbers.

Składnia	make_datetime(year, month, day, hour, minute, second)
Argumenty	year - Year number. Years 1 to 99 are interpreted as is. Year 0 is invalid. month - Month number, where 1=January day - Day number, beginning with 1 for the first day in the month hour - Hour number minute - Minutes second - Seconds (fractional values include milliseconds)
Przykłady	make_datetime(2020,5,4,13,45,30.5) → datetime value 2020-05-04 13:45:30.500

9.2.7.10. make_interval

Creates an interval value from year, month, weeks, days, hours, minute and seconds values.

Składnia	make_interval([years=0], [months=0], [weeks=0], [days=0], [hours=0], [minutes=0], [seconds=0]) [] marks optional arguments
Argumenty	years - Number of years (assumes a 365.25 day year length). months - Number of months (assumes a 30 day month length) weeks - Number of weeks days - Number of days hours - Number of hours minutes - Number of minutes seconds - Number of seconds
Przykłady	make_interval(hours:=3) → interval: 3 hours make_interval(days:=2, hours:=3) → interval: 2.125 days make_interval(minutes:=0.5, seconds:=5) → interval: 35 seconds

9.2.7.11. make_time

Creates a time value from hour, minute and second numbers.

Składnia	make_time(hour, minute, second)
Argumenty	hour - Hour number minute - Minutes second - Seconds (fractional values include milliseconds)
Przykłady	make_time(13,45,30.5) → time value 13:45:30.500

9.2.7.12. minute

Extracts the minutes part from a datetime or time, or the number of minutes from an interval.

Time variant

Extracts the minutes part from a time or datetime.

Składnia	minute(datetime)
Argumenty	datetime - a time or datetime value
Przykłady	minute( to_datetime('2012-07-22 13:24:57') ) → 24

Interval variant

Calculates the length in minutes of an interval.

Składnia	minute(interval)
Argumenty	interval - interval value to return number of minutes from
Przykłady	minute(to_interval('3 minutes')) → 3 minute(age('2012-07-22T00:20:00','2012-07-22T00:00:00')) → 20 minute(age('2012-01-01','2010-01-01')) → 1051200

9.2.7.13. month

Extracts the month part from a date, or the number of months from an interval.

Date variant

Extracts the month part from a date or datetime.

Składnia	month(date)
Argumenty	date - a date or datetime value
Przykłady	month('2012-05-12') → 05

Interval variant

Calculates the length in months of an interval.

Składnia	month(interval)
Argumenty	interval - interval value to return number of months from
Przykłady	month(to_interval('3 months')) → 3 month(age('2012-01-01','2010-01-01')) → 4.03333

9.2.7.14. now

Returns the current date and time. The function is static and will return consistent results while evaluating. The time returned is the time when the expression is prepared.

Składnia	now()
Przykłady	now() → 2012-07-22T13:24:57

9.2.7.15. second

Extracts the seconds part from a datetime or time, or the number of seconds from an interval.

Time variant

Extracts the seconds part from a time or datetime.

Składnia	second(datetime)
Argumenty	datetime - a time or datetime value
Przykłady	second( to_datetime('2012-07-22 13:24:57') ) → 57

Interval variant

Calculates the length in seconds of an interval.

Składnia	second(interval)
Argumenty	interval - interval value to return number of seconds from
Przykłady	second(to_interval('3 minutes')) → 180 second(age('2012-07-22T00:20:00','2012-07-22T00:00:00')) → 1200 second(age('2012-01-01','2010-01-01')) → 63072000

9.2.7.16. to_date

Converts a string into a date object. An optional format string can be provided to parse the string; see QDate::fromString or the documentation of the format_date function for additional documentation on the format. By default the current QGIS user locale is used.

Składnia	to_date(string, [format], [language]) [] marks optional arguments
Argumenty	string - string representing a date value format - format used to convert the string into a date language - language (lowercase, two- or three-letter, ISO 639 language code) used to convert the string into a date. By default the current QGIS user locale is used.
Przykłady	to_date('2012-05-04') → 2012-05-04 to_date('June 29, 2019','MMMM d, yyyy') → 2019-06-29, if the current locale uses the name «June» for the sixth month, otherwise an error occurs to_date('29 juin, 2019','d MMMM, yyyy','fr') → 2019-06-29

Further reading: format_date

9.2.7.17. to_datetime

Converts a string into a datetime object. An optional format string can be provided to parse the string; see QDate::fromString, QTime::fromString or the documentation of the format_date function for additional documentation on the format. By default the current QGIS user locale is used.

Składnia	to_datetime(string, [format], [language]) [] marks optional arguments
Argumenty	string - string representing a datetime value format - format used to convert the string into a datetime language - language (lowercase, two- or three-letter, ISO 639 language code) used to convert the string into a datetime. By default the current QGIS user locale is used.
Przykłady	to_datetime('2012-05-04 12:50:00') → 2012-05-04T12:50:00 to_datetime('June 29, 2019 @ 12:34','MMMM d, yyyy @ HH:mm') → 2019-06-29T12:34, if the current locale uses the name «June» for the sixth month, otherwise an error occurs to_datetime('29 juin, 2019 @ 12:34','d MMMM, yyyy @ HH:mm','fr') → 2019-06-29T12:34

Further reading: format_date

9.2.7.18. to_interval

Converts a string to an interval type. Can be used to take days, hours, month, etc of a date.

Składnia	to_interval(string)
Argumenty	string - a string representing an interval. Allowable formats include {n} days {n} hours {n} months.
Przykłady	to_interval('1 day 2 hours') → interval: 1.08333 days to_interval( '0.5 hours' ) → interval: 30 minutes to_datetime('2012-05-05 12:00:00') - to_interval('1 day 2 hours') → 2012-05-04T10:00:00

9.2.7.19. to_time

Converts a string into a time object. An optional format string can be provided to parse the string; see QTime::fromString for additional documentation on the format.

Składnia	to_time(string, [format], [language]) [] marks optional arguments
Argumenty	string - string representing a time value format - format used to convert the string into a time language - language (lowercase, two- or three-letter, ISO 639 language code) used to convert the string into a time
Przykłady	to_time('12:30:01') → 12:30:01 to_time('12:34','HH:mm') → 12:34:00 to_time('12:34','HH:mm','fr') → 12:34:00

Further reading: format_date

9.2.7.20. week

Extracts the week number from a date, or the number of weeks from an interval.

Date variant

Extracts the week number from a date or datetime.

Składnia	week(date)
Argumenty	date - a date or datetime value
Przykłady	week('2012-05-12') → 19

Interval variant

Calculates the length in weeks of an interval.

Składnia	week(interval)
Argumenty	interval - interval value to return number of months from
Przykłady	week(to_interval('3 weeks')) → 3 week(age('2012-01-01','2010-01-01')) → 104.285

9.2.7.21. year

Extracts the year part from a date, or the number of years from an interval.

Date variant

Extracts the year part from a date or datetime.

Składnia	year(date)
Argumenty	date - a date or datetime value
Przykłady	year('2012-05-12') → 2012

Interval variant

Calculates the length in years of an interval.

Składnia	year(interval)
Argumenty	interval - interval value to return number of years from
Przykłady	year(to_interval('3 years')) → 3 year(age('2012-01-01','2010-01-01')) → 1.9986

Some examples:

Besides these functions, subtracting dates, datetimes or times using the - (minus) operator will return an interval.

Adding or subtracting an interval to dates, datetimes or times, using the + (plus) and - (minus) operators, will return a datetime.

• Get the number of days until QGIS 3.0 release:

  to_date('2017-09-29') - to_date(now())
  -- Returns <interval: 203 days>


• The same with time:

  to_datetime('2017-09-29 12:00:00') - now()
  -- Returns <interval: 202.49 days>


• Get the datetime of 100 days from now:

  now() + to_interval('100 days')
  -- Returns <datetime: 2017-06-18 01:00:00>


9.2.8. Fields and Values

Contains a list of fields from the active layer, and special values. Fields list includes the ones stored in the dataset, virtual and auxiliary ones as well as from joins.

Double-click a field name to have it added to your expression. You can also type the field name (preferably inside double quotes) or its alias.

To retrieve fields values to use in an expression, select the appropriate field and, in the shown widget, choose between 10 Samples and All Unique. Requested values are then displayed and you can use the Search box at the top of the list to filter the result. Sample values can also be accessed via right-clicking on a field.

To add a value to the expression you are writing, double-click on it in the list. If the value is of a string type, it should be simple quoted, otherwise no quote is needed.

Show/hide list of functions

9.2.8.1. NULL

Equates to a NULL value.

Składnia	NULL
Przykłady	NULL → a NULL value

Informacja

To test for NULL use an IS NULL or IS NOT NULL expression.

9.2.9. Files and Paths Functions

This group contains functions which manipulate file and path names.

Show/hide list of functions

9.2.9.1. base_file_name

Returns the base name of the file without the directory or file suffix.

Składnia	base_file_name(path)
Argumenty	path - a file path or a map layer value. If a map layer value is specified then the file source of the layer will be used.
Przykłady	base_file_name('/home/qgis/data/country_boundaries.shp') → «country_boundaries»

9.2.9.2. exif

Retrieves exif tag values from an image file.

Składnia	exif(path, [tag]) [] marks optional arguments
Argumenty	path - An image file path or a map layer value. If a map layer value is specified then the file source of the layer will be used. tag - The tag to return. If empty, a map with all exif tag values will be returned.
Przykłady	exif('/my/photo.jpg','Exif.Image.Orientation') → 0

9.2.9.3. file_exists

Returns TRUE if a file path exists.

Składnia	file_exists(path)
Argumenty	path - a file path or a map layer value. If a map layer value is specified then the file source of the layer will be used.
Przykłady	file_exists('/home/qgis/data/country_boundaries.shp') → TRUE

9.2.9.4. file_name

Returns the name of a file (including the file extension), excluding the directory.

Składnia	file_name(path)
Argumenty	path - a file path or a map layer value. If a map layer value is specified then the file source of the layer will be used.
Przykłady	file_name('/home/qgis/data/country_boundaries.shp') → «country_boundaries.shp»

9.2.9.5. file_path

Returns the directory component of a file path. This does not include the file name.

Składnia	file_path(path)
Argumenty	path - a file path or a map layer value. If a map layer value is specified then the file source of the layer will be used.
Przykłady	file_path('/home/qgis/data/country_boundaries.shp') → «/home/qgis/data»

9.2.9.6. file_size

Returns the size (in bytes) of a file.

Składnia	file_size(path)
Argumenty	path - a file path or a map layer value. If a map layer value is specified then the file source of the layer will be used.
Przykłady	file_size('/home/qgis/data/country_boundaries.geojson') → 5674

9.2.9.7. file_suffix

Returns the file suffix (extension) from a file path.

Składnia	file_suffix(path)
Argumenty	path - a file path or a map layer value. If a map layer value is specified then the file source of the layer will be used.
Przykłady	file_suffix('/home/qgis/data/country_boundaries.shp') → «shp»

9.2.9.8. is_directory

Returns TRUE if a path corresponds to a directory.

Składnia	is_directory(path)
Argumenty	path - a file path or a map layer value. If a map layer value is specified then the file source of the layer will be used.
Przykłady	is_directory('/home/qgis/data/country_boundaries.shp') → FALSE is_directory('/home/qgis/data/') → TRUE

9.2.9.9. is_file

Returns TRUE if a path corresponds to a file.

Składnia	is_file(path)
Argumenty	path - a file path or a map layer value. If a map layer value is specified then the file source of the layer will be used.
Przykłady	is_file('/home/qgis/data/country_boundaries.shp') → TRUE is_file('/home/qgis/data/') → FALSE

9.2.10. Form Functions

This group contains functions that operate exclusively under the attribute form context. For example, in field’s widgets settings.

Show/hide list of functions

9.2.10.1. current_parent_value

Only usable in an embedded form context, this function returns the current, unsaved value of a field in the parent form currently being edited. This will differ from the parent feature’s actual attribute values for features which are currently being edited or have not yet been added to a parent layer. When used in a value-relation widget filter expression, this function should be wrapped into a «coalesce()» that can retrieve the actual parent feature from the layer when the form is not used in an embedded context.

Składnia	current_parent_value(field_name)
Argumenty	field_name - a field name in the current parent form
Przykłady	current_parent_value( 'FIELD_NAME' ) → The current value of a field «FIELD_NAME» in the parent form.

9.2.10.2. current_value

Returns the current, unsaved value of a field in the form or table row currently being edited. This will differ from the feature’s actual attribute values for features which are currently being edited or have not yet been added to a layer.

Składnia	current_value(field_name)
Argumenty	field_name - a field name in the current form or table row
Przykłady	current_value( 'FIELD_NAME' ) → The current value of field «FIELD_NAME».

9.2.11. Fuzzy Matching Functions

This group contains functions for fuzzy comparisons between values.

Show/hide list of functions

9.2.11.1. hamming_distance

Returns the Hamming distance between two strings. This equates to the number of characters at corresponding positions within the input strings where the characters are different. The input strings must be the same length, and the comparison is case-sensitive.

Składnia	hamming_distance(string1, string2)
Argumenty	string1 - a string string2 - a string
Przykłady	hamming_distance('abc','xec') → 2 hamming_distance('abc','ABc') → 2 hamming_distance(upper('abc'),upper('ABC')) → 0 hamming_distance('abc','abcd') → NULL

9.2.11.2. levenshtein

Returns the Levenshtein edit distance between two strings. This equates to the minimum number of character edits (insertions, deletions or substitutions) required to change one string to another.

The Levenshtein distance is a measure of the similarity between two strings. Smaller distances mean the strings are more similar, and larger distances indicate more different strings. The distance is case sensitive.

Składnia	levenshtein(string1, string2)
Argumenty	string1 - a string string2 - a string
Przykłady	levenshtein('kittens','mitten') → 2 levenshtein('Kitten','kitten') → 1 levenshtein(upper('Kitten'),upper('kitten')) → 0

9.2.11.3. longest_common_substring

Returns the longest common substring between two strings. This substring is the longest string that is a substring of the two input strings. For example, the longest common substring of „ABABC” and „BABCA” is „BABC”. The substring is case sensitive.

Składnia	longest_common_substring(string1, string2)
Argumenty	string1 - a string string2 - a string
Przykłady	longest_common_substring('ABABC','BABCA') → «BABC» longest_common_substring('abcDeF','abcdef') → «abc» longest_common_substring(upper('abcDeF'),upper('abcdex')) → «ABCDE»

9.2.11.4. soundex

Returns the Soundex representation of a string. Soundex is a phonetic matching algorithm, so strings with similar sounds should be represented by the same Soundex code.

Składnia	soundex(string)
Argumenty	string - a string
Przykłady	soundex('robert') → «R163» soundex('rupert') → «R163» soundex('rubin') → «R150»

9.2.12. General Functions

This group contains general assorted functions.

Show/hide list of functions

9.2.12.1. env

Gets an environment variable and returns its content as a string. If the variable is not found, NULL will be returned. This is handy to inject system specific configuration like drive letters or path prefixes. Definition of environment variables depends on the operating system, please check with your system administrator or the operating system documentation how this can be set.

Składnia	env(name)
Argumenty	name - The name of the environment variable which should be retrieved.
Przykłady	env( 'LANG' ) → «en_US.UTF-8» env( 'MY_OWN_PREFIX_VAR' ) → «Z:» env( 'I_DO_NOT_EXIST' ) → NULL

9.2.12.2. eval

Evaluates an expression which is passed in a string. Useful to expand dynamic parameters passed as context variables or fields.

Składnia	eval(expression)
Argumenty	expression - an expression string
Przykłady	eval('\'nice\'') → «nice» eval(@expression_var) → [whatever the result of evaluating @expression_var might be…]

9.2.12.3. eval_template

Evaluates a template which is passed in a string. Useful to expand dynamic parameters passed as context variables or fields.

Składnia	eval_template(template)
Argumenty	template - a template string
Przykłady	eval_template('QGIS [% upper(\'rocks\') %]') → QGIS ROCKS

9.2.12.4. is_layer_visible

Returns TRUE if a specified layer is visible.

Składnia	is_layer_visible(layer)
Argumenty	layer - a string, representing either a layer name or layer ID
Przykłady	is_layer_visible('baseraster') → TRUE

9.2.12.5. mime_type

Returns the mime type of the binary data.

Składnia	mime_type(bytes)
Argumenty	bytes - the binary data
Przykłady	mime_type('<html><body></body></html>') → text/html mime_type(from_base64('R0lGODlhAQABAAAAACH5BAEKAAEALAAAAAABAAEAAAIAOw==')) → image/gif

9.2.12.6. var

Returns the value stored within a specified variable.

Składnia	var(name)
Argumenty	name - a variable name
Przykłady	var('qgis_version') → «2.12»

Further reading: List of default variables

9.2.12.7. with_variable

This function sets a variable for any expression code that will be provided as 3rd argument. This is only useful for complicated expressions, where the same calculated value needs to be used in different places.

Składnia	with_variable(name, value, expression)
Argumenty	name - the name of the variable to set value - the value to set expression - the expression for which the variable will be available
Przykłady	with_variable('my_sum', 1 + 2 + 3, @my_sum * 2 + @my_sum * 5) → 42

9.2.13. Geometry Functions

This group contains functions that operate on geometry objects (e.g. buffer, transform, $area).

Show/hide list of functions

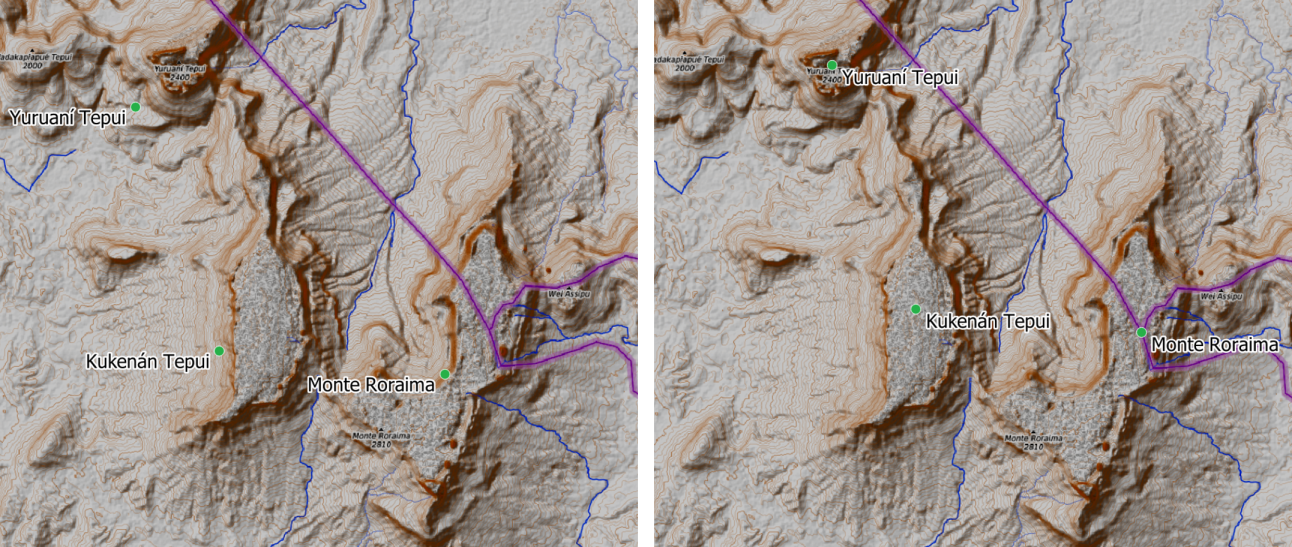

9.2.13.1. affine_transform

Returns the geometry after an affine transformation. Calculations are in the Spatial Reference System of this geometry. The operations are performed in a scale, rotation, translation order. If there is a Z or M offset but the coordinate is not present in the geometry, it will be added.

Składnia	affine_transform(geometry, delta_x, delta_y, rotation_z, scale_x, scale_y, [delta_z=0], [delta_m=0], [scale_z=1], [scale_m=1]) [] marks optional arguments
Argumenty	geometry - a geometry delta_x - x-axis translation delta_y - y-axis translation rotation_z - rotation around z-axis in degrees counter-clockwise scale_x - x-axis scale factor scale_y - y-axis scale factor delta_z - z-axis translation delta_m - m-axis translation scale_z - z-axis scale factor scale_m - m-axis scale factor
Przykłady	geom_to_wkt(affine_transform(geom_from_wkt('LINESTRING(1 1, 2 2)'), 2, 2, 0, 1, 1)) → «LineString (3 3, 4 4)» geom_to_wkt(affine_transform(geom_from_wkt('POLYGON((0 0, 0 3, 2 2, 0 0))'), 0, 0, -90, 1, 2)) → «Polygon ((0 0, 6 0, 4 -2, 0 0))» geom_to_wkt(affine_transform(geom_from_wkt('POINT(3 1)'), 0, 0, 0, 1, 1, 5, 0)) → «PointZ (3 1 5)»

Rys. 9.4 Vector point layer (green dots) before (left), and after (right) an affine transformation (translation).

9.2.13.2. angle_at_vertex

Returns the bisector angle (average angle) to the geometry for a specified vertex on a linestring geometry. Angles are in degrees clockwise from north.

Składnia	angle_at_vertex(geometry, vertex)
Argumenty	geometry - a linestring geometry vertex - vertex index, starting from 0; if the value is negative, the selected vertex index will be its total count minus the absolute value
Przykłady	angle_at_vertex(geometry:=geom_from_wkt('LineString(0 0, 10 0, 10 10)'),vertex:=1) → 45.0

9.2.13.3. apply_dash_pattern

Applies a dash pattern to a geometry, returning a MultiLineString geometry which is the input geometry stroked along each line/ring with the specified pattern.

Składnia	apply_dash_pattern(geometry, pattern, [start_rule=no_rule], [end_rule=no_rule], [adjustment=both], [pattern_offset=0]) [] marks optional arguments
Argumenty	geometry - a geometry (accepts (multi)linestrings or (multi)polygons). pattern - dash pattern, as an array of numbers representing dash and gap lengths. Must contain an even number of elements. start_rule - optional rule for constraining the start of the pattern. Valid values are «no_rule», «full_dash», «half_dash», «full_gap», «half_gap». end_rule - optional rule for constraining the end of the pattern. Valid values are «no_rule», «full_dash», «half_dash», «full_gap», «half_gap». adjustment - optional rule for specifying which part of patterns are adjusted to fit the desired pattern rules. Valid values are «both», «dash», «gap». pattern_offset - Optional distance specifying a specific distance along the pattern to commence at.
Przykłady	geom_to_wkt(apply_dash_pattern(geom_from_wkt('LINESTRING(1 1, 10 1)'), array(3, 1))) → MultiLineString ((1 1, 4 1),(5 1, 8 1),(9 1, 10 1, 10 1)) geom_to_wkt(apply_dash_pattern(geom_from_wkt('LINESTRING(1 1, 10 1)'), array(3, 1), start_rule:='half_dash')) → MultiLineString ((1 1, 2.5 1),(3.5 1, 6.5 1),(7.5 1, 10 1, 10 1))

9.2.13.4. $area

Returns the area of the current feature. The area calculated by this function respects both the current project’s ellipsoid setting and area unit settings. For example, if an ellipsoid has been set for the project then the calculated area will be ellipsoidal, and if no ellipsoid is set then the calculated area will be planimetric.

Składnia	$area
Przykłady	$area → 42

9.2.13.5. area

Returns the area of a geometry polygon object. Calculations are always planimetric in the Spatial Reference System (SRS) of this geometry, and the units of the returned area will match the units for the SRS. This differs from the calculations performed by the $area function, which will perform ellipsoidal calculations based on the project’s ellipsoid and area unit settings.

Składnia	area(geometry)
Argumenty	geometry - polygon geometry object
Przykłady	area(geom_from_wkt('POLYGON((0 0, 4 0, 4 2, 0 2, 0 0))')) → 8.0

9.2.13.6. azimuth

Returns the north-based azimuth as the angle in radians measured clockwise from the vertical on point_a to point_b.

Składnia	azimuth(point_a, point_b)
Argumenty	point_a - point geometry point_b - point geometry
Przykłady	degrees( azimuth( make_point(25, 45), make_point(75, 100) ) ) → 42.273689 degrees( azimuth( make_point(75, 100), make_point(25,45) ) ) → 222.273689

9.2.13.7. bearing

Returns the north-based bearing as the angle in radians measured clockwise on the ellipsoid from the vertical on point_a to point_b.

Składnia	bearing(point_a, point_b, [source_crs], [ellipsoid]) [] marks optional arguments
Argumenty	point_a - point geometry point_b - point geometry source_crs - an optional string representing the source CRS of the points. By default the current layer’s CRS is used. ellipsoid - an optional string representing the acronym or the authority:ID (eg «EPSG:7030») of the ellipsoid on which the bearing should be measured. By default the current project’s ellipsoid setting is used.
Przykłady	degrees( bearing( make_point(16198544, -4534850), make_point(18736872, -1877769), 'EPSG:3857', 'EPSG:7030') ) → 49.980071 degrees( bearing( make_point(18736872, -1877769), make_point(16198544, -4534850), 'EPSG:3857', 'WGS84') ) → 219.282386

9.2.13.8. boundary

Returns the closure of the combinatorial boundary of the geometry (ie the topological boundary of the geometry). For instance, a polygon geometry will have a boundary consisting of the linestrings for each ring in the polygon. Some geometry types do not have a defined boundary, e.g., points or geometry collections, and will return NULL.

Składnia	boundary(geometry)
Argumenty	geometry - a geometry
Przykłady	geom_to_wkt(boundary(geom_from_wkt('Polygon((1 1, 0 0, -1 1, 1 1))'))) → «LineString(1 1,0 0,-1 1,1 1)» geom_to_wkt(boundary(geom_from_wkt('LineString(1 1,0 0,-1 1)'))) → «MultiPoint ((1 1),(-1 1))»

Rys. 9.5 Boundary (black dashed line) of the source polygon layer

Further reading: Granica algorithm

9.2.13.9. bounds

Returns a geometry which represents the bounding box of an input geometry. Calculations are in the Spatial Reference System of this geometry.

Składnia	bounds(geometry)
Argumenty	geometry - a geometry
Przykłady	bounds(@geometry) → bounding box of the current feature’s geometry geom_to_wkt(bounds(geom_from_wkt('Polygon((1 1, 0 0, -1 1, 1 1))'))) → «Polygon ((-1 0, 1 0, 1 1, -1 1, -1 0))»

Rys. 9.6 Black lines represent the bounding boxes of each polygon feature

Further reading: Bounding boxes algorithm

9.2.13.10. bounds_height

Returns the height of the bounding box of a geometry. Calculations are in the Spatial Reference System of this geometry.

Składnia	bounds_height(geometry)
Argumenty	geometry - a geometry
Przykłady	bounds_height(@geometry) → height of bounding box of the current feature’s geometry bounds_height(geom_from_wkt('Polygon((1 1, 0 0, -1 1, 1 1))')) → 1

9.2.13.11. bounds_width

Returns the width of the bounding box of a geometry. Calculations are in the Spatial Reference System of this geometry.

Składnia	bounds_width(geometry)
Argumenty	geometry - a geometry
Przykłady	bounds_width(@geometry) → width of bounding box of the current feature’s geometry bounds_width(geom_from_wkt('Polygon((1 1, 0 0, -1 1, 1 1))')) → 2

9.2.13.12. buffer

Returns a geometry that represents all points whose distance from this geometry is less than or equal to distance. Calculations are in the Spatial Reference System of this geometry.

Składnia	buffer(geometry, distance, [segments=8], [cap=»round»], [join=»round»], [miter_limit=2]) [] marks optional arguments
Argumenty	geometry - a geometry distance - buffer distance in layer units segments - number of segments to use to represent a quarter circle when a round join style is used. A larger number results in a smoother buffer with more nodes. cap - end cap style for buffer. Valid values are «round», «flat» or «square» join - join style for buffer. Valid values are «round», «bevel» or «miter». miter_limit - miter distance limit, for use when the join style is set to «miter»
Przykłady	buffer(@geometry, 10.5) → polygon of the current feature’s geometry buffered by 10.5 units

Rys. 9.7 Buffer (in yellow) of points, line, polygon with positive buffer, and polygon with negative buffer

Further reading: Buffer algorithm

9.2.13.13. buffer_by_m

Creates a buffer along a line geometry where the buffer diameter varies according to the m-values at the line vertices.

Składnia	buffer_by_m(geometry, [segments=8]) [] marks optional arguments
Argumenty	geometry - input geometry. Must be a (multi)line geometry with m values. segments - number of segments to approximate quarter-circle curves in the buffer.
Przykłady	buffer_by_m(geometry:=geom_from_wkt('LINESTRINGM(1 2 0.5, 4 2 0.2)'),segments:=8) → A variable width buffer starting with a diameter of 0.5 and ending with a diameter of 0.2 along the linestring geometry.

Rys. 9.8 Buffering line features using the m value on the vertices

Further reading: Variable width buffer (by M value) algorithm

9.2.13.14. centroid

Returns the geometric center of a geometry.

Składnia	centroid(geometry)
Argumenty	geometry - a geometry
Przykłady	centroid(@geometry) → a point geometry

Rys. 9.9 The red stars represent the centroids of the features of the input layer.

Further reading: Centroids algorithm

9.2.13.15. close_line

Returns a closed line string of the input line string by appending the first point to the end of the line, if it is not already closed. If the geometry is not a line string or multi line string then the result will be NULL.

Składnia	close_line(geometry)
Argumenty	geometry - a line string geometry
Przykłady	geom_to_wkt(close_line(geom_from_wkt('LINESTRING(0 0, 1 0, 1 1)'))) → «LineString (0 0, 1 0, 1 1, 0 0)» geom_to_wkt(close_line(geom_from_wkt('LINESTRING(0 0, 1 0, 1 1, 0 0)'))) → «LineString (0 0, 1 0, 1 1, 0 0)»

9.2.13.16. closest_point

Returns the point on geometry1 that is closest to geometry2.

Składnia	closest_point(geometry1, geometry2)
Argumenty	geometry1 - geometry to find closest point on geometry2 - geometry to find closest point to
Przykłady	geom_to_wkt(closest_point(geom_from_wkt('LINESTRING (20 80, 98 190, 110 180, 50 75 )'),geom_from_wkt('POINT(100 100)'))) → «Point(73.0769 115.384)»

9.2.13.17. collect_geometries

Collects a set of geometries into a multi-part geometry object.

List of arguments variant

Geometry parts are specified as separate arguments to the function.

Składnia	collect_geometries(geometry1, geometry2, …)
Argumenty	geometry - a geometry
Przykłady	geom_to_wkt(collect_geometries(make_point(1,2), make_point(3,4), make_point(5,6))) → «MultiPoint ((1 2),(3 4),(5 6))»

Array variant

Geometry parts are specified as an array of geometry parts.

Składnia	collect_geometries(array)
Argumenty	array - array of geometry objects
Przykłady	geom_to_wkt(collect_geometries(array(make_point(1,2), make_point(3,4), make_point(5,6)))) → «MultiPoint ((1 2),(3 4),(5 6))»

Further reading: Collect geometries algorithm

9.2.13.18. combine

Returns the combination of two geometries.

Składnia	combine(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	geom_to_wkt( combine( geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ), geom_from_wkt( 'LINESTRING(3 3, 4 4, 2 1)' ) ) ) → «MULTILINESTRING((4 4, 2 1), (3 3, 4 4), (4 4, 5 5))» geom_to_wkt( combine( geom_from_wkt( 'LINESTRING(3 3, 4 4)' ), geom_from_wkt( 'LINESTRING(3 3, 6 6, 2 1)' ) ) ) → «LINESTRING(3 3, 4 4, 6 6, 2 1)»

9.2.13.19. concave_hull

Returns a possibly concave polygon that contains all the points in the geometry

Składnia	concave_hull(geometry, target_percent, [allow_holes=False]) [] marks optional arguments
Argumenty	geometry - a geometry target_percent - the percentage of area of the convex hull the solution tries to approach. A target_percent of 1 gives the same result as the convex hull. A target_percent between 0 and 0.99 produces a result that should have a smaller area than the convex hull. allow_holes - optional argument specifying whether to allow holes within the output geometry. Defaults to FALSE, set to TRUE to allow including holes in the output geometry.
Przykłady	geom_to_wkt(concave_hull(geom_from_wkt('MULTILINESTRING((106 164,30 112,74 70,82 112,130 94,130 62,122 40,156 32,162 76,172 88),(132 178,134 148,128 136,96 128,132 108,150 130,170 142,174 110,156 96,158 90,158 88),(22 64,66 28,94 38,94 68,114 76,112 30,132 10,168 18,178 34,186 52,184 74,190 100,190 122,182 148,178 170,176 184,156 164,146 178,132 186,92 182,56 158,36 150,62 150,76 128,88 118))'), 0.99)) → «Polygon ((30 112, 36 150, 92 182, 132 186, 176 184, 190 122, 190 100, 186 52, 178 34, 168 18, 132 10, 112 30, 66 28, 22 64, 30 112))»

Rys. 9.10 Concave hulls with increasing target_percent parameter

Further reading: convex_hull, Concave hull algorithm

9.2.13.20. contains

Tests whether a geometry contains another. Returns TRUE if and only if no points of geometry2 lie in the exterior of geometry1, and at least one point of the interior of geometry2 lies in the interior of geometry1.

Składnia	contains(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	contains( geom_from_wkt( 'POLYGON((0 0, 0 1, 1 1, 1 0, 0 0))' ), geom_from_wkt( 'POINT(0.5 0.5 )' ) ) → TRUE contains( geom_from_wkt( 'POLYGON((0 0, 0 1, 1 1, 1 0, 0 0))' ), geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ) ) → FALSE

Further reading: overlay_contains

9.2.13.21. convex_hull

Returns the convex hull of a geometry. It represents the minimum convex geometry that encloses all geometries within the set.

Składnia	convex_hull(geometry)
Argumenty	geometry - a geometry
Przykłady	geom_to_wkt( convex_hull( geom_from_wkt( 'LINESTRING(3 3, 4 4, 4 10)' ) ) ) → «POLYGON((3 3, 4 10, 4 4, 3 3))»

Rys. 9.11 Black lines identify the convex hull for each feature

Further reading: concave_hull, Convex hull algorithm

9.2.13.22. crosses

Tests whether a geometry crosses another. Returns TRUE if the supplied geometries have some, but not all, interior points in common.

Składnia	crosses(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	crosses( geom_from_wkt( 'LINESTRING(3 5, 4 4, 5 3)' ), geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ) ) → TRUE crosses( geom_from_wkt( 'POINT(4 5)' ), geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ) ) → FALSE

Further reading: overlay_crosses

9.2.13.23. densify_by_count

Takes a polygon or line layer geometry and generates a new one in which the geometries have a larger number of vertices than the original one.

Składnia	densify_by_count(geometry, vertices)
Argumenty	geometry - a geometry (accepts (multi)linestrings or (multi)polygons). vertices - number of vertices to add (per segment)
Przykłady	geom_to_wkt(densify_by_count(geom_from_wkt('LINESTRING(1 1, 10 1)'), 3)) → LineString (1 1, 3.25 1, 5.5 1, 7.75 1, 10 1)

Rys. 9.12 Red points show the vertices before and after the densify

Further reading: Densify by count algorithm

9.2.13.24. densify_by_distance

Takes a polygon or line layer geometry and generates a new one in which the geometries are densified by adding additional vertices on edges that have a maximum distance of the specified interval distance.

Składnia	densify_by_distance(geometry, distance)
Argumenty	geometry - a geometry (accepts (multi)linestrings or (multi)polygons). distance - maximum interval distance between vertices in output geometry
Przykłady	geom_to_wkt(densify_by_distance(geom_from_wkt('LINESTRING(1 1, 10 1)'), 4)) → LineString (1 1, 4 1, 7 1, 10 1)

Rys. 9.13 Densify geometry at a given interval

Further reading: Densify by interval algorithm

9.2.13.25. difference

Returns a geometry that represents that part of geometry1 that does not intersect with geometry2.

Składnia	difference(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	geom_to_wkt( difference( geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ), geom_from_wkt( 'LINESTRING(3 3, 4 4)' ) ) ) → «LINESTRING(4 4, 5 5)»

Further reading: Difference algorithm

9.2.13.26. disjoint

Tests whether geometries do not spatially intersect. Returns TRUE if the geometries do not share any space together.

Składnia	disjoint(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	disjoint( geom_from_wkt( 'POLYGON((0 0, 0 1, 1 1, 1 0, 0 0 ))' ), geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ) ) → TRUE disjoint( geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ), geom_from_wkt( 'POINT(4 4)' )) → FALSE

Further reading: overlay_disjoint

9.2.13.27. distance

Returns the minimum distance (based on spatial reference) between two geometries in projected units.

Składnia	distance(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	distance( geom_from_wkt( 'POINT(4 4)' ), geom_from_wkt( 'POINT(4 8)' ) ) → 4

9.2.13.28. distance_to_vertex

Returns the distance along the geometry to a specified vertex.

Składnia	distance_to_vertex(geometry, vertex)
Argumenty	geometry - a linestring geometry vertex - vertex index, starting from 0; if the value is negative, the selected vertex index will be its total count minus the absolute value
Przykłady	distance_to_vertex(geometry:=geom_from_wkt('LineString(0 0, 10 0, 10 10)'),vertex:=1) → 10.0

9.2.13.29. end_point

Returns the last node from a geometry.

Składnia	end_point(geometry)
Argumenty	geometry - geometry object
Przykłady	geom_to_wkt(end_point(geom_from_wkt('LINESTRING(4 0, 4 2, 0 2)'))) → «Point (0 2)»

Rys. 9.14 End point of a line feature

Further reading: start_point, Extract specific vertices algorithm

9.2.13.30. exif_geotag

Creates a point geometry from the exif geotags of an image file.

Składnia	exif_geotag(path)
Argumenty	path - An image file path or a map layer value. If a map layer value is specified then the file source of the layer will be used.
Przykłady	geom_to_wkt(exif_geotag('/my/photo.jpg')) → «Point (2 4)»

9.2.13.31. extend

Extends the start and end of a linestring geometry by a specified amount. Lines are extended using the bearing of the first and last segment in the line. For a multilinestring, all the parts are extended. Distances are in the Spatial Reference System of this geometry.

Składnia	extend(geometry, start_distance, end_distance)
Argumenty	geometry - a (multi)linestring geometry start_distance - distance to extend the start of the line end_distance - distance to extend the end of the line.
Przykłady	geom_to_wkt(extend(geom_from_wkt('LineString(0 0, 1 0, 1 1)'),1,2)) → «LineString (-1 0, 1 0, 1 3)» geom_to_wkt(extend(geom_from_wkt('MultiLineString((0 0, 1 0, 1 1), (2 2, 0 2, 0 5))'),1,2)) → «MultiLineString ((-1 0, 1 0, 1 3),(3 2, 0 2, 0 7))»

Rys. 9.15 The red dashes represent the initial and final extension of the original layer

Further reading: Extend lines algorithm

9.2.13.32. exterior_ring

Returns a line string representing the exterior ring of a polygon geometry. If the geometry is not a polygon then the result will be NULL.

Składnia	exterior_ring(geometry)
Argumenty	geometry - a polygon geometry
Przykłady	geom_to_wkt(exterior_ring(geom_from_wkt('POLYGON((-1 -1, 4 0, 4 2, 0 2, -1 -1),( 0.1 0.1, 0.1 0.2, 0.2 0.2, 0.2, 0.1, 0.1 0.1))'))) → «LineString (-1 -1, 4 0, 4 2, 0 2, -1 -1)»

Rys. 9.16 The dashed line represents the exterior ring of the polygon

9.2.13.33. extrude

Returns an extruded version of the input (Multi-)Curve or (Multi-)Linestring geometry with an extension specified by x and y.

Składnia	extrude(geometry, x, y)
Argumenty	geometry - a curve or linestring geometry x - x extension, numeric value y - y extension, numeric value
Przykłady	geom_to_wkt(extrude(geom_from_wkt('LineString(1 2, 3 2, 4 3)'), 1, 2)) → «Polygon ((1 2, 3 2, 4 3, 5 5, 4 4, 2 4, 1 2))» geom_to_wkt(extrude(geom_from_wkt('MultiLineString((1 2, 3 2), (4 3, 8 3))'), 1, 2)) → «MultiPolygon (((1 2, 3 2, 4 4, 2 4, 1 2)),((4 3, 8 3, 9 5, 5 5, 4 3)))»

Rys. 9.17 Generating a polygon by extruding a line with offset in x and y directions

9.2.13.34. flip_coordinates

Returns a copy of the geometry with the x and y coordinates swapped. Useful for repairing geometries which have had their latitude and longitude values reversed.

Składnia	flip_coordinates(geometry)
Argumenty	geometry - a geometry
Przykłady	geom_to_wkt(flip_coordinates(make_point(1, 2))) → «Point (2 1)» geom_to_wkt(flip_coordinates(geom_from_wkt('LineString(0 2, 1 0, 1 6)'))) → «LineString (2 0, 0 1, 6 1)»

Further reading: Swap X and Y coordinates algorithm

9.2.13.35. force_polygon_ccw

Forces a geometry to respect the convention where exterior rings are counter-clockwise, interior rings are clockwise.

Składnia	force_polygon_ccw(geometry)
Argumenty	geometry - a geometry. Any non-polygon geometries are returned unchanged.
Przykłady	geom_to_wkt(force_polygon_ccw(geometry:=geom_from_wkt('Polygon ((-1 -1, 0 2, 4 2, 4 0, -1 -1))'))) → «Polygon ((-1 -1, 4 0, 4 2, 0 2, -1 -1))»

Further reading: force_polygon_cw, force_rhr

9.2.13.36. force_polygon_cw

Forces a geometry to respect the convention where exterior rings are clockwise, interior rings are counter-clockwise.

Składnia	force_polygon_cw(geometry)
Argumenty	geometry - a geometry. Any non-polygon geometries are returned unchanged.
Przykłady	geom_to_wkt(force_polygon_cw(geometry:=geom_from_wkt('POLYGON((-1 -1, 4 0, 4 2, 0 2, -1 -1))'))) → «Polygon ((-1 -1, 0 2, 4 2, 4 0, -1 -1))»

Further reading: force_polygon_ccw, force_rhr

9.2.13.37. force_rhr

Forces a geometry to respect the Right-Hand-Rule, in which the area that is bounded by a polygon is to the right of the boundary. In particular, the exterior ring is oriented in a clockwise direction and the interior rings in a counter-clockwise direction. Due to the inconsistency in the definition of the Right-Hand-Rule in some contexts it is recommended to use the explicit force_polygon_cw function instead.

Składnia	force_rhr(geometry)
Argumenty	geometry - a geometry. Any non-polygon geometries are returned unchanged.
Przykłady	geom_to_wkt(force_rhr(geometry:=geom_from_wkt('POLYGON((-1 -1, 4 0, 4 2, 0 2, -1 -1))'))) → «Polygon ((-1 -1, 0 2, 4 2, 4 0, -1 -1))»

Further reading: Force right-hand-rule algorithm, force_polygon_ccw, force_polygon_cw

9.2.13.38. geom_from_gml

Returns a geometry from a GML representation of geometry.

Składnia	geom_from_gml(gml)
Argumenty	gml - GML representation of a geometry as a string
Przykłady	geom_from_gml('<gml:LineString srsName="EPSG:4326"><gml:coordinates>4,4 5,5 6,6</gml:coordinates></gml:LineString>') → a line geometry object

9.2.13.39. geom_from_wkb

Returns a geometry created from a Well-Known Binary (WKB) representation.

Składnia	geom_from_wkb(binary)
Argumenty	binary - Well-Known Binary (WKB) representation of a geometry (as a binary blob)
Przykłady	geom_from_wkb( geom_to_wkb( make_point(4,5) ) ) → a point geometry object

9.2.13.40. geom_from_wkt

Returns a geometry created from a Well-Known Text (WKT) representation.

Składnia	geom_from_wkt(text)
Argumenty	text - Well-Known Text (WKT) representation of a geometry
Przykłady	geom_from_wkt( 'POINT(4 5)' ) → a geometry object

9.2.13.41. geom_to_wkb

Returns the Well-Known Binary (WKB) representation of a geometry

Składnia	geom_to_wkb(geometry)
Argumenty	geometry - a geometry
Przykłady	geom_to_wkb( @geometry ) → binary blob containing a geometry object

9.2.13.42. geom_to_wkt

Returns the Well-Known Text (WKT) representation of the geometry without SRID metadata.

Składnia	geom_to_wkt(geometry, [precision=8]) [] marks optional arguments
Argumenty	geometry - a geometry precision - numeric precision
Przykłady	geom_to_wkt( make_point(6, 50) ) → «POINT(6 50)» geom_to_wkt(centroid(geom_from_wkt('Polygon((1 1, 0 0, -1 1, 1 1))'))) → «POINT(0 0.66666667)» geom_to_wkt(centroid(geom_from_wkt('Polygon((1 1, 0 0, -1 1, 1 1))')), 2) → «POINT(0 0.67)»

9.2.13.43. $geometry

Returns the geometry of the current feature. Can be used for processing with other functions. WARNING: This function is deprecated. It is recommended to use the replacement @geometry variable instead.

Składnia	$geometry
Przykłady	geom_to_wkt( $geometry ) → «POINT(6 50)»

9.2.13.44. geometry

Returns a feature’s geometry.

Składnia	geometry(feature)
Argumenty	feature - a feature object
Przykłady	geometry( @feature ) → the geometry of the current feature. Prefer using @geometry. geom_to_wkt( geometry( get_feature_by_id( 'streets', 1 ) ) ) → the geometry in WKT of the feature with the id 1 on the layer „streets”, e.g. «POINT(6 50)» intersects( @geometry, geometry( get_feature( 'streets', 'name', 'Main St.' ) ) ) → TRUE if the current feature spatially intersects the «Main St.» named feature in the „streets” layer

9.2.13.45. geometry_n

Returns a specific geometry from a geometry collection, or NULL if the input geometry is not a collection. Also returns a part from a multipart geometry.

Składnia	geometry_n(geometry, index)
Argumenty	geometry - geometry collection index - index of geometry to return, where 1 is the first geometry in the collection
Przykłady	geom_to_wkt(geometry_n(geom_from_wkt('GEOMETRYCOLLECTION(POINT(0 1), POINT(0 0), POINT(1 0), POINT(1 1))'),3)) → «Point (1 0)»

9.2.13.46. geometry_type

Returns a string value describing the type of a geometry (Point, Line or Polygon)

Składnia	geometry_type(geometry)
Argumenty	geometry - a geometry
Przykłady	geometry_type( geom_from_wkt( 'LINESTRING(2 5, 3 6, 4 8)') ) → «Line» geometry_type( geom_from_wkt( 'MULTILINESTRING((2 5, 3 6, 4 8), (1 1, 0 0))') ) → «Line» geometry_type( geom_from_wkt( 'POINT(2 5)') ) → «Point» geometry_type( geom_from_wkt( 'POLYGON((-1 -1, 4 0, 4 2, 0 2, -1 -1))') ) → «Polygon»

9.2.13.47. hausdorff_distance

Returns the Hausdorff distance between two geometries. This is basically a measure of how similar or dissimilar 2 geometries are, with a lower distance indicating more similar geometries.

The function can be executed with an optional densify fraction argument. If not specified, an approximation to the standard Hausdorff distance is used. This approximation is exact or close enough for a large subset of useful cases. Examples of these are:

• computing distance between Linestrings that are roughly parallel to each other, and roughly equal in length. This occurs in matching linear networks.

• Testing similarity of geometries.

If the default approximate provided by this method is insufficient, specify the optional densify fraction argument. Specifying this argument performs a segment densification before computing the discrete Hausdorff distance. The parameter sets the fraction by which to densify each segment. Each segment will be split into a number of equal-length subsegments, whose fraction of the total length is closest to the given fraction. Decreasing the densify fraction parameter will make the distance returned approach the true Hausdorff distance for the geometries.

Składnia	hausdorff_distance(geometry1, geometry2, [densify_fraction]) [] marks optional arguments
Argumenty	geometry1 - a geometry geometry2 - a geometry densify_fraction - densify fraction amount
Przykłady	hausdorff_distance( geometry1:= geom_from_wkt('LINESTRING (0 0, 2 1)'),geometry2:=geom_from_wkt('LINESTRING (0 0, 2 0)')) → 2 hausdorff_distance( geom_from_wkt('LINESTRING (130 0, 0 0, 0 150)'),geom_from_wkt('LINESTRING (10 10, 10 150, 130 10)')) → 14.142135623 hausdorff_distance( geom_from_wkt('LINESTRING (130 0, 0 0, 0 150)'),geom_from_wkt('LINESTRING (10 10, 10 150, 130 10)'),0.5) → 70.0

9.2.13.48. inclination

Returns the inclination measured from the zenith (0) to the nadir (180) on point_a to point_b.

Składnia	inclination(point_a, point_b)
Argumenty	point_a - point geometry point_b - point geometry
Przykłady	inclination( make_point( 5, 10, 0 ), make_point( 5, 10, 5 ) ) → 0.0 inclination( make_point( 5, 10, 0 ), make_point( 5, 10, 0 ) ) → 90.0 inclination( make_point( 5, 10, 0 ), make_point( 50, 100, 0 ) ) → 90.0 inclination( make_point( 5, 10, 0 ), make_point( 5, 10, -5 ) ) → 180.0

9.2.13.49. interior_ring_n

Returns a specific interior ring from a polygon geometry, or NULL if the geometry is not a polygon.

Składnia	interior_ring_n(geometry, index)
Argumenty	geometry - polygon geometry index - index of interior to return, where 1 is the first interior ring
Przykłady	geom_to_wkt(interior_ring_n(geom_from_wkt('POLYGON((-1 -1, 4 0, 4 2, 0 2, -1 -1),(-0.1 -0.1, 0.4 0, 0.4 0.2, 0 0.2, -0.1 -0.1),(-1 -1, 4 0, 4 2, 0 2, -1 -1))'),1)) → «LineString (-0.1 -0.1, 0.4 0, 0.4 0.2, 0 0.2, -0.1 -0.1))»

9.2.13.50. intersection

Returns a geometry that represents the shared portion of two geometries.

Składnia	intersection(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	geom_to_wkt( intersection( geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ), geom_from_wkt( 'LINESTRING(3 3, 4 4)' ) ) ) → «LINESTRING(3 3, 4 4)» geom_to_wkt( intersection( geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ), geom_from_wkt( 'MULTIPOINT(3.5 3.5, 4 5)' ) ) ) → «POINT(3.5 3.5)»

Further reading: Przecięcie algorithm

9.2.13.51. intersects

Tests whether a geometry intersects another. Returns TRUE if the geometries spatially intersect (share any portion of space) and false if they do not.

Składnia	intersects(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	intersects( geom_from_wkt( 'POINT(4 4)' ), geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ) ) → TRUE intersects( geom_from_wkt( 'POINT(4 5)' ), geom_from_wkt( 'POINT(5 5)' ) ) → FALSE

Further reading: overlay_intersects

9.2.13.52. intersects_bbox

Tests whether a geometry’s bounding box overlaps another geometry’s bounding box. Returns TRUE if the geometries spatially intersect the bounding box defined and false if they do not.

Składnia	intersects_bbox(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	intersects_bbox( geom_from_wkt( 'POINT(4 5)' ), geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ) ) → TRUE intersects_bbox( geom_from_wkt( 'POINT(6 5)' ), geom_from_wkt( 'POLYGON((3 3, 4 4, 5 5, 3 3))' ) ) → FALSE

9.2.13.53. is_closed

Returns TRUE if a line string is closed (start and end points are coincident), or false if a line string is not closed. If the geometry is not a line string then the result will be NULL.

Składnia	is_closed(geometry)
Argumenty	geometry - a line string geometry
Przykłady	is_closed(geom_from_wkt('LINESTRING(0 0, 1 1, 2 2)')) → FALSE is_closed(geom_from_wkt('LINESTRING(0 0, 1 1, 2 2, 0 0)')) → TRUE

9.2.13.54. is_empty

Returns TRUE if a geometry is empty (without coordinates), false if the geometry is not empty and NULL if there is no geometry. See also is_empty_or_null.

Składnia	is_empty(geometry)
Argumenty	geometry - a geometry
Przykłady	is_empty(geom_from_wkt('LINESTRING(0 0, 1 1, 2 2)')) → FALSE is_empty(geom_from_wkt('LINESTRING EMPTY')) → TRUE is_empty(geom_from_wkt('POINT(7 4)')) → FALSE is_empty(geom_from_wkt('POINT EMPTY')) → TRUE

Further reading: is_empty_or_null

9.2.13.55. is_empty_or_null

Returns TRUE if a geometry is NULL or empty (without coordinates) or false otherwise. This function is like the expression «@geometry IS NULL or is_empty(@geometry)»

Składnia	is_empty_or_null(geometry)
Argumenty	geometry - a geometry
Przykłady	is_empty_or_null(NULL) → TRUE is_empty_or_null(geom_from_wkt('LINESTRING(0 0, 1 1, 2 2)')) → FALSE is_empty_or_null(geom_from_wkt('LINESTRING EMPTY')) → TRUE is_empty_or_null(geom_from_wkt('POINT(7 4)')) → FALSE is_empty_or_null(geom_from_wkt('POINT EMPTY')) → TRUE

Further reading: is_empty, NULL

9.2.13.56. is_multipart

Returns TRUE if the geometry is of Multi type.

Składnia	is_multipart(geometry)
Argumenty	geometry - a geometry
Przykłady	is_multipart(geom_from_wkt('MULTIPOINT ((0 0),(1 1),(2 2))')) → TRUE is_multipart(geom_from_wkt('POINT (0 0)')) → FALSE

9.2.13.57. is_valid

Returns TRUE if a geometry is valid; if it is well-formed in 2D according to the OGC rules.

Składnia	is_valid(geometry)
Argumenty	geometry - a geometry
Przykłady	is_valid(geom_from_wkt('LINESTRING(0 0, 1 1, 2 2, 0 0)')) → TRUE is_valid(geom_from_wkt('LINESTRING(0 0)')) → FALSE

Further reading: make_valid, Check validity algorithm

9.2.13.58. $length

Returns the length of a linestring. If you need the length of a border of a polygon, use $perimeter instead. The length calculated by this function respects both the current project’s ellipsoid setting and distance unit settings. For example, if an ellipsoid has been set for the project then the calculated length will be ellipsoidal, and if no ellipsoid is set then the calculated length will be planimetric.

Składnia	$length
Przykłady	$length → 42.4711

9.2.13.59. length

Returns the number of characters in a string or the length of a geometry linestring.

String variant

Returns the number of characters in a string.

Składnia	length(string)
Argumenty	string - string to count length of
Przykłady	length('hello') → 5

Geometry variant

Calculate the length of a geometry line object. Calculations are always planimetric in the Spatial Reference System (SRS) of this geometry, and the units of the returned length will match the units for the SRS. This differs from the calculations performed by the $length function, which will perform ellipsoidal calculations based on the project’s ellipsoid and distance unit settings.

Składnia	length(geometry)
Argumenty	geometry - line geometry object
Przykłady	length(geom_from_wkt('LINESTRING(0 0, 4 0)')) → 4.0

Further reading: straight_distance_2d

9.2.13.60. length3D

Calculates the 3D length of a geometry line object. If the geometry is not a 3D line object, it returns its 2D length. Calculations are always planimetric in the Spatial Reference System (SRS) of this geometry, and the units of the returned length will match the units for the SRS. This differs from the calculations performed by the $length function, which will perform ellipsoidal calculations based on the project’s ellipsoid and distance unit settings.

Składnia	length3D(geometry)
Argumenty	geometry - line geometry object
Przykłady	length3D(geom_from_wkt('LINESTRINGZ(0 0 0, 3 0 4)')) → 5.0

9.2.13.61. line_interpolate_angle

Returns the angle parallel to the geometry at a specified distance along a linestring geometry. Angles are in degrees clockwise from north.

Składnia	line_interpolate_angle(geometry, distance)
Argumenty	geometry - a linestring geometry distance - distance along line to interpolate angle at
Przykłady	line_interpolate_angle(geometry:=geom_from_wkt('LineString(0 0, 10 0)'),distance:=5) → 90.0

9.2.13.62. line_interpolate_point

Returns the point interpolated by a specified distance along a linestring geometry.

Składnia	line_interpolate_point(geometry, distance)
Argumenty	geometry - a linestring geometry distance - distance along line to interpolate
Przykłady	geom_to_wkt(line_interpolate_point(geometry:=geom_from_wkt('LineString(0 0, 8 0)'), distance:=5)) → «Point (5 0)» geom_to_wkt(line_interpolate_point(geometry:=geom_from_wkt('LineString(0 0, 1 1, 2 0)'), distance:=2.1)) → «Point (1.48492424 0.51507576)» geom_to_wkt(line_interpolate_point(geometry:=geom_from_wkt('LineString(0 0, 1 0)'), distance:=2)) → NULL

Rys. 9.18 Interpolated point at 500m of the beginning of the line

Further reading: Interpolate point on line algorithm

9.2.13.63. line_interpolate_point_by_m

Returns the point interpolated by a matching M value along a linestring geometry.

Składnia	line_interpolate_point_by_m(geometry, m, [use_3d_distance=false]) [] marks optional arguments
Argumenty	geometry - a linestring geometry m - an M value use_3d_distance - controls whether 2D or 3D distances between vertices should be used during interpolation (this option is only considered for lines with z values)
Przykłady	geom_to_wkt(line_interpolate_point_by_m(geom_from_wkt('LineStringM(0 0 0, 10 10 10)'), m:=5)) → «Point (5 5)»

9.2.13.64. line_locate_m

Returns the distance along a linestring corresponding to the first matching interpolated M value.

Składnia	line_locate_m(geometry, m, [use_3d_distance=false]) [] marks optional arguments
Argumenty	geometry - a linestring geometry m - an M value use_3d_distance - controls whether 2D or 3D distances between vertices should be used during interpolation (this option is only considered for lines with z values)
Przykłady	line_locate_m(geometry:=geom_from_wkt('LineStringM(0 0 0, 10 10 10)'),m:=5) → 7.07106

9.2.13.65. line_locate_point

Returns the distance along a linestring corresponding to the closest position the linestring comes to a specified point geometry.

Składnia	line_locate_point(geometry, point)
Argumenty	geometry - a linestring geometry point - point geometry to locate closest position on linestring to
Przykłady	line_locate_point(geometry:=geom_from_wkt('LineString(0 0, 10 0)'),point:=geom_from_wkt('Point(5 0)')) → 5.0

9.2.13.66. line_merge

Returns a LineString or MultiLineString geometry, where any connected LineStrings from the input geometry have been merged into a single linestring. This function will return NULL if passed a geometry which is not a LineString/MultiLineString.

Składnia	line_merge(geometry)
Argumenty	geometry - a LineString/MultiLineString geometry
Przykłady	geom_to_wkt(line_merge(geom_from_wkt('MULTILINESTRING((0 0, 1 1),(1 1, 2 2))'))) → «LineString(0 0,1 1,2 2)» geom_to_wkt(line_merge(geom_from_wkt('MULTILINESTRING((0 0, 1 1),(11 1, 21 2))'))) → «MultiLineString((0 0, 1 1),(11 1, 21 2)»

9.2.13.67. line_substring

Returns the portion of a line (or curve) geometry which falls between the specified start and end distances (measured from the beginning of the line). Z and M values are linearly interpolated from existing values.

Składnia	line_substring(geometry, start_distance, end_distance)
Argumenty	geometry - a linestring or curve geometry start_distance - distance to start of substring end_distance - distance to end of substring
Przykłady	geom_to_wkt(line_substring(geometry:=geom_from_wkt('LineString(0 0, 10 0)'),start_distance:=2,end_distance:=6)) → «LineString (2 0,6 0)»

Rys. 9.19 Substring line with starting distance set at 0 meters and the ending distance at 250 meters.

Further reading: Line substring algorithm

9.2.13.68. m

Returns the m (measure) value of a point geometry.

Składnia	m(geometry)
Argumenty	geometry - a point geometry
Przykłady	m( geom_from_wkt( 'POINTM(2 5 4)' ) ) → 4

9.2.13.69. m_at

Retrieves a m coordinate of the geometry, or NULL if the geometry has no m value.

Składnia	m_at(geometry, vertex)
Argumenty	geometry - geometry object vertex - index of the vertex of the geometry (indices start at 0; negative values apply from the last index, starting at -1)
Przykłady	m_at(geom_from_wkt('LineStringZM(0 0 0 0, 10 10 0 5, 10 10 0 0)'), 1) → 5

9.2.13.70. m_max

Returns the maximum m (measure) value of a geometry.

Składnia	m_max(geometry)
Argumenty	geometry - a geometry containing m values
Przykłady	m_max( make_point_m( 0,0,1 ) ) → 1 m_max(make_line( make_point_m( 0,0,1 ), make_point_m( -1,-1,2 ), make_point_m( -2,-2,0 ) ) ) → 2

9.2.13.71. m_min

Returns the minimum m (measure) value of a geometry.

Składnia	m_min(geometry)
Argumenty	geometry - a geometry containing m values
Przykłady	m_min( make_point_m( 0,0,1 ) ) → 1 m_min(make_line( make_point_m( 0,0,1 ), make_point_m( -1,-1,2 ), make_point_m( -2,-2,0 ) ) ) → 0

9.2.13.72. main_angle

Returns the angle of the long axis (clockwise, in degrees from North) of the oriented minimal bounding rectangle, which completely covers the geometry.

Składnia	main_angle(geometry)
Argumenty	geometry - a geometry
Przykłady	main_angle(geom_from_wkt('Polygon ((321577 129614, 321581 129618, 321585 129615, 321581 129610, 321577 129614))')) → 38.66

9.2.13.73. make_circle

Creates a circular polygon.

Składnia	make_circle(center, radius, [segments=36]) [] marks optional arguments
Argumenty	center - center point of the circle radius - radius of the circle segments - optional argument for polygon segmentation. By default this value is 36
Przykłady	geom_to_wkt(make_circle(make_point(10,10), 5, 4)) → «Polygon ((10 15, 15 10, 10 5, 5 10, 10 15))» geom_to_wkt(make_circle(make_point(10,10,5), 5, 4)) → «PolygonZ ((10 15 5, 15 10 5, 10 5 5, 5 10 5, 10 15 5))» geom_to_wkt(make_circle(make_point(10,10,5,30), 5, 4)) → «PolygonZM ((10 15 5 30, 15 10 5 30, 10 5 5 30, 5 10 5 30, 10 15 5 30))»

9.2.13.74. make_ellipse

Creates an elliptical polygon.

Składnia	make_ellipse(center, semi_major_axis, semi_minor_axis, azimuth, [segments=36]) [] marks optional arguments
Argumenty	center - center point of the ellipse semi_major_axis - semi-major axis of the ellipse semi_minor_axis - semi-minor axis of the ellipse azimuth - orientation of the ellipse segments - optional argument for polygon segmentation. By default this value is 36
Przykłady	geom_to_wkt(make_ellipse(make_point(10,10), 5, 2, 90, 4)) → «Polygon ((15 10, 10 8, 5 10, 10 12, 15 10))» geom_to_wkt(make_ellipse(make_point(10,10,5), 5, 2, 90, 4)) → «PolygonZ ((15 10 5, 10 8 5, 5 10 5, 10 12 5, 15 10 5))» geom_to_wkt(make_ellipse(make_point(10,10,5,30), 5, 2, 90, 4)) → «PolygonZM ((15 10 5 30, 10 8 5 30, 5 10 5 30, 10 12 5 30, 15 10 5 30))»

9.2.13.75. make_line

Creates a line geometry from a series of point geometries.

List of arguments variant

Line vertices are specified as separate arguments to the function.

Składnia	make_line(point1, point2, …)
Argumenty	point - a point geometry (or array of points)
Przykłady	geom_to_wkt(make_line(make_point(2,4),make_point(3,5))) → «LineString (2 4, 3 5)» geom_to_wkt(make_line(make_point(2,4),make_point(3,5),make_point(9,7))) → «LineString (2 4, 3 5, 9 7)»

Array variant

Line vertices are specified as an array of points.

Składnia	make_line(array)
Argumenty	array - array of points
Przykłady	geom_to_wkt(make_line(array(make_point(2,4),make_point(3,5),make_point(9,7)))) → «LineString (2 4, 3 5, 9 7)»

9.2.13.76. make_point

Creates a point geometry from an x and y (and optional z and m) value.

Składnia	make_point(x, y, [z], [m]) [] marks optional arguments
Argumenty	x - x coordinate of point y - y coordinate of point z - optional z coordinate of point m - optional m value of point
Przykłady	geom_to_wkt(make_point(2,4)) → «Point (2 4)» geom_to_wkt(make_point(2,4,6)) → «PointZ (2 4 6)» geom_to_wkt(make_point(2,4,6,8)) → «PointZM (2 4 6 8)»

9.2.13.77. make_point_m

Creates a point geometry from an x, y coordinate and m value.

Składnia	make_point_m(x, y, m)
Argumenty	x - x coordinate of point y - y coordinate of point m - m value of point
Przykłady	geom_to_wkt(make_point_m(2,4,6)) → «PointM (2 4 6)»

9.2.13.78. make_polygon

Creates a polygon geometry from an outer ring and optional series of inner ring geometries.

Składnia	make_polygon(outerRing, [innerRing1], [innerRing2], …) [] marks optional arguments
Argumenty	outerRing - closed line geometry for polygon’s outer ring innerRing - optional closed line geometry for inner ring
Przykłady	geom_to_wkt(make_polygon(geom_from_wkt('LINESTRING( 0 0, 0 1, 1 1, 1 0, 0 0 )'))) → «Polygon ((0 0, 0 1, 1 1, 1 0, 0 0))» geom_to_wkt(make_polygon(geom_from_wkt('LINESTRING( 0 0, 0 1, 1 1, 1 0, 0 0 )'),geom_from_wkt('LINESTRING( 0.1 0.1, 0.1 0.2, 0.2 0.2, 0.2 0.1, 0.1 0.1 )'),geom_from_wkt('LINESTRING( 0.8 0.8, 0.8 0.9, 0.9 0.9, 0.9 0.8, 0.8 0.8 )'))) → «Polygon ((0 0, 0 1, 1 1, 1 0, 0 0),(0.1 0.1, 0.1 0.2, 0.2 0.2, 0.2 0.1, 0.1 0.1),(0.8 0.8, 0.8 0.9, 0.9 0.9, 0.9 0.8, 0.8 0.8))»

9.2.13.79. make_rectangle_3points

Creates a rectangle from 3 points.

Składnia	make_rectangle_3points(point1, point2, point3, [option=0]) [] marks optional arguments
Argumenty	point1 - First point. point2 - Second point. point3 - Third point. option - An optional argument to construct the rectangle. By default this value is 0. Value can be 0 (distance) or 1 (projected). Option distance: Second distance is equal to the distance between 2nd and 3rd point. Option projected: Second distance is equal to the distance of the perpendicular projection of the 3rd point on the segment or its extension.
Przykłady	geom_to_wkt(make_rectangle_3points(make_point(0, 0), make_point(0,5), make_point(5, 5), 0)) → «Polygon ((0 0, 0 5, 5 5, 5 0, 0 0))» geom_to_wkt(make_rectangle_3points(make_point(0, 0), make_point(0,5), make_point(5, 3), 1)) → «Polygon ((0 0, 0 5, 5 5, 5 0, 0 0))»

9.2.13.80. make_regular_polygon

Creates a regular polygon.

Składnia	make_regular_polygon(center, radius, number_sides, [circle=0]) [] marks optional arguments
Argumenty	center - center of the regular polygon radius - second point. The first if the regular polygon is inscribed. The midpoint of the first side if the regular polygon is circumscribed. number_sides - Number of sides/edges of the regular polygon circle - Optional argument to construct the regular polygon. By default this value is 0. Value can be 0 (inscribed) or 1 (circumscribed)
Przykłady	geom_to_wkt(make_regular_polygon(make_point(0,0), make_point(0,5), 5)) → «Polygon ((0 5, 4.76 1.55, 2.94 -4.05, -2.94 -4.05, -4.76 1.55, 0 5))» geom_to_wkt(make_regular_polygon(make_point(0,0), project(make_point(0,0), 4.0451, radians(36)), 5)) → «Polygon ((0 5, 4.76 1.55, 2.94 -4.05, -2.94 -4.05, -4.76 1.55, 0 5))»

9.2.13.81. make_square

Creates a square from a diagonal.

Składnia	make_square(point1, point2)
Argumenty	point1 - First point of the diagonal point2 - Last point of the diagonal
Przykłady	geom_to_wkt(make_square( make_point(0,0), make_point(5,5))) → «Polygon ((0 0, -0 5, 5 5, 5 0, 0 0))» geom_to_wkt(make_square( make_point(5,0), make_point(5,5))) → «Polygon ((5 0, 2.5 2.5, 5 5, 7.5 2.5, 5 0))»

9.2.13.82. make_triangle

Creates a triangle polygon.

Składnia	make_triangle(point1, point2, point3)
Argumenty	point1 - first point of the triangle point2 - second point of the triangle point3 - third point of the triangle
Przykłady	geom_to_wkt(make_triangle(make_point(0,0), make_point(5,5), make_point(0,10))) → «Triangle ((0 0, 5 5, 0 10, 0 0))» geom_to_wkt(boundary(make_triangle(make_point(0,0), make_point(5,5), make_point(0,10)))) → «LineString (0 0, 5 5, 0 10, 0 0)»

9.2.13.83. make_valid

Returns a valid geometry or an empty geometry if the geometry could not be made valid.

Składnia	make_valid(geometry, [method=structure], [keep_collapsed=false]) [] marks optional arguments
Argumenty	geometry - a geometry method - repair algorithm. May be either «structure» or «linework». The «linework» option combines all rings into a set of noded lines and then extracts valid polygons from that linework. The «structure» method first makes all rings valid and then merges shells and subtracts holes from shells to generate valid result. Assumes that holes and shells are correctly categorized. keep_collapsed - if set to true, then components that have collapsed into a lower dimensionality will be kept. For example, a ring collapsing to a line, or a line collapsing to a point.
Przykłady	geom_to_wkt(make_valid(geom_from_wkt('POLYGON((3 2, 4 1, 5 8, 3 2, 4 2))'))) → «Polygon ((3 2, 5 8, 4 1, 3 2))» geom_to_wkt(make_valid(geom_from_wkt('POLYGON((3 2, 4 1, 5 8, 3 2, 4 2))'), 'linework')) → «GeometryCollection (Polygon ((5 8, 4 1, 3 2, 5 8)),LineString (3 2, 4 2))» geom_to_wkt(make_valid(geom_from_wkt('POLYGON((3 2, 4 1, 5 8))'), method:='linework')) → «Polygon ((3 2, 4 1, 5 8, 3 2))» make_valid(geom_from_wkt('LINESTRING(0 0)')) → An empty geometry

Further reading: is_valid, Fix geometries algorithm

9.2.13.84. minimal_circle

Returns the minimal enclosing circle of a geometry. It represents the minimum circle that encloses all geometries within the set.

Składnia	minimal_circle(geometry, [segments=36]) [] marks optional arguments
Argumenty	geometry - a geometry segments - optional argument for polygon segmentation. By default this value is 36
Przykłady	geom_to_wkt( minimal_circle( geom_from_wkt( 'LINESTRING(0 5, 0 -5, 2 1)' ), 4 ) ) → «Polygon ((0 5, 5 -0, -0 -5, -5 0, 0 5))» geom_to_wkt( minimal_circle( geom_from_wkt( 'MULTIPOINT(1 2, 3 4, 3 2)' ), 4 ) ) → «Polygon ((3 4, 3 2, 1 2, 1 4, 3 4))»

Rys. 9.20 Minimal enclosing circle of each feature

Further reading: Minimum enclosing circles algorithm

9.2.13.85. nodes_to_points

Returns a multipoint geometry consisting of every node in the input geometry.

Składnia	nodes_to_points(geometry, [ignore_closing_nodes=false]) [] marks optional arguments
Argumenty	geometry - geometry object ignore_closing_nodes - optional argument specifying whether to include duplicate nodes which close lines or polygons rings. Defaults to false, set to true to avoid including these duplicate nodes in the output collection.
Przykłady	geom_to_wkt(nodes_to_points(geom_from_wkt('LINESTRING(0 0, 1 1, 2 2)'))) → «MultiPoint ((0 0),(1 1),(2 2))» geom_to_wkt(nodes_to_points(geom_from_wkt('POLYGON((-1 -1, 4 0, 4 2, 0 2, -1 -1))'),true)) → «MultiPoint ((-1 -1),(4 0),(4 2),(0 2))»

Rys. 9.21 Multi-point feature extracted from vertices

Further reading: Extract vertices algorithm

9.2.13.86. num_geometries

Returns the number of geometries in a geometry collection, or the number of parts in a multi-part geometry. The function returns NULL if the input geometry is not a collection.

Składnia	num_geometries(geometry)
Argumenty	geometry - geometry collection or multi-part geometry
Przykłady	num_geometries(geom_from_wkt('GEOMETRYCOLLECTION(POINT(0 1), POINT(0 0), POINT(1 0), POINT(1 1))')) → 4 num_geometries(geom_from_wkt('MULTIPOINT((0 1), (0 0), (1 0))')) → 3

9.2.13.87. num_interior_rings

Returns the number of interior rings in a polygon or geometry collection, or NULL if the input geometry is not a polygon or collection.

Składnia	num_interior_rings(geometry)
Argumenty	geometry - input geometry
Przykłady	num_interior_rings(geom_from_wkt('POLYGON((-1 -1, 4 0, 4 2, 0 2, -1 -1),(-0.1 -0.1, 0.4 0, 0.4 0.2, 0 0.2, -0.1 -0.1))')) → 1

9.2.13.88. num_points

Returns the number of vertices in a geometry.

Składnia	num_points(geometry)
Argumenty	geometry - a geometry
Przykłady	num_points(@geometry) → number of vertices in the current feature’s geometry

9.2.13.89. num_rings

Returns the number of rings (including exterior rings) in a polygon or geometry collection, or NULL if the input geometry is not a polygon or collection.

Składnia	num_rings(geometry)
Argumenty	geometry - input geometry
Przykłady	num_rings(geom_from_wkt('POLYGON((-1 -1, 4 0, 4 2, 0 2, -1 -1),(-0.1 -0.1, 0.4 0, 0.4 0.2, 0 0.2, -0.1 -0.1))')) → 2

9.2.13.90. offset_curve

Returns a geometry formed by offsetting a linestring geometry to the side. Distances are in the Spatial Reference System of this geometry.

Składnia	offset_curve(geometry, distance, [segments=8], [join=1], [miter_limit=2.0]) [] marks optional arguments
Argumenty	geometry - a (multi)linestring geometry distance - offset distance. Positive values will be buffered to the left of lines, negative values to the right segments - number of segments to use to represent a quarter circle when a round join style is used. A larger number results in a smoother line with more nodes. join - join style for corners, where 1 = round, 2 = miter and 3 = bevel miter_limit - limit on the miter ratio used for very sharp corners (when using miter joins only)
Przykłady	offset_curve(@geometry, 10.5) → line offset to the left by 10.5 units offset_curve(@geometry, -10.5) → line offset to the right by 10.5 units offset_curve(@geometry, 10.5, segments:=16, join:=1) → line offset to the left by 10.5 units, using more segments to result in a smoother curve offset_curve(@geometry, 10.5, join:=3) → line offset to the left by 10.5 units, using a beveled join

Rys. 9.22 In blue the source layer, in red the offset one

Further reading: Offset lines algorithm

9.2.13.91. order_parts

Orders the parts of a MultiGeometry by a given criteria

Składnia	order_parts(geometry, orderby, [ascending=true]) [] marks optional arguments
Argumenty	geometry - a multi-type geometry orderby - an expression string defining the order criteria ascending - boolean, True for ascending, False for descending
Przykłady	geom_to_wkt(order_parts(geom_from_wkt('MultiPolygon (((1 1, 5 1, 5 5, 1 5, 1 1)),((1 1, 9 1, 9 9, 1 9, 1 1)))'), 'area(@geometry)', False)) → «MultiPolygon (((1 1, 9 1, 9 9, 1 9, 1 1)),((1 1, 5 1, 5 5, 1 5, 1 1)))» geom_to_wkt(order_parts(geom_from_wkt('LineString(1 2, 3 2, 4 3)'), '1', True)) → «LineString(1 2, 3 2, 4 3)»

9.2.13.92. oriented_bbox

Returns a geometry which represents the minimal oriented bounding box of an input geometry.

Składnia	oriented_bbox(geometry)
Argumenty	geometry - a geometry
Przykłady	geom_to_wkt( oriented_bbox( geom_from_wkt( 'MULTIPOINT(1 2, 3 4, 3 2)' ) ) ) → «Polygon ((3 2, 3 4, 1 4, 1 2, 3 2))»

Rys. 9.23 Oriented minimum bounding box

Further reading: Oriented minimum bounding box algorithm

9.2.13.93. overlaps

Tests whether a geometry overlaps another. Returns TRUE if the geometries share space, are of the same dimension, but are not completely contained by each other.

Składnia	overlaps(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	overlaps( geom_from_wkt( 'LINESTRING(3 5, 4 4, 5 5, 5 3)' ), geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ) ) → TRUE overlaps( geom_from_wkt( 'LINESTRING(0 0, 1 1)' ), geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ) ) → FALSE

9.2.13.94. overlay_contains

Returns whether the current feature spatially contains at least one feature from a target layer, or an array of expression-based results for the features in the target layer contained in the current feature.

Read more on the underlying GEOS „Contains” predicate, as described in PostGIS ST_Contains function.

Składnia	overlay_contains(layer, [expression], [filter], [limit], [cache=false]) [] marks optional arguments
Argumenty	layer - the layer whose overlay is checked expression - an optional expression to evaluate on the features from the target layer. If not set, the function will just return a boolean indicating whether there is at least one match. filter - an optional expression to filter the target features to check. If not set, all the features will be checked. limit - an optional integer to limit the number of matching features. If not set, all the matching features will be returned. cache - set this to true to build a local spatial index (most of the time, this is unwanted, unless you are working with a particularly slow data provider)
Przykłady	overlay_contains('regions') → TRUE if the current feature spatially contains a region overlay_contains('regions', filter:= population > 10000) → TRUE if the current feature spatially contains a region with a population greater than 10000 overlay_contains('regions', name) → an array of names, for the regions contained in the current feature array_to_string(overlay_contains('regions', name)) → a string as a comma separated list of names, for the regions contained in the current feature array_sort(overlay_contains(layer:='regions', expression:="name", filter:= population > 10000)) → an ordered array of names, for the regions contained in the current feature and with a population greater than 10000 overlay_contains(layer:='regions', expression:= geom_to_wkt(@geometry), limit:=2) → an array of geometries (in WKT), for up to two regions contained in the current feature

Further reading: contains, array manipulation, Select by location algorithm

9.2.13.95. overlay_crosses

Returns whether the current feature spatially crosses at least one feature from a target layer, or an array of expression-based results for the features in the target layer crossed by the current feature.

Read more on the underlying GEOS „Crosses” predicate, as described in PostGIS ST_Crosses function.

Składnia	overlay_crosses(layer, [expression], [filter], [limit], [cache=false]) [] marks optional arguments
Argumenty	layer - the layer whose overlay is checked expression - an optional expression to evaluate on the features from the target layer. If not set, the function will just return a boolean indicating whether there is at least one match. filter - an optional expression to filter the target features to check. If not set, all the features will be checked. limit - an optional integer to limit the number of matching features. If not set, all the matching features will be returned. cache - set this to true to build a local spatial index (most of the time, this is unwanted, unless you are working with a particularly slow data provider)
Przykłady	overlay_crosses('regions') → TRUE if the current feature spatially crosses a region overlay_crosses('regions', filter:= population > 10000) → TRUE if the current feature spatially crosses a region with a population greater than 10000 overlay_crosses('regions', name) → an array of names, for the regions crossed by the current feature array_to_string(overlay_crosses('regions', name)) → a string as a comma separated list of names, for the regions crossed by the current feature array_sort(overlay_crosses(layer:='regions', expression:="name", filter:= population > 10000)) → an ordered array of names, for the regions crossed by the current feature and with a population greater than 10000 overlay_crosses(layer:='regions', expression:= geom_to_wkt(@geometry), limit:=2) → an array of geometries (in WKT), for up to two regions crossed by the current feature

Further reading: crosses, array manipulation, Select by location algorithm

9.2.13.96. overlay_disjoint

Returns whether the current feature is spatially disjoint from all the features of a target layer, or an array of expression-based results for the features in the target layer that are disjoint from the current feature.

Read more on the underlying GEOS „Disjoint” predicate, as described in PostGIS ST_Disjoint function.

Składnia	overlay_disjoint(layer, [expression], [filter], [limit], [cache=false]) [] marks optional arguments
Argumenty	layer - the layer whose overlay is checked expression - an optional expression to evaluate on the features from the target layer. If not set, the function will just return a boolean indicating whether there is at least one match. filter - an optional expression to filter the target features to check. If not set, all the features will be checked. limit - an optional integer to limit the number of matching features. If not set, all the matching features will be returned. cache - set this to true to build a local spatial index (most of the time, this is unwanted, unless you are working with a particularly slow data provider)
Przykłady	overlay_disjoint('regions') → TRUE if the current feature is spatially disjoint from all the regions overlay_disjoint('regions', filter:= population > 10000) → TRUE if the current feature is spatially disjoint from all the regions with a population greater than 10000 overlay_disjoint('regions', name) → an array of names, for the regions spatially disjoint from the current feature array_to_string(overlay_disjoint('regions', name)) → a string as a comma separated list of names, for the regions spatially disjoint from the current feature array_sort(overlay_disjoint(layer:='regions', expression:="name", filter:= population > 10000)) → an ordered array of names, for the regions spatially disjoint from the current feature and with a population greater than 10000 overlay_disjoint(layer:='regions', expression:= geom_to_wkt(@geometry), limit:=2) → an array of geometries (in WKT), for up to two regions spatially disjoint from the current feature

Further reading: disjoint, array manipulation, Select by location algorithm

9.2.13.97. overlay_equals

Returns whether the current feature spatially equals to at least one feature from a target layer, or an array of expression-based results for the features in the target layer that are spatially equal to the current feature.

Read more on the underlying GEOS „Equals” predicate, as described in PostGIS ST_Equals function.

Składnia	overlay_equals(layer, [expression], [filter], [limit], [cache=false]) [] marks optional arguments
Argumenty	layer - the layer whose overlay is checked expression - an optional expression to evaluate on the features from the target layer. If not set, the function will just return a boolean indicating whether there is at least one match. filter - an optional expression to filter the target features to check. If not set, all the features will be checked. limit - an optional integer to limit the number of matching features. If not set, all the matching features will be returned. cache - set this to true to build a local spatial index (most of the time, this is unwanted, unless you are working with a particularly slow data provider)
Przykłady	overlay_equals('regions') → TRUE if the current feature is spatially equal to a region overlay_equals('regions', filter:= population > 10000) → TRUE if the current feature is spatially equal to a region with a population greater than 10000 overlay_equals('regions', name) → an array of names, for the regions spatially equal to the current feature array_to_string(overlay_equals('regions', name)) → a string as a comma separated list of names, for the regions spatially equal to the current feature array_sort(overlay_equals(layer:='regions', expression:="name", filter:= population > 10000)) → an ordered array of names, for the regions spatially equal to the current feature and with a population greater than 10000 overlay_equals(layer:='regions', expression:= geom_to_wkt(@geometry), limit:=2) → an array of geometries (in WKT), for up to two regions spatially equal to the current feature

Further reading: array manipulation, Select by location algorithm

9.2.13.98. overlay_intersects

Returns whether the current feature spatially intersects at least one feature from a target layer, or an array of expression-based results for the features in the target layer intersected by the current feature.

Read more on the underlying GEOS „Intersects” predicate, as described in PostGIS ST_Intersects function.

Składnia	overlay_intersects(layer, [expression], [filter], [limit], [cache=false], [min_overlap], [min_inscribed_circle_radius], [return_details], [sort_by_intersection_size]) [] marks optional arguments
Argumenty	layer - the layer whose overlay is checked expression - an optional expression to evaluate on the features from the target layer. If not set, the function will just return a boolean indicating whether there is at least one match. filter - an optional expression to filter the target features to check. If not set, all the features will be checked. limit - an optional integer to limit the number of matching features. If not set, all the matching features will be returned. cache - set this to true to build a local spatial index (most of the time, this is unwanted, unless you are working with a particularly slow data provider) min_overlap - defines an optional exclusion filter: for polygons, a minimum area in current feature squared units for the intersection. If the intersection results in multiple polygons the intersection will be returned if at least one of the polygons has an area greater or equal to the value for lines, a minimum length in current feature units. If the intersection results in multiple lines the intersection will be returned if at least one of the lines has a length greater or equal to the value. min_inscribed_circle_radius - defines an optional exclusion filter (for polygons only): minimum radius in current feature units for the maximum inscribed circle of the intersection. If the intersection results in multiple polygons the intersection will be returned if at least one of the polygons has a radius for the maximum inscribed circle greater or equal to the value. Read more on the underlying GEOS predicate, as described in PostGIS ST_MaximumInscribedCircle function. This argument requires GEOS >= 3.9. return_details - Set this to true to return a list of maps containing (key names in quotes) the feature «id», the expression «result» and the «overlap» value (of the largest element in case of multipart). The «radius» of the maximum inscribed circle is also returned when the target layer is a polygon. Only valid when used with the expression parameter sort_by_intersection_size - only valid when used with an expression, set this to «des» to return the results ordered by the overlap value in descending order or set this to «asc» for ascending order.
Przykłady	overlay_intersects('regions') → TRUE if the current feature spatially intersects a region overlay_intersects('regions', filter:= population > 10000) → TRUE if the current feature spatially intersects a region with a population greater than 10000 overlay_intersects('regions', name) → an array of names, for the regions intersected by the current feature array_to_string(overlay_intersects('regions', name)) → a string as a comma separated list of names, for the regions intersected by the current feature array_sort(overlay_intersects(layer:='regions', expression:="name", filter:= population > 10000)) → an ordered array of names, for the regions intersected by the current feature and with a population greater than 10000 overlay_intersects(layer:='regions', expression:= geom_to_wkt(@geometry), limit:=2) → an array of geometries (in WKT), for up to two regions intersected by the current feature overlay_intersects(layer:='regions', min_overlap:=0.54) → TRUE if the current feature spatially intersects a region and the intersection area (of at least one of the parts in case of multipolygons) is greater or equal to 0.54 overlay_intersects(layer:='regions', min_inscribed_circle_radius:=0.54) → TRUE if the current feature spatially intersects a region and the intersection area maximum inscribed circle’s radius (of at least one of the parts in case of multipart) is greater or equal to 0.54 overlay_intersects(layer:='regions', expression:= geom_to_wkt(@geometry), return_details:=true) → an array of maps containing «id», «result», «overlap» and «radius» overlay_intersects(layer:='regions', expression:= geom_to_wkt(@geometry), sort_by_intersection_size:='des') → an array of geometries (in WKT) ordered by the overlap value in descending order

Further reading: intersects, array manipulation, Select by location algorithm

9.2.13.99. overlay_nearest

Returns whether the current feature has feature(s) from a target layer within a given distance, or an array of expression-based results for the features in the target layer within a distance from the current feature.

Note: This function can be slow and consume a lot of memory for large layers.

Składnia	overlay_nearest(layer, [expression], [filter], [limit=1], [max_distance], [cache=false]) [] marks optional arguments
Argumenty	layer - the target layer expression - an optional expression to evaluate on the features from the target layer. If not set, the function will just return a boolean indicating whether there is at least one match. filter - an optional expression to filter the target features to check. If not set, all the features in the target layer will be used. limit - an optional integer to limit the number of matching features. If not set, only the nearest feature will be returned. If set to -1, returns all the matching features. max_distance - an optional distance to limit the search of matching features. If not set, all the features in the target layer will be used. cache - set this to true to build a local spatial index (most of the time, this is unwanted, unless you are working with a particularly slow data provider)
Przykłady	overlay_nearest('airports') → TRUE if the „airports” layer has at least one feature overlay_nearest('airports', max_distance:= 5000) → TRUE if there is an airport within a distance of 5000 map units from the current feature overlay_nearest('airports', name) → the name of the closest airport to the current feature, as an array array_to_string(overlay_nearest('airports', name)) → the name of the closest airport to the current feature, as a string overlay_nearest(layer:='airports', expression:= name, max_distance:= 5000) → the name of the closest airport within a distance of 5000 map units from the current feature, as an array overlay_nearest(layer:='airports', expression:="name", filter:= "Use"='Civilian', limit:=3) → an array of names, for up to the three closest civilian airports ordered by distance overlay_nearest(layer:='airports', expression:="name", limit:= -1, max_distance:= 5000) → an array of names, for all the airports within a distance of 5000 map units from the current feature, ordered by distance

Further reading: array manipulation, Join attributes by nearest algorithm

9.2.13.100. overlay_touches

Returns whether the current feature spatially touches at least one feature from a target layer, or an array of expression-based results for the features in the target layer touched by the current feature.

Read more on the underlying GEOS „Touches” predicate, as described in PostGIS ST_Touches function.

Składnia	overlay_touches(layer, [expression], [filter], [limit], [cache=false]) [] marks optional arguments
Argumenty	layer - the layer whose overlay is checked expression - an optional expression to evaluate on the features from the target layer. If not set, the function will just return a boolean indicating whether there is at least one match. filter - an optional expression to filter the target features to check. If not set, all the features will be checked. limit - an optional integer to limit the number of matching features. If not set, all the matching features will be returned. cache - set this to true to build a local spatial index (most of the time, this is unwanted, unless you are working with a particularly slow data provider)
Przykłady	overlay_touches('regions') → TRUE if the current feature spatially touches a region overlay_touches('regions', filter:= population > 10000) → TRUE if the current feature spatially touches a region with a population greater than 10000 overlay_touches('regions', name) → an array of names, for the regions touched by the current feature string_to_array(overlay_touches('regions', name)) → a string as a comma separated list of names, for the regions touched by the current feature array_sort(overlay_touches(layer:='regions', expression:="name", filter:= population > 10000)) → an ordered array of names, for the regions touched by the current feature and with a population greater than 10000 overlay_touches(layer:='regions', expression:= geom_to_wkt(@geometry), limit:=2) → an array of geometries (in WKT), for up to two regions touched by the current feature

Further reading: touches, array manipulation, Select by location algorithm

9.2.13.101. overlay_within

Returns whether the current feature is spatially within at least one feature from a target layer, or an array of expression-based results for the features in the target layer that contain the current feature.

Read more on the underlying GEOS „Within” predicate, as described in PostGIS ST_Within function.

Składnia	overlay_within(layer, [expression], [filter], [limit], [cache=false]) [] marks optional arguments
Argumenty	layer - the layer whose overlay is checked expression - an optional expression to evaluate on the features from the target layer. If not set, the function will just return a boolean indicating whether there is at least one match. filter - an optional expression to filter the target features to check. If not set, all the features will be checked. limit - an optional integer to limit the number of matching features. If not set, all the matching features will be returned. cache - set this to true to build a local spatial index (most of the time, this is unwanted, unless you are working with a particularly slow data provider)
Przykłady	overlay_within('regions') → TRUE if the current feature is spatially within a region overlay_within('regions', filter:= population > 10000) → TRUE if the current feature is spatially within a region with a population greater than 10000 overlay_within('regions', name) → an array of names, for the regions containing the current feature array_to_string(overlay_within('regions', name)) → a string as a comma separated list of names, for the regions containing the current feature array_sort(overlay_within(layer:='regions', expression:="name", filter:= population > 10000)) → an ordered array of names, for the regions containing the current feature and with a population greater than 10000 overlay_within(layer:='regions', expression:= geom_to_wkt(@geometry), limit:=2) → an array of geometries (in WKT), for up to two regions containing the current feature

Further reading: within, array manipulation, Select by location algorithm

9.2.13.102. $perimeter

Returns the perimeter length of the current feature. The perimeter calculated by this function respects both the current project’s ellipsoid setting and distance unit settings. For example, if an ellipsoid has been set for the project then the calculated perimeter will be ellipsoidal, and if no ellipsoid is set then the calculated perimeter will be planimetric.

Składnia	$perimeter
Przykłady	$perimeter → 42

9.2.13.103. perimeter

Returns the perimeter of a geometry polygon object. Calculations are always planimetric in the Spatial Reference System (SRS) of this geometry, and the units of the returned perimeter will match the units for the SRS. This differs from the calculations performed by the $perimeter function, which will perform ellipsoidal calculations based on the project’s ellipsoid and distance unit settings.

Składnia	perimeter(geometry)
Argumenty	geometry - polygon geometry object
Przykłady	perimeter(geom_from_wkt('POLYGON((0 0, 4 0, 4 2, 0 2, 0 0))')) → 12.0

9.2.13.104. point_n

Returns a specific node from a geometry.

Składnia	point_n(geometry, index)
Argumenty	geometry - geometry object index - index of node to return, where 1 is the first node; if the value is negative, the selected vertex index will be its total count minus the absolute value
Przykłady	geom_to_wkt(point_n(geom_from_wkt('POLYGON((0 0, 4 0, 4 2, 0 2, 0 0))'),2)) → «Point (4 0)»

Further reading: Extract specific vertices algorithm

9.2.13.105. point_on_surface

Returns a point guaranteed to lie on the surface of a geometry.

Składnia	point_on_surface(geometry)
Argumenty	geometry - a geometry
Przykłady	point_on_surface(@geometry) → a point geometry

Further reading: Point on Surface algorithm

9.2.13.106. pole_of_inaccessibility

Calculates the approximate pole of inaccessibility for a surface, which is the most distant internal point from the boundary of the surface. This function uses the «polylabel» algorithm (Vladimir Agafonkin, 2016), which is an iterative approach guaranteed to find the true pole of inaccessibility within a specified tolerance. More precise tolerances require more iterations and will take longer to calculate.

Składnia	pole_of_inaccessibility(geometry, tolerance)
Argumenty	geometry - a geometry tolerance - maximum distance between the returned point and the true pole location
Przykłady	geom_to_wkt(pole_of_inaccessibility( geom_from_wkt('POLYGON((0 1, 0 9, 3 10, 3 3, 10 3, 10 1, 0 1))'), 0.1)) → «Point(1.546875 2.546875)»

Rys. 9.24 Pole of inaccessibility

Further reading: Pole of inaccessibility algorithm

9.2.13.107. project

Returns a point projected from a start point using a distance, a bearing (azimuth) and an elevation in radians.

Składnia	project(point, distance, azimuth, [elevation]) [] marks optional arguments
Argumenty	point - start point distance - distance to project azimuth - azimuth in radians clockwise, where 0 corresponds to north elevation - angle of inclination in radians
Przykłady	geom_to_wkt(project(make_point(1, 2), 3, radians(270))) → «Point(-2, 2)»

Further reading: Project points (Cartesian) algorithm

9.2.13.108. relate

Tests the Dimensional Extended 9 Intersection Model (DE-9IM) representation of the relationship between two geometries.

Relationship variant

Returns the Dimensional Extended 9 Intersection Model (DE-9IM) representation of the relationship between two geometries.

Składnia	relate(geometry, geometry)
Argumenty	geometry - a geometry geometry - a geometry
Przykłady	relate( geom_from_wkt( 'LINESTRING(40 40,120 120)' ), geom_from_wkt( 'LINESTRING(40 40,60 120)' ) ) → «FF1F00102»

Pattern match variant

Tests whether the DE-9IM relationship between two geometries matches a specified pattern.

Składnia	relate(geometry, geometry, pattern)
Argumenty	geometry - a geometry geometry - a geometry pattern - DE-9IM pattern to match
Przykłady	relate( geom_from_wkt( 'LINESTRING(40 40,120 120)' ), geom_from_wkt( 'LINESTRING(40 40,60 120)' ), '**1F001**' ) → TRUE

9.2.13.109. reverse

Reverses the direction of a line string by reversing the order of its vertices.

Składnia	reverse(geometry)
Argumenty	geometry - a geometry
Przykłady	geom_to_wkt(reverse(geom_from_wkt('LINESTRING(0 0, 1 1, 2 2)'))) → «LINESTRING(2 2, 1 1, 0 0)»

Rys. 9.25 Reversing line direction

Further reading: Reverse line direction algorithm

9.2.13.110. rotate

Returns a rotated version of a geometry. Calculations are in the Spatial Reference System of this geometry.

Składnia	rotate(geometry, rotation, [center=NULL], [per_part=false]) [] marks optional arguments
Argumenty	geometry - a geometry rotation - clockwise rotation in degrees center - rotation center point. If not specified, the center of the geometry’s bounding box is used. per_part - apply rotation per part. If true, then rotation will apply around the center of each part’s bounding box when the input geometry is multipart and an explicit rotation center point is not specified.
Przykłady	rotate(@geometry, 45, make_point(4, 5)) → geometry rotated 45 degrees clockwise around the (4, 5) point rotate(@geometry, 45) → geometry rotated 45 degrees clockwise around the center of its bounding box

Rys. 9.26 Rotating features

9.2.13.111. roundness

Calculates how close a polygon shape is to a circle. The function Returns TRUE when the polygon shape is a perfect circle and 0 when it is completely flat.

Składnia	roundness(geometry)
Argumenty	geometry - a polygon
Przykłady	round(roundness(geom_from_wkt('POLYGON(( 0 0, 0 1, 1 1, 1 0, 0 0))')), 3) → 0.785 round(roundness(geom_from_wkt('POLYGON(( 0 0, 0 0.1, 1 0.1, 1 0, 0 0))')), 3) → 0.260

Further reading: Roundness algorithm

9.2.13.112. scale

Returns a scaled version of a geometry. Calculations are in the Spatial Reference System of this geometry.

Składnia	scale(geometry, x_scale, y_scale, [center]) [] marks optional arguments
Argumenty	geometry - a geometry x_scale - x-axis scaling factor y_scale - y-axis scaling factor center - scaling center point. If not specified, the center of the geometry’s bounding box is used.
Przykłady	scale(@geometry, 2, 0.5, make_point(4, 5)) → geometry scaled twice horizontally and halved vertically, around the (4, 5) point scale(@geometry, 2, 0.5) → geometry twice horizontally and halved vertically, around the center of its bounding box

9.2.13.113. segments_to_lines

Returns a multi line geometry consisting of a line for every segment in the input geometry.

Składnia	segments_to_lines(geometry)
Argumenty	geometry - geometry object
Przykłady	geom_to_wkt(segments_to_lines(geom_from_wkt('LINESTRING(0 0, 1 1, 2 2)'))) → «MultiLineString ((0 0, 1 1),(1 1, 2 2))»

Further reading: Explode lines algorithm

9.2.13.114. shared_paths

Returns a collection containing paths shared by the two input geometries. Those going in the same direction are in the first element of the collection, those going in the opposite direction are in the second element. The paths themselves are given in the direction of the first geometry.

Składnia	shared_paths(geometry1, geometry2)
Argumenty	geometry1 - a LineString/MultiLineString geometry geometry2 - a LineString/MultiLineString geometry
Przykłady	geom_to_wkt(shared_paths(geom_from_wkt('MULTILINESTRING((26 125,26 200,126 200,126 125,26 125),(51 150,101 150,76 175,51 150)))'),geom_from_wkt('LINESTRING(151 100,126 156.25,126 125,90 161, 76 175)'))) → «GeometryCollection (MultiLineString ((126 156.25, 126 125),(101 150, 90 161),(90 161, 76 175)),MultiLineString EMPTY)» geom_to_wkt(shared_paths(geom_from_wkt('LINESTRING(76 175,90 161,126 125,126 156.25,151 100)'),geom_from_wkt('MULTILINESTRING((26 125,26 200,126 200,126 125,26 125),(51 150,101 150,76 175,51 150))'))) → «GeometryCollection (MultiLineString EMPTY,MultiLineString ((76 175, 90 161),(90 161, 101 150),(126 125, 126 156.25)))»

9.2.13.115. shortest_line

Returns the shortest line joining geometry1 to geometry2. The resultant line will start at geometry1 and end at geometry2.

Składnia	shortest_line(geometry1, geometry2)
Argumenty	geometry1 - geometry to find shortest line from geometry2 - geometry to find shortest line to
Przykłady	geom_to_wkt(shortest_line(geom_from_wkt('LINESTRING (20 80, 98 190, 110 180, 50 75 )'),geom_from_wkt('POINT(100 100)'))) → «LineString(73.0769 115.384, 100 100)»

9.2.13.116. simplify

Simplifies a geometry by removing nodes using a distance based threshold (ie, the Douglas Peucker algorithm). The algorithm preserves large deviations in geometries and reduces the number of vertices in nearly straight segments.

Składnia	simplify(geometry, tolerance)
Argumenty	geometry - a geometry tolerance - maximum deviation from straight segments for points to be removed
Przykłady	geom_to_wkt(simplify(geometry:=geom_from_wkt('LineString(0 0, 5 0.1, 10 0)'),tolerance:=5)) → «LineString(0 0, 10 0)»

Rys. 9.27 From left to right, source layer and increasing simplification tolerances

Further reading: Simplify algorithm

9.2.13.117. simplify_vw

Simplifies a geometry by removing nodes using an area based threshold (ie, the Visvalingam-Whyatt algorithm). The algorithm removes vertices which create small areas in geometries, e.g., narrow spikes or nearly straight segments.

Składnia	simplify_vw(geometry, tolerance)
Argumenty	geometry - a geometry tolerance - a measure of the maximum area created by a node for the node to be removed
Przykłady	geom_to_wkt(simplify_vw(geometry:=geom_from_wkt('LineString(0 0, 5 0, 5.01 10, 5.02 0, 10 0)'),tolerance:=5)) → «LineString(0 0, 10 0)»

Further reading: Simplify algorithm

9.2.13.118. single_sided_buffer

Returns a geometry formed by buffering out just one side of a linestring geometry. Distances are in the Spatial Reference System of this geometry.

Składnia	single_sided_buffer(geometry, distance, [segments=8], [join=1], [miter_limit=2.0]) [] marks optional arguments
Argumenty	geometry - a (multi)linestring geometry distance - buffer distance. Positive values will be buffered to the left of lines, negative values to the right segments - number of segments to use to represent a quarter circle when a round join style is used. A larger number results in a smoother buffer with more nodes. join - join style for corners, where 1 = round, 2 = miter and 3 = bevel miter_limit - limit on the miter ratio used for very sharp corners (when using miter joins only)
Przykłady	single_sided_buffer(@geometry, 10.5) → line buffered to the left by 10.5 units single_sided_buffer(@geometry, -10.5) → line buffered to the right by 10.5 units single_sided_buffer(@geometry, 10.5, segments:=16, join:=1) → line buffered to the left by 10.5 units, using more segments to result in a smoother buffer single_sided_buffer(@geometry, 10.5, join:=3) → line buffered to the left by 10.5 units, using a beveled join

Rys. 9.28 Left versus right side buffer on the same vector line layer

Further reading: Single sided buffer algorithm

9.2.13.119. sinuosity

Returns the sinuosity of a curve, which is the ratio of the curve length to the straight (2D) distance between its endpoints.

Składnia	sinuosity(geometry)
Argumenty	geometry - Input curve (circularstring, linestring)
Przykłady	round(sinuosity(geom_from_wkt('LINESTRING(2 0, 2 2, 3 2, 3 3)')), 3) → 1.265 sinuosity(geom_from_wkt('LINESTRING( 3 1, 5 1)')) → 1.0

9.2.13.120. smooth

Smooths a geometry by adding extra nodes which round off corners in the geometry. If input geometries contain Z or M values, these will also be smoothed and the output geometry will retain the same dimensionality as the input geometry.

Składnia	smooth(geometry, [iterations=1], [offset=0.25], [min_length=-1], [max_angle=180]) [] marks optional arguments
Argumenty	geometry - a geometry iterations - number of smoothing iterations to apply. Larger numbers result in smoother but more complex geometries. offset - value between 0 and 0.5 which controls how tightly the smoothed geometry follow the original geometry. Smaller values result in a tighter smoothing, larger values result in looser smoothing. min_length - minimum length of segments to apply smoothing to. This parameter can be used to avoid placing excessive additional nodes in shorter segments of the geometry. max_angle - maximum angle at node for smoothing to be applied (0-180). By lowering the maximum angle intentionally sharp corners in the geometry can be preserved. For instance, a value of 80 degrees will retain right angles in the geometry.
Przykłady	geom_to_wkt(smooth(geometry:=geom_from_wkt('LineString(0 0, 5 0, 5 5)'),iterations:=1,offset:=0.2,min_length:=-1,max_angle:=180)) → «LineString (0 0, 4 0, 5 1, 5 5)»

Rys. 9.29 Increasing number of iterations causes smoother geometries

Further reading: Smooth algorithm

9.2.13.121. square_wave

Constructs square/rectangular waves along the boundary of a geometry.

Składnia	square_wave(geometry, wavelength, amplitude, [strict=False]) [] marks optional arguments
Argumenty	geometry - a geometry wavelength - wavelength of square waveform amplitude - amplitude of square waveform strict - By default the wavelength argument is treated as a „maximum wavelength”, where the actual wavelength will be dynamically adjusted so that an exact number of square waves are created along the boundaries of the geometry. If the strict argument is set to true then the wavelength will be used exactly and an incomplete pattern may be used for the final waveform.
Przykłady	square_wave(geom_from_wkt('LineString(0 0, 10 0)'), 3, 1) → Square waves with wavelength 3 and amplitude 1 along the linestring

Rys. 9.30 Symbolizing features with square waves

9.2.13.122. square_wave_randomized

Constructs randomized square/rectangular waves along the boundary of a geometry.

Składnia	square_wave_randomized(geometry, min_wavelength, max_wavelength, min_amplitude, max_amplitude, [seed=0]) [] marks optional arguments
Argumenty	geometry - a geometry min_wavelength - minimum wavelength of waves max_wavelength - maximum wavelength of waves min_amplitude - minimum amplitude of waves max_amplitude - maximum amplitude of waves seed - specifies a random seed for generating waves. If the seed is 0, then a completely random set of waves will be generated.
Przykłady	square_wave_randomized(geom_from_wkt('LineString(0 0, 10 0)'), 2, 3, 0.1, 0.2) → Randomly sized square waves with wavelengths between 2 and 3 and amplitudes between 0.1 and 0.2 along the linestring

Rys. 9.31 Symbolizing features with square randomized waves

9.2.13.123. start_point

Returns the first node from a geometry.

Składnia	start_point(geometry)
Argumenty	geometry - geometry object
Przykłady	geom_to_wkt(start_point(geom_from_wkt('LINESTRING(4 0, 4 2, 0 2)'))) → «Point (4 0)»

Rys. 9.32 Starting point of a line feature

Further reading: end_point, Extract specific vertices algorithm

9.2.13.124. straight_distance_2d

Returns the direct/euclidean distance between the first and last vertex of a geometry. The geometry must be a curve (circularstring, linestring).

Składnia	straight_distance_2d(geometry)
Argumenty	geometry - The geometry.
Przykłady	straight_distance_2d(geom_from_wkt('LINESTRING(1 0, 1 1)')) → 1 round(straight_distance_2d(geom_from_wkt('LINESTRING(1 4, 3 5, 5 0)')), 3) → 5.657

Further reading: length

9.2.13.125. sym_difference

Returns a geometry that represents the portions of two geometries that do not intersect.

Składnia	sym_difference(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	geom_to_wkt( sym_difference( geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ), geom_from_wkt( 'LINESTRING(3 3, 8 8)' ) ) ) → «LINESTRING(5 5, 8 8)»

Further reading: Symmetrical difference algorithm

9.2.13.126. tapered_buffer

Creates a buffer along a line geometry where the buffer diameter varies evenly over the length of the line.

Składnia	tapered_buffer(geometry, start_width, end_width, [segments=8]) [] marks optional arguments
Argumenty	geometry - input geometry. Must be a (multi)line geometry. start_width - width of buffer at start of line, end_width - width of buffer at end of line. segments - number of segments to approximate quarter-circle curves in the buffer.
Przykłady	tapered_buffer(geometry:=geom_from_wkt('LINESTRING(1 2, 4 2)'),start_width:=1,end_width:=2,segments:=8) → A tapered buffer starting with a diameter of 1 and ending with a diameter of 2 along the linestring geometry.

Rys. 9.33 Tapered buffer on line features

Further reading: Tapered buffers algorithm

9.2.13.127. touches

Tests whether a geometry touches another. Returns TRUE if the geometries have at least one point in common, but their interiors do not intersect.

Składnia	touches(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	touches( geom_from_wkt( 'LINESTRING(5 3, 4 4)' ), geom_from_wkt( 'LINESTRING(3 3, 4 4, 5 5)' ) ) → TRUE touches( geom_from_wkt( 'POINT(4 4)' ), geom_from_wkt( 'POINT(5 5)' ) ) → FALSE

Further reading: overlay_touches

9.2.13.128. transform

Returns the geometry transformed from a source CRS to a destination CRS.

Składnia	transform(geometry, source_auth_id, dest_auth_id)
Argumenty	geometry - a geometry source_auth_id - the source auth CRS ID dest_auth_id - the destination auth CRS ID
Przykłady	geom_to_wkt( transform( make_point(488995.53240249, 7104473.38600835), 'EPSG:2154', 'EPSG:4326' ) ) → «POINT(0 51)»

Further reading: Reproject layer algorithm

9.2.13.129. translate

Returns a translated version of a geometry. Calculations are in the Spatial Reference System of this geometry.

Składnia	translate(geometry, dx, dy)
Argumenty	geometry - a geometry dx - delta x dy - delta y
Przykłady	translate(@geometry, 5, 10) → a geometry of the same type like the original one

Rys. 9.34 Translating features

Further reading: Przetłumacz algorithm

9.2.13.130. triangular_wave

Constructs triangular waves along the boundary of a geometry.

Składnia	triangular_wave(geometry, wavelength, amplitude, [strict=False]) [] marks optional arguments
Argumenty	geometry - a geometry wavelength - wavelength of triangular waveform amplitude - amplitude of triangular waveform strict - By default the wavelength argument is treated as a „maximum wavelength”, where the actual wavelength will be dynamically adjusted so that an exact number of triangular waves are created along the boundaries of the geometry. If the strict argument is set to true then the wavelength will be used exactly and an incomplete pattern may be used for the final waveform.
Przykłady	triangular_wave(geom_from_wkt('LineString(0 0, 10 0)'), 3, 1) → Triangular waves with wavelength 3 and amplitude 1 along the linestring

Rys. 9.35 Symbolizing features with triangular waves

9.2.13.131. triangular_wave_randomized

Constructs randomized triangular waves along the boundary of a geometry.

Składnia	triangular_wave_randomized(geometry, min_wavelength, max_wavelength, min_amplitude, max_amplitude, [seed=0]) [] marks optional arguments
Argumenty	geometry - a geometry min_wavelength - minimum wavelength of waves max_wavelength - maximum wavelength of waves min_amplitude - minimum amplitude of waves max_amplitude - maximum amplitude of waves seed - specifies a random seed for generating waves. If the seed is 0, then a completely random set of waves will be generated.
Przykłady	triangular_wave_randomized(geom_from_wkt('LineString(0 0, 10 0)'), 2, 3, 0.1, 0.2) → Randomly sized triangular waves with wavelengths between 2 and 3 and amplitudes between 0.1 and 0.2 along the linestring

Rys. 9.36 Symbolizing features with triangular randomized waves

9.2.13.132. union

Returns a geometry that represents the point set union of the geometries.

Składnia	union(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	geom_to_wkt( union( make_point(4, 4), make_point(5, 5) ) ) → «MULTIPOINT(4 4, 5 5)»

9.2.13.133. wave

Constructs rounded (sine-like) waves along the boundary of a geometry.

Składnia	wave(geometry, wavelength, amplitude, [strict=False]) [] marks optional arguments
Argumenty	geometry - a geometry wavelength - wavelength of sine-like waveform amplitude - amplitude of sine-like waveform strict - By default the wavelength argument is treated as a „maximum wavelength”, where the actual wavelength will be dynamically adjusted so that an exact number of waves are created along the boundaries of the geometry. If the strict argument is set to true then the wavelength will be used exactly and an incomplete pattern may be used for the final waveform.
Przykłady	wave(geom_from_wkt('LineString(0 0, 10 0)'), 3, 1) → Sine-like waves with wavelength 3 and amplitude 1 along the linestring

Rys. 9.37 Symbolizing features with waves

9.2.13.134. wave_randomized

Constructs randomized curved (sine-like) waves along the boundary of a geometry.

Składnia	wave_randomized(geometry, min_wavelength, max_wavelength, min_amplitude, max_amplitude, [seed=0]) [] marks optional arguments
Argumenty	geometry - a geometry min_wavelength - minimum wavelength of waves max_wavelength - maximum wavelength of waves min_amplitude - minimum amplitude of waves max_amplitude - maximum amplitude of waves seed - specifies a random seed for generating waves. If the seed is 0, then a completely random set of waves will be generated.
Przykłady	wave_randomized(geom_from_wkt('LineString(0 0, 10 0)'), 2, 3, 0.1, 0.2) → Randomly sized curved waves with wavelengths between 2 and 3 and amplitudes between 0.1 and 0.2 along the linestring

Rys. 9.38 Symbolizing features with randomized waves

9.2.13.135. wedge_buffer

Returns a wedge shaped buffer originating from a point geometry.

Składnia	wedge_buffer(center, azimuth, width, outer_radius, [inner_radius=0.0]) [] marks optional arguments
Argumenty	center - center point (origin) of buffer. Must be a point geometry. azimuth - angle (in degrees) for the middle of the wedge to point. width - buffer width (in degrees). Note that the wedge will extend to half of the angular width either side of the azimuth direction. outer_radius - outer radius for buffers inner_radius - optional inner radius for buffers
Przykłady	wedge_buffer(center:=geom_from_wkt('POINT(1 2)'),azimuth:=90,width:=180,outer_radius:=1) → A wedge shaped buffer centered on the point (1,2), facing to the East, with a width of 180 degrees and outer radius of 1.

Rys. 9.39 Wedge buffering features

Further reading: Create wedge buffers algorithm

9.2.13.136. within

Tests whether a geometry is within another. Returns TRUE if the geometry1 is completely within geometry2.

Składnia	within(geometry1, geometry2)
Argumenty	geometry1 - a geometry geometry2 - a geometry
Przykłady	within( geom_from_wkt( 'POINT( 0.5 0.5)' ), geom_from_wkt( 'POLYGON((0 0, 0 1, 1 1, 1 0, 0 0))' ) ) → TRUE within( geom_from_wkt( 'POINT( 5 5 )' ), geom_from_wkt( 'POLYGON((0 0, 0 1, 1 1, 1 0, 0 0 ))' ) ) → FALSE

Further reading: overlay_within

9.2.13.137. $x

Returns the x coordinate of the current point feature. If the feature is a multipoint feature, then the x-coordinate of the first point will be returned. WARNING: This function is deprecated. It is recommended to use the replacement x() function with @geometry variable instead.

Składnia	$x
Przykłady	$x → 42

Further reading: x

9.2.13.138. x

Returns the x coordinate of a point geometry, or the x coordinate of the centroid for a non-point geometry.

Składnia	x(geometry)
Argumenty	geometry - a geometry
Przykłady	x( geom_from_wkt( 'POINT(2 5)' ) ) → 2 x( @geometry ) → x coordinate of the current feature’s centroid

9.2.13.139. $x_at

Retrieves a x coordinate of the current feature’s geometry. WARNING: This function is deprecated. It is recommended to use the replacement x_at function with @geometry variable instead.

Składnia	$x_at(vertex)
Argumenty	vertex - index of the vertex of the current geometry (indices start at 0; negative values apply from the last index, starting at -1)
Przykłady	$x_at(1) → 5

Further reading: x_at

9.2.13.140. x_at

Retrieves a x coordinate of the geometry.

Składnia	x_at(geometry, vertex)
Argumenty	geometry - geometry object vertex - index of the vertex of the geometry (indices start at 0; negative values apply from the last index, starting at -1)
Przykłady	x_at( geom_from_wkt( 'POINT(4 5)' ), 0 ) → 4

9.2.13.141. x_max

Returns the maximum x coordinate of a geometry. Calculations are in the spatial reference system of this geometry.

Składnia	x_max(geometry)
Argumenty	geometry - a geometry
Przykłady	x_max( geom_from_wkt( 'LINESTRING(2 5, 3 6, 4 8)') ) → 4

9.2.13.142. x_min

Returns the minimum x coordinate of a geometry. Calculations are in the spatial reference system of this geometry.

Składnia	x_min(geometry)
Argumenty	geometry - a geometry
Przykłady	x_min( geom_from_wkt( 'LINESTRING(2 5, 3 6, 4 8)') ) → 2

9.2.13.143. $y

Returns the y coordinate of the current point feature. If the feature is a multipoint feature, then the y-coordinate of the first point will be returned. WARNING: This function is deprecated. It is recommended to use the replacement y() function with @geometry variable instead.

Składnia	$y
Przykłady	$y → 42

Further reading: y

9.2.13.144. y

Returns the y coordinate of a point geometry, or the y coordinate of the centroid for a non-point geometry.

Składnia	y(geometry)
Argumenty	geometry - a geometry
Przykłady	y( geom_from_wkt( 'POINT(2 5)' ) ) → 5 y( @geometry ) → y coordinate of the current feature’s centroid

9.2.13.145. $y_at

Retrieves a y coordinate of the current feature’s geometry. WARNING: This function is deprecated. It is recommended to use the replacement y_at function with @geometry variable instead.

Składnia	$y_at(vertex)
Argumenty	vertex - index of the vertex of the current geometry (indices start at 0; negative values apply from the last index, starting at -1)
Przykłady	$y_at(1) → 2

Further reading: y_at

9.2.13.146. y_at

Retrieves a y coordinate of the geometry.

Składnia	y_at(geometry, vertex)
Argumenty	geometry - geometry object vertex - index of the vertex of the geometry (indices start at 0; negative values apply from the last index, starting at -1)
Przykłady	y_at( geom_from_wkt( 'POINT(4 5)' ), 0 ) → 5

9.2.13.147. y_max

Returns the maximum y coordinate of a geometry. Calculations are in the spatial reference system of this geometry.

Składnia	y_max(geometry)
Argumenty	geometry - a geometry
Przykłady	y_max( geom_from_wkt( 'LINESTRING(2 5, 3 6, 4 8)') ) → 8

9.2.13.148. y_min

Returns the minimum y coordinate of a geometry. Calculations are in the spatial reference system of this geometry.

Składnia	y_min(geometry)
Argumenty	geometry - a geometry
Przykłady	y_min( geom_from_wkt( 'LINESTRING(2 5, 3 6, 4 8)') ) → 5

9.2.13.149. $z

Returns the z value of the current point feature if it is 3D. If the feature is a multipoint feature, then the z value of the first point will be returned. WARNING: This function is deprecated. It is recommended to use the replacement z() function with @geometry variable instead.

Składnia	$z
Przykłady	$z → 123

9.2.13.150. z

Returns the z coordinate of a point geometry, or NULL if the geometry has no z value.

Składnia	z(geometry)
Argumenty	geometry - a point geometry
Przykłady	z( geom_from_wkt( 'POINTZ(2 5 7)' ) ) → 7

9.2.13.151. z_at

Retrieves a z coordinate of the geometry, or NULL if the geometry has no z value.

Składnia	z_at(geometry, vertex)
Argumenty	geometry - geometry object vertex - index of the vertex of the geometry (indices start at 0; negative values apply from the last index, starting at -1)
Przykłady	z_at(geom_from_wkt('LineStringZ(0 0 0, 10 10 5, 10 10 0)'), 1) → 5

9.2.13.152. z_max

Returns the maximum z coordinate of a geometry, or NULL if the geometry has no z value.

Składnia	z_max(geometry)
Argumenty	geometry - a geometry with z coordinate
Przykłady	z_max( geom_from_wkt( 'POINT ( 0 0 1 )' ) ) → 1 z_max( geom_from_wkt( 'MULTIPOINT ( 0 0 1 , 1 1 3 )' ) ) → 3 z_max( make_line( make_point( 0,0,0 ), make_point( -1,-1,-2 ) ) ) → 0 z_max( geom_from_wkt( 'LINESTRING( 0 0 0, 1 0 2, 1 1 -1 )' ) ) → 2 z_max( geom_from_wkt( 'POINT ( 0 0 )' ) ) → NULL

9.2.13.153. z_min

Returns the minimum z coordinate of a geometry, or NULL if the geometry has no z value.

Składnia	z_min(geometry)
Argumenty	geometry - a geometry with z coordinate
Przykłady	z_min( geom_from_wkt( 'POINT ( 0 0 1 )' ) ) → 1 z_min( geom_from_wkt( 'MULTIPOINT ( 0 0 1 , 1 1 3 )' ) ) → 1 z_min( make_line( make_point( 0,0,0 ), make_point( -1,-1,-2 ) ) ) → -2 z_min( geom_from_wkt( 'LINESTRING( 0 0 0, 1 0 2, 1 1 -1 )' ) ) → -1 z_min( geom_from_wkt( 'POINT ( 0 0 )' ) ) → NULL

9.2.14. Layout Functions

This group contains functions to manipulate print layout items properties.

Show/hide list of functions

9.2.14.1. item_variables

Returns a map of variables from a layout item inside this print layout.

Składnia	item_variables(id)
Argumenty	id - layout item ID
Przykłady	map_get( item_variables('Map 0'), 'map_scale') → scale of the item «Map 0» in the current print layout

Further reading: List of default variables

9.2.14.2. map_credits

Returns a list of credit (usage rights) strings for the layers shown in a layout, or specific layout map item.

Składnia	map_credits([id], [include_layer_names=false], [layer_name_separator=»: «]) [] marks optional arguments
Argumenty	id - Map item ID. If not specified, the layers from all maps in the layout will be used. include_layer_names - Set to true to include layer names before their credit strings layer_name_separator - String to insert between layer names and their credit strings, if include_layer_names is true
Przykłady	array_to_string( map_credits() ) → comma separated list of layer credits for all layers shown in all map items in the layout, e.g «CC-BY-NC, CC-BY-SA» array_to_string( map_credits( 'Main Map' ) ) → comma separated list of layer credits for layers shown in the «Main Map» layout item, e.g «CC-BY-NC, CC-BY-SA» array_to_string( map_credits( 'Main Map', include_layer_names := true, layer_name_separator := ': ' ) ) → comma separated list of layer names and their credits for layers shown in the «Main Map» layout item, e.g. «Railway lines: CC-BY-NC, Basemap: CC-BY-SA»

This function requires the Access metadata properties of the layers to have been filled.

9.2.15. Map Layers

This group contains a list of the available layers in the current project and, for each layer, their fields (stored in the dataset, virtual or auxiliary ones as well as from joins). The fields can be interacted the same way as mentioned in Fields and Values, except that a double-click will add the name as a string (single quoted) to the expression instead of as a field reference given that they do not belong to the active layer. This offers a convenient way to write expressions referring to different layers, such as when performing aggregates, attribute or spatial queries.

It also provides some convenient functions to manipulate layers.

Show/hide list of functions

9.2.15.1. decode_uri

Takes a layer and decodes the uri of the underlying data provider. It depends on the dataprovider, which data is available.

Składnia	decode_uri(layer, [part]) [] marks optional arguments
Argumenty	layer - The layer for which the uri should be decoded. part - The part of the uri to return. If unspecified, a map with all uri parts will be returned.
Przykłady	decode_uri(@layer) → {«layerId»: «0», «layerName»: «», «path»: «/home/qgis/shapefile.shp»} decode_uri(@layer) → {«layerId»: NULL, «layerName»: «layer», «path»: «/home/qgis/geopackage.gpkg»} decode_uri(@layer, 'path') → «C:\my_data\qgis\shape.shp»

9.2.15.2. layer_property

Returns a matching layer property or metadata value.

Składnia	layer_property(layer, property)
Argumenty	layer - a string, representing either a layer name or layer ID property - a string corresponding to the property to return. Valid options are: name: layer name id: layer ID title: metadata title string abstract: metadata abstract string keywords: metadata keywords data_url: metadata URL attribution: metadata attribution string attribution_url: metadata attribution URL source: layer source min_scale: minimum display scale for layer max_scale: maximum display scale for layer is_editable: if layer is in edit mode crs: layer CRS crs_definition: layer CRS full definition crs_description: layer CRS description crs_ellipsoid: acronym of the layer CRS ellipsoid extent: layer extent (as a geometry object) distance_units: layer distance units type: layer type, e.g., Vector or Raster storage_type: storage format (vector layers only) geometry_type: geometry type, e.g., Point (vector layers only) feature_count: approximate feature count for layer (vector layers only) path: File path to the layer data source. Only available for file based layers.
Przykłady	layer_property('streets','title') → «Basemap Streets» layer_property('airports','feature_count') → 120 layer_property('landsat','crs') → «EPSG:4326»

Further reading: vector, raster and mesh layer properties

9.2.15.3. load_layer

Loads a layer by source URI and provider name.

Składnia	load_layer(uri, provider)
Argumenty	uri - layer source URI string provider - layer data provider name
Przykłady	layer_property(load_layer('c:/data/roads.shp', 'ogr'), 'feature_count') → count of features from the c:/data/roads.shp vector layer

9.2.16. Maps Functions

This group contains functions to create or manipulate keys and values of map data structures (also known as dictionary objects, key-value pairs, or associative arrays). Unlike the list data structure where values order matters, the order of the key-value pairs in the map object is not relevant and values are identified by their keys.

Show/hide list of functions

9.2.16.1. from_json

Loads a JSON formatted string.

Składnia	from_json(string)
Argumenty	string - JSON string
Przykłady	from_json('{"1":"one","2":"two"}') → { «1»: «one», «2»: «two» } from_json('[1,2,3]') → [1,2,3]

9.2.16.2. hstore_to_map

Creates a map from a hstore-formatted string.

Składnia	hstore_to_map(string)
Argumenty	string - the input string
Przykłady	hstore_to_map('qgis=>rocks') → { «qgis»: «rocks» }

9.2.16.3. map

Returns a map containing all the keys and values passed as pair of parameters.

Składnia	map(key1, value1, key2, value2, …)
Argumenty	key - a key (string) value - a value
Przykłady	map('1','one','2', 'two') → { «1»: «one», «2»: «two» } map('1','one','2', 'two')['1'] → «one»

9.2.16.4. map_akeys

Returns all the keys of a map as an array.

Składnia	map_akeys(map)
Argumenty	map - a map
Przykłady	map_akeys(map('1','one','2','two')) → [ «1», «2» ]

9.2.16.5. map_avals

Returns all the values of a map as an array.

Składnia	map_avals(map)
Argumenty	map - a map
Przykłady	map_avals(map('1','one','2','two')) → [ «one», «two» ]

9.2.16.6. map_concat

Returns a map containing all the entries of the given maps. If two maps contain the same key, the value of the second map is taken.

Składnia	map_concat(map1, map2, …)
Argumenty	map - a map
Przykłady	map_concat(map('1','one', '2','overridden'),map('2','two', '3','three')) → { «1»: «one», «2»: «two», «3»: «three» }

9.2.16.7. map_delete

Returns a map with the given key and its corresponding value deleted.

Składnia	map_delete(map, key)
Argumenty	map - a map key - the key to delete
Przykłady	map_delete(map('1','one','2','two'),'2') → { «1»: «one» }

9.2.16.8. map_exist

Returns TRUE if the given key exists in the map.

Składnia	map_exist(map, key)
Argumenty	map - a map key - the key to lookup
Przykłady	map_exist(map('1','one','2','two'),'3') → FALSE

9.2.16.9. map_get

Returns the value of a map, given its key. Returns NULL if the key does not exist.

Składnia	map_get(map, key)
Argumenty	map - a map key - the key to lookup
Przykłady	map_get(map('1','one','2','two'),'2') → «two» map_get( item_variables('Map 0'), 'map_scale') → scale of the item «Map 0» (if it exists) in the current print layout

Podpowiedź

You can also use the index operator ([]) to get a value from a map.

9.2.16.10. map_insert

Returns a map with an added key/value. If the key already exists, its value is overridden.

Składnia	map_insert(map, key, value)
Argumenty	map - a map key - the key to add value - the value to add
Przykłady	map_insert(map('1','one'),'3','three') → { «1»: «one», «3»: «three» } map_insert(map('1','one','2','overridden'),'2','two') → { «1»: «one», «2»: «two» }

9.2.16.11. map_prefix_keys

Returns a map with all keys prefixed by a given string.

Składnia	map_prefix_keys(map, prefix)
Argumenty	map - a map prefix - a string
Przykłady	map_prefix_keys(map('1','one','2','two'), 'prefix-') → { «prefix-1»: «one», «prefix-2»: «two» }

9.2.16.12. map_to_hstore

Merge map elements into a hstore-formatted string.

Składnia	map_to_hstore(map)
Argumenty	map - the input map
Przykłady	map_to_hstore(map('1','one','2','two')) → «„1”=>”one”»,«„2”=>”two”»

9.2.16.13. map_to_html_dl

Merge map elements into a HTML definition list string.

Składnia	map_to_html_dl(map)
Argumenty	map - the input map
Przykłady	map_to_html_dl(map('1','one','2','two')) → <dl><dt>1</dt><dd>one</dd><dt>2</dt><dd>two</dd></dl>

9.2.16.14. map_to_html_table

Merge map elements into a HTML table string.

Składnia	map_to_html_table(map)
Argumenty	map - the input map
Przykłady	map_to_html_table(map('1','one','2','two')) → <table><thead><tr><th>1</th><th>2</th></tr></thead><tbody><tr><td>one</td><td>two</td></tr></tbody></table>

9.2.16.15. to_json

Create a JSON formatted string from a map, array or other value.

Składnia	to_json(value)
Argumenty	value - The input value
Przykłady	to_json(map('1','one','2','two')) → {„1”:”one”,”2”:”two”} to_json(array(1,2,3)) → [1,2,3]

9.2.16.16. url_encode

Returns an URL encoded string from a map. Transforms all characters in their properly-encoded form producing a fully-compliant query string.

Note that the plus sign «+» is not converted.

Składnia	url_encode(map)
Argumenty	map - a map.
Przykłady	url_encode(map('a&+b', 'a and plus b', 'a=b', 'a equals b')) → «a%26+b=a%20and%20plus%20b&a%3Db=a%20equals%20b»

9.2.17. Mathematical Functions

This group contains math functions (e.g., square root, sin and cos).

Show/hide list of functions

9.2.17.1. abs

Returns the absolute value of a number.

Składnia	abs(value)
Argumenty	value - a number
Przykłady	abs(-2) → 2

9.2.17.2. acos

Returns the inverse cosine of a value in radians.

Składnia	acos(value)
Argumenty	value - cosine of an angle in radians
Przykłady	acos(0.5) → 1.0471975511966

9.2.17.3. asin

Returns the inverse sine of a value in radians.

Składnia	asin(value)
Argumenty	value - sine of an angle in radians
Przykłady	asin(1.0) → 1.5707963267949

9.2.17.4. atan

Returns the inverse tangent of a value in radians.

Składnia	atan(value)
Argumenty	value - tan of an angle in radians
Przykłady	atan(0.5) → 0.463647609000806

9.2.17.5. atan2

Returns the inverse tangent of dy/dx by using the signs of the two arguments to determine the quadrant of the result.

Składnia	atan2(dy, dx)
Argumenty	dy - y coordinate difference dx - x coordinate difference
Przykłady	atan2(1.0, 1.732) → 0.523611477769969

9.2.17.6. ceil

Rounds a number upwards.

Składnia	ceil(value)
Argumenty	value - a number
Przykłady	ceil(4.9) → 5 ceil(-4.9) → -4

9.2.17.7. clamp

Restricts an input value to a specified range.

Składnia	clamp(minimum, input, maximum)
Argumenty	minimum - the smallest value input is allowed to take. input - a value which will be restricted to the range specified by minimum and maximum maximum - the largest value input is allowed to take
Przykłady	clamp(1,5,10) → 5 input is between 1 and 10 so is returned unchanged clamp(1,0,10) → 1 input is less than minimum value of 1, so function returns 1 clamp(1,11,10) → 10 input is greater than maximum value of 10, so function returns 10

9.2.17.8. cos

Returns cosine of an angle.

Składnia	cos(angle)
Argumenty	angle - angle in radians
Przykłady	cos(1.571) → 0.000796326710733263

9.2.17.9. degrees

Converts from radians to degrees.

Składnia	degrees(radians)
Argumenty	radians - numeric value
Przykłady	degrees(3.14159) → 180 degrees(1) → 57.2958

9.2.17.10. exp

Returns exponential of an value.

Składnia	exp(value)
Argumenty	value - number to return exponent of
Przykłady	exp(1.0) → 2.71828182845905

9.2.17.11. floor

Rounds a number downwards.

Składnia	floor(value)
Argumenty	value - a number
Przykłady	floor(4.9) → 4 floor(-4.9) → -5

9.2.17.12. ln

Returns the natural logarithm of a value.

Składnia	ln(value)
Argumenty	value - numeric value
Przykłady	ln(1) → 0 ln(2.7182818284590452354) → 1

9.2.17.13. log

Returns the value of the logarithm of the passed value and base.

Składnia	log(base, value)
Argumenty	base - any positive number value - any positive number
Przykłady	log(2, 32) → 5 log(0.5, 32) → -5

9.2.17.14. log10

Returns the value of the base 10 logarithm of the passed expression.

Składnia	log10(value)
Argumenty	value - any positive number
Przykłady	log10(1) → 0 log10(100) → 2

9.2.17.15. max

Returns the largest value in a set of values.

Składnia	max(value1, value2, …)
Argumenty	value - a number
Przykłady	max(2,10.2,5.5) → 10.2 max(20.5,NULL,6.2) → 20.5

9.2.17.16. min

Returns the smallest value in a set of values.

Składnia	min(value1, value2, …)
Argumenty	value - a number
Przykłady	min(20.5,10,6.2) → 6.2 min(2,-10.3,NULL) → -10.3

9.2.17.17. pi

Returns value of pi for calculations.

Składnia	pi()
Przykłady	pi() → 3.14159265358979

9.2.17.18. radians

Converts from degrees to radians.

Składnia	radians(degrees)
Argumenty	degrees - numeric value
Przykłady	radians(180) → 3.14159 radians(57.2958) → 1

9.2.17.19. rand

Returns a random integer within the range specified by the minimum and maximum argument (inclusive). If a seed is provided, the returned will always be the same, depending on the seed.

Składnia	rand(min, max, [seed=NULL]) [] marks optional arguments
Argumenty	min - an integer representing the smallest possible random number desired max - an integer representing the largest possible random number desired seed - any value to use as seed
Przykłady	rand(1, 10) → 8

9.2.17.20. randf

Returns a random float within the range specified by the minimum and maximum argument (inclusive). If a seed is provided, the returned will always be the same, depending on the seed.

Składnia	randf([min=0.0], [max=1.0], [seed=NULL]) [] marks optional arguments
Argumenty	min - an float representing the smallest possible random number desired max - an float representing the largest possible random number desired seed - any value to use as seed
Przykłady	randf(1, 10) → 4.59258286403147

9.2.17.21. round

Rounds a number to number of decimal places.

Składnia	round(value, [places=0]) [] marks optional arguments
Argumenty	value - decimal number to be rounded places - Optional integer representing number of places to round decimals to. Can be negative.
Przykłady	round(1234.567, 2) → 1234.57 round(1234.567) → 1235 round(1234.567, -1) → 1230

9.2.17.22. scale_exponential

Transforms a given value from an input domain to an output range using an exponential curve. This function can be used to ease values in or out of the specified output range.

Składnia	scale_exponential(value, domain_min, domain_max, range_min, range_max, exponent)
Argumenty	value - A value in the input domain. The function will return a corresponding scaled value in the output range. domain_min - Specifies the minimum value in the input domain, the smallest value the input value should take. domain_max - Specifies the maximum value in the input domain, the largest value the input value should take. range_min - Specifies the minimum value in the output range, the smallest value which should be output by the function. range_max - Specifies the maximum value in the output range, the largest value which should be output by the function. exponent - A positive value (greater than 0), which dictates the way input values are mapped to the output range. Large exponents will cause the output values to «ease in», starting slowly before accelerating as the input values approach the domain maximum. Smaller exponents (less than 1) will cause output values to «ease out», where the mapping starts quickly but slows as it approaches the domain maximum.
Przykłady	scale_exponential(5,0,10,0,100,2) → 3.030 easing in, using an exponent of 2 scale_exponential(3,0,10,0,100,0.5) → 87.585 easing out, using an exponent of 0.5

9.2.17.23. scale_linear

Transforms a given value from an input domain to an output range using linear interpolation.

Składnia	scale_linear(value, domain_min, domain_max, range_min, range_max)
Argumenty	value - A value in the input domain. The function will return a corresponding scaled value in the output range. domain_min - Specifies the minimum value in the input domain, the smallest value the input value should take. domain_max - Specifies the maximum value in the input domain, the largest value the input value should take. range_min - Specifies the minimum value in the output range, the smallest value which should be output by the function. range_max - Specifies the maximum value in the output range, the largest value which should be output by the function.
Przykłady	scale_linear(5,0,10,0,100) → 50 scale_linear(0.2,0,1,0,360) → 72 scaling a value between 0 and 1 to an angle between 0 and 360 scale_linear(1500,1000,10000,9,20) → 9.6111111 scaling a population which varies between 1000 and 10000 to a font size between 9 and 20

9.2.17.24. scale_polynomial

Transforms a given value from an input domain to an output range using a polynomial curve. This function can be used to ease values in or out of the specified output range.

Składnia	scale_polynomial(value, domain_min, domain_max, range_min, range_max, exponent)
Argumenty	value - A value in the input domain. The function will return a corresponding scaled value in the output range. domain_min - Specifies the minimum value in the input domain, the smallest value the input value should take. domain_max - Specifies the maximum value in the input domain, the largest value the input value should take. range_min - Specifies the minimum value in the output range, the smallest value which should be output by the function. range_max - Specifies the maximum value in the output range, the largest value which should be output by the function. exponent - A positive value (greater than 0), which dictates the way input values are mapped to the output range. Large exponents will cause the output values to «ease in», starting slowly before accelerating as the input values approach the domain maximum. Smaller exponents (less than 1) will cause output values to «ease out», where the mapping starts quickly but slows as it approaches the domain maximum.
Przykłady	scale_polynomial(5,0,10,0,100,2) → 25 easing in, using an exponent of 2 scale_polynomial(3,0,10,0,100,0.5) → 54.772 easing out, using an exponent of 0.5

9.2.17.25. sin

Returns the sine of an angle.

Składnia	sin(angle)
Argumenty	angle - angle in radians
Przykłady	sin(1.571) → 0.999999682931835

9.2.17.26. sqrt

Returns square root of a value.

Składnia	sqrt(value)
Argumenty	value - a number
Przykłady	sqrt(9) → 3

9.2.17.27. tan

Returns the tangent of an angle.

Składnia	tan(angle)
Argumenty	angle - angle in radians
Przykłady	tan(1.0) → 1.5574077246549

9.2.18. Meshes Functions

This group contains functions which calculate or return mesh related values.

Show/hide list of functions

9.2.18.1. $face_area

Returns the area of the current mesh face. The area calculated by this function respects both the current project’s ellipsoid setting and area unit settings. For example, if an ellipsoid has been set for the project then the calculated area will be ellipsoidal, and if no ellipsoid is set then the calculated area will be planimetric.

Składnia	$face_area
Przykłady	$face_area → 42

9.2.18.2. $face_index

Returns the index of the current mesh face.

Składnia	$face_index
Przykłady	$face_index → 4581

9.2.18.3. $vertex_as_point

Returns the current vertex as a point geometry.

Składnia	$vertex_as_point
Przykłady	geom_to_wkt( $vertex_as_point ) → «POINT(800 1500 41)»

9.2.18.4. $vertex_index

Returns the index of the current mesh vertex.

Składnia	$vertex_index
Przykłady	$vertex_index → 9874

9.2.18.5. $vertex_x

Returns the X coordinate of the current mesh vertex.

Składnia	$vertex_x
Przykłady	$vertex_x → 42.12

9.2.18.6. $vertex_y

Returns the Y coordinate of the current mesh vertex.

Składnia	$vertex_y
Przykłady	$vertex_y → 12.24

9.2.18.7. $vertex_z

Returns the Z value of the current mesh vertex.

Składnia	$vertex_z
Przykłady	$vertex_z → 42

9.2.19. Operatory

This group contains operators (e.g., +, -, *). Note that for most of the mathematical functions below, if one of the inputs is NULL then the result is NULL.

Show/hide list of functions

9.2.19.1. %

Remainder of division. Takes the sign of the dividend.

Składnia	a % b
Argumenty	a - value b - value
Przykłady	9 % 2 → 1 9 % -2 → 1 -9 % 2 → -1 5 % NULL → NULL

9.2.19.2. *

Multiplication of two values

Składnia	a * b
Argumenty	a - value b - value
Przykłady	5 * 4 → 20 5 * NULL → NULL

9.2.19.3. +

Addition of two values. If one of the values is NULL the result will be NULL.

Składnia	a + b
Argumenty	a - value b - value
Przykłady	5 + 4 → 9 5 + NULL → NULL 'QGIS ' + 'ROCKS' → «QGIS ROCKS» to_datetime('2020-08-01 12:00:00') + '1 day 2 hours' → 2020-08-02T14:00:00

Further reading: concat, ||

9.2.19.4. -

Subtraction of two values. If one of the values is NULL the result will be NULL.

Składnia	a - b
Argumenty	a - value b - value
Przykłady	5 - 4 → 1 5 - NULL → NULL to_datetime('2012-05-05 12:00:00') - to_interval('1 day 2 hours') → 2012-05-04T10:00:00

9.2.19.5. /

Division of two values

Składnia	a / b
Argumenty	a - value b - value
Przykłady	5 / 4 → 1.25 5 / NULL → NULL

9.2.19.6. //

Floor division of two values

Składnia	a // b
Argumenty	a - value b - value
Przykłady	9 // 2 → 4

9.2.19.7. <

Compares two values and evaluates to 1 if the left value is less than the right value.

Składnia	a < b
Argumenty	a - value b - value
Przykłady	5 < 4 → FALSE 5 < 5 → FALSE 4 < 5 → TRUE

9.2.19.8. <=

Compares two values and evaluates to 1 if the left value is less or equal than the right value.

Składnia	a <= b
Argumenty	a - value b - value
Przykłady	5 <= 4 → FALSE 5 <= 5 → TRUE 4 <= 5 → TRUE

9.2.19.9. <>

Compares two values and evaluates to 1 if they are not equal.

Składnia	a <> b
Argumenty	a - value b - value
Przykłady	5 <> 4 → TRUE 4 <> 4 → FALSE 5 <> NULL → NULL NULL <> NULL → NULL

9.2.19.10. =

Compares two values and evaluates to 1 if they are equal.

Składnia	a = b
Argumenty	a - value b - value
Przykłady	5 = 4 → FALSE 4 = 4 → TRUE 5 = NULL → NULL NULL = NULL → NULL

9.2.19.11. >

Compares two values and evaluates to 1 if the left value is greater than the right value.

Składnia	a > b
Argumenty	a - value b - value
Przykłady	5 > 4 → TRUE 5 > 5 → FALSE 4 > 5 → FALSE

9.2.19.12. >=

Compares two values and evaluates to 1 if the left value is greater or equal than the right value.

Składnia	a >= b
Argumenty	a - value b - value
Przykłady	5 >= 4 → TRUE 5 >= 5 → TRUE 4 >= 5 → FALSE

9.2.19.13. AND

Returns TRUE when conditions a and b are true.

Składnia	a AND b
Argumenty	a - condition b - condition
Przykłady	TRUE AND TRUE → TRUE TRUE AND FALSE → FALSE 4 = 2+2 AND 1 = 1 → TRUE 4 = 2+2 AND 1 = 2 → FALSE

9.2.19.14. BETWEEN

Returns TRUE if value is within the specified range. The range is considered inclusive of the bounds. To test for exclusion NOT BETWEEN can be used.

Składnia	value BETWEEN lower_bound AND higher_bound
Argumenty	value - the value to compare with a range. It can be a string, a number or a date. lower_bound AND higher_bound - range bounds
Przykłady	'B' BETWEEN 'A' AND 'C' → TRUE 2 BETWEEN 1 AND 3 → TRUE 2 BETWEEN 2 AND 3 → TRUE 'B' BETWEEN 'a' AND 'c' → FALSE lower('B') BETWEEN 'a' AND 'b' → TRUE

Informacja

value BETWEEN lower_bound AND higher_bound is the same as „value >= lower_bound AND value <= higher_bound”.

Further reading: NOT BETWEEN

9.2.19.15. ILIKE

Returns TRUE if the first parameter matches case-insensitive the supplied pattern. LIKE can be used instead of ILIKE to make the match case-sensitive. Works with numbers also.

Składnia	string/number ILIKE pattern
Argumenty	string/number - string to search pattern - pattern to find, you can use «%» as a wildcard, «_» as a single char and «\\» to escape these special characters.
Przykłady	'A' ILIKE 'A' → TRUE 'A' ILIKE 'a' → TRUE 'A' ILIKE 'B' → FALSE 'ABC' ILIKE 'b' → FALSE 'ABC' ILIKE 'B' → FALSE 'ABC' ILIKE '_b_' → TRUE 'ABC' ILIKE '_B_' → TRUE 'ABCD' ILIKE '_b_' → FALSE 'ABCD' ILIKE '_B_' → FALSE 'ABCD' ILIKE '_b%' → TRUE 'ABCD' ILIKE '_B%' → TRUE 'ABCD' ILIKE '%b%' → TRUE 'ABCD' ILIKE '%B%' → TRUE 'ABCD%' ILIKE 'abcd\\%' → TRUE 'ABCD' ILIKE '%B\\%' → FALSE

9.2.19.16. IN

Returns TRUE if value is found within a list of values.

Składnia	a IN b
Argumenty	a - value b - list of values
Przykłady	'A' IN ('A','B') → TRUE 'A' IN ('C','B') → FALSE

9.2.19.17. IS

Returns TRUE if a is the same as b.

Składnia	a IS b
Argumenty	a - any value b - any value
Przykłady	'A' IS 'A' → TRUE 'A' IS 'a' → FALSE 4 IS 4 → TRUE 4 IS 2+2 → TRUE 4 IS 2 → FALSE @geometry IS NULL → 0, if your geometry is not NULL

9.2.19.18. IS NOT

Returns TRUE if a is not the same as b.

Składnia	a IS NOT b
Argumenty	a - value b - value
Przykłady	'a' IS NOT 'b' → TRUE 'a' IS NOT 'a' → FALSE 4 IS NOT 2+2 → FALSE

9.2.19.19. LIKE

Returns TRUE if the first parameter matches the supplied pattern. Works with numbers also.

Składnia	string/number LIKE pattern
Argumenty	string/number - value pattern - pattern to compare value with, you can use «%» as a wildcard, «_» as a single char and «\\» to escape these special characters.
Przykłady	'A' LIKE 'A' → TRUE 'A' LIKE 'a' → FALSE 'A' LIKE 'B' → FALSE 'ABC' LIKE 'B' → FALSE 'ABC' LIKE '_B_' → TRUE 'ABCD' LIKE '_B_' → FALSE 'ABCD' LIKE '_B%' → TRUE 'ABCD' LIKE '%B%' → TRUE '1%' LIKE '1\\%' → TRUE '1_' LIKE '1\\%' → FALSE

9.2.19.20. NOT

Negates a condition.

Składnia	NOT a
Argumenty	a - condition
Przykłady	NOT 1 → FALSE NOT 0 → TRUE

9.2.19.21. NOT BETWEEN

Returns TRUE if value is not within the specified range. The range is considered inclusive of the bounds.

Składnia	value NOT BETWEEN lower_bound AND higher_bound
Argumenty	value - the value to compare with a range. It can be a string, a number or a date. lower_bound AND higher_bound - range bounds
Przykłady	'B' NOT BETWEEN 'A' AND 'C' → FALSE 1.0 NOT BETWEEN 1.1 AND 1.2 → TRUE 2 NOT BETWEEN 2 AND 3 → FALSE 'B' NOT BETWEEN 'a' AND 'c' → TRUE lower('B') NOT BETWEEN 'a' AND 'b' → FALSE

Informacja

value NOT BETWEEN lower_bound AND higher_bound is the same as „value < lower_bound OR value > higher_bound”.

Further reading: BETWEEN

9.2.19.22. OR

Returns TRUE when condition a or b is true.

Składnia	a OR b
Argumenty	a - condition b - condition
Przykłady	4 = 2+2 OR 1 = 1 → TRUE 4 = 2+2 OR 1 = 2 → TRUE 4 = 2   OR 1 = 2 → FALSE

9.2.19.23. []

Index operator. Returns an element from an array or map value.

Składnia	[index]
Argumenty	index - array index or map key value
Przykłady	array(1,2,3)[0] → 1 array(1,2,3)[2] → 3 array(1,2,3)[-1] → 3 map('a',1,'b',2)['a'] → 1 map('a',1,'b',2)['b'] → 2

Further reading: array_get, map_get

9.2.19.24. ^

Power of two values.

Składnia	a ^ b
Argumenty	a - value b - value
Przykłady	5 ^ 4 → 625 5 ^ NULL → NULL

9.2.19.25. ||

Joins two values together into a string.

If one of the values is NULL the result will be NULL. See the CONCAT function for a different behavior.

Składnia	a || b
Argumenty	a - value b - value
Przykłady	'Here' || ' and ' || 'there' → «Here and there» 'Nothing' || NULL → NULL 'Dia: ' || "Diameter" → «Dia: 25» 1 || 2 → «12»

Further reading: concat, +

9.2.19.26. ~

Performs a regular expression match on a string value. Backslash characters must be double escaped (e.g., „\\s” to match a white space character).

Składnia	string ~ regex
Argumenty	string - A string value regex - A regular expression. Slashes must be escaped, eg \\d.
Przykłady	'hello' ~ 'll' → TRUE 'hello' ~ '^ll' → FALSE 'hello' ~ 'llo$' → TRUE 'abc123' ~ '\\d+' → TRUE

Further reading: regexp_match

9.2.20. Processing Functions

This group contains functions that operate on processing algorithms.

Show/hide list of functions

9.2.20.1. parametr

Returns the value of a processing algorithm input parameter.

Składnia	parameter(name)
Argumenty	name - name of the corresponding input parameter
Przykłady	parameter('BUFFER_SIZE') → 5.6

9.2.21. Rasters Functions

This group contains functions to operate on raster layer.

Show/hide list of functions

9.2.21.1. raster_attributes

Returns a map with the fields names as keys and the raster attribute table values as values from the attribute table entry that matches the given raster value.

Składnia	raster_attributes(layer, band, value)
Argumenty	layer - the name or id of a raster layer band - the band number for the associated attribute table lookup. value - raster value
Przykłady	raster_attributes('vegetation', 1, raster_value('vegetation', 1, make_point(1,1))) → {«class»: «Vegetated», «subclass»: «Trees»} raster_attributes('vegetation', 1, raster_value('vegetation', 1, @layer_cursor_point)) → {«class»: «Vegetated», «subclass»: «Trees»}

9.2.21.2. raster_statistic

Returns statistics from a raster layer.

Składnia	raster_statistic(layer, band, property)
Argumenty	layer - a string, representing either a raster layer name or layer ID band - integer representing the band number from the raster layer, starting at 1 property - a string corresponding to the property to return. Valid options are: min: minimum value max: maximum value avg: average (mean) value stdev: standard deviation of values range: range of values (max - min) sum: sum of all values from raster
Przykłady	raster_statistic('lc',1,'avg') → Average value from band 1 from «lc» raster layer raster_statistic('ac2010',3,'min') → Minimum value from band 3 from «ac2010» raster layer

9.2.21.3. raster_value

Returns the raster value found at the provided point.

Składnia	raster_value(layer, band, point)
Argumenty	layer - the name or id of a raster layer band - the band number to sample the value from. point - point geometry (for multipart geometries having more than one part, a NULL value will be returned)
Przykłady	raster_value('dem', 1, make_point(1,1)) → 25 raster_value('ndvi', 2, @layer_cursor_point) → 25

9.2.22. Record and Attributes Functions

This group contains functions that operate on record identifiers.

Show/hide list of functions

9.2.22.1. attribute

Returns an attribute from a feature.

Variant 1

Returns the value of an attribute from the current feature.

Składnia	attribute(attribute_name)
Argumenty	attribute_name - name of attribute to be returned
Przykłady	attribute( 'name' ) → value stored in «name» attribute for the current feature

Variant 2

Allows the target feature and attribute name to be specified.

Składnia	attribute(feature, attribute_name)
Argumenty	feature - a feature attribute_name - name of attribute to be returned
Przykłady	attribute( @atlas_feature, 'name' ) → value stored in «name» attribute for the current atlas feature

9.2.22.2. attributes

Returns a map containing all attributes from a feature, with field names as map keys.

Variant 1

Returns a map of all attributes from the current feature.

Składnia	attributes()
Przykłady	attributes()['name'] → value stored in «name» attribute for the current feature

Variant 2

Allows the target feature to be specified.

Składnia	attributes(feature)
Argumenty	feature - a feature
Przykłady	attributes( @atlas_feature )['name'] → value stored in «name» attribute for the current atlas feature

Further reading: Maps Functions

9.2.22.3. $currentfeature

Returns the current feature being evaluated. This can be used with the «attribute» function to evaluate attribute values from the current feature. WARNING: This function is deprecated. It is recommended to use the replacement @feature variable instead.

Składnia	$currentfeature
Przykłady	attribute( $currentfeature, 'name' ) → value stored in «name» attribute for the current feature

9.2.22.4. display_expression

Returns the display expression for a given feature in a layer. The expression is evaluated by default. Can be used with zero, one or more arguments, see below for details.

No parameters

If called with no parameters, the function will evaluate the display expression of the current feature in the current layer.

Składnia	display_expression()
Przykłady	display_expression() → The display expression of the current feature in the current layer.

One «feature» parameter

If called with a «feature» parameter only, the function will evaluate the specified feature from the current layer.

Składnia	display_expression(feature)
Argumenty	feature - The feature which should be evaluated.
Przykłady	display_expression(@atlas_feature) → The display expression of the current atlas feature.

Layer and feature parameters

If the function is called with both a layer and a feature, it will evaluate the specified feature from the specified layer.

Składnia	display_expression(layer, feature, [evaluate=true]) [] marks optional arguments
Argumenty	layer - The layer (or its ID or name) feature - The feature which should be evaluated. evaluate - If the expression must be evaluated. If false, the expression will be returned as a string literal only (which could potentially be later evaluated using the «eval» function).
Przykłady	display_expression( 'streets', get_feature_by_id('streets', 1)) → The display expression of the feature with the ID 1 on the layer «streets». display_expression('a_layer_id', @feature, 'False') → The display expression of the given feature not evaluated.

9.2.22.5. feature_id

Returns a feature’s unique ID, or NULL if the feature is not valid.

Składnia	feature_id(feature)
Argumenty	feature - a feature object
Przykłady	feature_id( @feature ) → the ID of the current feature

Further reading: get_feature_by_id

9.2.22.6. get_feature

Returns the first feature of a layer matching a given attribute value.

Single value variant

Along with the layer ID, a single column and value are specified.

Składnia	get_feature(layer, attribute, value)
Argumenty	layer - layer name or ID attribute - attribute name to use for the match value - attribute value to match
Przykłady	get_feature('streets','name','main st') → first feature found in „streets” layer with „main st” value in the „name” field

Map variant

Along with the layer ID, a map containing the columns (key) and their respective value to be used.

Składnia	get_feature(layer, attribute)
Argumenty	layer - layer name or ID attribute - Map containing the column and value pairs to use
Przykłady	get_feature('streets',map('name','main st','lane_num','4')) → first feature found in „streets” layer with „main st” value in the „name” field and „4” value in the „lane_num” field

9.2.22.7. get_feature_by_id

Returns the feature with an id on a layer.

Składnia	get_feature_by_id(layer, feature_id)
Argumenty	layer - layer, layer name or layer id feature_id - the id of the feature which should be returned
Przykłady	get_feature_by_id('streets', 1) → the feature with the id 1 on the layer „streets”

Further reading: feature_id

9.2.22.8. $id

Returns the feature id of the current row. WARNING: This function is deprecated. It is recommended to use the replacement @id variable instead.

Składnia	$id
Przykłady	$id → 42

Further reading: feature_id, get_feature_by_id

9.2.22.9. is_attribute_valid

Returns TRUE if a specific feature attribute meets all constraints.

Składnia	is_attribute_valid(attribute, [feature], [layer], [strength]) [] marks optional arguments
Argumenty	attribute - an attribute name feature - A feature. If not set, the current feature will be used. layer - A vector layer. If not set, the current layer will be used. strength - Set to «hard» or «soft» to narrow down to a specific constraint type. If not set, the function will return FALSE if either a hard or a soft constraint fails.
Przykłady	is_attribute_valid('HECTARES') → TRUE if the current feature’s value in the „HECTARES” field meets all constraints. is_attribute_valid('HOUSES',get_feature('my_layer', 'FID', 10), 'my_layer') → FALSE if the value in the „HOUSES” field from the feature with „FID”=10 in «my_layer» fails to meet all constraints.

Further reading: Constraints

9.2.22.10. is_feature_valid

Returns TRUE if a feature meets all field constraints.

Składnia	is_feature_valid([feature], [layer], [strength]) [] marks optional arguments
Argumenty	feature - A feature. If not set, the current feature will be used. layer - A vector layer. If not set, the current layer will be used. strength - Set to «hard» or «soft» to narrow down to a specific constraint type. If not set, the function will return FALSE if either a hard or a soft constraint fails.
Przykłady	is_feature_valid(strength:='hard') → TRUE if all fields from the current feature meet their hard constraints. is_feature_valid(get_feature('my_layer', 'FID', 10), 'my_layer') → FALSE if all fields from feature with „FID”=10 in «my_layer» fails to meet all constraints.

Further reading: Constraints

9.2.22.11. is_selected

Returns TRUE if a feature is selected. Can be used with zero, one or two arguments, see below for details.

No parameters

If called with no parameters, the function will return TRUE if the current feature in the current layer is selected.

Składnia	is_selected()
Przykłady	is_selected() → TRUE if the current feature in the current layer is selected.

One «feature» parameter

If called with a «feature» parameter only, the function returns TRUE if the specified feature from the current layer is selected.

Składnia	is_selected(feature)
Argumenty	feature - The feature which should be checked for selection.
Przykłady	is_selected(@atlas_feature) → TRUE if the current atlas feature is selected. is_selected(get_feature('streets', 'name', 'Main St.')) → TRUE if the unique named „Main St.” feature on the active „streets” layer is selected. is_selected(get_feature_by_id('streets', 1)) → TRUE if the feature with the id 1 on the active „streets” layer is selected.

Two parameters

If the function is called with both a layer and a feature, it will return TRUE if the specified feature from the specified layer is selected.

Składnia	is_selected(layer, feature)
Argumenty	layer - The layer (its ID or name) on which the selection will be checked. feature - The feature which should be checked for selection.
Przykłady	is_selected( 'streets', get_feature('streets', 'name', "street_name")) → TRUE if the current building’s street is selected (assuming the building layer has a field named «street_name» and the «streets» layer has a field called «name» with unique values). is_selected( 'streets', get_feature_by_id('streets', 1)) → TRUE if the feature with the id 1 on the „streets” layer is selected.

9.2.22.12. maptip

Returns the maptip for a given feature in a layer. The expression is evaluated by default. Can be used with zero, one or more arguments, see below for details.

No parameters

If called with no parameters, the function will evaluate the maptip of the current feature in the current layer.

Składnia	maptip()
Przykłady	maptip() → The maptip of the current feature in the current layer.

One «feature» parameter

If called with a «feature» parameter only, the function will evaluate the specified feature from the current layer.

Składnia	maptip(feature)
Argumenty	feature - The feature which should be evaluated.
Przykłady	maptip(@atlas_feature) → The maptip of the current atlas feature.

Layer and feature parameters

If the function is called with both a layer and a feature, it will evaluate the specified feature from the specified layer.

Składnia	maptip(layer, feature, [evaluate=true]) [] marks optional arguments
Argumenty	layer - The layer (or its ID or name) feature - The feature which should be evaluated. evaluate - If the expression must be evaluated. If false, the expression will be returned as a string literal only (which could potentially be later evaluated using the «eval_template» function).
Przykłady	maptip('streets', get_feature_by_id('streets', 1)) → The maptip of the feature with the ID 1 on the layer «streets». maptip('a_layer_id', @feature, 'False') → The maptip of the given feature not evaluated.

9.2.22.13. num_selected

Returns the number of selected features on a given layer. By default works on the layer on which the expression is evaluated.

Składnia	num_selected([layer=current layer]) [] marks optional arguments
Argumenty	layer - The layer (or its id or name) on which the selection will be checked.
Przykłady	num_selected() → The number of selected features on the current layer. num_selected('streets') → The number of selected features on the layer streets

9.2.22.14. represent_attributes

Returns a map with the attribute names as keys and the configured representation values as values. The representation value for the attributes depends on the configured widget type for each attribute. Can be used with zero, one or more arguments, see below for details.

No parameters

If called with no parameters, the function will return the representation of the attributes of the current feature in the current layer.

Składnia	represent_attributes()
Przykłady	represent_attributes() → The representation of the attributes for the current feature.

One «feature» parameter

If called with a «feature» parameter only, the function will return the representation of the attributes of the specified feature from the current layer.

Składnia	represent_attributes(feature)
Argumenty	feature - The feature which should be evaluated.
Przykłady	represent_attributes(@atlas_feature) → The representation of the attributes for the specified feature from the current layer.

Layer and feature parameters

If called with a «layer» and a «feature» parameter, the function will return the representation of the attributes of the specified feature from the specified layer.

Składnia	represent_attributes(layer, feature)
Argumenty	layer - The layer (or its ID or name). feature - The feature which should be evaluated.
Przykłady	represent_attributes('atlas_layer', @atlas_feature) → The representation of the attributes for the specified feature from the specified layer.

Further reading: represent_value

9.2.22.15. represent_value

Returns the configured representation value for a field value. It depends on the configured widget type. Often, this is useful for «Value Map» widgets.

Składnia	represent_value(value, [fieldName]) [] marks optional arguments
Argumenty	value - The value which should be resolved. Most likely a field. fieldName - The field name for which the widget configuration should be loaded.
Przykłady	represent_value("field_with_value_map") → Description for value represent_value('static value', 'field_name') → Description for static value

Further reading: widget types, represent_attributes

9.2.22.16. sqlite_fetch_and_increment

Manage autoincrementing values in sqlite databases.

SQlite default values can only be applied on insert and not prefetched.

This makes it impossible to acquire an incremented primary key via AUTO_INCREMENT before creating the row in the database. Sidenote: with postgres, this works via the option evaluate default values.

When adding new features with relations, it is really nice to be able to already add children for a parent, while the parents form is still open and hence the parent feature uncommitted.

To get around this limitation, this function can be used to manage sequence values in a separate table on sqlite based formats like gpkg.

The sequence table will be filtered for a sequence id (filter_attribute and filter_value) and the current value of the id_field will be incremented by 1 and the incremented value returned.

If additional columns require values to be specified, the default_values map can be used for this purpose.

Note

This function modifies the target sqlite table. It is intended for usage with default value configurations for attributes.

When the database parameter is a layer and the layer is in transaction mode, the value will only be retrieved once during the lifetime of a transaction and cached and incremented. This makes it unsafe to work on the same database from several processes in parallel.

Składnia	sqlite_fetch_and_increment(database, table, id_field, filter_attribute, filter_value, [default_values]) [] marks optional arguments
Argumenty	database - Path to the sqlite file or geopackage layer table - Name of the table that manages the sequences id_field - Name of the field that contains the current value filter_attribute - Name the field that contains a unique identifier for this sequence. Must have a UNIQUE index. filter_value - Name of the sequence to use. default_values - Map with default values for additional columns on the table. The values need to be fully quoted. Functions are allowed.
Przykłady	sqlite_fetch_and_increment(@layer, 'sequence_table', 'last_unique_id', 'sequence_id', 'global', map('last_change', 'date(''now'')', 'user', '''' || @user_account_name || '''')) → 0 sqlite_fetch_and_increment(layer_property(@layer, 'path'), 'sequence_table', 'last_unique_id', 'sequence_id', 'global', map('last_change', 'date(''now'')', 'user', '''' || @user_account_name || '''')) → 0

Further reading: Data Sources Properties, Setting relations between multiple layers

9.2.22.17. uuid

Generates a Universally Unique Identifier (UUID) for each row using the Qt QUuid::createUuid method.

Składnia	uuid([format=»WithBraces»]) [] marks optional arguments
Argumenty	format - The format, as the UUID will be formatted. «WithBraces», «WithoutBraces» or «Id128».
Przykłady	uuid() → «{0bd2f60f-f157-4a6d-96af-d4ba4cb366a1}» uuid('WithoutBraces') → «0bd2f60f-f157-4a6d-96af-d4ba4cb366a1» uuid('Id128') → «0bd2f60ff1574a6d96afd4ba4cb366a1»

9.2.23. Relations

This group contains the list of the relations available in the current project, with their description. It provides a quick access to the relation ID for writing an expression (with e.g. the relation_aggregate function) or customizing a form.

9.2.24. Sensors Functions

This group contains functions to interact with sensors.

Show/hide list of functions

9.2.24.1. sensor_data

Returns the last captured value (or values as a map for sensors which report multiple values) from a registered sensor.

Składnia	sensor_data(name, [expiration]) [] marks optional arguments
Argumenty	name - the sensor name expiration - maximum millisecond since last captured value allowed
Przykłady	sensor_data('geiger_1') → «2000»

9.2.25. String Functions

This group contains functions that operate on strings (e.g., that replace, convert to upper case).

Show/hide list of functions

9.2.25.1. ascii

Returns the unicode code associated with the first character of a string.

Składnia	ascii(string)
Argumenty	string - the string to convert to unicode code
Przykłady	ascii('Q') → 81

9.2.25.2. char

Returns the character associated with a unicode code.

Składnia	char(code)
Argumenty	code - a unicode code number
Przykłady	char(81) → «Q»

9.2.25.3. concat

Concatenates several strings to one. NULL values are converted to empty strings. Other values (like numbers) are converted to strings.

Składnia	concat(string1, string2, …)
Argumenty	string - a string value
Przykłady	concat('sun', 'set') → «sunset» concat('a','b','c','d','e') → «abcde» concat('Anno ', 1984) → «Anno 1984» concat('The Wall', NULL) → «The Wall»

About fields concatenation

You can also concatenate strings or field values using either || or + operators, with some special characteristics:

• The + operator also means sum up expression, so if you have an integer (field or numeric value) operand, this can be error prone and you better use the others:

  'My feature id is: ' + "gid" => triggers an error as gid returns an integer


• When any of the arguments is a NULL value, either || or + will return a NULL value. To return the other arguments regardless the NULL value, you may want to use the concat or array_to_string function:

  'My feature id is: ' + NULL ==> NULL
  'My feature id is: ' || NULL => NULL
  concat('My feature id is: ', NULL) => 'My feature id is: '
  array_to_string( array('My feature id is: ', NULL) ) => 'My feature id is: '


further reading: array_to_string, ||, +

9.2.25.4. format

Format a string using supplied arguments.

Składnia	format(string, arg1, arg2, …)
Argumenty	string - A string with placeholders %1, %2, etc., for the arguments. Placeholders can be repeated. The lowest numbered placeholder is replaced by arg1, the next by arg2, etc. arg - any type. Any number of arguments.
Przykłady	format('This %1 a %2','is', 'test') → «This is a test» format('This is %2','a bit unexpected but 2 is lowest number in string','normal') → «This is a bit unexpected but 2 is lowest number in string»

9.2.25.5. format_date

Formats a date type or string into a custom string format. Uses Qt date/time format strings. See QDateTime::toString.

Składnia	format_date(datetime, format, [language]) [] marks optional arguments
Argumenty	datetime - date, time or datetime value format - String template used to format the string. Wyrażenie Wyjście d the day as number without a leading zero (1 to 31) dd the day as number with a leading zero (01 to 31) ddd the abbreviated localized day name (e.g. «Mon» to «Sun») dddd the long localized day name (e.g. «Monday» to «Sunday») M the month as number without a leading zero (1-12) MM the month as number with a leading zero (01-12) MMM the abbreviated localized month name (e.g. «Jan» to «Dec») MMMM the long localized month name (e.g. «January» to «December») yy the year as two digit number (00-99) yyyy the year as four digit number These expressions may be used for the time part of the format string: Wyrażenie Wyjście h the hour without a leading zero (0 to 23 or 1 to 12 if AM/PM display) hh the hour with a leading zero (00 to 23 or 01 to 12 if AM/PM display) H the hour without a leading zero (0 to 23, even with AM/PM display) HH the hour with a leading zero (00 to 23, even with AM/PM display) m the minute without a leading zero (0 to 59) mm the minute with a leading zero (00 to 59) s the second without a leading zero (0 to 59) ss the second with a leading zero (00 to 59) z the milliseconds without trailing zeroes (0 to 999) zzz the milliseconds with trailing zeroes (000 to 999) AP or A interpret as an AM/PM time. AP must be either «AM» or «PM». ap or a Interpret as an AM/PM time. ap must be either «am» or «pm». language - language (lowercase, two- or three-letter, ISO 639 language code) used to format the date into a custom string. By default the current QGIS user locale is used.
Przykłady	format_date('2012-05-15','dd.MM.yyyy') → «15.05.2012» format_date('2012-05-15','d MMMM yyyy','fr') → «15 mai 2012» format_date('2012-05-15','dddd') → «Tuesday», if the current locale is an English variant format_date('2012-05-15 13:54:20','dd.MM.yy') → «15.05.12» format_date('13:54:20','hh:mm AP') → «01:54 PM»

9.2.25.6. format_number

Returns a number formatted with the locale separator for thousands. By default the current QGIS user locale is used. Also truncates the decimal places to the number of supplied places.

Składnia	format_number(number, [places=0], [language], [omit_group_separators=false], [trim_trailing_zeroes=false]) [] marks optional arguments
Argumenty	number - number to be formatted places - integer representing the number of decimal places to truncate the string to. language - language (lowercase, two- or three-letter, ISO 639 language code) used to format the number into a string. By default the current QGIS user locale is used. omit_group_separators - if set to true then group separators will not be included in the string trim_trailing_zeroes - if set to true then trailing zeros following the decimal point will be trimmed from the string
Przykłady	format_number(10000000.332,2) → «10,000,000.33» if e.g. the current locale is an English variant format_number(10000000.332,2,'fr') → «10 000 000,33»

9.2.25.7. left

Returns a substring that contains the n leftmost characters of the string.

Składnia	left(string, length)
Argumenty	string - a string length - integer. The number of characters from the left of the string to return.
Przykłady	left('Hello World',5) → «Hello»

Further reading: right

9.2.25.8. length

Returns the number of characters in a string or the length of a geometry linestring.

String variant

Returns the number of characters in a string.

Składnia	length(string)
Argumenty	string - string to count length of
Przykłady	length('hello') → 5

Geometry variant

Calculate the length of a geometry line object. Calculations are always planimetric in the Spatial Reference System (SRS) of this geometry, and the units of the returned length will match the units for the SRS. This differs from the calculations performed by the $length function, which will perform ellipsoidal calculations based on the project’s ellipsoid and distance unit settings.

Składnia	length(geometry)
Argumenty	geometry - line geometry object
Przykłady	length(geom_from_wkt('LINESTRING(0 0, 4 0)')) → 4.0

9.2.25.9. lower

Converts a string to lower case letters.

Składnia	lower(string)
Argumenty	string - the string to convert to lower case
Przykłady	lower('HELLO World') → «hello world»

Further reading: upper, title

9.2.25.10. lpad

Returns a string padded on the left to the specified width, using a fill character. If the target width is smaller than the string’s length, the string is truncated.

Składnia	lpad(string, width, fill)
Argumenty	string - string to pad width - length of new string fill - character to pad the remaining space with
Przykłady	lpad('Hello', 10, 'x') → «xxxxxHello» lpad('Hello', 3, 'x') → «Hel»

Further reading: rpad

9.2.25.11. ltrim

Removes the longest string containing only the specified characters (a space by default) from the start of string.

Składnia	ltrim(string, [characters=» «]) [] marks optional arguments
Argumenty	string - string to trim characters - characters to trim
Przykłady	ltrim('   hello world  ') → «hello world « ltrim('zzzytest', 'xyz') → «test»

Further reading: rtrim, trim

9.2.25.12. regexp_match

Return the first matching position matching a regular expression within an unicode string, or 0 if the substring is not found.

Składnia	regexp_match(input_string, regex)
Argumenty	input_string - the string to test against the regular expression regex - The regular expression to test against. Backslash characters must be double escaped (e.g., „\\s” to match a white space character or „\\b” to match a word boundary).
Przykłady	regexp_match('QGIS ROCKS','\\sROCKS') → 5 regexp_match('Budač','udač\\b') → 2

Further reading: strpos

9.2.25.13. regexp_replace

Returns a string with the supplied regular expression replaced.

Składnia	regexp_replace(input_string, regex, replacement)
Argumenty	input_string - the string to replace matches in regex - The regular expression to replace. Backslash characters must be double escaped (e.g., „\\s” to match a white space character). replacement - The string that will replace any matching occurrences of the supplied regular expression. Captured groups can be inserted into the replacement string using \\1, \\2, etc.
Przykłady	regexp_replace('QGIS SHOULD ROCK','\\sSHOULD\\s',' DOES ') → «QGIS DOES ROCK» regexp_replace('ABC123','\\d+','') → «ABC» regexp_replace('my name is John','(.*) is (.*)','\\2 is \\1') → «John is my name»

Further reading: replace, array_replace

9.2.25.14. regexp_substr

Returns the portion of a string which matches a supplied regular expression.

Składnia	regexp_substr(input_string, regex)
Argumenty	input_string - the string to find matches in regex - The regular expression to match against. Backslash characters must be double escaped (e.g., „\\s” to match a white space character).
Przykłady	regexp_substr('abc123','(\\d+)') → «123»

Further reading: substr, regexp_matches

9.2.25.15. replace

Returns a string with the supplied string, array, or map of strings replaced.

String & array variant

Returns a string with the supplied string or array of strings replaced by a string or an array of strings.

Składnia	replace(string, before, after)
Argumenty	string - the input string before - the string or array of strings to replace after - the string or array of strings to use as a replacement
Przykłady	replace('QGIS SHOULD ROCK','SHOULD','DOES') → «QGIS DOES ROCK» replace('QGIS ABC',array('A','B','C'),array('X','Y','Z')) → «QGIS XYZ» replace('QGIS',array('Q','S'),'') → «GI»

Map variant

Returns a string with the supplied map keys replaced by paired values. Longer map keys are evaluated first.

Składnia	replace(string, map)
Argumenty	string - the input string map - the map containing keys and values
Przykłady	replace('APP SHOULD ROCK',map('APP','QGIS','SHOULD','DOES')) → «QGIS DOES ROCK» replace('forty two',map('for','4','two','2','forty two','42')) → «42»

Further reading: regexp_replace, array_replace

9.2.25.16. right

Returns a substring that contains the n rightmost characters of the string.

Składnia	right(string, length)
Argumenty	string - a string length - integer. The number of characters from the right of the string to return.
Przykłady	right('Hello World',5) → «World»

Further reading: left

9.2.25.17. rpad

Returns a string padded on the right to the specified width, using a fill character. If the target width is smaller than the string’s length, the string is truncated.

Składnia	rpad(string, width, fill)
Argumenty	string - string to pad width - length of new string fill - character to pad the remaining space with
Przykłady	rpad('Hello', 10, 'x') → «Helloxxxxx» rpad('Hello', 3, 'x') → «Hel»

Further reading: lpad

9.2.25.18. rtrim

Removes the longest string containing only the specified characters (a space by default) from the end of string.

Składnia	rtrim(string, [characters=» «]) [] marks optional arguments
Argumenty	string - string to trim characters - characters to trim
Przykłady	rtrim('   hello world  ') → « hello world» rtrim('testxxzx', 'xyz') → «test»

Further reading: ltrim, trim

9.2.25.19. strpos

Return the first matching position of a substring within another string, or 0 if the substring is not found.

Składnia	strpos(haystack, needle)
Argumenty	haystack - string that is to be searched needle - string to search for
Przykłady	strpos('HELLO WORLD','WORLD') → 7 strpos('HELLO WORLD','GOODBYE') → 0

Further reading: regexp_match

9.2.25.20. substr

Returns a part of a string.

Składnia	substr(string, start, [length]) [] marks optional arguments
Argumenty	string - the full input string start - integer representing start position to extract beginning with 1; if start is negative, the return string will begin at the end of the string minus the start value length - integer representing length of string to extract; if length is negative, the return string will omit the given length of characters from the end of the string
Przykłady	substr('HELLO WORLD',3,5) → «LLO W» substr('HELLO WORLD',6) → « WORLD» substr('HELLO WORLD',-5) → «WORLD» substr('HELLO',3,-1) → «LL» substr('HELLO WORLD',-5,2) → «WO» substr('HELLO WORLD',-5,-1) → «WORL»

Further reading: regexp_substr, regexp_matches

9.2.25.21. title

Converts all words of a string to title case (all words lower case with leading capital letter).

Składnia	title(string)
Argumenty	string - the string to convert to title case
Przykłady	title('hello WOrld') → «Hello World»

Further reading: lower, upper

9.2.25.22. to_string

Converts a number to string.

Składnia	to_string(number)
Argumenty	number - Integer or real value. The number to convert to string.
Przykłady	to_string(123) → «123»

Further reading: format_number

9.2.25.23. trim

Removes all leading and trailing whitespace (spaces, tabs, etc) from a string.

Składnia	trim(string)
Argumenty	string - string to trim
Przykłady	trim('   hello world  ') → «hello world»

Further reading: ltrim, rtrim

9.2.25.24. upper

Converts a string to upper case letters.

Składnia	upper(string)
Argumenty	string - the string to convert to upper case
Przykłady	upper('hello WOrld') → «HELLO WORLD»

Further reading: lower, title

9.2.25.25. wordwrap

Returns a string wrapped to a maximum/minimum number of characters.

Składnia	wordwrap(string, wrap_length, [delimiter_string]) [] marks optional arguments
Argumenty	string - the string to be wrapped wrap_length - an integer. If wrap_length is positive the number represents the ideal maximum number of characters to wrap; if negative, the number represents the minimum number of characters to wrap. delimiter_string - Optional delimiter string to wrap to a new line.
Przykłady	wordwrap('UNIVERSITY OF QGIS',13) → «UNIVERSITY OF<br>QGIS» wordwrap('UNIVERSITY OF QGIS',-3) → «UNIVERSITY<br>OF QGIS»

9.2.26. User Expressions

This group contains the expressions saved as user expressions.

9.2.27. Zmienne

This group contains dynamic variables related to the application, the project file and other settings. The availability of variables depends on the context:

• from the ^{Select by expression} dialog

• from the ^{Field calculator} dialog

• from the layer properties dialog

• from the print layout

To use these variables in an expression, they should be preceded by the @ character (e.g, @row_number).

Variable	Opis
algorithm_id	The unique ID of an algorithm
animation_end_time	End of the animation’s overall temporal time range (as a datetime value)
animation_interval	Duration of the animation’s overall temporal time range (as an interval value)
animation_start_time	Start of the animation’s overall temporal time range (as a datetime value)
atlas_feature	The current atlas feature (as feature object)
atlas_featureid	The current atlas feature ID
atlas_featurenumber	The current atlas feature number in the layout
atlas_filename	The current atlas file name
atlas_geometry	The current atlas feature geometry
atlas_layerid	The current atlas coverage layer ID
atlas_layername	The current atlas coverage layer name
atlas_pagename	The current atlas page name
atlas_totalfeatures	The total number of features in atlas
band	The number of the band in the raster layer
band_description	The description of the band in the raster layer
band_name	The name of the band in the raster layer
canvas_cursor_point	The last cursor position on the canvas in the project’s geographical coordinates
cluster_color	The color of symbols within a cluster, or NULL if symbols have mixed colors
cluster_size	The number of symbols contained within a cluster
current_feature	The feature currently being edited in the attribute form or table row
current_geometry	The geometry of the feature currently being edited in the form or the table row
current_parent_feature	represents the feature currently being edited in the parent form. Only usable in an embedded form context.
current_parent_geometry	represents the geometry of the feature currently being edited in the parent form. Only usable in an embedded form context.
form_mode	What the form is used for, like AddFeatureMode, SingleEditMode, MultiEditMode, SearchMode, AggregateSearchMode or IdentifyMode as string.
feature	The current feature being evaluated. This can be used with the «attribute» function to evaluate attribute values from the current feature.
frame_duration	Temporal duration of each animation frame (as an interval value)
frame_number	Current frame number during animation playback
frame_rate	Number of frames per second during animation playback
fullextent_maxx	Maximum x value from full canvas extent (including all layers)
fullextent_maxy	Maximum y value from full canvas extent (including all layers)
fullextent_minx	Minimum x value from full canvas extent (including all layers)
fullextent_miny	Minimum y value from full canvas extent (including all layers)
geometry	The geometry of the current feature being evaluated
geometry_part_count	The number of parts in rendered feature’s geometry
geometry_part_num	The current geometry part number for feature being rendered
geometry_point_count	The number of points in the rendered geometry’s part
geometry_point_num	The current point number in the rendered geometry’s part
geometry_ring_num	Current geometry ring number for feature being rendered (for polygon features only). The exterior ring has a value of 0.
grid_axis	The current grid annotation axis (eg, «x» for longitude, «y» for latitude)
grid_number	The current grid annotation value
id	The ID of the current feature being evaluated
item_id	The layout item user ID (not necessarily unique)
item_uuid	The layout item unique ID
layer	The current layer
layer_crs	The Coordinate Reference System Authority ID of the current layer
layer_crs_ellipsoid	The ellipsoid Authority ID of the current layer CRS
layer_cursor_point	Point geometry under the mouse position in map canvas (or the GetFeatureInfo position in context of QGIS Server), in active layer’s CRS
layer_id	The ID of current layer
layer_ids	The IDs of all the map layers in the current project as a list
layer_name	The name of current layer
layer_vertical_crs	The Identifier for the vertical coordinate reference system of the layer (e.g., «EPSG:5703»)
layer_vertical_crs_definition	The full definition of the vertical Coordinate reference system of the layer
layer_vertical_crs_description	The name of the vertical Coordinate reference system of the layer
layer_vertical_crs_wkt	The WKT definition of the vertical Coordinate reference system of the current layer
layers	All the map layers in the current project as a list
layout_dpi	The composition resolution (DPI)
layout_name	The layout name
layout_numpages	The number of pages in the layout
layout_page	The page number of the current item in the layout
layout_pageheight	The active page height in the layout (in mm for standard paper sizes, or whatever unit was used for custom paper size)
layout_pageoffsets	Array of Y coordinate of the top of each page. Allows to dynamically position items on pages in a context where page sizes may change
layout_pagewidth	The active page width in the layout (in mm for standard paper sizes, or whatever unit was used for custom paper size)
legend_column_count	The number of columns in the legend
legend_filter_by_map	Indicates if the content of the legend is filtered by the map
legend_filter_out_atlas	Indicates if the atlas is filtered out of the legend
legend_split_layers	Indicates if layers can be split in the legend
legend_title	The title of the legend
legend_wrap_string	The character(s) used to wrap the legend text
map_crs	The Coordinate reference system of the current map
map_crs_acronym	The acronym of the Coordinate reference system of the current map
map_crs_definition	The full definition of the Coordinate reference system of the current map
map_crs_description	The name of the Coordinate reference system of the current map
map_crs_ellipsoid	The acronym of the ellipsoid of the Coordinate reference system of the current map
map_crs_proj4	The Proj4 definition of the Coordinate reference system of the current map
map_crs_projection	The descriptive name of the projection method used by the Coordinate reference system of the map (e.g. «Albers Equal Area»)
map_crs_wkt	The WKT definition of the Coordinate reference system of the current map
map_end_time	The end of the map’s temporal time range (as a datetime value)
map_extent	The geometry representing the current extent of the map
map_extent_center	The point feature at the center of the map
map_extent_height	The current height of the map
map_extent_width	The current width of the map
map_id	The ID of current map destination. This will be «canvas» for canvas renders, and the item ID for layout map renders
map_interval	The duration of the map’s temporal time range (as an interval value)
map_layer_ids	The list of map layer IDs visible in the map
map_layers	The list of map layers visible in the map
map_rotation	The current rotation of the map
map_scale	The current scale of the map
map_start_time	The start of the map’s temporal time range (as a datetime value)
map_units	The units of map measurements
map_z_range_lower	Lower elevation of the map’s elevation range
map_z_range_upper	Upper elevation of the map’s elevation range
model_path	Full path (including file name) of current model (or project path if model is embedded in a project).
model_folder	Folder containing current model (or project folder if model is embedded in a project).
model_name	Name of current model
model_group	Group for current model
notification_message	Content of the notification message sent by the provider (available only for actions triggered by provider notifications).
parent	Refers to the current feature in the parent layer, providing access to its attributes and geometry when filtering an aggregate function
plot_axis	The associated plot axis, e.g. «x» or «y».
plot_axis_value	The current value for the plot axis.
project_abstract	The project abstract, taken from project metadata
project_area_units	The area unit for the current project, used when calculating areas of geometries
project_author	The project author, taken from project metadata
project_basename	The basename of current project’s filename (without path and extension)
project_creation_date	The project creation date, taken from project metadata
project_crs	Identifier for the coordinate reference system of the project (e.g., «EPSG:4326»)
project_crs_arconym	The acronym of the Coordinate reference system of the project
project_crs_definition	The full definition of the Coordinate reference system of the project
project_crs_description	The description of the Coordinate reference system of the project
project_crs_ellipsoid	The ellipsoid of the Coordinate reference system of the project
project_crs_proj4	The Proj4 representation of the Coordinate reference system of the project
project_crs_wkt	The WKT (well known text) representation of the coordinate reference system of the project
project_distance_units	The distance unit for the current project, used when calculating lengths of geometries and distances
project_ellipsoid	The name of the ellipsoid of the current project, used when calculating geodetic areas or lengths of geometries
project_filename	The filename of the current project
project_folder	The folder of the current project
project_home	The home path of the current project
project_identifier	The project identifier, taken from the project’s metadata
project_keywords	The project keywords, taken from the project’s metadata
project_last_saved	Date/time when project was last saved.
project_path	The full path (including file name) of the current project
project_title	The title of current project
project_units	The units of the project’s CRS
project_vertical_crs	Identifier for the vertical Coordinate reference system of the project (e.g., «EPSG:5703»)
project_vertical_crs_definition	The full definition of the vertical coordinate reference system of the project
project_vertical_crs_description	The description of the vertical coordinate reference system of the project
project_vertical_crs_wkt	The WKT (well known text) representation of the vertical coordinate reference system of the project
qgis_locale	The current language of QGIS
qgis_os_name	The current Operating system name, eg «windows», «linux» or «osx»
qgis_platform	The QGIS platform, eg «desktop» or «server»
qgis_release_name	The current QGIS release name
qgis_short_version	The current QGIS version short string
qgis_version	The current QGIS version string
qgis_version_no	The current QGIS version number
row_number	Stores the number of the current row
snapping_results	Gives access to snapping results while digitizing a feature (only available in add feature)
scale_value	The current scale bar distance value
selected_file_path	Selected file path from file widget selector when uploading a file with an external storage system
symbol_angle	The angle of the symbol used to render the feature (valid for marker symbols only)
symbol_color	The color of the symbol used to render the feature
symbol_count	The number of features represented by the symbol (in the layout legend)
symbol_frame	The frame number (for animated symbols only)
symbol_id	The Internal ID of the symbol (in the layout legend)
symbol_label	The label for the symbol (either a user defined label or the default autogenerated label - in the layout legend)
symbol_layer_count	Total number of symbol layers in the symbol
symbol_layer_index	Current symbol layer index
symbol_marker_column	Column number for marker (valid for point pattern fills only).
symbol_marker_row	Row number for marker (valid for point pattern fills only).
user_account_name	The current user’s operating system account name
user_full_name	The current user’s operating system user name
value	The current value
vector_tile_zoom	Exact vector tile zoom level of the map that is being rendered (derived from the current map scale). Normally in interval [0, 20]. Unlike @zoom_level, this variable is a floating point value which can be used to interpolate values between two integer zoom levels.
with_variable	Allows setting a variable for usage within an expression and avoid recalculating the same value repeatedly
zoom_level	Vector tile zoom level of the map that is being rendered (derived from the current map scale). Normally in interval [0, 20].

Some examples:

• Return the X coordinate of a map item center in layout:

  x( map_get( item_variables( 'map1'), 'map_extent_center' ) )


• Return, for each feature in the current layer, the number of overlapping airport features:

  aggregate( layer:='airport', aggregate:='count', expression:="code",
                 filter:=intersects( $geometry, geometry( @parent ) ) )


• Get the object_id of the first snapped point of a line:

  with_variable(
    'first_snapped_point',
    array_first( @snapping_results ),
    attribute(
      get_feature_by_id(
        map_get( @first_snapped_point, 'layer' ),
        map_get( @first_snapped_point, 'feature_id' )
      ),
      'object_id'
    )
  )


9.2.28. Recent Functions

This group contains recently used functions. Depending on the context of its usage (feature selection, field calculator, generic), recently applied expressions are added to the corresponding list (up to ten expressions), sorted from more to less recent. This makes it easy to quickly retrieve and reapply previously used expressions.
