The Legend Item

The Legend item is a box or a table that explains the meanings of the symbols used on the map. A legend is then bound to a map item. You can add a legend item with the addLegend Add Legend tool following items creation instructions and manipulate it the same way as exposed in Interacting with layout items.

By default, the legend item displays all available layers and can be refined using its Item Properties panel. Other than the items common properties, this feature has the following functionalities (see figure_layout_legend):

../../../../_images/legend_properties.png

Legend Item Properties Panel

Main properties

The Main properties group of the legend Item Properties panel provides the following functionalities (see figure_layout_legend_ppt):

../../../../_images/legend_mainproperties.png

Legend Main properties group

In Main properties you can:

  • change the title of the legend. It can be made dynamic using the data-defined override setting, useful for example when generating atlas;

  • set the Title alignment to Left, Center or Right;

  • choose which Map item the current legend will refer to;

  • wrap the text of the legend on a given character: each time the character appears, it’s replaced by a line break;

  • use checkbox Resize to fit contents to control whether or not a legend should be automatically resized to fit its contents. If unchecked, then the legend will never resize and instead just stick to whatever size the user has set. Any content which doesn’t fit the size is cropped out.

Legend items

The Legend items group of the legend Item Properties panel provides the following functionalities (see figure_layout_legend_items):

../../../../_images/legend_items.png

Legend Items group

  • The legend will be updated automatically if checkbox Auto-update is checked. When Auto-update is unchecked this will give you more control over the legend items. The icons below the legend items list will be activated.

  • The legend items window lists all legend items and allows you to change item order, group layers, remove and restore items in the list, edit layer names and add a filter.

    • The item order can be changed using the arrowUp and arrowDown buttons or with ‘drag-and-drop’ functionality. The order can not be changed for WMS legend graphics.

    • Use the addGroup button to add a legend group.

    • Use the signPlus button to add layers and signMinus button to remove groups, layers or symbol classes.

    • The projectProperties button is used to edit the layer, group name or title. First you need to select the legend item. Double-clicking the item also opens the text box to rename it.

    • The sum button adds a feature count for each class of vector layer.

    • With the filterMap Filter legend by map content button, only the legend items visible in the map will be listed in the legend. This tool remains available when checkbox Auto-update is active.

    • The expressionFilter Filter legend by expression helps you filter which of the legend items of a layer will be displayed, i.e. using a layer that has different legend items (e.g., from a rule-based or categorized symbology), you can specify a boolean expression to remove from the legend tree, styles that have no feature satisfying a condition. Note that the features are nevertheless kept and shown in the layout map item.

    While the default behavior of the legend item is to mimic the Layers panel tree, displaying the same groups, layers and classes of symbology, right-click any item offers you options to hide layer’s name or raise it as a group or subgroup. In case you have made some changes to a layer, you can revert them by choosing Reset to defaults from the contextual menu.

    After changing the symbology in the QGIS main window, you can click on Update All to adapt the changes in the legend element of the print layout.

  • While generating an atlas with polygon features, you can filter out legend items that lie outside the current atlas feature. To do that, check the checkbox Only show items inside current atlas feature option.

Fonts, Columns, Symbol

The Fonts, Columns and Symbol groups of the legend Item Properties panel provide the following functionalities (see figure_layout_legend_fonts):

../../../../_images/legend_fonts.png

Legend Fonts, Columns and Symbol groups

  • You can change the font of the legend title, group, subgroup and item (feature) in the legend item using the font selector widget;

  • You provide the labels with a Color using the color selector widget. The selected color will apply to all font items in the legend;

  • Legend items can be arranged over several columns. Set the number of columns in the Count selectNumber field. This value can be made dynamic e.g., following atlas features, legend contents, the frame size…

    • checkbox Equal column widths sets how legend columns should be adjusted.

    • The checkbox Split layers option allows a categorized or a graduated layer legend to be divided between columns.

  • You can also change the width and height of the legend symbol, set a color and a thickness in case of raster layer symbol.

WMS LegendGraphic and Spacing

The WMS LegendGraphic and Spacing groups of the legend Item Properties panel provide the following functionalities (see figure_layout_legend_wms):

../../../../_images/legend_wms.png

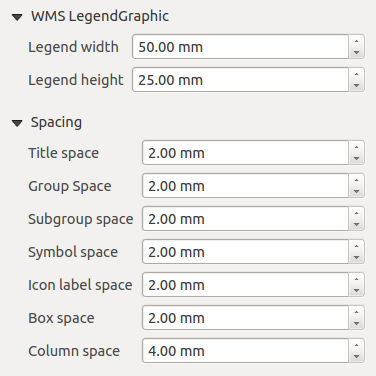

WMS LegendGraphic and Spacing groups

When you have added a WMS layer and you insert a legend item, a request will be sent to the WMS server to provide a WMS legend. This Legend will only be shown if the WMS server provides the GetLegendGraphic capability. The WMS legend content will be provided as a raster image.

WMS LegendGraphic is used to be able to adjust the Legend width and the Legend height of the WMS legend raster image.

Spacing around title, group, subgroup, symbol, icon label, box, column or line can be customized through this dialog.
