17.4. Lesson: Spatial Queries¶
Spatial queries are no different from other database queries. You can use the geometry column like any other database column. With the installation of PostGIS in our database, we have additional functions to query our database.
The goal for this lesson: To see how spatial functions are implemented similarly to „normal“ non-spatial functions.
17.4.1. Spatial Operators¶
When you want to know which points are within a distance of 2 degrees to a point(X,Y) you can do this with:
select * from people where st_distance(the_geom,'SRID=4326;POINT(33 -34)') < 2;
id | name | house_no | street_id | phone_no | the_geom ----+--------------+----------+-----------+---------------+--------------- 6 | Fault Towers | 34 | 3 | 072 812 31 28 | 01010008040C0 (1 row)
the_geom value above was truncated for space on this page. If you want to see the point in human-readable coordinates, try something similar to what you did in the section „View a point as WKT“, above.
How do we know that the query above returns all the points within 2 degrees? Why not 2 meters? Or any other unit, for that matter?
17.4.2. Spatial Indexes¶
We also can define spatial indexes. A spatial index makes your spatial queries much faster. To create a spatial index on the geometry column use:
CREATE INDEX people_geo_idx ON people USING gist (the_geom); \d people
Table "public.people" Column | Type | Modifiers -----------+-----------------------+---------------------------------------- id | integer | not null default | | nextval('people_id_seq'::regclass) name | character varying(50) | house_no | integer | not null street_id | integer | not null phone_no | character varying | the_geom | geometry | Indexes: "people_pkey" PRIMARY KEY, btree (id) "people_geo_idx" gist (the_geom) <-- new spatial key added "people_name_idx" btree (name) Check constraints: "people_geom_point_chk" CHECK (st_geometrytype(the_geom) = 'ST_Point'::text OR the_geom IS NULL) Foreign-key constraints: "people_street_id_fkey" FOREIGN KEY (street_id) REFERENCES streets(id)
17.4.3. Try Yourself ¶
Modify the cities table so its geometry column is spatially indexed.
17.4.4. PostGIS Spatial Functions Demo¶
In order to demo PostGIS spatial functions, we’ll create a new database containing some (fictional) data.
To start, create a new database (exit the psql shell first):
Remember to install the postgis extensions:
psql -d postgis_demo -c "CREATE EXTENSION postgis;"
Next, import the data provided in the exercise_data/postgis/ directory. Refer back to the previous lesson for instructions, but remember that you’ll need to create a new PostGIS connection to the new database. You can import from the terminal or via DB Manager. Import the files into the following database tables:
points.shp into building
lines.shp into road
polygons.shp into region
Load these three database layers into QGIS via the Add PostGIS Layers dialog, as usual. When you open their attribute tables, you’ll note that they have both an id field and a gid field created by the PostGIS import.
Now that the tables are imported, we can use PostGIS to query the data. Go back to your terminal (command line) and enter the psql prompt by running:
We’ll demo some of these select statements by creating views from them, so that you can open them in QGIS and see the results.
188.8.131.52. Избиране според местоположение¶
Get all the buildings in the KwaZulu region:
SELECT a.id, a.name, st_astext(a.the_geom) as point FROM building a, region b WHERE st_within(a.the_geom, b.the_geom) AND b.name = 'KwaZulu';
id | name | point ----+------+------------------------------------------ 30 | York | POINT(1622345.23785063 6940490.65844485) 33 | York | POINT(1622495.65620524 6940403.87862489) 35 | York | POINT(1622403.09106394 6940212.96302097) 36 | York | POINT(1622287.38463732 6940357.59605424) 40 | York | POINT(1621888.19746548 6940508.01440885) (5 rows)
Or, if we create a view from it:
CREATE VIEW vw_select_location AS SELECT a.gid, a.name, a.the_geom FROM building a, region b WHERE st_within(a.the_geom, b.the_geom) AND b.name = 'KwaZulu';
Add the view as a layer and view it in QGIS:
184.108.40.206. Select neighbors¶
Show a list of all the names of regions adjoining the Hokkaido region:
SELECT b.name FROM region a, region b WHERE st_touches(a.the_geom, b.the_geom) AND a.name = 'Hokkaido';
name -------------- Missouri Saskatchewan Wales (3 rows)
As a view:
CREATE VIEW vw_regions_adjoining_hokkaido AS SELECT b.gid, b.name, b.the_geom FROM region a, region b WHERE TOUCHES(a.the_geom, b.the_geom) AND a.name = 'Hokkaido';
Note the missing region (Queensland). This may be due to a topology error. Artifacts such as this can alert us to potential problems in the data. To solve this enigma without getting caught up in the anomalies the data may have, we could use a buffer intersect instead:
CREATE VIEW vw_hokkaido_buffer AS SELECT gid, ST_BUFFER(the_geom, 100) as the_geom FROM region WHERE name = 'Hokkaido';
This creates a buffer of 100 meters around the region Hokkaido.

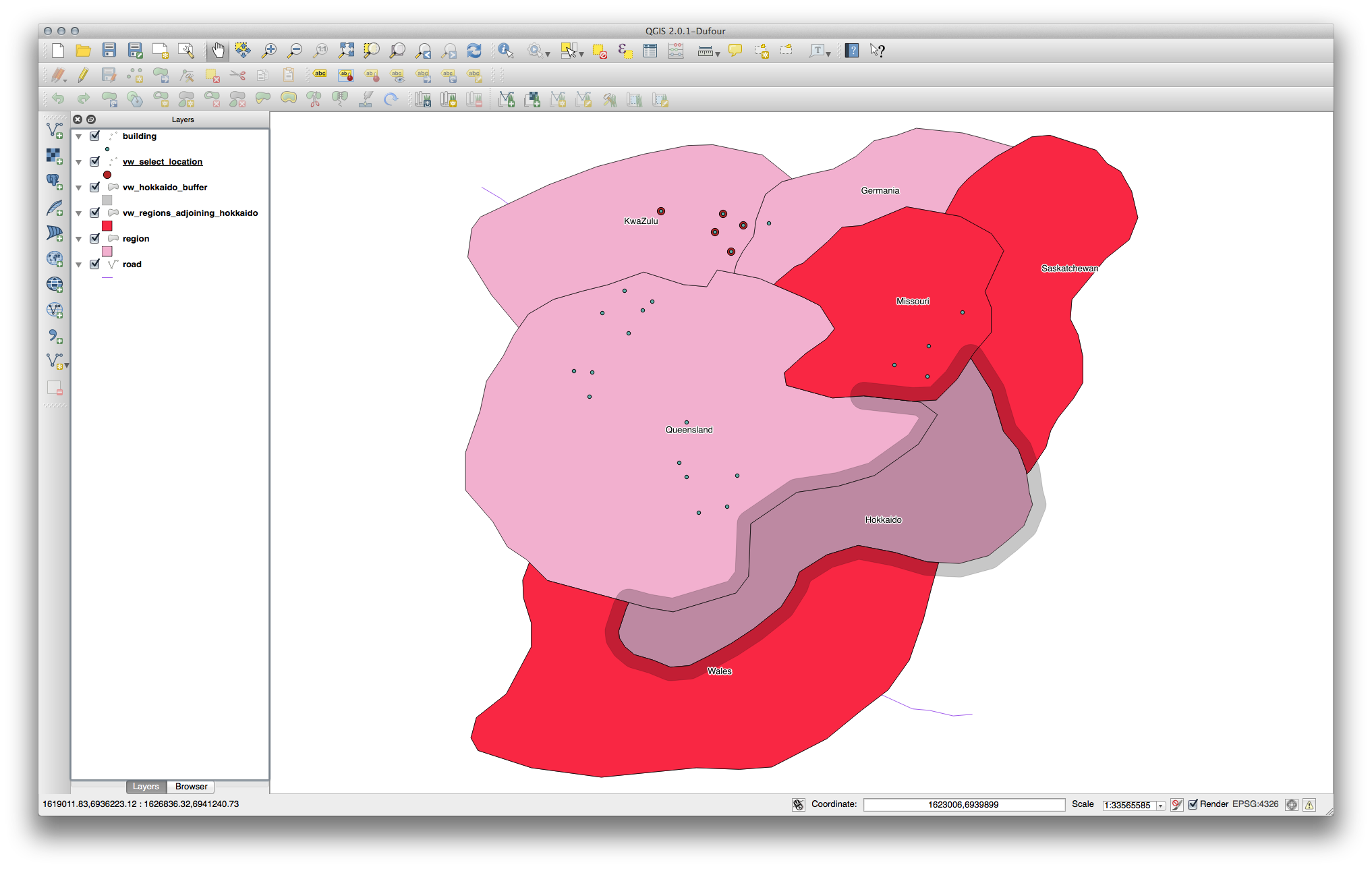

The darker area is the buffer:
Select using the buffer:
CREATE VIEW vw_hokkaido_buffer_select AS SELECT b.gid, b.name, b.the_geom FROM ( SELECT * FROM vw_hokkaido_buffer ) a, region b WHERE ST_INTERSECTS(a.the_geom, b.the_geom) AND b.name != 'Hokkaido';
In this query, the original buffer view is used as any other table would be. It is given the alias a, and its geometry field, a.the_geom, is used to select any polygon in the region table (alias b) that intersects it. However, Hokkaido itself is excluded from this select statement, because we don’t want it; we only want the regions adjoining it.
It is also possible to select all objects within a given distance, without the extra step of creating a buffer:
CREATE VIEW vw_hokkaido_distance_select AS SELECT b.gid, b.name, b.the_geom FROM region a, region b WHERE ST_DISTANCE (a.the_geom, b.the_geom) < 100 AND a.name = 'Hokkaido' AND b.name != 'Hokkaido';

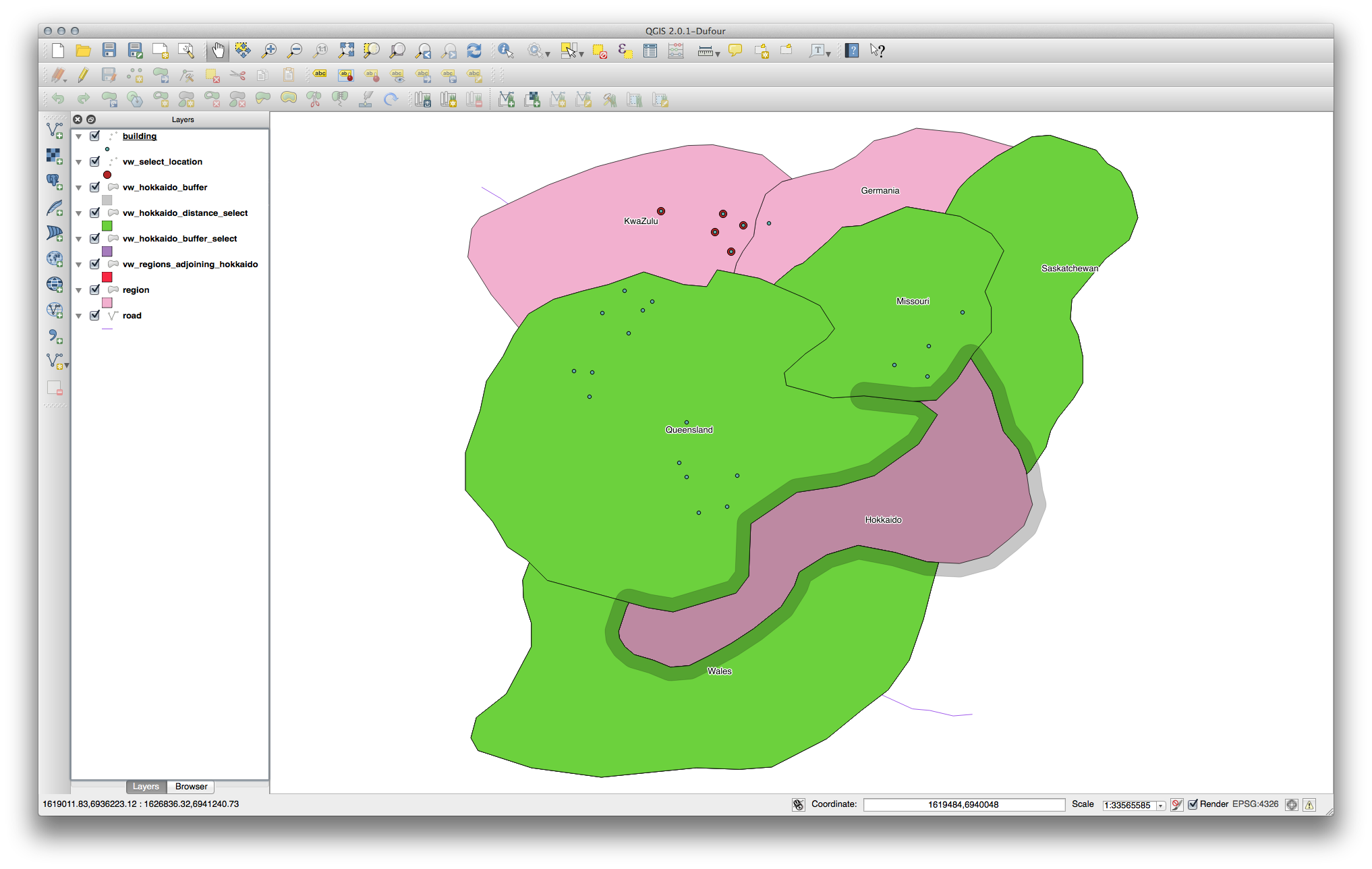

This achieves the same result, without need for the interim buffer step:
220.127.116.11. Select unique values¶
Show a list of unique town names for all buildings in the Queensland region:
SELECT DISTINCT a.name FROM building a, region b WHERE st_within(a.the_geom, b.the_geom) AND b.name = 'Queensland';
name --------- Beijing Berlin Atlanta (3 rows)
18.104.22.168. Further examples …¶
CREATE VIEW vw_shortestline AS SELECT b.gid AS gid, ST_ASTEXT(ST_SHORTESTLINE(a.the_geom, b.the_geom)) as text, ST_SHORTESTLINE(a.the_geom, b.the_geom) AS the_geom FROM road a, building b WHERE a.id=5 AND b.id=22; CREATE VIEW vw_longestline AS SELECT b.gid AS gid, ST_ASTEXT(ST_LONGESTLINE(a.the_geom, b.the_geom)) as text, ST_LONGESTLINE(a.the_geom, b.the_geom) AS the_geom FROM road a, building b WHERE a.id=5 AND b.id=22;
CREATE VIEW vw_road_centroid AS SELECT a.gid as gid, ST_CENTROID(a.the_geom) as the_geom FROM road a WHERE a.id = 1; CREATE VIEW vw_region_centroid AS SELECT a.gid as gid, ST_CENTROID(a.the_geom) as the_geom FROM region a WHERE a.name = 'Saskatchewan';
SELECT ST_PERIMETER(a.the_geom) FROM region a WHERE a.name='Queensland'; SELECT ST_AREA(a.the_geom) FROM region a WHERE a.name='Queensland';
CREATE VIEW vw_simplify AS SELECT gid, ST_Simplify(the_geom, 20) AS the_geom FROM road; CREATE VIEW vw_simplify_more AS SELECT gid, ST_Simplify(the_geom, 50) AS the_geom FROM road;
CREATE VIEW vw_convex_hull AS SELECT ROW_NUMBER() over (order by a.name) as id, a.name as town, ST_CONVEXHULL(ST_COLLECT(a.the_geom)) AS the_geom FROM building a GROUP BY a.name;
17.4.5. In Conclusion¶
You have seen how to query spatial objects using the new database functions from PostGIS.
17.4.6. What’s Next?¶
Next we’re going to investigate the structures of more complex geometries and how to create them using PostGIS.
