18. Working with Vector Tiles

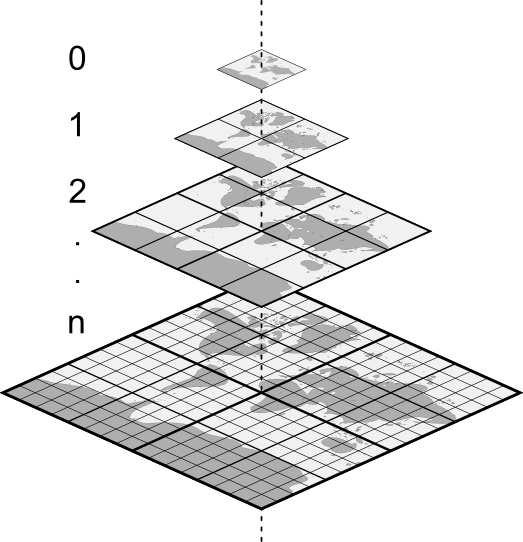

Vector tiles are packets of geographic data, packaged into pre-defined roughly-square shaped "tiles" for transfer over the web. They combine pre-rendered raster map tiles and vector map tiles. The vector tile server returns vector map data, which has been clipped to the boundaries of each tile, instead of a pre-rendered map image. The clipped tiles represent the zoom-levels of the vector tile service, derived from a pyramid approach. Using this structure, the data-transfer is reduced in comparison to un-tiled vector maps. Only data within the current map view, and at the current zoom level need to be transferred. Also, compared to a tiled raster map, data transfer is also greatly reduced, as vector data is typically much smaller than a rendered bitmap. Vector tiles do not have any styling information assigned so QGIS needs to apply a cartographic style in order to display the data.
There is support for vector tiles through:
remote sources (HTTP/S) - with XYZ template -
local files - with XYZ template - e.g.
local MBTiles database - e.g.
To load a vector tiles dataset into QGIS, use the Vector Tile tab in the Data Source Manager dialog. Read Using Vector Tiles services for more details.
The Information tab is read-only and represents an interesting place to quickly grab summarized information and metadata on the current layer. Provided information are:
based on the provider of the layer: name, URI, source type and path, number of zoom levels
the Coordinate Reference System: name, units, method, accuracy, reference (i.e. whether it's static or dynamic)
picked from the filled metadata: access, extents, links, contacts, history...
As vector tiles consist of point, line and polygon geometries, the respective symbols are available. To apply a cartographic style you need to use a Style URL when creating the Vector Tiles Connection. The symbology will be shown immediately in the Symbology tab after clicking the OK button.
To create your own cartographic style you can define a set of rules for features and
apply style and label. In Fig. 18.2 we set up style and
labeling for the OpenStreetMap
The settings are made for the class
suburb here. For better visibility most of
the rules are deselected.
At the bottom the Current Zoom is shown. Check the Visible rules only option to filter the list of rules to only those that are visible at the given zoom level. This makes it easier to work with complex vector styling and to locate troublesome rules. Style and labelling can be dependent on the zoom level.
There is also the option to import styles. Those styles can be supplied as:
QML files (QML - The QGIS Style File Format)
MapBox GL Json style configuration files
The Metadata tab provides you with options to create and edit a metadata report on your layer. See Metadata for more information.
