# 6.2. Lesson: Vector Analysis¶

Vector data can also be analyzed to reveal how different features interact with each other in space. There are many different analysis-related functions, so we won't go through them all. Rather, we will pose a question and try to solve it using the tools that QGIS provides.

The goal for this lesson: To ask a question and solve it using analysis tools.

## 6.2.1. The GIS Process¶

Before we start, it would be useful to give a brief overview of a process that can be used to solve a problem. The way to go about it is:

1. State the Problem

2. Get the Data

3. Analyze the Problem

4. Present the Results

## 6.2.2. The Problem¶

Let's start off the process by deciding on a problem to solve. For example, you are an estate agent and you are looking for a residential property in Swellendam for clients who have the following criteria:

1. It needs to be in Swellendam

2. It must be within reasonable driving distance of a school (say 1km)

3. It must be more than 100m squared in size

4. Closer than 50m to a main road

5. Closer than 500m to a restaurant

## 6.2.3. The Data¶

To answer these questions, we are going to need the following data:

1. The residential properties (buildings) in the area

2. The roads in and around the town

3. The location of schools and restaurants

4. The size of buildings

These data are available through OSM, and you should find that the dataset you have been using throughout this manual also can be used for this lesson.

If you want to download data from another area, jump to the Introduction Chapter to read how to do it.

Although OSM downloads have consistent data fields, the coverage and detail does vary. If you find that your chosen region does not contain information on restaurants, for example, you may need to chose a different region.

## 6.2.4. Follow Along: Start a Project and get the Data¶

We first need to load the data to work with.

1. Start a new QGIS project

2. If you want, you can add a background map. Open the Browser and load the OSM background map from the XYZ Tiles menu.

3. In the `training_data.gpkg` Geopackage database, you will find most the datasets we will use in this chapter:

1. `buildings`

2. `roads`

3. `restaurants`

4. `schools`

Load them, and also `landuse.sqlite`.

4. Zoom to the layer extent to see Swellendam, South Africa

Before proceeding we will filter the roads layer, in order to have only some specific road types to work with.

Some roads in OSM datasets are listed as `unclassified`, `tracks`, `path` and `footway`. We want to exclude these from our dataset and focus on the other road types, more suitable for this exercise.

Moreover, OSM data might not be updated everywhere, and we will also exclude `NULL` values.

5. Right click on the `roads` layer and choose Filter....

6. In the dialog that pops up we filter these features with the following expression:

```"highway" NOT IN ('footway', 'path', 'unclassified', 'track') AND "highway" != NULL
```

The concatenation of the two operators `NOT` and `IN` excludes all the features that have these attribute values in the `highway` field.

`!= NULL` combined with the `AND` operator excludes roads with no value in the `highway` field.

Note the icon next to the roads layer. It helps you remember that this layer has a filter activated, so some features may not be available in the project.

The map with all the data should look like the following one:

## 6.2.5. Try Yourself Convert Layers' CRS¶

Because we are going to be measuring distances within our layers, we need to change the layers' CRS. To do this, we need to select each layer in turn, save the layer to a new one with our new projection, then import that new layer into our map.

You have many different options, e.g. you can export each layer as an ESRI Shapefile format dataset, you can append the layers to an existing GeoPackage file, or you can create another GeoPackage file and fill it with the new reprojected layers. We will show the last option, so the `training_data.gpkg` will remain clean. Feel free to choose the best workflow for yourself.

In this example, we are using the WGS 84 / UTM zone 34S CRS, but you should use a UTM CRS which is more appropriate for your region.

1. Right click the roads layer in the Layers panel

2. Click Export --> Save Features As...

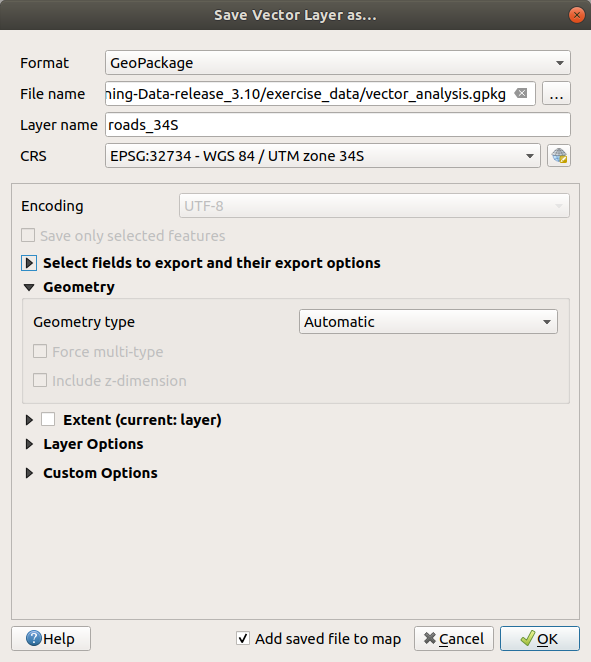

3. In the Save Vector Layer As dialog choose GeoPackage as Format

4. Click on ... for the File name, and name the new GeoPackage `vector_analysis`

5. Change the Layer name to `roads_34S`

6. Change the CRS to WGS 84 / UTM zone 34S

7. Click on OK:

This will create the new GeoPackage database and add the `roads_34S` layer.

8. Repeat this process for each layer, creating a new layer in the `vector_analysis.gpkg` GeoPackage file with `_34S` appended to the original name and removing each of the old layers from the project.

注解

When you choose to save a layer to an existing GeoPackage, QGIS will append that layer to the GeoPackage.

9. Once you have completed the process for all the layers, right click on any layer and click Zoom to layer extent to focus the map to the area of interest.

Now that we have converted OSM data to a UTM projection, we can begin our calculations.

## 6.2.6. Follow Along: Analyzing the Problem: Distances From Schools and Roads¶

QGIS allows you to calculate distances between any vector object.

1. Make sure that only the `roads_34S` and `buildings_34S` layers are visible (to simplify the map while you're working)

2. Click on the Processing ▶ Toolbox to open the analytical core of QGIS. Basically, all algorithms (for vector and raster analysis) are available in this toolbox.

3. We start by calculating the area around the `roads_34S` by using the Buffer algorithm. You can find it in the Vector Geometry group.

Or you can type `buffer` in the search menu in the upper part of the toolbox:

4. Double click on it to open the algorithm dialog

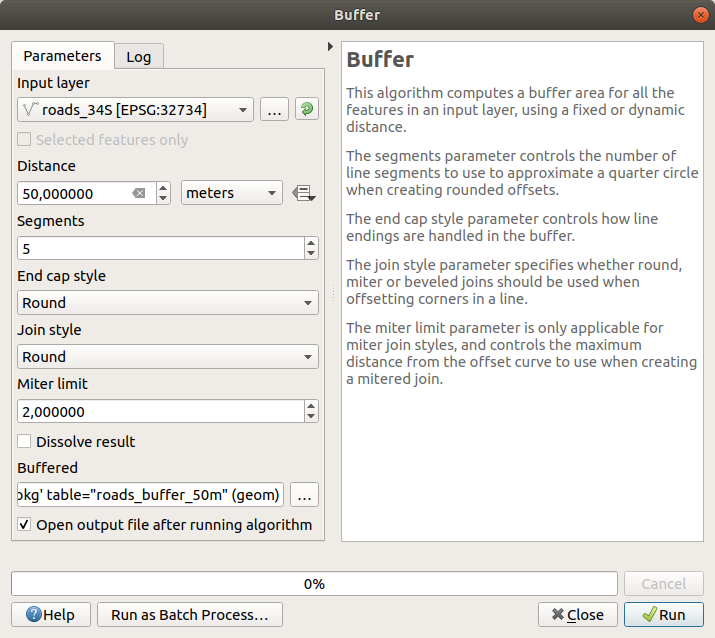

5. Select `roads_34S` as Input layer, set Distance to 50 and use the default values for the rest of the parameters.

6. The default Distance is in meters because our input dataset is in a Projected Coordinate System that uses meter as its basic measurement unit. You can use the combo box to choose other projected units like kilometers, yards, etc.

注解

If you are trying to make a buffer on a layer with a Geographical Coordinate System, Processing will warn you and suggest to reproject the layer to a metric Coordinate System.

7. By default, Processing creates temporary layers and adds them to the Layers panel. You can also append the result to the GeoPackage database by:

1. Clicking on the ... button and choose Save to GeoPackage...

2. Naming the new layer `roads_buffer_50m`

3. Saving it in the `vector_analysis.gpkg` file

8. Click on Run, and then close the Buffer dialog

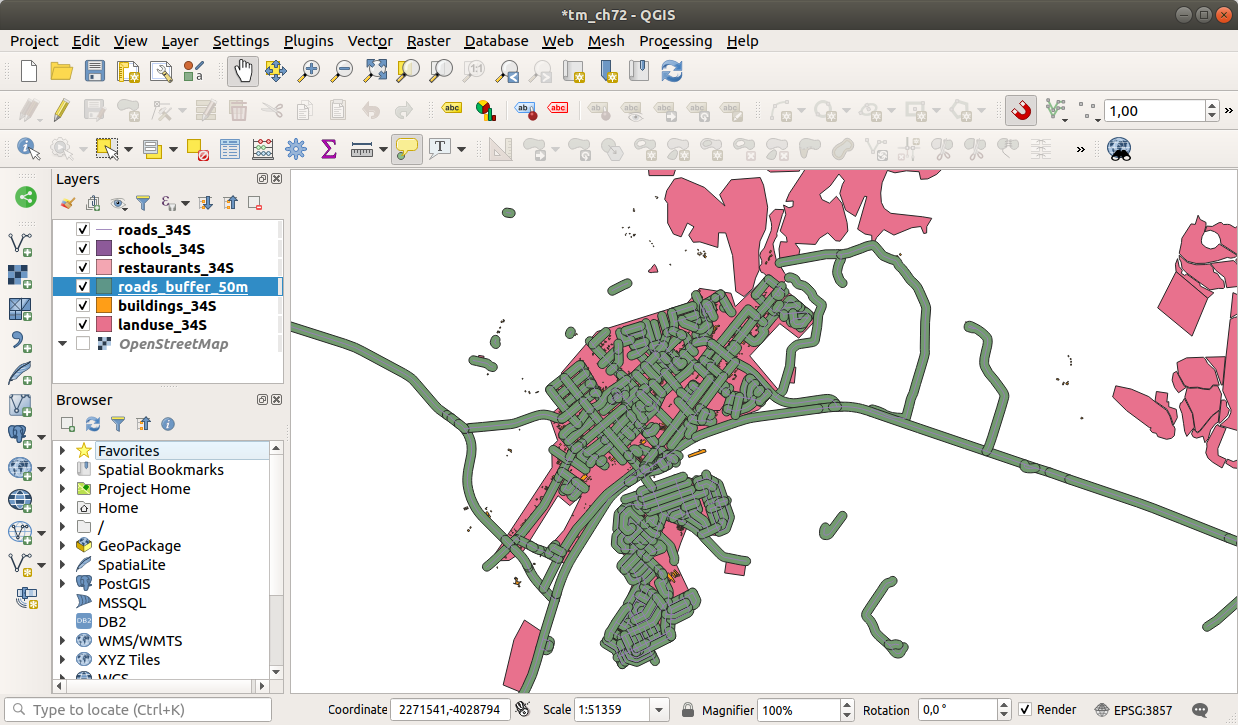

Now your map will look something like this:

If your new layer is at the top of the Layers list, it will probably obscure much of your map, but this gives you all the areas in your region which are within 50m of a road.

Notice that there are distinct areas within your buffer, which correspond to each individual road. To get rid of this problem:

1. Uncheck the roads_buffer_50m layer and re-create the buffer with Dissolve results enabled.

2. Save the output as roads_buffer_50m_dissolved

3. Click Run and close the Buffer dialog

Once you have added the layer to the Layers panel, it will look like this:

Now there are no unnecessary subdivisions.

The Short Help on the right side of the dialog explains how the algorithm works. If you need more information, just click on the Help button in the bottom part to open a more detailed guide of the algorithm.

## 6.2.7. Try Yourself Distance from schools¶

Use the same approach as above and create a buffer for your schools.

It shall to be `1 km` in radius. Save the new layer in the `vector_analysis.gpkg` file as `schools_buffer_1km_dissolved`.

Check your results

## 6.2.8. Follow Along: Overlapping Areas¶

Now we have identified areas where the road is less than 50 meters away and areas where there is a school within 1 km (direct line, not by road). But obviously, we only want the areas where both of these criteria are satisfied. To do that, we will need to use the Intersect tool. You can find it in Vector Overlay group in the Processing Toolbox.

1. Use the two buffer layers as Input layer and Overlay layer, choose `vector_analysis.gpkg` GeoPackage in Intersection with Layer name `road_school_buffers_intersect`. Leave the rest as suggested (default).

2. Click Run.

In the image below, the blue areas are where both of the distance criteria are satisfied.

3. You may remove the two buffer layers and only keep the one that shows where they overlap, since that's what we really wanted to know in the first place:

## 6.2.9. Follow Along: Extract the Buildings¶

Now you've got the area that the buildings must overlap. Next, you want to extract the buildings in that area.

1. Look for the menu entry Vector Selection ▶ Extract by location within the Processing Toolbox

2. Select `buildings_34S` in Extract features from. Check intersect in Where the features (geometric predicate), select the buffer intersection layer in By comparing to the features from. Save to the `vector_analysis.gpkg`, and name the layer `well_located_houses`.

3. Click Run and close the dialog

4. You will probably find that not much seems to have changed. If so, move the well_located_houses layer to the top of the layers list, then zoom in.

The red buildings are those which match our criteria, while the buildings in green are those which do not.

5. Now you have two separated layers and can remove `buildings_34S` from the layer list.

## 6.2.10. Try Yourself Further Filter our Buildings¶

We now have a layer which shows us all the buildings within 1km of a school and within 50m of a road. We now need to reduce that selection to only show buildings which are within 500m of a restaurant.

Using the processes described above, create a new layer called houses_restaurants_500m which further filters your well_located_houses layer to show only those which are within 500m of a restaurant.

Check your results

## 6.2.11. Follow Along: Select Buildings of the Right Size¶

To see which buildings are of the correct size (more than 100 square meters), we need to calculate their size.

1. Select the houses_restaurants_500m layer and open the Field Calculator by clicking on the Open Field Calculator button in the main toolbar or in the attribute table window

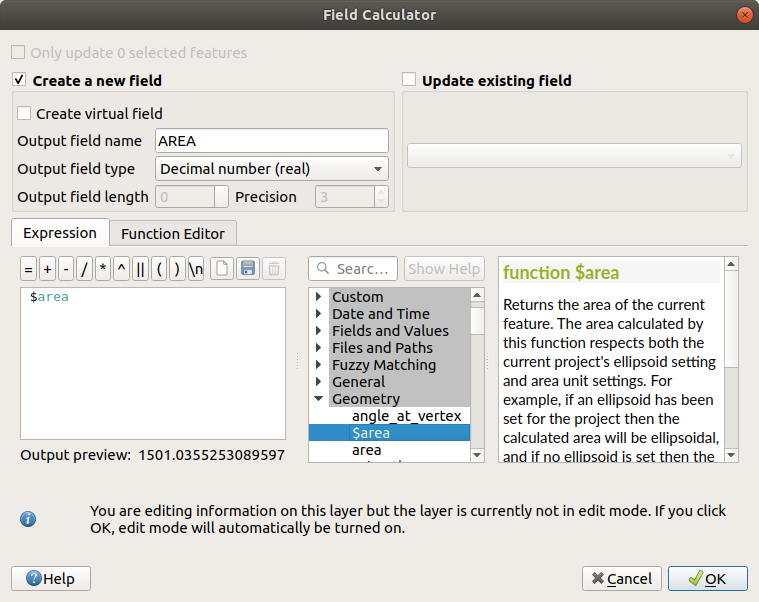

2. Select Create a new field, set the Output field name to `AREA`, choose Decimal number (real) as Output field type, and choose `\$area` from the Geometry group.

The new field `AREA` will contain the area of each building in square meters.

3. Click OK. The `AREA` field has been added at the end of the attribute table.

4. Click the Toggle Editing button to finish editing, and save your edits when prompted.

5. In the Source tab of the layer properties, set the Provider Feature Filter to `"AREA >= 100`.

6. Click OK.

Your map should now only show you those buildings which match our starting criteria and which are more than 100 square meters in size.

## 6.2.12. Try Yourself¶

Save your solution as a new layer, using the approach you learned above for doing so. The file should be saved within the same GeoPackage database, with the name `solution`.

## 6.2.13. In Conclusion¶

Using the GIS problem solving approach together with QGIS vector analysis tools, you were able to solve a problem with multiple criteria quickly and easily.

## 6.2.14. What's Next?¶

In the next lesson, we will look at how to calculate the shortest distance along roads from one point to another.
