14.2. The Symbol Selector

The Symbol selector is the main dialog to design a symbol. You can create or edit Marker, Line or Fill Symbols.

../../../_images/symbolselector.png

Fig. 14.10 Designing a Line symbol

Two main components structure the symbol selector dialog:

  • the symbol tree, showing symbol layers that are combined afterwards to shape a new global symbol

  • and settings to configure the selected symbol layer in the tree.

14.2.1. The symbol layer tree

A symbol can consist of several Symbol layers. The symbol tree shows the overlay of these symbol layers that are combined afterwards to shape a new global symbol. Besides, a dynamic symbol representation is updated as soon as symbol properties change.

Depending on the level selected in the symbol tree items, various tools are made available to help you manage the tree:

  • symbologyAdd add new symbol layer: you can stack as many symbols as you want

  • symbologyRemove remove the selected symbol layer

  • lock colors of symbol layer: a locked locked color stays unchanged when user changes the color at the global (or upper) symbol level

  • duplicateLayer duplicate a (group of) symbol layer(s)

  • move up or down the symbol layer

14.2.2. Configuring a symbol

In QGIS, configuring a symbol is done in two steps: the symbol and then the symbol layer.

14.2.2.1. The symbol

At the top level of the tree, it depends on the layer geometry and can be of Marker, Line or Fill type. Each symbol can embed one or more symbols (including, of any other type) or symbol layers.

You can setup some parameters that apply to the global symbol:

  • Unit: it can be Millimeters, Points, Pixels, Meters at Scale, Map units or Inches (see Unit Selector for more details)

  • Opacity

  • Color: when this parameter is changed by the user, its value is echoed to all unlocked sub-symbols color

  • Size and Rotation for marker symbols

  • Width for line symbols

    Tip

    Use the Size (for marker symbols) or the Width (for line symbols) properties at the symbol level to proportionally resize all of its embedded symbol layers dimensions.

    Note

    The Data-defined override button next to the width, size or rotation parameters is inactive when setting the symbol from the Style manager dialog. When the symbol is connected to a map layer, this button helps you create proportional or multivariate analysis rendering.

  • A preview of the symbols library: Symbols of the same type are shown and, through the editable drop-down list just above, can be filtered by free-form text or by categories. You can also update the list of symbols using the styleManager Style Manager button and open the eponym dialog. There, you can use any capabilities as exposed in The Style Manager section.

    The symbols are displayed either:

    • in an icon list (with thumbnail, name and associated tags) using the openTable List View button below the frame;

    • or as icon preview using the iconView Icon View button.

  • Press the Save Symbol button to open the Save New Symbol dialog. Here, you can choose the Destination where you want to add the symbol being edited, give it a Name and add Tag(s). You also have the option to checkbox Add to favorites your new symbol.

  • With the Advanced selectString option, you can:

    • for line and fill symbols, Clip features to canvas extent.

    • for fill symbols, Force right-hand rule orientation: allows forcing rendered fill symbols to follow the standard “right hand rule” for ring orientation (i.e, polygons where the exterior ring is clockwise, and the interior rings are all counter-clockwise).

      The orientation fix is applied while rendering only, and the original feature geometry is unchanged. This allows for creation of fill symbols with consistent appearance, regardless of the dataset being rendered and the ring orientation of individual features.

    • Depending on the symbology of the layer a symbol is being applied to, additional settings are available in the Advanced menu:

14.2.2.2. The symbol layer

At a lower level of the tree, you can customize the symbol layers. The available symbol layer types depend on the upper symbol type. You can apply on the symbol layer paintEffects paint effects to enhance its rendering.

Because describing all the options of all the symbol layer types would not be possible, only particular and significant ones are mentioned below.

Common parameters

Some common options and widgets are available to build a symbol layer, regardless it’s of marker, line or fill sub-type:

  • the color selector widget to ease color manipulation

  • Units: it can be Millimeters, Points, Pixels, Meters at Scale, Map units or Inches (see Unit Selector for more details)

  • the dataDefine Data-defined override widget near almost all options, extending capabilities of customizing each symbol (see Data defined override setup for more information)

  • the checkbox Enable symbol layer option controls the symbol layer’s visibility. Disabled symbol layers are not drawn when rendering the symbol but are saved in the symbol. Being able to hide symbol layers is convenient when looking for the best design of your symbol as you don’t need to remove any for the testing. The data-defined override then makes it possible to hide or display different symbol layers based on expressions (using, for instance, feature attributes).

  • the checkbox Draw effects button for effects rendering.

Note

While the description below assumes that the symbol layer type is bound to the feature geometry, keep in mind that you can embed symbol layers in each others. In that case, the lower level symbol layer parameter (placement, offset…) might be bound to the upper-level symbol, and not to the feature geometry itself.

Marker Symbols

Appropriate for point geometry features, marker symbols have several Symbol layer types:

  • Simple marker (default)

    ../../../_images/simpleMarkerSymbol.png

    Fig. 14.11 Designing a Simple Marker Symbol

    The simple marker symbol layer type has the following properties:

    • Size in various supported units

    • Fill color

    • Stroke color, Stroke style from a predefined list and Stroke size

    • Join style: it can be Bevel, Miter or Round

    • Cap style: it can be Square, Flat or Round

    • Rotation

    • Offset in X and Y directions from the feature

    • Anchor point: defining the quadrant point on the symbol to settle as placement origin. This is the point the Offset is applied on.

  • Animated marker (see Animated marker)

  • Ellipse marker: a simple marker symbol layer, with customizable width and height

  • Filled marker: similar to the simple marker symbol layer, except that it uses a fill sub symbol to render the marker. This allows use of all the existing QGIS fill (and stroke) styles for rendering markers, e.g. gradient or shapeburst fills.

  • Font marker: similar to the simple marker symbol layer, except that it uses installed fonts to render the marker. Its additional properties are:

    • Font family

    • Font style

    • Character(s), representing the text to display as symbol. They can be typed in or selected from the font characters collection widget and you can live Preview them with the selected settings.

  • Geometry generator (see The Geometry Generator)

  • Mask: its sub-symbol defines a mask shape whose color property will be ignored and only the opacity will be used. This is convenient when the marker symbol overlaps with labels or other symbols whose colors are close, making it hard to decipher. More details at Masks Properties.

  • Raster image marker: use an image (PNG, JPG, BMP …) as marker symbol. The image can be a file on the disk, a remote URL, embedded in the style database (more details) or it can be encoded as a base64 string. Width and height of the image can be set independently or using the lockedGray Lock aspect ratio. The size can be set using any of the common units or as a percentage of the image’s original size (scaled by the width).

  • Vector Field marker (see The Vector Field Marker)

  • SVG marker: provides you with images from your SVG paths (set in Settings ► Options… ► System menu) to render as marker symbol. Width and height of the symbol can be set independently or using the lockedGray Lock aspect ratio. Each SVG file colors and stroke can also be adapted. The image can be a file on the disk, a remote URL, embedded in the style database (more details) or it can be encoded as a base64 string.

    The symbol can also be set with Dynamic SVG parameters. See Parametrizable SVG section to parametrize an SVG symbol.

    Note

    SVG version requirements

    QGIS renders SVG files that follow the SVG Tiny 1.2 profile, intended for implementation on a range of devices, from cellphones and PDAs to laptop and desktop computers, and thus includes a subset of the features included in SVG 1.1 Full, along with new features to extend the capabilities of SVG.

    Some features not included in these specifications might not be rendered correctly in QGIS.

Line Symbols

Appropriate for line geometry features, line symbols have the following symbol layer types:

  • Simple line (default)

    ../../../_images/simpleLineSymbol.png

    Fig. 14.12 Designing a Simple Line Symbol

    The simple line symbol layer type has many of the same properties as the simple marker symbol, and in addition:

    • checkbox Use custom dash pattern: overrides the Stroke style setting with a custom dash. You would need to define length of consecutive dashes and spaces shaping the model, in the chosen unit. The total length of the pattern is displayed at the bottom of the dialog.

    • Pattern offset: the positioning of the dashes/spaces in the line can be tweaked, so that they can be placed at nicer positions to account for corners in the line (also can be used potentially to “align” adjacent dash pattern borders)

    • checkbox Align dash pattern to line length: the dash pattern length will be adjusted so that the line will end with a complete dash element, instead of a gap.

    • checkbox Tweak dash pattern at sharp corners: dynamically adjusts the dash pattern placement so that sharp corners are represented by a full dash element coming into and out of the sharp corner. Dependent on Align dash pattern to line length.

    • Trim lines from Start and/or End: allows for the line rendering to trim off the first x mm and last y mm from the actual line string when drawing the line. It supports a range of units, including percentage of the overall line length, and can be data defined for extra control. The start/end trim distance can be used e.g. when creating complex symbols where a line layer should not overlap marker symbol layers placed at the start and end of the line.

  • Arrow: draws lines as curved (or not) arrows with a single or a double head with configurable (and data-defined):

    • Head type

    • Arrow type

    • Arrow width

    • Arrow width at start

    • Head length

    • Head thickness

    • Offset

    It is possible to create checkbox Curved arrows (the line feature must have at least three vertices) and checkbox Repeat arrow on each segment. It also uses a fill symbol such as gradients or shapeburst to render the arrow body. Combined with the geometry generator, this type of layer symbol helps you representing flow maps.

  • Geometry generator (see The Geometry Generator)

  • Interpolated line: allows to render a line whose Stroke width and/or Color may be constant (given a Fixed width and Single color parameters) or vary along the geometry. When varying, necessary inputs are:

    • Start value and End value: Values that will be used for interpolation at the extremities of the features geometry. They can be fixed values, feature’s attributes or based on an expression.

    • Min. value and Max. value: Values between which the interpolation is performed. Press the refresh Load button to automatically fill them based on the minimum and maximum start/end values applied to the layer.

    • Only available for the stroke option:

      • Min. width and Max. width: define the range of the varying width. Min. width is assigned to the Min. value and Max. width to the Max. value. A unit can be associated.

      • checkbox Use absolute value: only consider absolute value for interpolation (negative values are used as positive).

      • checkbox Ignore out of range: by default, when the [start value - end value] range of a feature is not included in the [min. value - max. value] range, the out-of-bounds parts of the feature’s geometry are rendered with the min or max width. Check this option to not render them at all.

    • For varying color, you can use any of the interpolation methods of color ramp classification

    ../../../_images/interpolatedLineSymbol.png

    Fig. 14.13 Examples of interpolated lines

  • Marker line: repeats a marker symbol over the length of a line.

    • The Marker placement can be set using a regular interval setting (starting from the first vertex) and/or the line geometry property (on first or last vertex, inner vertices, the central point of the line or of each segment, or on every curve point).

    • When first or last vertex placement is enabled, the checkbox Place on every part extremity option will make the markers render also at the first or last vertex for every part of multipart geometries.

    • Offset along line: the markers placement can also be given an offset along the line, in the ref:unit <unit_selector> of your choice (millimeters, points, map unit, meters at scale, percentage, …):

      • A positive value offsets the markers symbols in the line direction (with On first vertex and With interval placements) and backwards (with On last vertex placement).

      • A negative value on a not closed line will result in no offset (for On first vertex and On last vertex placements) or backwards offset of the symbols (from the last vertex).

      • With a closed ring, QGIS treats the offset as continuing to loop around the ring (forward or backward). E.g. setting the offset to 150% (resp. -10% or -110%) results in the offset being treated as 50% (resp. 90%) of the length of the closed ring.

    • The checkbox Rotate marker to follow line direction option sets whether each marker symbol should be oriented relative to the line direction or not.

      Because a line is often a succession of segments of different directions, the rotation of the marker is calculated by averaging over a specified distance along the line. For example, setting the Average angle over property to 4mm means that the two points along the line that are 2mm before and after the symbol placement are used to calculate the line angle for that marker symbol. This has the effect of smoothing (or removing) any tiny local deviations from the overall line direction, resulting in much nicer visual orientations of the marker line symbols.

    • Line offset: the marker symbols can also be offset from the line feature.

  • Hashed line: repeats a line segment (a hash) over the length of a line symbol, with a line sub-symbol used to render each individual segment. In other words, a hashed line is like a marker line in which marker symbols are replaced with segments. As such, the hashed lines have the same properties as marker line symbols, along with:

    • Hash length

    • Hash rotation

    ../../../_images/hashedLineSymbol.png

    Fig. 14.14 Examples of hashed lines

  • Raster line: renders and repeats a raster image following the length of a line feature shape. The Stroke width, Offset, Join style, Cap style and Opacity can be adjusted.

    ../../../_images/rasterLineSymbol.png

    Fig. 14.15 Examples of raster lines

  • Lineburst: renders a gradient along the width of a line. You can choose between Two color or Color ramp and the Stroke width, Offset, Join style, Cap style can be adjusted.

    ../../../_images/lineburstSymbol.png

    Fig. 14.16 Examples of lineburst lines

  • Filled line: renders the interior of the lines using a fill symbol allowing for lines filled with gradients, line hatches, etc. The Stroke width, Offset, Join style, Cap style can be adjusted.

    ../../../_images/filledLineSymbol.png

    Fig. 14.17 Examples of filled lines

Fill Symbols

Appropriate for polygon geometry features, fill symbols have also several symbol layer types:

  • Simple fill (default): fills a polygon with a uniform color

    ../../../_images/simpleFillSymbol.png

    Fig. 14.18 Designing a Simple Fill Symbol

  • Centroid fill: places a marker symbol at the centroid of the visible feature. The position of the marker may not be the real centroid of the feature, because calculation takes into account the polygon(s) clipped to area visible in map canvas for rendering and ignores holes. Use the geometry generator symbol if you want the exact centroid.

    You can:

    • Force placement of markers inside polygons

    • Draw markers on every part of multi-part features or place the point only on its biggest part

    • display the marker symbol(s) in whole or in part, keeping parts overlapping the current feature geometry (Clip markers to polygon boundary) or the geometry part the symbol belongs to (Clip markers to current part boundary only)

  • Geometry generator (see The Geometry Generator)

  • Gradient fill: uses a radial, linear or conical gradient, based on either simple two color gradients or a predefined gradient color ramp to fill polygons. The gradient can be rotated and applied on a single feature basis or across the whole map extent. Also start and end points can be set via coordinates or using the centroid (of feature or map). A data-defined offset can be defined.

  • Line pattern fill: fills the polygon with a hatching pattern of line symbol layer. You can set:

    • Alignment: defines how the pattern is positioned relative to the feature(s):

      • Align pattern to feature: lines are rendered within each feature

      • Align pattern to map extent: a pattern is rendered over the whole map extent, allowing lines to align nicely across features

    • Rotation of the lines, counter-clockwise

    • Spacing: distance between consecutive lines

    • Offset distance of the lines from the feature boundary

    • Clipping: allows to control how lines in the fill should be clipped to the polygon shape. Options are:

      • Clip During Render Only: lines are created covering the whole bounding box of the feature and then clipped while drawing. Line extremities (beginning and end) will not be visible.

      • Clip Lines Before Render: lines are clipped to the exact shape of the polygon prior to rendering. Line extremities (including cap styles, start/end marker line objects, …) will be visible, and may sometimes extend outside of the polygon (depending on the line symbol settings).

      • No Clipping: no clipping at all is done - lines will cover the whole bounding box of the feature

  • Point pattern fill: fills the polygon with a grid pattern of marker symbol. You can set:

    • Alignment: defines how the pattern is positioned relative to the feature(s):

      • Align pattern to feature: marker lines are rendered within each feature

      • Align pattern to map extent: a pattern is rendered over the whole map extent, allowing markers to align nicely across features

        ../../../_images/pointPatternAlignment.png

        Fig. 14.19 Aligning point pattern to feature (left) and to map extent (right)

    • Distance: Horizontal and Vertical distances between consecutive markers

    • Displacement: a Horizontal (resp. Vertical) offset of alignment between consecutive markers in a column (resp. in a row)

    • Offset: Horizontal and Vertical distances from the feature boundary

    • Clipping: allows to control how markers in the fill should be clipped to the polygon shape. Options are:

      • Clip to shape: markers are clipped so that only the portions inside the polygon are visible

      • Marker centroid within shape: only markers where the center of the marker falls inside the polygon are drawn, but these markers won’t be clipped to the outside of the polygon

      • Marker completely within shape: only markers which fall completely within the polygon are shown

      • No clipping: any marker which intersects at all with the polygon will be completely rendered (strictly speaking its the “intersects with the bounding box of the marker”)

        ../../../_images/clipPointPatternFill.png

        Fig. 14.20 Clipping markers in fill - From left to right: Clip to shape, Marker centroid within shape, Marker completely within shape, No clipping

    • Rotation of the whole pattern, clockwise

    • The Randomize pattern group setting allows each point in a point pattern fill to be randomly shifted up to the specified maximum distance Horizontally or Vertically. You can specify the maximum offset in any supported units, such as millimeters, points, map units, or even “percentage” (where percentage is relative to the pattern width or height).

      You can set an optional random number seed to avoid the symbol patterns “jumping” around between map refreshes. Data defined overrides are also supported.

      Note

      The main difference between the Randomize pattern and the random marker fill symbol type is that the random offset with a point pattern allows for quasi-“regular” placement of markers – because the points in the pattern are effectively constrained to a grid, this allows creation of semi-random fills which don’t have empty areas or overlapping markers. (As opposed to the random marker fill, which will always place points completely randomly… sometimes resulting in visual clusters of points or unwanted empty areas).

  • Random marker fill: fills the polygon with a marker symbol placed at random locations within the polygon boundary. You can set:

    • Count method: whether the number of marker symbols to render is considered as an absolute count or density-based

    • Point count: the number of marker symbols to render,

    • an optional random number seed, to give consistent placement

    • Density area: in case of density-based count method, ensures the fill density of markers remains the same on different scale / zoom levels of markers whenever maps are refreshed (also allows random placement to play nice with QGIS server and tile-based rendering)

    • Clip markers to polygon boundary: whether markers rendered near the edges of polygons should be clipped to the polygon boundary or not

  • Raster image fill: fills the polygon with tiles from a raster image (PNG JPG, BMP …). The image can be a file on the disk, a remote URL or an embedded file encoded as a string (more details). Options include (data defined) opacity, size, coordinate mode (object or viewport), rotation and offset. Under the option Size you can independently adjust the width and height of the fill pattern, enabling stretched raster fills in either the horizontal or vertical directions. The image width and height can be set using any of the common units or as a percentage of the original size.

  • SVG fill: fills the polygon using SVG markers of a given size (Texture width).

  • Shapeburst fill: buffers a gradient fill, where a gradient is drawn from the boundary of a polygon towards the polygon’s centre. Configurable parameters include distance from the boundary to shade, use of color ramps or simple two color gradients, optional blurring of the fill and offsets.

  • Outline: Arrow: uses a line arrow symbol layer to represent the polygon boundary. The settings for the outline arrow are the same as for arrow line symbols.

  • Outline: Hashed line: uses a hash line symbol layer to represent the polygon boundary (Rings) which can be the interior rings only, the exterior ring only or all the rings). The other settings for the outline hashed line are the same as for hashed line symbols.

  • Outline: Marker line: uses a marker line symbol layer to represent the polygon boundary (Rings) which can be the interior rings only, the exterior ring only or all the rings). The other settings for the outline marker line are same as for marker line symbols.

  • Outline: simple line: uses a simple line symbol layer to represent the polygon boundary (Rings) which can be the interior rings only, the exterior ring only or all the rings). The Draw line only inside polygon option displays the polygon borders inside the polygon and can be useful to clearly represent adjacent polygon boundaries. The other settings for the outline simple line are the same as for simple line symbols.

Note

When geometry type is polygon, you can choose to disable the automatic clipping of lines/polygons to the canvas extent. In some cases this clipping results in unfavourable symbology (e.g. centroid fills where the centroid must always be the actual feature’s centroid).

Parametrizable SVG

You have the possibility to change the colors of a SVG marker. You have to add the placeholders param(fill) for fill color, param(fill-opacity) for fill opacity, param(outline) and param(outline-opacity) for stroke color and opacity respectively, and param(outline-width) for stroke width. These placeholders can optionally be followed by a default value, e.g.:

<svg width="100%" height="100%">
<rect fill="param(fill) #ff0000" fill-opacity="param(fill-opacity) 1" stroke="param(outline) #00ff00" stroke-opacity="param(outline-opacity) 1" stroke-width="param(outline-width) 10" width="100" height="100">
</rect>
</svg>

More generally, SVG can be freely parametrized using param(param_name). This param can either be used as an attribute value or a node text:

<g stroke-width=".265" text-anchor="middle" alignment-baseline="param(align)">
  <text x="98" y="147.5" font-size="6px">param(text1)</text>
  <text x="98" y="156.3" font-size="4.5px">param(text2)</text>
</g>

The parameters can then be defined as expressions in the Dynamic SVG parameters table.

../../../_images/svg_parameters.png

Fig. 14.21 Dynamic SVG parameters table

Note

QGIS is looking for a complete SVG node. So if your parameter is within a more complex node, you need to inject the complete node with the expression. For instance, transform="rotate(param(angle)" will not work. Instead, you need to do transform="param(rotation)" and rotation parameter will be defined with the expression 'rotate(' || coalesce(my_field, 0) || ')'.

The Geometry Generator

Available with all types of symbols, the geometry generator symbol layer allows to use expression syntax to generate a geometry on the fly during the rendering process. The resulting geometry does not have to match with the original Geometry type and you can add several differently modified symbol layers on top of each other.

A Units property can be set: when the geometry generator symbol is not applied to a layer (e.g., it is used on a layout item), this allows more control over the generated output.

Some examples:

  • Render symbol as the centroid of a feature

    centroid( $geometry )

  • Visually overlap features within a 100 map units distance from a point feature, i.e generate a 100m buffer around the point

    buffer( $geometry, 100 )

  • Create a radial effect of points surrounding the central feature point when used as a MultiPoint geometry generator

    collect_geometries(
     array_foreach(
      generate_series( 0, 330, 30 ),
      project( $geometry, 3, radians( @element ) )
     )
    )

    ../../../_images/radial_symbols.png
  • Create a radial effect of points surrounding the central feature point. The number of points varies based on a field.

    with_variable(
     'symbol_numbers',
     ceil(fid/10),
     collect_geometries(
      array_foreach(
       generate_series( 0, 360, 360/@symbol_numbers ),
       project( $geometry, 2, radians( @element ) )
      )
     )
    )

    ../../../_images/radial_symbols_datadefined.png

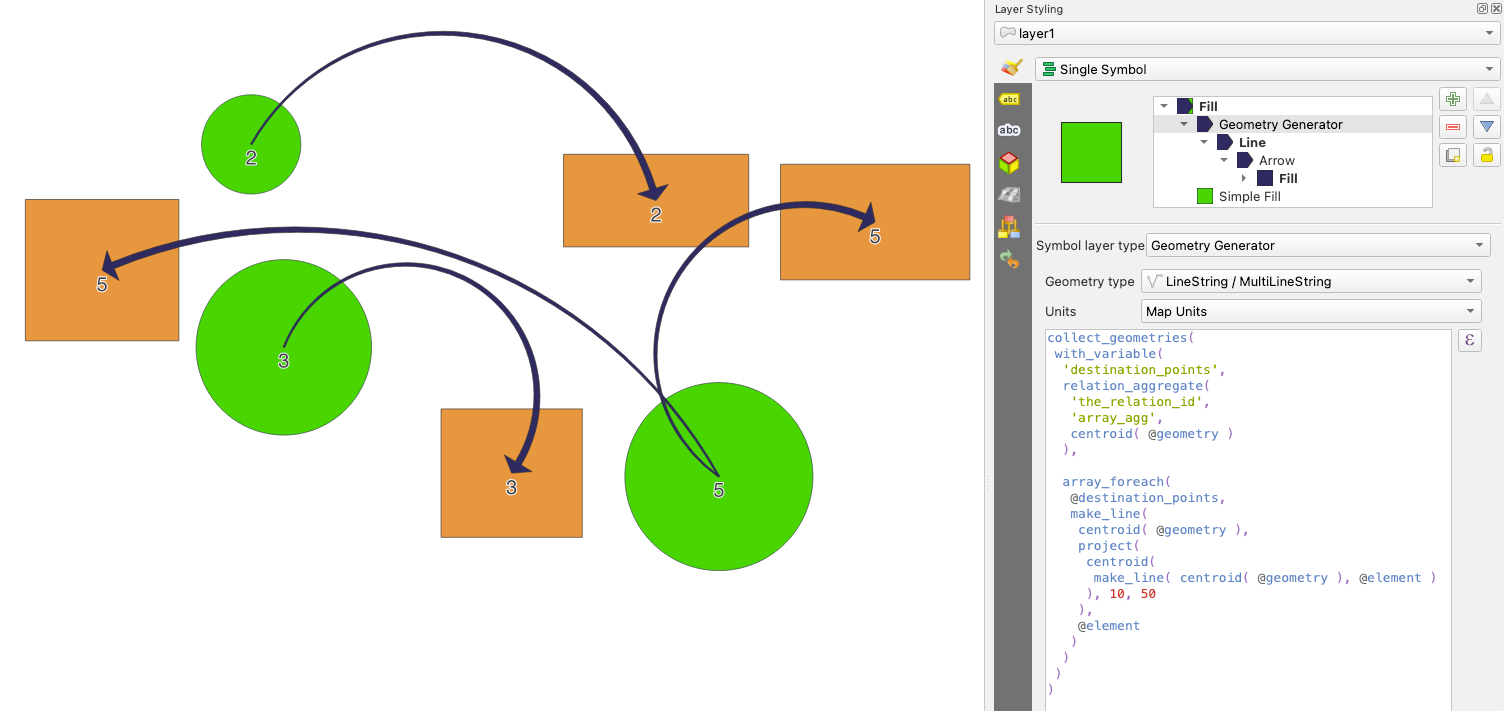

  • Create a curved arrow line connecting features of two layers based on their relation

    collect_geometries(
     with_variable(
      'destination_points',
      relation_aggregate(
       'the_relation_id',
       'array_agg',
       centroid( $geometry )
      ),
      array_foreach(
       @destination_points,
       make_line(
        centroid( @geometry ),
        project(
         centroid(
          make_line( centroid( @geometry ), @element )
         ),
         10, 50
        ),
        @element
       )
      )
     )
    )

    ../../../_images/arrow_relations.png

The Vector Field Marker

The vector field marker is used to display vector field data such as earth deformation, tidal flows, and the like. It displays the vectors as lines (preferably arrows) that are scaled and oriented according to selected attributes of data points. It can only be used to render point data; line and polygon layers are not drawn by this symbology.

The vector field is defined by attributes in the data, which can represent the field either by:

  • cartesian components (x and y components of the field)

  • or polar coordinates: in this case, attributes define Length and Angle. The angle may be measured either clockwise from north, or Counterclockwise from east, and may be either in degrees or radians.

  • or as height only data, which displays a vertical arrow scaled using an attribute of the data. This is appropriate for displaying the vertical component of deformation, for example.

The magnitude of field can be scaled up or down to an appropriate size for viewing the field.

Animated marker

Animated marker symbol type allows you to use a .GIF, .WebP, .MNG, etc. animation file to represent points on your map. You can specify:

  • File path,

  • Frame rate: number of steps that are shown per second, indicating how fast the animation is played,

  • Size in any supported unit,

  • Opacity,

  • Rotation,

  • Offset in x and y directions from the marker position,

  • Anchor point

There are two ways to handle animated symbols:

  • When your map is not configured as an animation (i.e. it’s a standard QGIS project without animations), the frame for the animated markers will be determined solely by the current timestamp.

    ../../../_images/animated_marker_map.gif

    Fig. 14.22 Animated marker when map is not configured as animation

  • When your map is configured as an animation, the animated markers will sync with the animation’s timeline. This means that animated markers will pause when the animation is paused, progress with the animation, and so forth. The map will also be redrawn according to the frame rate established for temporal animation. This mode is also applied when exporting an animation using the temporal controller.

    ../../../_images/animated_marker_animation.gif

    Fig. 14.23 Animated marker when map is configured as animation
