27.3. Appendix C: QGIS File Formats

27.3.1. QGS/QGZ - The QGIS Project File Format

The QGS format is an XML format for storing QGIS projects. The QGZ format is a compressed (zip) archive containing a QGS file and a QGD file. The QGD file is the associated sqlite database of the qgis project that contain auxiliary data for the project. If there are no auxiliary data, the QGD file will be empty.

A QGIS file contains everything that is needed for storing a QGIS project, including:

  • project title

  • project CRS

  • the layer tree

  • snapping settings

  • relations

  • the map canvas extent

  • project models

  • legend

  • mapview docks (2D and 3D)

  • the layers with links to the underlying datasets (data sources) and other layer properties including extent, SRS, joins, styles, renderer, blend mode, opacity and more.

  • project properties

The figures below show the top level tags in a QGS file and the expanded ProjectLayers tag.


Şekil 27.1 The top level tags in a QGS file


Şekil 27.2 The expanded top level ProjectLayers tag of a QGS file

27.3.2. QLR - The QGIS Layer Definition file

A Layer Definition file (QLR) is an XML file that contains a pointer to the layer data source in addition to QGIS style information for the layer.

The use case for this file is simple: To have a single file for opening a data source and bringing in all the related style information. QLR files also allow you to mask the underlying datasource in an easy to open file.

An example of QLR usage is for opening MS SQL layers. Rather than having to go to the MS SQL connection dialog, connect, select, load and finally style, you can simply add a .qlr file that points to the correct MS SQL layer with all the necessary style included.

In the future a .qlr file may hold a reference to more than one layer.

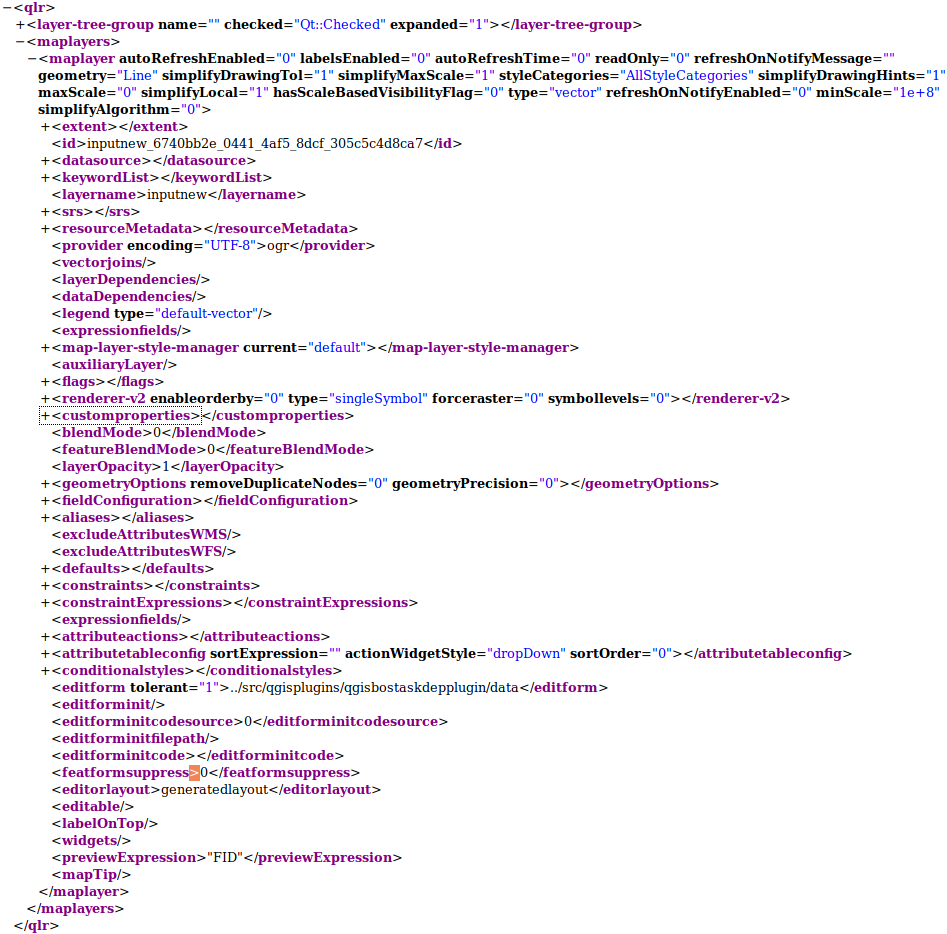

Şekil 27.3 The top level tags of a QLR file

27.3.3. QML - The QGIS Style File Format

QML is an XML format for storing layer styling.

A QML file contains all the information QGIS can handle for the rendering of feature geometries including symbol definitions, sizes and rotations, labelling, opacity and blend mode and more.

The figure below shows the top level tags of a QML file (with only renderer_v2 and its symbol tag expanded).


Şekil 27.4 The top level tags of a QML file (only the renderer_v2 tag with its symbol tag is expanded)
