# 4. Vektör Özellik Verisi¶

 Nesneler: In this topic we describe how attribute data are associated with vector features and can be used to symbolise data. Anahtar kelimeler: Attribute, database, fields, data, vector, symbology

## 4.1. Gözden geçir¶

If every line on a map was the same colour, width, thickness, and had the same label, it would be very hard to make out what was going on. The map would also give us very little information. Take a look at figure_map_attributes for example.

Şekil 4.1 Maps come to life when colour and different symbols are used to help you to tell one type of feature from the next. Can you tell the difference between rivers, roads and contours using the map on the left? Using the map on the right it is much easier to see the different features.

In this topic we will look at how attribute data can help us to make interesting and informative maps. In the previous topic on vector data, we briefly explained that attribute data are used to describe vector features. Take a look at the house pictures in figure_house.

Şekil 4.2 Every feature has characteristics that we can describe. These can be visible things, or things we know about the feature (e.g. year built).

The geometry of these house features is a polygon (based on the floor plan of the house), the attributes we have recorded are roof colour, whether there is a balcony, and the year the house was built. Note that attributes don’t have to be visible things –– they can describe things we know about the feature such as the year it was built. In a GIS Application, we can represent this feature type in a houses polygon layer, and the attributes in an attribute table (see figure_house_gis).

Şekil 4.3 A houses layer. House features have attributes that describe the houses’ roof colour and other properties. The attribute table (lower image) lists the attributes for the house areas shown on the map. When a feature is highlighted in the table, it will appear as a yellow polygon on the map.

The fact that features have attributes as well geometry in a GIS Application opens up many possibilities. For example we can use the attribute values to tell the GIS what colours and style to use when drawing features (see figure_style_by_attribute). The process of setting colours and drawing styles is often referred to as setting feature symbology.

Şekil 4.4 In a GIS Application, we can draw features differently depending on their attributes. On the left we have drawn house polygons with the same colour as the roof attribute. On the right we colour coded houses according to whether they have a balcony or not.

Attribute data can also be useful when creating map labels. Most GIS Applications will have a facility to select an attribute that should be used to label each feature.

If you have ever searched a map for a place name or a specific feature, you will know how time consuming it can be. Having attribute data can make searching for a specific feature quick and easy. In figure_search_by_attribute you can see an example of an attribute search in a GIS.

Şekil 4.5 In a GIS Application, we can also search for features based on their attributes. Here we see a search for houses with black roofs. Results are shown in yellow in the map, turquoise on the table.

Finally, attribute data can be very useful in carrying out spatial analysis. Spatial analysis combines the spatial information stored in the geometry of features with their attribute information. This allows us to study features and how they relate to each other. There are many types of spatial analysis that can be carried out, for example, you could use GIS to find out how many red roofed houses occur in a particular area. If you have tree features, you could use GIS to try to find out which species might be affected if a piece of land is developed. We can use the attributes stored for water samples along a river course to understand where pollution is entering into the stream. The possibilities are endless! In a later topic we will be exploring spatial analysis in more detail.

Before we move on to attribute data in more detail, let’s take a quick recap.

Features are real world things such as roads, property boundaries, electrical substation sites and so on. A feature has a geometry (which determines if it is a point, polyline or polygon) and attributes (which describe the feature). This is shown in figure_features_at_glance.

Şekil 4.6 Vector features at a glance.

## 4.2. Attributes in detail¶

Attributes for a vector feature are stored in a table. A table is like a spreadsheet. Each column in the table is called a field. Each row in the table is a record. Table table_house_attributes shows a simple example of how an attribute table looks in a GIS. The records in the attribute table in a GIS each correspond to one feature. Usually the information in the attribute table is stored in some kind of database. The GIS application links the attribute records with the feature geometry so that you can find records in the table by selecting features on the map, and find features on the map by selecting features in the table.

Attribute Table

Field 1 : YearBuilt

Field 2: RoofColour

Field 3: Balcony

Record 1

1998

Red

Yes

Record 2

2000

Black

No

Record 3

2001

Silver

Yes

Table House Attributes: An attribute table has fields (columns) and records (in rows).

Each field in the attribute table contains contains a specific type of data –– text, numeric or date. Deciding what attributes to use for a feature requires some thought and planning. In our house example earlier on in this topic, we chose roof colour, presence of a balcony and month of construction as attributes of interest. We could just as easily have chosen other aspects of a house such as:

• number of levels

• number of rooms

• number of occupants

• type of dwelling (RDP House, block of flats, shack, brick house, etc)

• year the house was built

• area of floor space in the house

• and so on….

With so many options, how do we make a good choice as to what attributes are needed for a feature? It usually boils down to what you plan to do with the data. If you want to produce a colour coded map showing houses by age, it will make sense to have a ‘Year Built’ attribute for your feature. If you know for sure you will never use this type of map, it is better to not store the information. Collecting and storing unneeded information is a bad idea because of the cost and time required to research and capture the information. Very often we obtain vector data from companies, friends or the government. In these cases it is usually not possible to request specific attributes and we have to make do with what we get.

## 4.3. Single Symbols¶

If a feature is symbolised without using any attribute table data, it can only be drawn in a simple way. For example with point features you can set the colour and marker (circle, square, star etc.) but that is all. You cannot tell the GIS to draw the features based on one of its properties in the attribute table. In order to do that, you need to use either a graduated, continuous or unique value symbol. These are described in detail in the sections that follow.

A GIS application will normally allow you to set the symbology of a layer using a dialog box such as the one shown in in figure_single_symbol. In this dialog box you can choose colours and symbol styles. Depending on the geometry type of a layer, different options may be shown. For example with point layers you can choose a marker style. With line and polygon layers there is no marker style option, but instead you can select a line style and colour such as dashed orange for gravel roads, solid orange for minor roads, and so on (as shown in figure_single_symbol_poly). With polygon layers you also have the option of setting a fill style and color.

Şekil 4.7 When using simple symbols, the feature is drawn without using an attribute to control how it looks. This is the dialog for point features.

Şekil 4.8 There are different options when defining simple symbols for polyline and polygon features.

Sometimes vector features represent things with a changing numerical value. Contour lines are a good example of this. Each contour usually has an attribute value called ‘height’ that contains information about what height that contour represents. In earlier in this topic we showed contours all drawn with the same colour. Adding colour to the contours can help us to interpret the meanings of contours. For example we can draw low lying areas with one colour, mid-altitude areas with another and high-altitude areas with a third.

Şekil 4.9 The height attribute of contours can be used to separate the contours into 3 classes. Contours between 980 m and 1120 m will be drawn in brown, those between 1120 m and 1240 m in green and those between 1240 m and 1500 m in purple.

Şekil 4.10 Our map after setting graduated colours for our contours.

Setting colours based on discrete groups of attribute values is called Graduated Symbology in QGIS. The process is shown in Illustrations figure_graduated_symbol and figure_graduated_symbol_map. Graduated symbols are most useful when you want to show clear differences between features with attribute values in different value ranges. The GIS Application will analyse the attribute data (e.g. height) and, based on the number of classes you request, create groupings for you. This process is illustrated in table_graduated.

Attribute Value

Class and Colour

1

Class 1

2

Class 1

3

Class 1

4

Class 2

5

Class 2

6

Class 2

7

Class 3

8

Class 3

9

Class 3

Table Graduated: Graduated colour breaks up the attribute value ranges into the number of classes you select. Each class is represented by a different colour.

## 4.5. Continuous Colour Symbols¶

In the previous section on Graduated Colour symbols we saw that we can draw features in discrete groups or classes. Sometimes it is useful to draw features in a colour range from one colour to another. The GIS Application will use a numerical attribute value from a feature (e.g. contour heights or pollution levels in a stream) to decide which colour to use. Table table_continuous shows how the attribute value is used to define a continuous range of colours.

Attribute Value

Colour (no classes or grouping)

1

2

3

4

5

6

7

8

9

Table Continuous: Continuous colour symbology uses a start colour (e.g. light orange shown here) and an end colour (e.g. dark brown shown here) and creates a series of shades between those colours.

Using the same contours example we used in the previous section, let’s see how a map with continuous colour symbology is defined and looks. The process starts by setting the layers properties to continuous colour using a dialog like the one shown in figure_continuous_symbol.

Şekil 4.11 Setting up continuous colour symbology. The contour height attribute is used to determine colour values. Colours are defined for the minimum and maximum values. The GIS Application will then create a gradient of colours for drawing the features based on their heights.

After defining the minimum and maximum colours in the colour range, the colour features are drawn in will depend on where the attribute lies in the range between minimum and maximum. For example if you have contour features with values starting at 1000 m and ending at 1400 m, the value range is 1000 to 1400. If the colour set for the minimum value is set to orange and the colour for the maximum value is black, contours with a value of close to 1400 m will be drawn close to black. On the other hand contours with a value near to 1000 m will be drawn close to orange (see figure_continuous_symbol_map).

Şekil 4.12 A contour map drawn using continuous colour symbology

## 4.6. Unique Value Symbols¶

Sometimes the attributes of features are not numeric, but instead strings are used. ‘String’ is a computer term meaning a group of letters, numbers and other writing symbols. Strings attributes are often used to classify things by name. We can tell the GIS Application to give each unique string or number its own colour and symbol. Road features may have different classes (e.g. ‘street’, ‘secondary road’, ‘main road’ etc.), each drawn in the map view of the GIS with different colours or symbols. This is illustrated in table_unique.

Attribute Value

Colour class and symbol

Arterial route

Street

Table Unique: Unique attribute values for a feature type (e.g. roads) can each have their own symbol.

Within the GIS Application we can open/choose to use Unique Value symbology for a layer. The GIS will scan through all the different string values in the attribute field and build a list of unique strings or numbers. Each unique value can then be assigned a colour and style. This is shown in figure_unique_symbol.

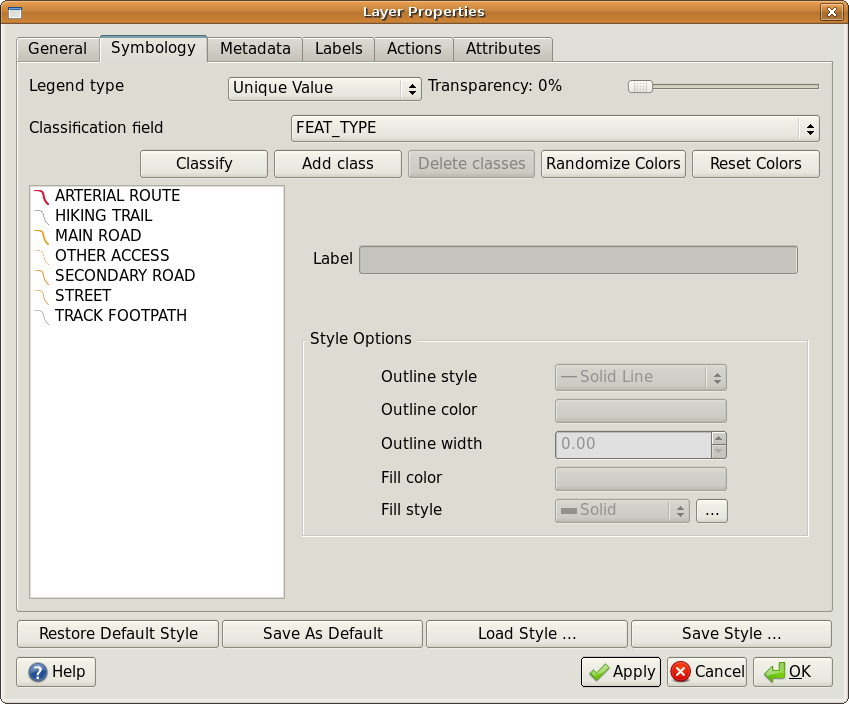

Şekil 4.13 Defining unique value symbology for roads based on the road type.

When the GIS draws the layer, it will look at the attributes of each feature before drawing it to the screen. Based on the value in the chosen field in the attribute table, the road line will be drawn with suitable colour and line style (and fill style if its a polygon feature). This is shown in figure_unique_symbol_map.

Şekil 4.14 A roads vector layer symbolised using a unique value per road type.

## 4.7. Things to be aware of¶

Deciding which attributes and symbology to use requires some planning. Before you start collecting any GeoSpatial data, you should ensure you know what attributes are needed and how it will be symbolised. It is very difficult to go back and re-collect data if you plan poorly the first time around. Remember also that the goal of collecting attribute data is to allow you to analyse and interpret spatial information. How you do this depends on the questions you are trying to answer. Symbology is a visual language that allows people to see and understand your attribute data based on the colours and symbols you use. Because of this you should put a lot of thought into how you symbolise your maps in order to make them easy to understand.

## 4.8. Neler öğrendik ?¶

Bu çalışma sayfasında ele aldığımız şeyleri toplayalım:

• Vector features have attributes

• Attributes describe the properties of the feature

• The attributes are stored in a table

• Rows in the table are called records

• There is one record per feature in the vector layer

• Columns in the table are called fields

• Fields represent properties of the feature e.g. height, roof colour etc.

• Fields can contain numerical, string (any text) and date information

• The attribute data for a feature can be used to determine how it is symbolised

• Graduated colour symbology groups the data into discrete classes

• Continuous colour symbology assigns colours from a colour range to the features based on their attributes

• Unique value symbology associates each different value in the chosen attribute column with a different symbol (colour and style)

• If the attribute of a vector layer is not used to determine its symbology, it is drawn using a single symbol only

## 4.9. Şimdi deneyin !¶

İşte öğrencilerinizle denemeniz için bazı fikirler:

• Using the table that you created in the last topic, add a new column for the symbology type you would use for each feature type and have the learners identify which symbology type they would use (see table_example_symbols for an example).

• Try to identify which symbology types you would use for the following types of vector features:

• points showing pH level of soil samples taken around your school

• lines showing a road network in a city

• polygons for houses with an attribute that shows whether it is made of brick, wood or ‘other’ material.

Real world feature

Geometri Tipi

Symbology Type

The school flagpole

Point

Single Symbol

The soccer field

Polygon

Single Symbol

The footpaths in and around the school

Polyline

Have your learners count the number of learners using each footpath in the hour before school and then use graduated symbols to show the popularity of each footpath

Places where taps are located

Point

Single symbol

Classrooms

Polygon

Unique value based on the grade of the learners in the classroom

Fence

Polyline

Have your learners rate the condition of the fence around your school by separating it into sections and grading each section on a scale of 1-9 based on its condition. Use graduated symbols to classify the condition attribute.

Classrooms

Polygon

Count the number of learners in each classroom and use a continuous colour symbol to define a range of colours from red to blue.

Table Example Symbols: An example of a table that defines the feature types and the kind of symbology you would use for each.

## 4.10. Düşünmek için bir şey¶

If you don’t have a computer available, you can use transparency sheets and a 1:50 000 map sheet to experiment with different symbology types. For example place a transparency sheet over the map and using different coloured koki pens, draw in red all contour lines below 900 m (or similar) and in green all lines above or equal to 900 m. Can you think of how to reproduce other symbology types using the same technique?

## 4.11. Göster¶

The QGIS User Guide also has more detailed information on working with attribute data and symbology in QGIS.
