12.1. Lesson: GRASS Setup¶
Using GRASS in QGIS requires you to think of the interface in a slightly different way. Remember that you're not working in QGIS directly, but working in GRASS via QGIS. Hence, make sure you have installed QGIS Desktop with Grass support.
The goal for this lesson: To begin a GRASS project in QGIS.
12.1.1. Follow Along: Start a New GRASS Session¶
To launch GRASS from within QGIS, you need to activate it as with any other plugin:
First, open a new QGIS project.
In the Plugin Manager, enable GRASS in the list:
The GRASS toolbar and the GRASS panel will appear:
The GRASS panel is not active because, before you can use GRASS, you need to
Mapset. GRASS always works in a database environment, which means
that you need to import all the data you want to use into a GRASS database.
The GRASS database has a straightforward structure, even if at a first look it
seems very complicated. The most important thing you should know is that the
upper level of the database is the
Location can contain
Mapset: in every
Mapset you will find the
Mapset because it is created by default by GRASS. Each
Mapset contains the
data (raster, vector, etc) in a particular structure, but don't worry, GRASS will
take care of this for you.
Mapset that contains the data. For more
information visit the GRASS website.
12.1.2. Follow Along: Start a New GRASS Project¶
Click on the Plugins --> GRASS --> New Mapset menu:
You'll be asked to choose the location of the GRASS database.
Set it as the directory that will be used by GRASS to set up its database:
GRASS needs to create a
Location, which describes the maximum extent of the
geographic area you'll be working in, also known as Grass
the Region is extremely important for GRASS because it describes the area in which all layers will be taken into account for GRASS. Everything that is outside will not be considered. Don't worry, you can always change the extent of the GRASS Region after the Location has been created

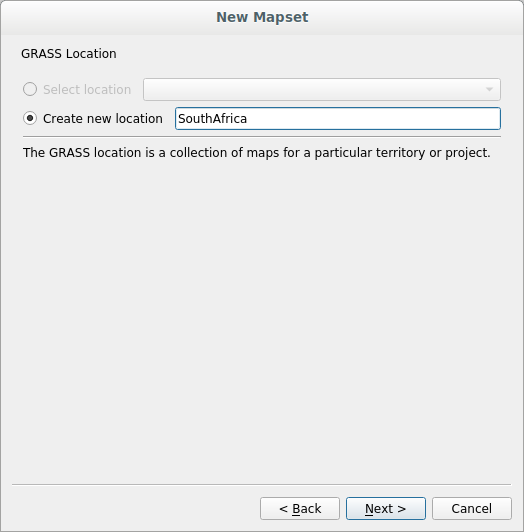

Call the new location
We'll be working with
WGS 84, so search for and select this CRS:

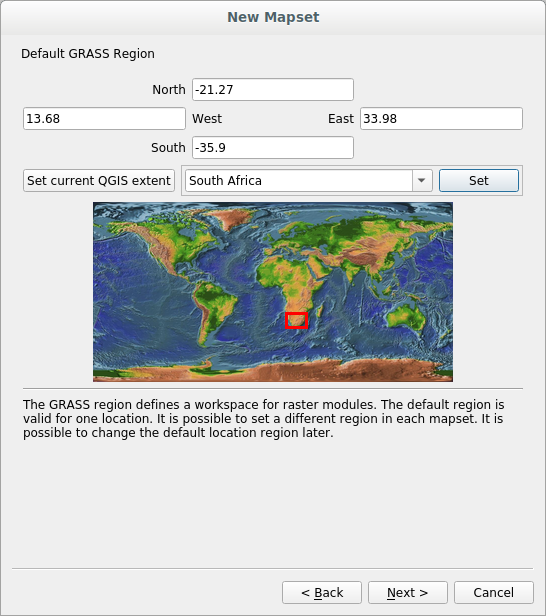

Now select the region South Africa from the dropdown and click Set:
Create a mapset, which is the map file that you'll be working with.
Once you're done, you'll see a dialog asking with a summary of all the information entered.
Click OK on the success dialog.
You will see that the GRASS Panel will become active and you can start to use all GRASS tools.
12.1.3. Follow Along: Loading Vector Data into GRASS¶
You have now a blank map and before you can start to use all the GRASS tools
you have to load data into the GRASS database, specifically into the
You cannot use GRASS tools with layer that are not loaded into a GRASS
There are many different ways to load data in the GRASS database. Let's start with the first one.
188.8.131.52. Follow Along: Load data using the QGIS Browser¶
In section The Browser Panel we saw that the easiest and quickest way to load the data in QGIS is the Browser Panel.
GRASS data are recognized from the QGIS Browser as real GRASS data and you can notice it because you will see the GRASS icon next to the GRASS Mapset. Moreover you will see the icon next to the Mapset that is opened.
You can easily drag and drop layers from a folder to the GRASS Mapset.
Let's try to import the
roads layer into the
Go to the Browser, and simply drag the
roads layer from the
training_data.gpkg GeoPackage file into the
That's it! If you expand the Mapset you will see the imported
layer. You can now load in QGIS the imported layer like all the other layers.
You can also load layers from the Layer Legend Panel to Mapset in the Browser Panel. This will speed up incredibly your workflow!
184.108.40.206. Follow Along: Load data using the GRASS Panel¶
We will use now the long method to load the
rivers.shp layer into the
Load data into QGIS as usual. Use the
rivers.shpdataset (found in the
As soon as it is loaded, click on the Filter box of the
GRASS Paneland find the vector import tool by entering the term
There are 2 similar tools:
v.in.ogr.qgis.loc. We are looking for the first one.
vstands for vector,
inmeans a function to import data into the GRASS database,
ogris the software library used to read vector data, and
qgismeans that the tool will look for a vector from among the vectors already loaded into QGIS.
Once you've found this tool, click on it to bring up the tool itself. Choose the rivers layer in the Loaded Layer box and type and name it
g_riversto prevent confusion:
Note the extra import options provided under Advanced Options. These include the ability to add a WHERE clause for the SQL query used for importing the data.
Click Run to begin the import.
When it's done, click the View output button to see the newly imported GRASS layer in the map.
Close first the import tool (click the Close button to the immediate right of View output), then close the GRASS Tools window.
Remove the original rivers layer.
Now you are left with only the imported GRASS layer as displayed in your QGIS map.
12.1.4. Follow Along: Loading Raster Data into GRASS¶
You can import a raster layer in the same ways we imported vector layers.
We are going to import in the GRASS Mapset the layer
the raster layer is already in the correct CRS,
WGS 84. If you
have layers in different CRS you must reproject them in the same CRS of the
srtm_41_19_4326.tiflayer in QGIS
Open the GRASS Tools dialog again.
Click on the Modules List tab.
r.in.gdal.qgisand double click the tool to open the tool's dialog.
Set it up so that the input layer is
srtm_41_19_4326.tifand the output is

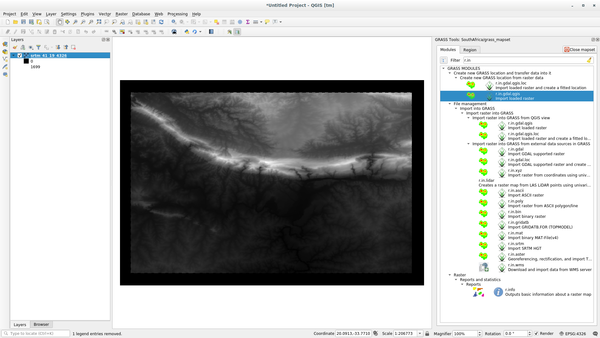

When the process is done, click View output.
Close the current tab, and then Close the whole dialog.
You may now remove the original
12.1.5. Try Yourself Add Layers to Mapset¶
Try to import in the GRASS Mapset the vector layers
places.shp from the
exercise_data/shapefile/ folder. As we did
rivers rename the imported layer as
to avoid confusion
12.1.6. Open an existing GRASS Mapset¶
If you have an existing GRASS Mapset you can easily reopen it in another session of QGIS.
You have several method to open a GRASS Mapset, let's explore some of them.
Let's close the Mapset by clicking on the Close Mapset button of the GRASS Tools window.
220.127.116.11. Follow Along: Using the GRASS plugin¶
Click on the Plugins --> GRASS --> Open Mapset menu next to the Plugins --> GRASS --> New Mapset menu that we saw in the previous section.
Browse to the GRASS database folder: be careful! You must choose the parent folder, not the GRASS Mapset one. Indeed GRASS will read all the
Locationsof the database and all the
LocationSouthAfrica and the
Mapsetgrass_mapset that we have created before.
That's it! The GRASS Panel will become active meaning that the Mapset has been correctly opened.
18.104.22.168. Follow Along: Using the QGIS Browser¶
Even faster and easier is opening a
Mapset using the QGIS Browser:
Close the Mapset (if it is open) by clicking on the Close Mapset button of the GRASS Tools window.
In the QGIS Browser, browse to the folder of the GRASS database.
Click on Open mapset:
The Mapset is now open and ready to use!
Right click on a GRASS Mapset offers you a lot of different settings. Try to explore them and see all the useful options.
12.1.7. In Conclusion¶
The GRASS workflow for ingesting data is somewhat different from the QGIS method because GRASS loads its data into a spatial database structure. However, by using QGIS as a frontend, you can make the setup of a GRASS mapset easier by using existing layers in QGIS as data sources for GRASS.
12.1.8. What's Next?¶
Now that the data is imported into GRASS, we can look at the advanced analysis operations that GRASS offers.
