9.2. Lesson: 유용한 QGIS 플러그인¶
이제 플러그인을 설치하고 활성화/비활성화할 수 있게 됐으니, 몇몇 유용한 플러그인의 예제를 통해 어떻게 활용할 수 있는지 배워보겠습니다.
이 강의의 목표: 플러그인 인터페이스에 익숙해지고 몇몇 유용한 플러그인에 대해 배우기.
9.2.1. Follow Along: The QuickMapServices Plugin¶
The QuickMapServices plugin is a simple and easy to use plugin that adds base maps to your QGIS project. It has many different options and settings, let’s start to explore some of its features.
Start a new map and add the roads layer from the
Install the QuickMapServices plugin.
Open the plugin’s search tab by clicking on. This option of the plugin allows you to filter the available base maps by the current extent of the map canvas.
Click on the Filter by extent and you should see one service available.
Click on the Add button next to the map to load it.
The base map will be loaded and you will have a satellite background for the map.
The QuickMapServices plugin makes a lot of base maps available.
Close the Search QMS panel we opened before
Click again on. The first menu lists different map providers with available maps:
But there is more.
If the default maps are not enough for you, you can add other map providers.
Click on More services tab.and go to the
Read carefully the message of this tab and if you agree click on the Get Contributed pack button.
If you now open themenu you will see that more providers are available. Choose the one that best fits your needs!
9.2.2. Follow Along: The QuickOSM Plugin¶
With an incredible simple interface, the QuickOSM plugin allows you to download OpenStreetMap data.
Start a new empty project and add the roads layer from the
Install the QuickOSM plugin. The plugin adds two new buttons in the QGIS Toolbar and is accessible in themenu.
Open the QuickOSM dialog. The plugin has many different tabs: we will use the Quick Query one.
You can download specific features by selecting a generic Key or be more specific and choose a specific Key and Value pair.
if you are not familiar with the Key and Value system, click on the Help with key/value button. It will open a web page with a complete description of this concept of OpenStreetMap.
Look for railway in the Key menu and let the Value be empty: so we are downloading all the railway features without specifying any values.
Select Layer Extent in the next drop-down menu and choose roads.
Click on the Run query button.
After some seconds the plugin will download all the features tagged in OpenStreetMap
railway and load them directly into the map.
Nothing more! All the layers are loaded in the legend and are shown in the map canvas.
9.2.3. Follow Along: The QuickOSM Query engine¶
The quickest way to download data from QuickOSM plugin is using the Quick query tab and set some small parameters. But if you need some more specific data?
If you are an OpenStreetMap query master you can use QuickOSM plugin also with your personal queries.
QuickOSM has an incredible data parser that, together with the amazing query engine of Overpass, lets you download data with your specific needs.
For example: we want to download the mountain peaks that belongs into a specific mountain area known as Dolomites.
You cannot achieve this task with the Quick query tab, you have to be more specific and write your own query. Let’s try to do this.
Start a new project.
Open the QuickOSM plugin and click on the Query tab.
Copy and paste the following code into the query canvas:
<!-- This shows all mountains (peaks) in the Dolomites. You may want to use the "zoom onto data" button. => --> <osm-script output="json"> <!-- search the area of the Dolomites --> <query type="area"> <has-kv k="place" v="region"/> <has-kv k="region:type" v="mountain_area"/> <has-kv k="name:en" v="Dolomites"/> </query> <print mode="body" order="quadtile"/> <!-- get all peaks in the area --> <query type="node"> <area-query/> <has-kv k="natural" v="peak"/> </query> <print mode="body" order="quadtile"/> <!-- additionally, show the outline of the area --> <query type="relation"> <has-kv k="place" v="region"/> <has-kv k="region:type" v="mountain_area"/> <has-kv k="name:en" v="Dolomites"/> </query> <print mode="body" order="quadtile"/> <recurse type="down"/> <print mode="skeleton" order="quadtile"/> </osm-script>
This query is written in a
xmllike language. If you are more used to the
Overpass QLyou can write the query in this language.
And click on Run Query:
The mountain peaks layer will be downloaded and shown in QGIS:
You can write complex queries using the Overpass Query language. Take a look at some example and try to explore the query language.
9.2.4. Follow Along: The DataPlotly Plugin¶
Start a new project
Load the sample_points layer from the
Install the plugin following the guidelines described in Follow Along: 새 플러그인 설치 searching Data Plotly
Open the plugin by clicking on the new icon in the toolbar or in themenu
In the following example we are creating a simple
Scatter Plot of two fields
of the sample_points layer.
In the DataPlotly Panel:
Choose sample_points in the Layer filter, cl for the X Field and mg for the Y Field:
If you want you can change the colors, the marker type, the transparency and many other settings: try to change some parameters to create the plot below.
Once you have set all the parameters, click on the Create Plot button to create the plot.
The plot is interactive: this means you can use all the upper buttons to resize, move, or zoom in/out the plot canvas. Moreover, each element of the plot is interactive: by clicking or selecting one or more point on the plot, the corresponding point(s) will be selected in the plot canvas.
There is more. Sometimes it can be useful to have two (or more) plots showing different plot types with different variables on the same page. Let’s do this!

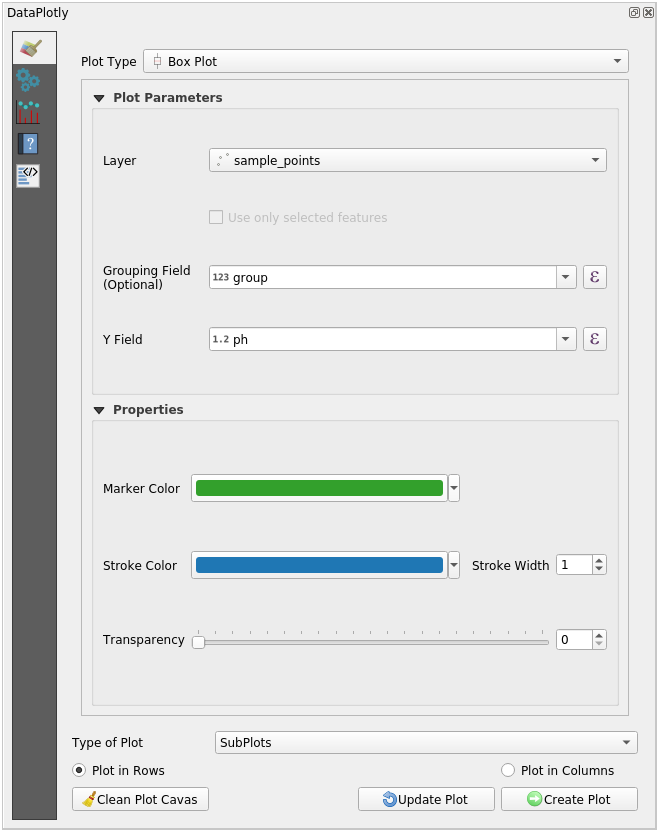

Change the Plot Type to Box Plot
Choose group as Grouping Field and ph as Y Field
In the lower part of the panel, change the Type of Plot from SinglePlot to SubPlots and let the default option Plot in Rows selected.
Once done click on the Create Plot button to draw the plot
Now both scatter plot and box plot are shown in the same plot page. You still have the chance to click on each plot item and select the corresponding features in the map canvas.
9.2.5. In Conclusion¶
QGIS에서 사용할 수 있는 유용한 플러그인들이 많이 있습니다. 이 플러그인들을 설치하고 관리하기 위한 내장 도구를 사용하면, 새 플러그인을 찾아 최대한 활용할 수 있습니다.
9.2.6. What’s Next?¶
다음으로 원격 서버에 존재하는 레이어를 실시간으로 이용하는 방법을 배워보겠습니다.
